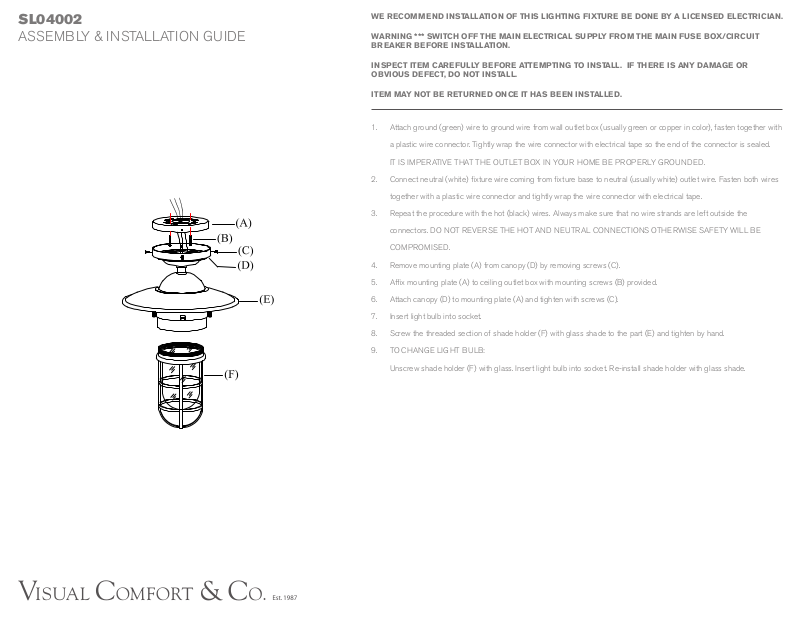

SL04002
ASSEMBLY & INSTALLATION GUIDE
WE RECOMMEN D INSTALLATION OF THIS LIGHTING FIXTUR E BE DON E BY A LICENSED ELECTRICIAN.
WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUS E BOX/CIRCUIT
BREAKER BE FORE INSTALLATION.
INSPECT ITEM CAREFULLY BE FORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR
OBVIOUS DEFECT, DO NOT INSTALL.
ITEM MAY NOT BE RETURNED ONCE IT HAS B EEN INSTALLED.
1. Attach ground (green) wire to ground wire from wall outlet box (usually green or copper in color), fasten together with
a plastic wire connector. Tightly wrap the wire connector with electrical tape so the end of the connector is sealed.
IT IS IMPERATIVE THAT THE OUTLET BOX IN YOUR HOME BE PROPERLY GROUNDED.
2. Connect neutral (white) fixture wire coming from fixture base to neutral (usually white) outlet wire. Fasten both wires
together with a plastic wire connector and tightly wrap the wire connector with electrical tape.
3. Repeat the procedure with the hot (black) wires. Always make sure that no wire strands are left outside the
connectors. DO NOT REVERSE THE HOT AND NEUTRAL CONNECTIONS OTHERWISE SAFETY WILL BE
COMPROMISED.
4. Remove mounting plate (A) from canopy (D) by removing screws (C).
5. Affix mounting plate (A) to ceiling outlet box with mounting screws (B) provided.
6. Attach canopy (D) to mounting plate (A) and tighten with screws (C).
7. Insert light bulb into socket.
8. Screw the threaded section of shade holder (F) with glass shade to the part (E) and tighten by hand.
9. TO CHANGE LIGHT BULB:
Unscrew shade holder (F) with glass. Insert light bulb into socket. Re-install shade holder with glass shade.
