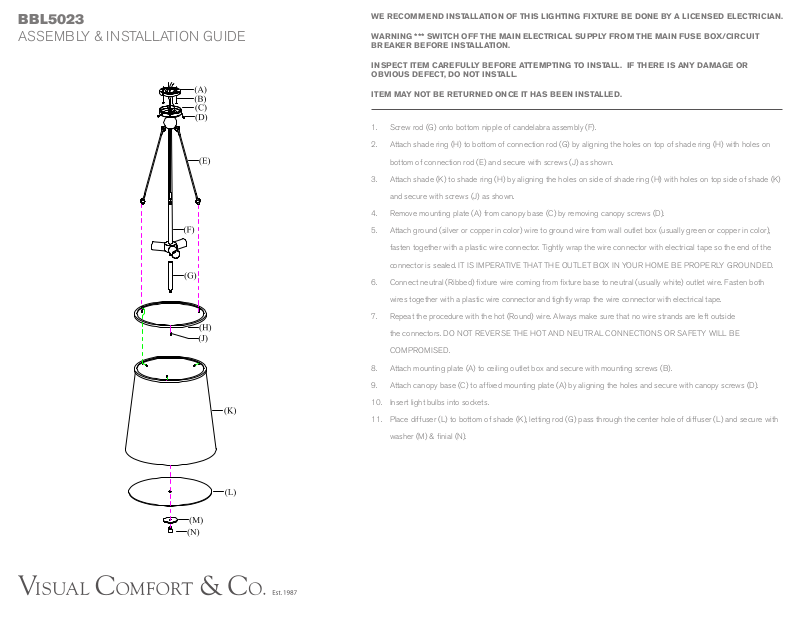

BBL5023

ASSEMBLY & INSTALLATION GUIDE

WE RECOMMEN D INSTALLATION OF THIS LIGHTING FIXTUR E BE DON E BY A LICENS ED ELECTRICIAN.

WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUS E BOX/CIRCUIT BREAKER BE FORE I NSTALLATION.

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THE RE IS ANY DAMAGE OR OBVIOUS DEFECT, DO NOT INSTALL.

ITEM MAY NOT BE RETURNED ONCE IT HAS B EEN INSTALLED.

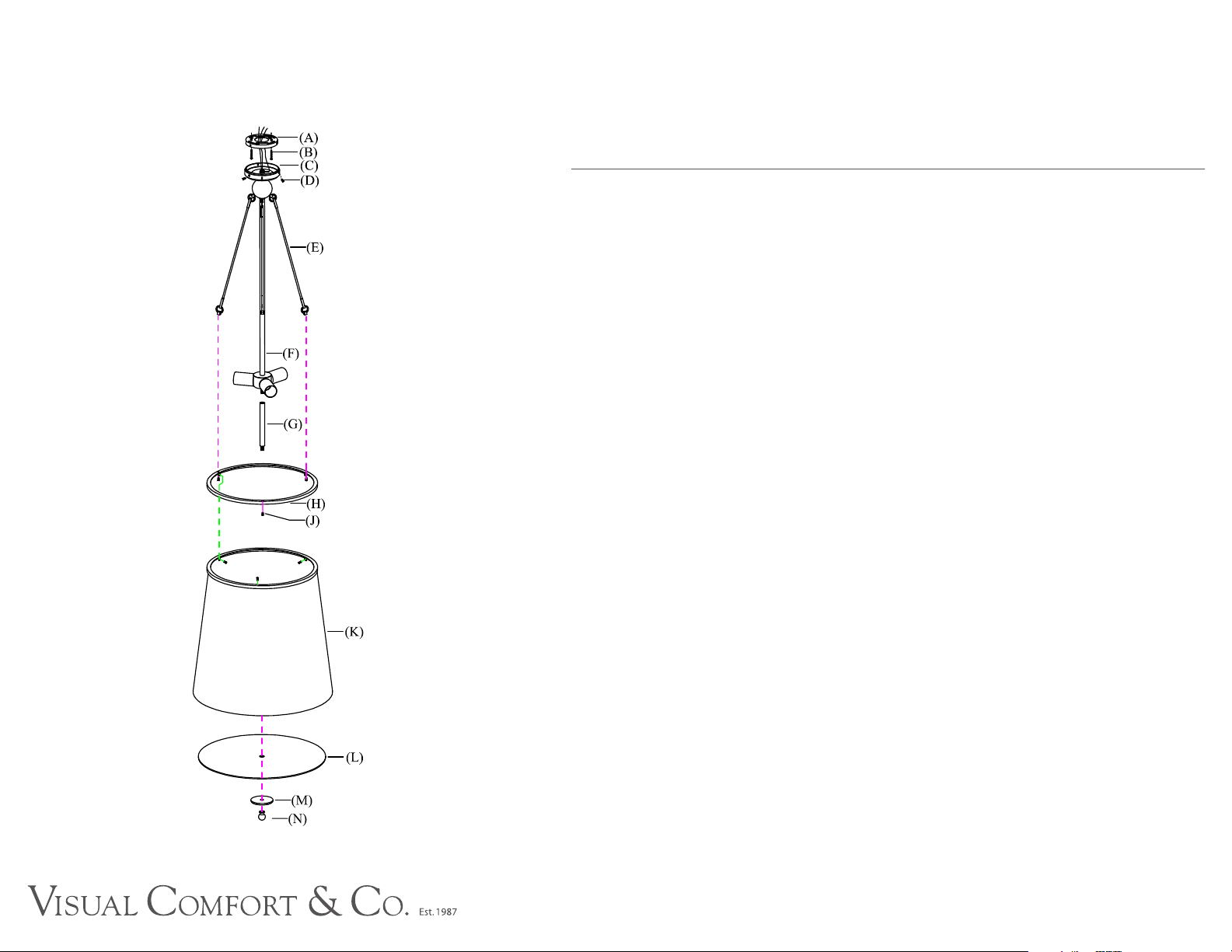

1. Screw rod (G) onto bottom nipple of candelabra assembly (F).

2. Attach shade ring (H) to bottom of connection rod (G) by aligning the holes on top of shade ring (H) with holes on

bottom of connection rod (E) and secure with screws (J) as shown.

3. Attach shade (K) to shade ring (H) by aligning the holes on side of shade ring (H) with holes on top side of shade (K)

and secure with screws (J) as shown.

4. Remove mounting plate (A) from canopy base (C) by removing canopy screws (D).

5. Attach ground (silver or copper in color) wire to ground wire from wall outlet box (usually green or copper in color),

fasten together with a plastic wire connector. Tightly wrap the wire connector with electrical tape so the end of the

connector is sealed. IT IS IMPERATIVE THAT THE OUTLET BOX IN YOUR HOME BE PROPERLY GROUNDED.

6. Connect neutral (Ribbed) ﬁxture wire coming from ﬁxture base to neutral (usually white) outlet wire. Fasten both

wires together with a plastic wire connector and tightly wrap the wire connector with electrical tape.

7. Repeat the procedure with the hot (Round) wire. Always make sure that no wire strands are left outside

the connectors. DO NOT REVERSE THE HOT AND NEUTRAL CONNECTIONS OR SAFETY WILL BE

COMPROMISED.

8. Attach mounting plate (A) to ceiling outlet box and secure with mounting screws (B).

9. Attach canopy base (C) to afﬁxed mounting plate (A) by aligning the holes and secure with canopy screws (D).

10. Insert light bulbs into sockets.

11. Place diffuser (L) to bottom of shade (K), letting rod (G) pass through the center hole of diffuser (L) and secure with

washer (M) & ﬁnial (N).
