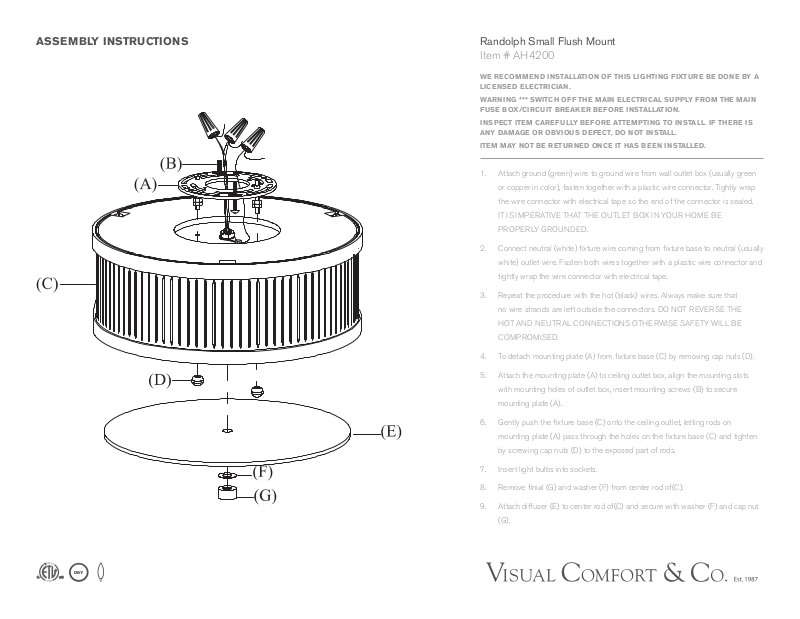

ASSEMBLY INSTRUCTIONS
DRY
Randolph Small Flush Mount
Item # AH4200
WE RECOMMEN D INSTALLATION OF THIS LIGHTI NG FIXTUR E BE DON E BY A
LICENSED E LECTRICIAN.
WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN
FUSE BOX/CIRCUIT BR EAKER B EFOR E INSTALLATION.
INS PECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THE RE IS
ANY DAMAGE OR OBVIOUS DE FECT, DO NOT INSTALL.
ITEM MAY NOT BE RETURN ED ONCE IT HAS B EEN INSTALLED.
1. Attach ground (green) wire to ground wire from wall outlet box (usually green
or copper in color), fasten together with a plastic wire connector. Tightly wrap
the wire connector with electrical tape so the end of the connector is sealed.
IT IS IMPERATIVE THAT THE OUTLET BOX IN YOUR HOME BE
PROPERLY GROUNDED.
2. Connect neutral (white) fixture wire coming from fixture base to neutral (usually
white) outlet wire. Fasten both wires together with a plastic wire connector and
tightly wrap the wire connector with electrical tape.
3. Repeat the procedure with the hot (black) wires. Always make sure that
no wire strands are left outside the connectors. DO NOT REVERSE THE
HOT AND NEUTRAL CONNECTIONS OTHERWISE SAFETY WILL BE
COMPROMISED.
4. To detach mounting plate (A) from fixture base (C) by removing cap nuts (D).
5. Attach the mounting plate (A) to ceiling outlet box, align the mounting slots
with mounting holes of outlet box, insert mounting screws (B) to secure
mounting plate (A).
6. Gently push the fixture base (C) onto the ceiling outlet, letting rods on
mounting plate (A) pass through the holes on the fixture base (C) and tighten
by screwing cap nuts (D) to the exposed part of rods.
7. Insert light bulbs into sockets.
8. Remove finial (G) and washer (F) from center rod of(C).
9. Attach diffuser (E) to center rod of(C) and secure with washer (F) and cap nut
(G).
