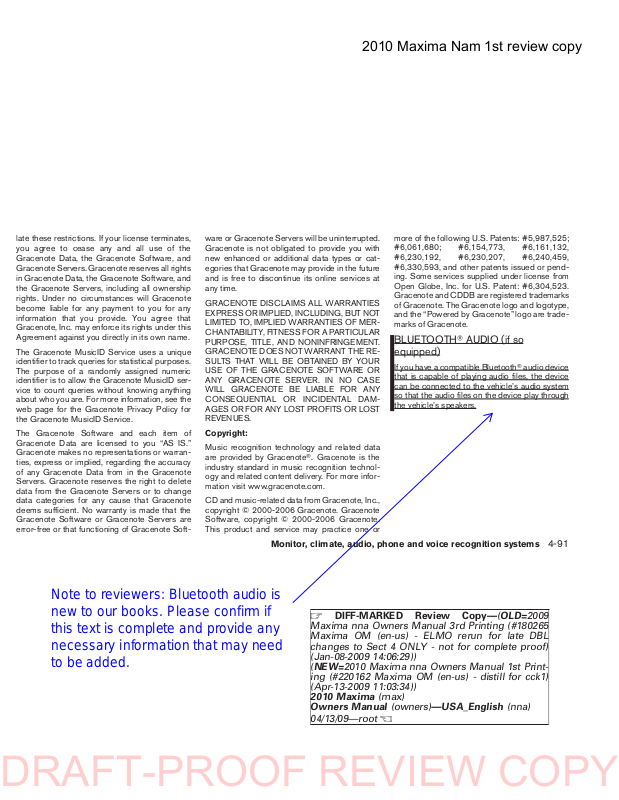

late these restrictions. If your license terminates,

DRAFT-PROOF REVIEW COPY

Note to reviewers: Bluetooth audio is new to our books. Please confirm if this text is complete and provide any necessary information that may need to be added.

you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all ownership rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that Gracenote, Inc. may enforce its rights under this Agreement against you directly in its own name.

The Gracenote MusicID Service uses a unique identifier to track queries for statistical purposes. The purpose of a randomly assigned numeric identifier is to allow the Gracenote MusicID service to count queries without knowing anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote MusicID Service.

The Gracenote Software and each item of Gracenote Data are licensed to you “AS IS.” Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data from in the Gracenote Servers. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that Gracenote deems sufficient. No warranty is made that the Gracenote Software or Gracenote Servers are error-free or that functioning of Gracenote Soft-

ware or Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its online services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS ORIMPLIED,INCLUDING,BUTNOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NONINFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

Copyright:

Music recognition technology and related data are provided by GracenoteT. Gracenote is the industry standard in music recognition technology and related content delivery. For more information visit www.gracenote.com.

Monitor, climate, audio, phone and voice recognition systems 4-91

more of the following U.S. Patents: #5,987,525; #6,061,680; #6,154,773, #6,161,132, #6,230,192, #6,230,207, #6,240,459, #6,330,593, and other patents issued or pending. Some services supplied under license from Open Globe, Inc. for U.S. Patent: #6,304,523. Gracenote and CDDB are registeredtrademarks of Gracenote. The Gracenote logo and logotype, and the “Powered by Gracenote” logo are trademarks of Gracenote.

BLUETOOTHT AUDIO (if so equipped)

If youhave a compatible BluetoothT audiodevice that is capable of playing audio files, the device can be connected to the vehicle’s audio system so that the audio files on the device play through the vehicle’s speakers.

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

lha1316

DRAFT-PROOF REVIEW COPY

lha1317

lha1351

LHA1316

Connecting BluetoothT audio

To connect your BluetoothT audio device to the vehicle, follow the procedure below:

1. Press the SETTING button on the instrument panel.

2. Touch the “Bluetooth” key.

3. Touch the “Connect Bluetooth” key.

4-92 Monitor, climate, audio, phone and voice recognition systems

4. A screen will appear asking if you are connecting the device to use with the handsfree phone system. Touch the “No”key.

LHA1317

5. Initiate pairing from the BluetoothT device. The PIN is 0000. See the BluetoothT device’s owner’s manual for more information.

Z DIFF-MARKED Review Copy—

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

(OLD=2009

LHA1351

2010 Maxima Nam 1st review copy

lha1316

DRAFT-PROOF REVIEW COPY

LHA1299

Audio main operation

The controls for the BluetoothT audio are displayed on the screen.

LHA1316 LHA1296

BluetoothT audio settings

To adjust the BluetoothT audio settings, follow the procedure below:

1. Press the SETTING button on the instrument panel.

2. Touch the “Bluetooth” key.

3. Touch the “Connected Devices” key.

Monitor, climate, audio, phone and voice recognition systems 4-93

Z DIFF-MARKED Review Copy—

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

4. Touch the “Audio Player”key.

(OLD=2009

X

2010 Maxima Nam 1st review copy

LHA1297 LHA1298 LHA0049

DRAFT-PROOF REVIEW COPY

5. A list of the connected BluetoothT audio players is displayed. Touch the name of the device you wish to edit.

4-94 Monitor, climate, audio, phone and voice recognition systems

6. The Device Name and Device Address are displayed on the screen. Touch the “Select” key to make this device the active BluetoothT audio player. Touch the “Edit” key to edit the details of the player, such as Device Name. Touch the “Delete” key to delete the device.

CD/CF (CompactFlashT) CARE AND CLEANING

CD:

● Handle a CD by its edges. Do not bend the disc. Never touch the surface of the disc.

● Always place the discs in the storage case when they are not being used.

● To clean a disc, wipe the surface from the center to the outer edge using a clean, soft cloth. Do not wipe the disc using a circular motion.

Z DIFF-MARKED Review Copy—

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

(OLD=2009

2010 Maxima Nam 1st review copy

● Do not use a conventional record cleaner or

DRAFT-PROOF REVIEW COPY

alcohol intended for industrial use.

● A new disc may be rough on the inner and outer edges. Remove the rough edges by rubbing the inner and outer edges with the side of a pen or pencil as illustrated.

LHA1002

CF cards:

CAUTION

Do not force the CompactFlashT card into the CompactFlashT player slot. Forcing the CF card could damage the pins inside the CF playerslot,especially if the CF card is upside down or backwards.

● Never touch the terminal portion ofthe pactFlashT cards. Do not bend the cards.

● Always place the cards in the storage case when they are not being used.

● Do not place heavy objects on the cards.

Com-

● Do not store the cards in highly humid locations.

● Do not expose the cards to direct sunlight.

● Do not spill any liquids on the cards.

Refer to the Manual for more details.

CompactFlashT card Owner’s

Monitor, climate, audio, phone and voice recognition systems 4-95

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

LHA1144

DRAFT-PROOF REVIEW COPY

Type A

1. Power on and SOURCE select switch

2. Tuning switch

3. Volume control switch

WHA1145

Type B

1. Power on and SOURCE select switch

2. ENTER tuning switch

3. Volume control switch

STEERING WHEEL SWITCH FOR AUDIO CONTROL

The audio system can be operated using the controls on the steering wheel.

POWER on switch

With the ignition switch in the ACC or ON position, push the SOURCE switch to turn the audio system on.

SOURCE select switch

Push the source select switch to change the mode in the following sequence: AM → FM → iPodT*4 (if so equipped) → Music Box*2 (if so equipped) → CD*1 → CompactFlash™*1 (if so equipped) → AUX*3.

*1: These modes are only available when compatible media storage is inserted into the device.

*2: This mode is only available when music has been downloaded into the Music Box hard-disk drive audio system.

*3: This mode is only available when a compatible auxiliary device is plugged into the AUX jack.

*4: This mode is only available when a compatible iPodT is connected.

Volume control switch

Push the volume control switch to increase or decrease the volume.

Tuning

Memory change (radio):

Push the tuning switch ( than 1.5 seconds to change presets.

or ) for less

4-96 Monitor, climate, audio, phone and voice recognition systems

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

Seek tuning (radio):

DRAFT-PROOF REVIEW COPY

Reviewers: Please see "Attachment 4-B" on following page for rear audio controls that will appear here. Please confirm if these controls will be available.

Push thetuningswitch( than 1.5 seconds to seek the next or previous radio station.

Next/Previous track (CD/CF):

Push the tuning switch than 1.5 secondstoreturntothebeginningofthe present track or skip to the next track. Push several times to skip back or skip through tracks.

This system searches for the blank intervals between selections. If there isa blank interval within 1 program or there is no interval between programs, the system may not stop in the desired or expected location.

Next/Previous track (Music Box):

Push the tuning switch than 1.5 secondstoreturntothebeginningofthe present track or skip to the next track. Push several times to skip back or skip through tracks.

Push and hold the tuning switch for more than 1.5 seconds to change playlists. When the last playlist is playing, the next playlist will be selected.

or ) formore

or for less

or

Next/Previous track (iPodT):

Push the tuning switch than 1.5 secondstoreturntothebeginningofthe present track or skip to the next track. Push several times to skip back or skip through tracks.

Push and hold the tuning switch for more than 1.5 seconds to rewind or fast forward the current track. When the switch is released the track will be played normally.

Change disc (CD) (if so equipped):

Push the tuning switch than 1.5 seconds to change the playing disc up or down.

or for less

or

or for more

ANTENNA Window antenna

The antenna pattern is printed inside the rear window.

CAUTION

● Do not place metalized film near the rear window glass or attach any metal parts to it. This may cause poor reception or noise.

● When cleaning the inside of the rear window, be careful not to scratch or damage the rear window antenna. Lightly wipe along the antenna with a dampened soft cloth.

Monitor, climate, audio, phone and voice recognition systems 4-97

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

JOBNAME: No Job Name PAGE: 1 SESS: 3 OUTPUT: Mon Apr 13 14:49:14 2009 SUM: 49FA0EF6

Reviewers: Please confirm that 2010 Maxima NAM will have rear seat HVAC controls. If controls are present, please provide rear switch operations for USB interface and Bluetooth audio, since these could not be validated on vehicle.

Attachment 4-B

/nissan_pdm/nissancims/owners/max/rear-audio-controls

1. VOL (volume) control switch

2. TUNE/TRACK switch

3. ON/OFF button

4. SRC (source) select button

5. Display

LHA1142

REAR AUDIO CONTROLS (if so equipped)

The audio system can alsobe operated using the rear controls.

For information on canceling the rear seat controller, see “Rear control cancel switch (if so equipped)”inthe“Instrumentsandcontrols”section.

ON/OFF button:

With the ignition switch placed in the ACC or ON position, press the ON/OFF button to turn the audio system on or off.

VOL (volume) control switch:

Push the side of the switch to increase the volume or push the

decrease the volume.

side of the switch to

SRC (source) button:

Press theSRC button to change the audio mode.

TUNE/TRACK control switch:

Radio:

● Push the to select the next or previous preset station.

or side of the switch

● Push and hold the the switch to select the next or previous station.

CD:

● Push the to select the next track or the beginning of the current track.

CD/CF (if so equipped) with MP3/WMA:

● Push the to select the next track or the beginning of the current track.

● Push and hold the the switch to change folders.

iPodT (if so equipped):

● Push the

to select the next or previous track.

Music Box hard-disk drive audio system (if so equipped):

● Push the to select the next or the beginning of the current track.

● Push and hold the the switch to change the playlist.

or side of the switch

or side of

Z REVIEW COPY—

2009 Maxima (max)

Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

0-1

2010 Maxima Nam 1st review copy

CAR PHONE OR CB RADIO BLUETOOTHT HANDS-FREE PHONE

DRAFT-PROOF REVIEW COPY

Note to reviewers: This section represents Gen3 Bluetooth Hands-Free Phone for non-Navi vehicles. Our vehicle was not to up-to-date with this software, so text was borrowed from All-Model Bluetooth and QRG and Sentra NAM. Please advise if this text is correct/complete.

SYSTEM WITHOUT NAVIGATION SYSTEM (if so equipped)

When installing a CB, ham radio or car phone in your NISSAN, be sure to observe the following precautions; otherwise, the new equipment may adversely affect the engine control system and other electronic parts.

WARNING

● A cellular telephone should not be used while driving so full attention may be given to vehicle operation. Some jurisdictions prohibit the useof cellular telephones while driving.

● If you must make a call while your vehicle is in motion, the hands free cellular phone operational mode (if so equipped) is highly recommended. Exercise extreme caution at all times so full attention may be given to vehicle operation.

● If you are unable to devote full attention to vehicle operation while talking on the phone, pull off the road to a safe location and stop your vehicle.

CAUTION

● Keep the antenna as far away as possible from the electronic control modules.

● Keep the antenna wire more than 8 in (20 cm) away from the electronic control system harnesses. Do not route the antenna wire next to any harness.

● Adjust the antenna standing-wave ratio as recommended by the manufacturer.

● Connect the ground wire from the CB radio chassis to the body.

● For details, consult a NISSAN dealer.

WARNING

● Use a phone after stopping your vehicle in a safe location. If you have to use a phone while driving, exercise extreme caution at all timesso full attention may be given to vehicle operation.

● If you are unable to devote full attention to vehicle operation while talking on the phone, pull off the road to a safe location and stop your vehicle.

CAUTION

To avoid discharging the vehicle battery, use a phone after starting the engine.

4-98 Monitor, climate, audio, phone and voice recognition systems

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

Your NISSAN is equipped with the BluetoothT

DRAFT-PROOF REVIEW COPY

Hands-Free Phone System. If you have a compatible BluetoothT enabled cellular phone, you can set up the wireless connection betweenyour cellular phone and the in-vehicle phone module. With BluetoothT wireless technology, you can

LHA1158

make or receive a hands-free telephone call with your cellular phone in the vehicle.

Once your cellular phone is paired to the invehicle phone module, no other phone connecting procedure is required. Your phone is automatically connected with the in-vehicle phone

Monitor, climate, audio, phone and voice recognition systems 4-99

module when the ignition switch is placed in the ON positionwith the paired cellular phoneturned on and carried in the vehicle.

You can register up to 5 different BluetoothT cellular phones to the in-vehicle phone module. However, you can talk on only one cellular phone at a time.

Before using the BluetoothT Hands-Free Phone System, refer to the following notes.

● Set up the wireless connection between a compatible cellular phone and the in-vehicle phone module before using the hands-free phone system.

● Some BluetoothT enabled cellular phones may not be recognized by the in-vehicle phone module. Please visit www.nissanusa.com/bluetooth for a recommended phone list and pairing.

● You will not be able to use a hands-free phone under the following conditions:

– Your vehicle is outside of the cellular ser-

vice area.

– Your vehicle is in an area where it is

difficult to receive a cellular signal; such as in a tunnel, in an underground parking garage, near a tall building or in a mountainous area.

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

– Your cellular phone is locked to prevent it

DRAFT-PROOF REVIEW COPY

from being dialed.

● When the radio wave condition is not ideal or ambient sound is too loud, it may be difficult to hear the other person’s voice during a call.

● Do not place the cellular phone in an area surrounded by metal or far away from the in-vehicle phone module to prevent tone quality degradation and wireless connection disruption.

● While a cellular phone is connected through the BluetoothT wireless connection,the battery power of the cellular phone may discharge quicker than usual. The BluetoothT Hands-Free Phone System cannot charge cellular phones.

● If the hands-free phone system seems to be malfunctioning, see“Troubleshooting guide” in this section. You can also visit www.nissanusa.com/bluetooth for troubleshooting help.

● Some cellular phones or other devices may cause interference or a buzzing noise to come from the audio system speakers. Storing the device in a different location may reduce or eliminate the noise.

● Refer to the cellular phone Owner’s Manual regarding the telephone charges, cellular phone antenna and body, etc.

REGULATORY INFORMATION

FCC Regulatory information – CAUTION: To maintain compliance with

FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.

– Operation is subject to the following two con-

ditions:

1. This device may not cause interference and

2. this device must accept any interference, including interference that may cause undesired operation of the device.

IC Regulatory information – Operation is subject to the following two con-

ditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

– This Class B digital apparatus meets all re-

quirements of the Canadian InterferenceCausing Equipment Regulations.

4-100 Monitor, climate, audio, phone and voice recognition systems

BLUETOOTHt is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Visteon.

USING THE SYSTEM

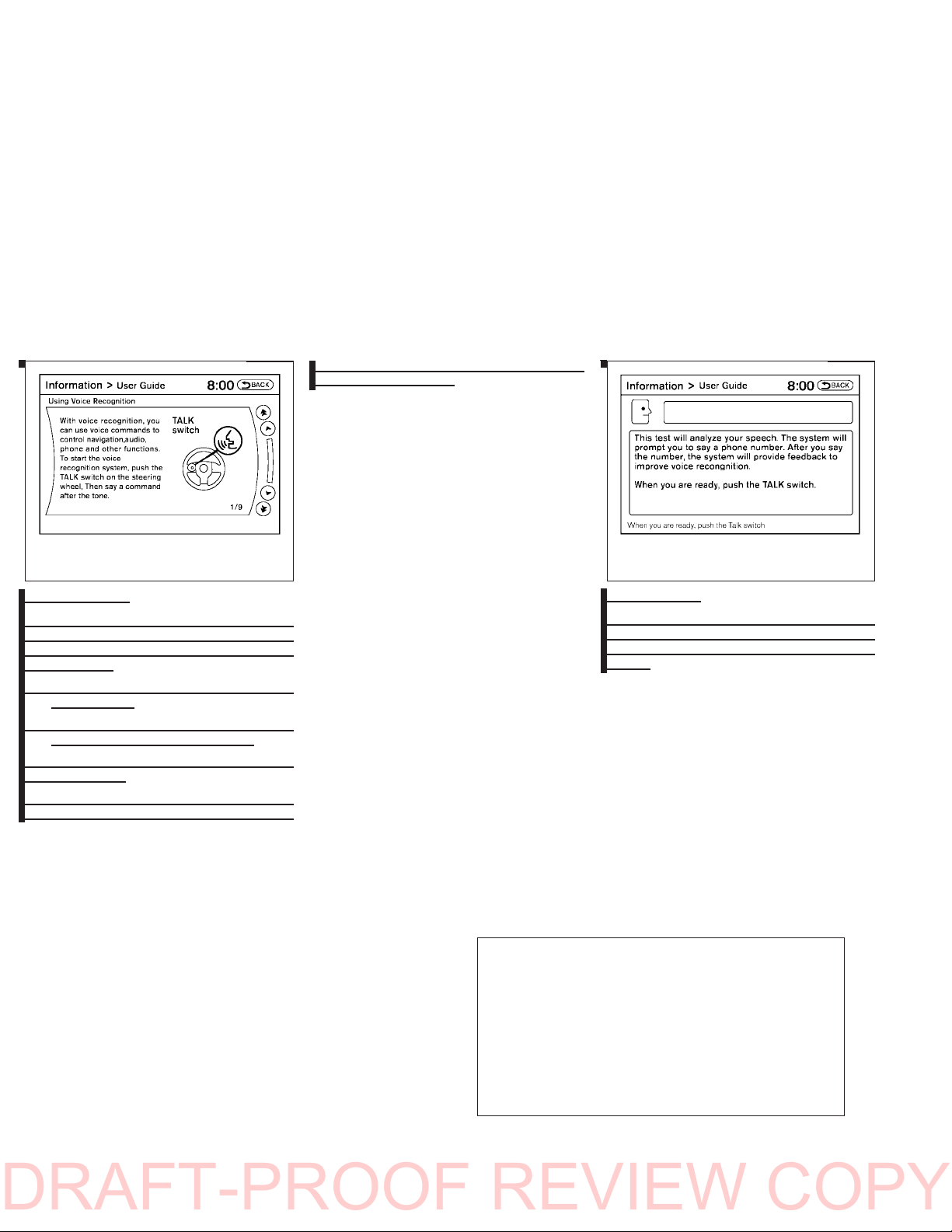

The NISSAN Voice Recognition system allows hands-free operation of the BluetoothT Phone System.

If the vehicle is in motion, some commands may not be available so full attention may be given to vehicle operation.

Initialization

When the ignition switch is placed in the ON position, NISSAN Voice Recognition is initialized,

which takes a few seconds. If the pressed before the initialization completes, the system will announce “Hands-free phone system not ready” and will not react to voice commands.

button is

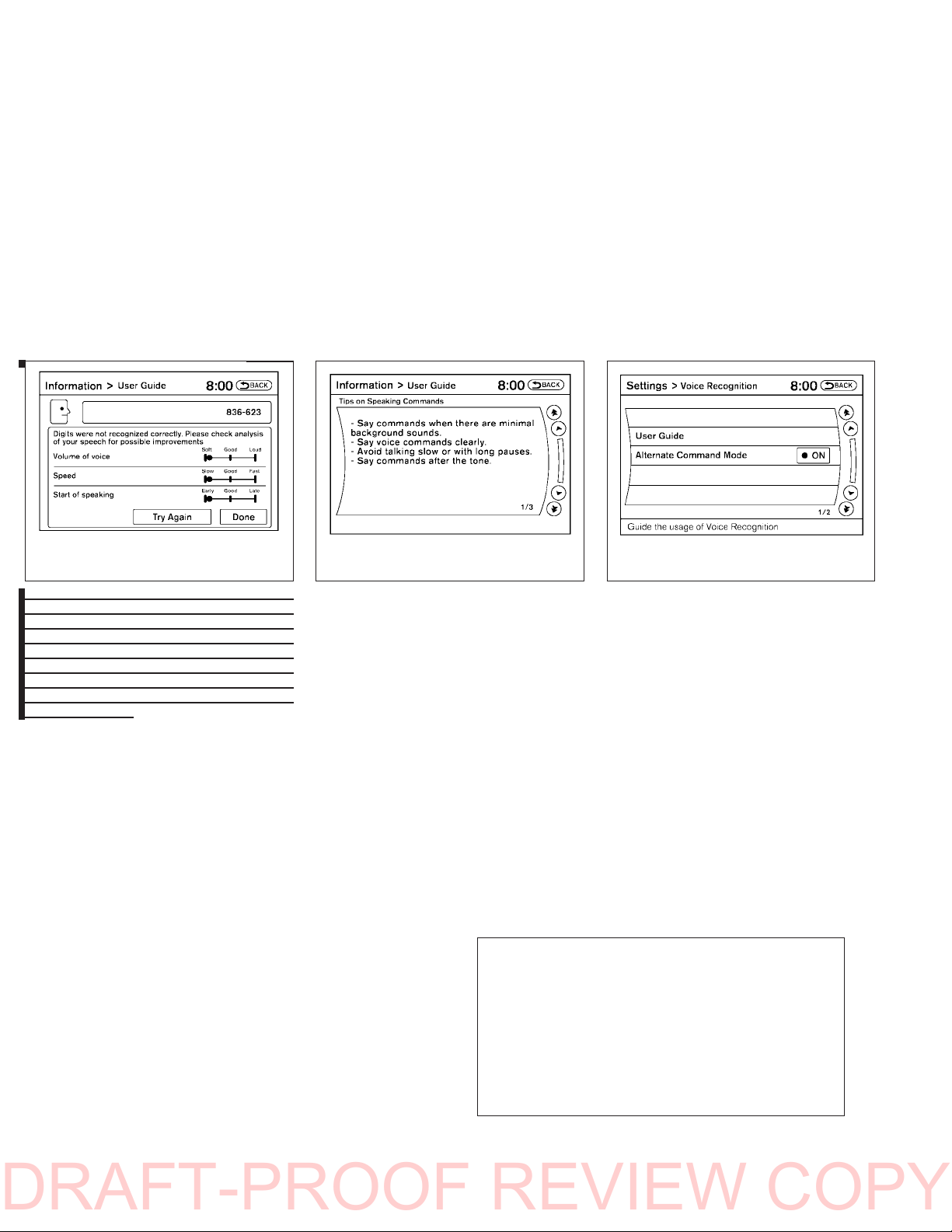

Operating tips

To get the best performance out of the NISSAN Voice Recognition system, observe the following:

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

● Keep the interior of the vehicle as quiet as

DRAFT-PROOF REVIEW COPY

possible. Close the windows to eliminate surrounding noises (traffic noises, vibration sounds, etc.), whichmay prevent thesystem from recognizing voice commands correctly.

● Waituntil the tone sounds before speaking a command. Otherwise, the command will not be received properly.

● Start speaking a commandwithin 5 seconds after the tone sounds.

● Speak in a natural voice without pausing between words.

Giving voice commands

To operate NISSAN Voice Recognition, press and release the

steering wheel. After the tone sounds, speak a command.

The command given is picked up by the microphone, and voice feedback is given when the command is accepted.

● If you need to hear the available commands for the current menu again, say “Help” and the system will repeat them.

button located on the

● If a command is not recognized, the system announces, “Command not recognized. Please try again.” Repeat the command in a clear voice.

● If you want to go back to the previous command, you can say “Go back” or “Correction” any time the system is waiting for a response.

● You can cancel a command when the system is waiting for a response by saying, “Cancel” or “Quit”. The system announces “Cancel” and ends the VR session. You can

also press the wheel atany time. Wheneverthe VR session is cancelled, a double beep is played to indicate you have exited the system.

● If you want to adjust the volume of the voice feedback, press the volume control switches (+ or -) on the steering wheel while being provided with feedback. You can also use the radio volume control knob.

● In most cases you can interrupt the voice feedback to speak the next command by

pressing the wheel.

button on the steering

● To speed the operation you can say multiple commands. For example, press the

button then say “Phonebook, New entry” rather than “Phonebook.” Wait for the voice feedback prompt then say “New entry”.

How to say numbers

NISSAN Voice Recognition requires a certain way to speak numbers in voice commands. Refer to the following rules and examples.

● Either “zero” or “oh”can be used for “0”. Example: 1-800-662-6200 – “One eight oh oh six six two six two oh

oh”, or

– “One eight zerozero six six twosix two oh

oh”

● Words can be used for the first 4 digits places only.

Example: 1-800-662-6200 – “One eight hundred six six two six two oh

oh”,

– NOT “One eight hundred six six two sixty

two hundred, and

– NOT “One eight oh oh six six two sixty two

hundred.

Monitor, climate, audio, phone and voice recognition systems 4-101

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

● Numbers can be spoken in small groups.

DRAFT-PROOF REVIEW COPY

The system will prompt you to continue entering digits, if desired.

Example: 1-800-662-6200 – “One eight zero zero” The system repeats the numbers and

prompts you to enter more. – “six six two” The system repeats the numbers and

prompts you to enter more. – “six two zero zero”

● Say “pound” for “#”. Say “star”for “*” (available when using the “Call International” command and the “Send” command during a call).

● Say “plus”for “+”(available only when using the “Call International” command).

● Say “pause”for a 2 second pause (available only when storing a phone book number).

● You can say “star” for “*” and “pound”for “#” at any time in any position of the phone number (available only when using “Call International” command).

See “List of voice commands” and “Interna-

in this section for more information.

tional”

Example: 1-555-1212 *123 – “One five five five one two one two star

one two three”

NOTE: For best results, say phone numbers as

single digits.

The voice command “Help” is available at any time. Please use the “Help” command to get information on how to use the system.

4-102 Monitor, climate, audio, phone and voice recognition systems

LHA1160

CONTROL BUTTONS

The control buttons for the BluetoothT HandsFree Phone System are located on the steering wheel.

PHONE/SEND Press the

session or answer an incoming call.

You can also use the skip through system feedback and to enter commands during a call. See “List of voice commands” and “During a call” in this section for more information.

button to initiate a VR

button to

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

PHONE/END

DRAFT-PROOF REVIEW COPY

Press the session or end a call.

button to cancel a VR

GETTING STARTED

The following procedures will help you get started using the BluetoothT Hands-Free Phone System with NISSAN Voice Recognition. For additional command options, refer to “List of voice commands”

in this section.

Choosing a language

You can interact withthe BluetoothT Hands-Free Phone System using English, Spanish or French.

To change the language, perform the following.

1. Press and hold the than 5 seconds.

2. The system announces: “Press the PHONE/SEND (

hands-free phone system to enter the speaker adaptation mode or press the

PHONE/END ( different language.”

3. Press the

button.

button for more

) button for the

) button to select a

For information on speaker adaptation, see “Speaker adaptation(SA) mode” tion.

4. The system announces the current language and gives you the option to change the language to Spanish (in Spanish) or French (in French). Use the following chart to select the language.

NOTE:

You must press the

button within 5 seconds to change

the language.

Current

language

English Spanish French

Spanish English French

French English Spanish

5. If you decide notto change the language,do not press either button. After 5 seconds, the VR session will end, and the language will not be changed.

Press

(PHONE/SEND)

to select

Monitor, climate, audio, phone and voice recognition systems 4-103

in thissec-

button or the

Press

(PHONE/END)

to select

Pairing procedure

NOTE: The pairing procedure must be performed

when the vehicleis stationary. If the vehicle starts moving during the procedure, the procedure will be cancelled.

Main Menu

“Connect phone”

“Add phone”

Initiate from handset

Name phone

1. Press the button on the steering wheel. The system announces the available commands.

2. Say: “Connect phone” knowledges the command and announces the next set of available commands.

3. Say: “Add phone” edges the command and asks you to initiate pairing from the phone handset

The pairing procedure of the cellular phone varies according to each cellular phone model. See the cellular phone Owner’s Manual for details. You can also visit www.nissanusa.com/bluetooth for instruc-

A

s

B

s

C

s

D

s

A

s

B

. The system acknowl-

s

. The system ac-

C

.

s

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

tions on pairing NISSAN recommended cel-

DRAFT-PROOF REVIEW COPY

lular phones. When prompted for a Passkey code, enter

“1234” from the handset. The Passkeycode “1234” has been assigned by NISSAN and cannot be changed.

4. The system asks you to say a name for the

D

phone If the name is too long or too short, the

system tells you, then prompts you for a name again.

Also, if more than one phone is paired and the name sounds too much like a name already used, the system tells you, then prompts you for a name again.

s

.

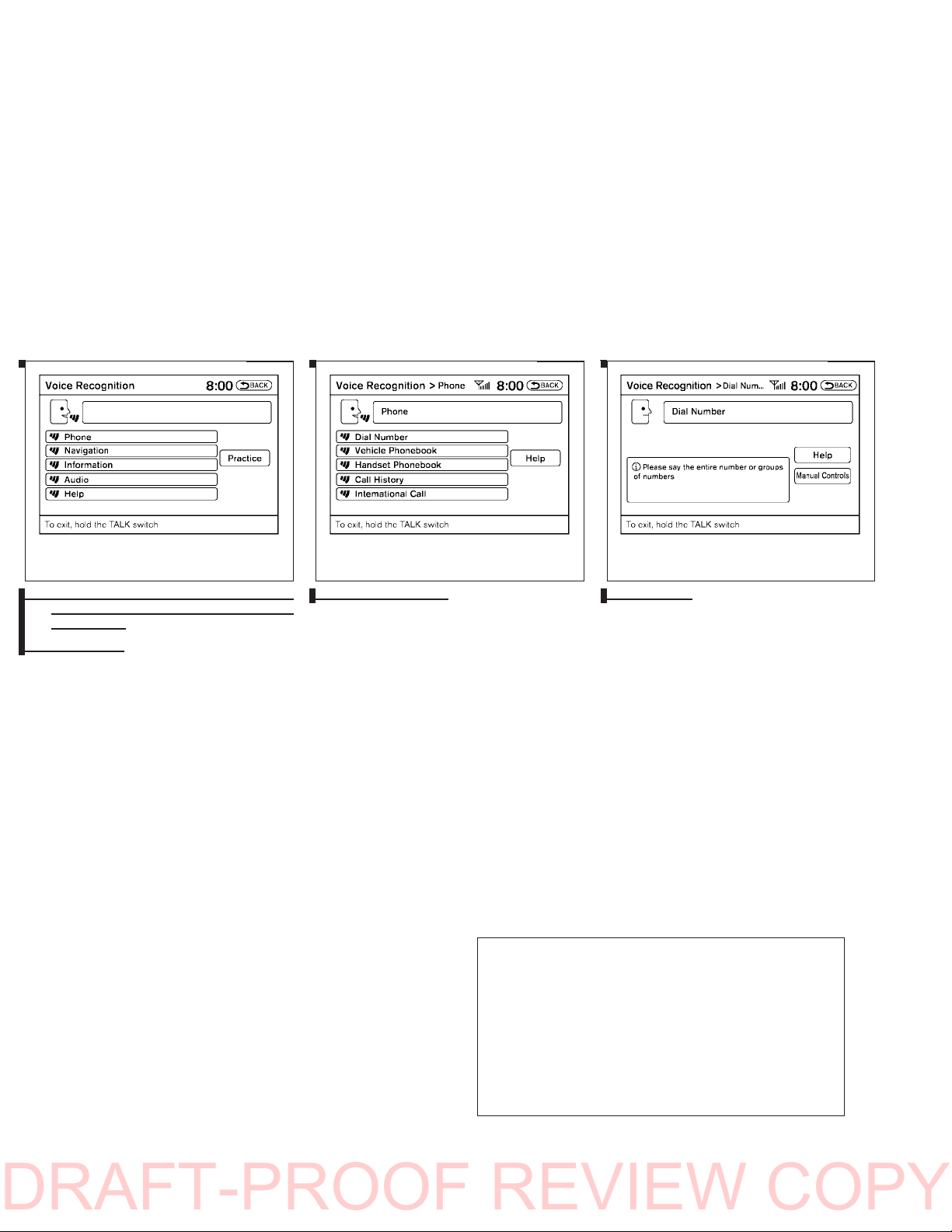

Making a call by entering a phone number

Main Menu

A

“Call”

s

Number (speak digits)

C

“Dial”

s

1. Press the button on the steering wheel. A tone will sound.

s

B

A

2. Say: “Call” the command and announces the next setof available commands.

Say: “Call International”to dial more than 10 digits or any special characters.

3. Say the numberyou wish to callstarting with the area code in single digit format system has trouble recognizing the correct phone number, try entering the number in the following groups: 3-digit area code, 3-digit prefix and the last 4-digits. For example, 555-121-3354 can be said as “five five five” as the 1st group, then “one two one” as the 2nd group, and “three three five four” as the 3rd group. For dialing more than 10 digits or any special characters, say “International”. See “How to say numbers” this section, for more information.

4. When you havefinished speaking thephone number, the system repeats it back and announces the available commands.

5. Say: “Dial” the command and makes the call.

For additional command options, see “List of voice commands”

. The system acknowledges

s

C

. The system acknowledges

s

in this section.

B

.Ifthe

Receiving a call

When you hear the ring tone, press the

button on the steering wheel.

Once the call has ended, press the on the steering wheel.

NOTE: If you do not wish to take the call when you

hear the ring tone, press the on the steering wheel.

For additional command options, see “List of voice commands”

in this section.

LIST OF VOICE COMMANDS

Main Menu

in

“Call” or “Call International” “Phonebook” “Memo Pad” “Setup”

When youpress and release the button on the steering wheel, you can choose from the commands on the Main Menu. The following pages describe these commands and the commands in each sub-menu.

button

4-104 Monitor, climate, audio, phone and voice recognition systems

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

Remember to wait for the tone before

DRAFT-PROOF REVIEW COPY

speaking.

You can say “Help” to hear the list of commands currently available any time the system is waiting for a response.

If youwant to end an action without completing it, you can say “Cancel” or “Quit” at any time the system is waiting for a response. The system will end the VR session. Whenever the VR session is cancelled, a double beep is played to indicate you have exited the system.

If you want to go back to the previous command, you can say “Go back” or “Correction” any time the system is waiting for a response.

When you get used to the menus in the system, you can talk ahead by saying more than one command at a time. For example, say, “Call five five five one two one two”or “Memo pad record.”

Also, when you get used to the system responses, you can skip ahead to the tone by

pressing the button on the steering wheel. However, if you press the button when the

system is waiting for a response from you it will end the VR session.

“Call”

Main Menu

“Call” or “Call International”

Name (speak name) Number (speak digits) “Redial” “Call Back”

Name (speak name)

If you have stored entries in the phonebook, you can dial a number associated with a name and location.

See “Phonebook” in this section to learn how to store entries.

When prompted by the system, say the name of the phone book entry you wish to call. The system acknowledges the name.

If there are multiple locations associated with the name, the system asks you to choose the location.

Once you have confirmed the name and location, the system begins the call.

Number (speak digits)

When prompted by the system, say the number you wish to call. Refer to “How to say numbers”

C

s

A

s

B

s

Monitor, climate, audio, phone and voice recognition systems 4-105

A

s

B

s

D

and “Making a call by entering a phone number” in this section for more details.

“Redial”

Use the Redial command to call the last number that was dialed within the vehicle.

NOTE: The system will not redial the last number

dialed by the handset keypad.

The system acknowledges the command, repeats the number and begins dialing.

If a redial number does not exist, the system announces, “There is no number to redial” and ends the VR session.

“Call back”

Use the Call Back command to dial the number of the last incoming call within the vehicle.

The system acknowledges the command, repeats the number and begins dialing.

If a call back number does not exist, the system announces, “Thereis no number to call back”and ends the VR session.

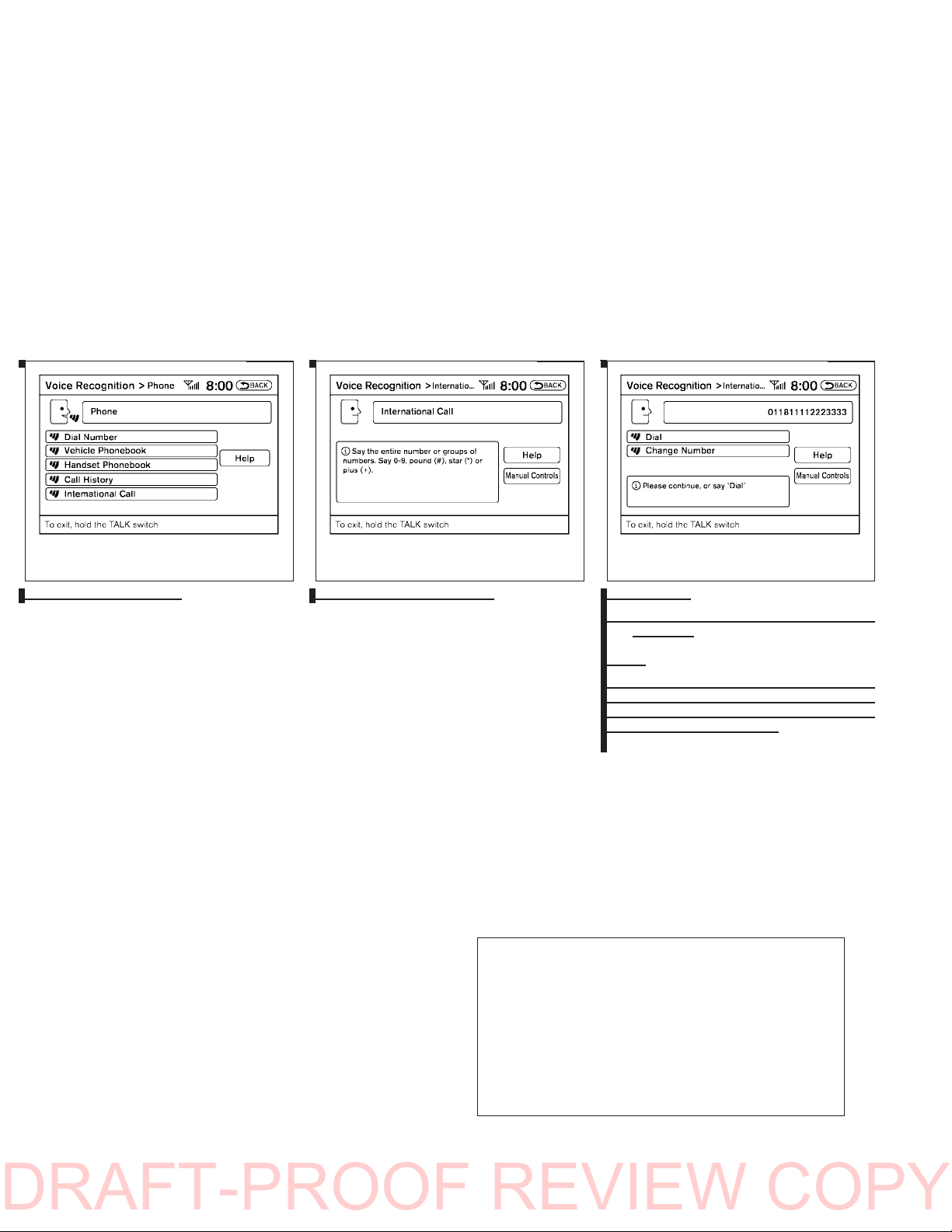

International

For dialing more than 10 digits or any special characters, please say “international”. When the

C

s

D

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

system acknowledges the command, the system

DRAFT-PROOF REVIEW COPY

will prompt you to speak the number.

During a call

During a call there are several command options available. Press the

wheel tomute the receiving voiceand enter commands.

● “Help” — The system announces the available commands.

● “Go back/Correction” — The system announces “Go back,” ends the VR session and returns to the call.

● “Cancel/Quit” — The system announces “Cancel,” ends the VR session and returns to the call.

● “Send/Enter/Call/Dial” — Use the Send command toenter numbers, “*”or “#”during a call. For example, if you were directed to dial an extension by an automated system:

Say: “Send one two three four.” The system acknowledges the command

and sends the tones associated with the numbers. The system then ends the VR session and returns tothe call. Say “star”for “*”, Say “pound” for “#”.

button on the steering

● “Transfer call” — Use the Transfer Call command totransfer the call from the BluetoothT Hands-Free Phone System to the cellular phone when privacy is desired.

The system announces, “Transfer call. Call transferred to privacy mode.” The system then ends the VR session.

You can also issue the Transfer Call command again to return to a hands-free call through the vehicle.

● “Mute” — Use the Mute command to mute your voice so the other party cannot hear it. Use the mute command again to unmute your voice.

4-106 Monitor, climate, audio, phone and voice recognition systems

NOTE: If a call is ended or the cellular phone

network connection is lost while the Mute feature is on, the Mute feature will be reset to “off” for the next call so the other party can hear your voice.

“Phonebook”

NOTE: Phonebook commands are not available

when the vehicle is moving.

Main Menu

“Phonebook”

s

A

s

B

C

s

D

s

E

s

“New Entry” “Edit” “Delete” “List Names” “Record Name”

The phonebook stores up to 1000 names for each phone paired with the system. Each name can have up to 4 locations/phone numbers associated with it.

When a phone is connected to the system, the phonebook is automatically downloaded to the vehicle. This feature allows you to access your

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X

2010 Maxima Nam 1st review copy

phonebook from the BluetoothT system and call

DRAFT-PROOF REVIEW COPY

contacts by name. You can record a custom voice tag for contact names that the system has difficulty recognizing. For more information see “List names” in this section.

NOTE: Each phone has its own separate phone-

book. Youcannot access Phone A’s phonebook if you are currently connected with Phone B.

“New entry”

Use the New Entry command to store a new name in the system.

When promptedby the system, say the name you would like to give the new entry.

For example, say: “Mary.”

If the name is too long or too short, the system tells you, then prompts you for a name again.

Also, if the name sounds too much like a name already stored, the system tells you, then prompts you for a name again.

Once the system accepts the name and you confirm it is correct, the system asks for a location (Home, Office, Mobile or Other).

For example, say: “Home.”

The system acknowledges the location.

s

A

The systemwill ask youto say a phonenumber or to transfer a phone number stored in the cellular phone’s memory.

Enter a phone number by voice command: For example, say: “five five five one two one two.”

See “How to say numbers” more information.

To transfer a phone number stored in the cellular phone’s memory:

Say “Transfer entry.” The system acknowledges the command and asks you to initiatethe transfer from the phone handset. The new contact phone number will be transferred from the cellular phone via the BluetoothT communication link.

The transfer procedure varies according to each cellular phone. See the cellular phone Owner’s Manual for details. You can also visit www.nissanusa.com/bluetooth for instructions on transferring phone numbers from NISSAN recommended cellular phones.

The system repeats the number and promptsyou for the next command. When you have finished entering numbersor transferring an entry,choose “Store.”

The system confirms the name, location and number. Thesystem then asksif you would liketo

Monitor, climate, audio, phone and voice recognition systems 4-107

in this section for

store another location for the same name. If you do not wish to store another location, the system ends the VR session.

B

“Edit”

s

Use the Edit command to alter an existing phone book entry or to add a 2nd, 3rd or 4th phone number to an existing entry.

When prompted by the system, say the name of the entry you wish to edit.

The system acknowledges the name and asks you for the location you would like to edit.

Say the name of the location. The system acknowledges the location. The systemwill ask youto say a phonenumber or

to transfer a phone number stored in the cellular phone’s memory.

Enter a phone number by voice command: For example, say: “five five five one two one two.

” See “How to say numbers” more information.

To transfer a phone number stored in the cellular phone’s memory:

Say “Transfer entry.” The system acknowledges the command and asks you to initiatethe transfer from the phone handset. The new contact phone

in this section for

Z DIFF-MARKED Review Copy—

(OLD=2009

Maxima nna Owners Manual 3rd Printing (#180265 Maxima OM (en-us) - ELMO rerun for late DBL changes to Sect 4 ONLY - not for complete proof) (Jan-08-2009 14:06:29)) (NEW=2010 Maxima nna Owners Manual 1st Printing (#220162 Maxima OM (en-us) - distill for cck1) (Apr-13-2009 11:03:34))

2010 Maxima (max) Owners Manual (owners)—USA_English (nna)

04/13/09—root

X
