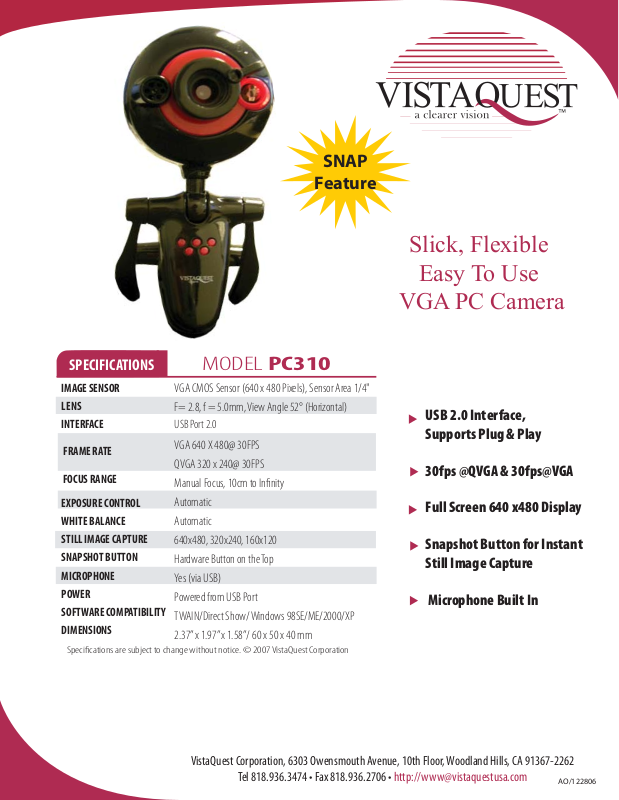

VistaQuest VQ PC310 User Manual
SNAP
Feature
Slick, Flexible
Easy To Use
VGA PC Camera
SPECIFICATIONS
IMAGE SENSOR
LENS
INTERFACE
FRAME RATE
FOCUS RANGE
EXPOSURE CONTROL
WHITE BALANCE
STILL IMAGE CAPTURE
SNAPSHOT BUTTON
MICROPHONE
POWER
SOFTWARE COMPATIBILITY
DIMENSIONS
Specications are subject to change without notice. © 2007 VistaQuest Corporation
MODEL PC310
VGA CMOS Sensor (640 x 480 Pixels), Sensor Area 1/4"
F= 2.8, f = 5.0mm, View Angle 52° (Horizontal)
USB Port 2.0
VGA 640 X 480@ 30FPS
QVGA 320 x 240@ 30FPS
Manual Focus, 10cm to Innity
Automatic
Automatic
640x480, 320x240, 160x120
Hardware Button on the Top
Yes (via USB)
Powered from USB Port
TWAIN/Direct Show/ Windows 98SE/ME/2000/XP
2.37” x 1.97” x 1.58”/ 60 x 50 x 40 mm
USB 2.0 Interface,
Supports Plug & Play
30fps @QVGA & 30fps@VGA
Full Screen 640 x480 Display
Snapshot Button for Instant
Still Image Capture
Microphone Built In
VistaQuest Corporation, 6303 Owensmouth Avenue, 10th Floor, Woodland Hills, CA 91367-2262
Tel 818.936.3474 • Fax 818.936.2706 • http://www@vistaquestusa.com
AO/122806
