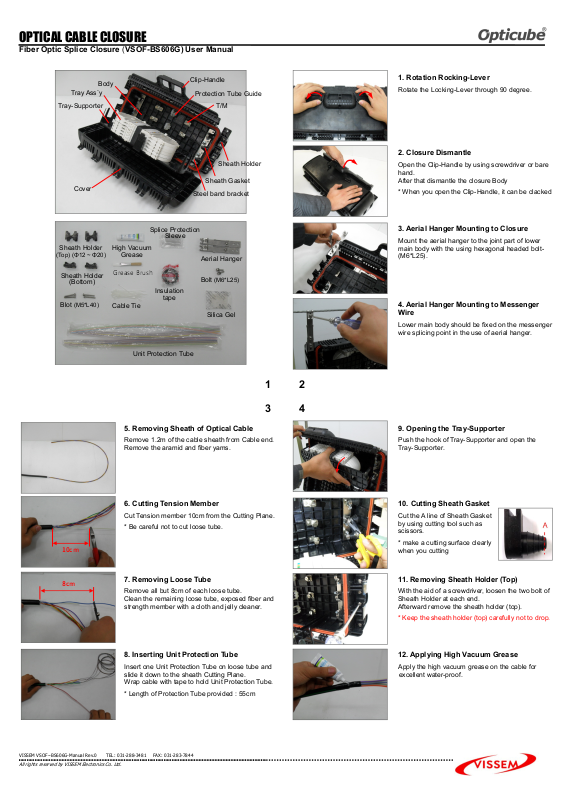

Fiber Optic Splice Closure (VSOF-BS606G) User Manual

Body

Tray Ass`y

Tray-Supporter

Cover

(Top) (Φ12 ~ Φ20)

Grease

Sleeve

Clip-Handle

Protection Tube Guide

Sheath Holder

Sheath Gasket

Steel band bracket

Aerial Hanger

1. Rotation Rocking-Lever

Rotate the Locking-Lever through 90 degree.

2. Closure Dismantle

Open the Clip-Handle by using screwdriver or bare
hand.
After that dismantle the closure Body

* When you open the Clip-Handle, it can be clacked

3. Aerial Hanger Mounting to Closure

Mount the aerial hanger to the joint part of lower
main body with the using hexagonal headed bolt­(M6*L25).

(Bottom)

Bolt (M6*L25)

tape

Blot (M5*L40)

Cable Tie

Silica Gel

Unit Protection Tube

5. Removing Sheath of Optical Cable

Remove 1.2m of the cable sheath from Cable end.
Remove the aramid and fiber yams.

1 2

3 4

4. Aerial Hanger Mounting to Messenger
Wire

Lower main body should be fixed on the messenger
wire splicing point in the use of aerial hanger.

9. Opening the Tray-Supporter

Push the hook of Tray-Supporter and open the
Tray-Supporter.

6. Cutting Tension Member

Cut Tension member 10cm from the Cutting Plane.

* Be careful not to cut loose tube.

7. Removing Loose Tube

Remove all but 8cm of each loose tube.
Clean the remaining loose tube, exposed fiber and
strength member with a cloth and jelly cleaner.

8. Inserting Unit Protection Tube

Insert one Unit Protection Tube on loose tube and
slide it down to the sheath Cutting Plane.
Wrap cable with tape to hold Unit Protection Tube.

* Length of Protection Tube provided : 55cm

10. Cutting Sheath Gasket

Cut the A line of Sheath Gasket
by using cutting tool such as
scissors.

* make a cutting surface clearly
when you cutting

11. Removing Sheath Holder (Top)

With the aid of a screwdriver, loosen the two bolt of
Sheath Holder at each end.
Afterward remove the sheath holder (top).

* Keep the sheath holder (top) carefully not to drop.

12. Applying High Vacuum Grease

Apply the high vacuum grease on the cable for
excellent water-proof.

VISSEM VSOF--BS606G-Manual Rev.0 TEL: [phone] FAX: [phone]

All rights reserved by VISSEM Electronics Co. Ltd.

OPTICAL CABLE CLOSURE

5cm

A

Fiber Optic Splice Closure (VSOF-BS606G) User Manual

13. Inserting Cable

Insert the cable into the inside of closure.
Tension Member must pass through the hole of
T/M.
Cable sheath must pass through the center of Steel
band.

14. Fixing Tension Member and Steel-Band

Tighten the steel-band by using screwdriver with
proper strength to fix the cable.
Tighten the T/M Nut by using hand or coin with
proper strength to fix the Tension Member.

15. Fixing Sheath Holder

Select a Sheath Holder (Top) appropriate to the
diameter of the cable. Afterward fix the cable
Sheath by using screwdriver.

* Do not over-tighten the bolt, as Cable can be

damaged.

* Standard for selection of Sheath Holder (top):

Refer to page 7.

16. Fixing Unit Protection Tube

Open the tray lid.
Insert the Unit Protection Tube into the inlet on the
splice tray and fix the Unit Protection Tube by using
cable ties.
Cut the remaining cable ties and Arrange Unit
Protection Tube with Unit Tube Guide.

A

17. Splicing & Arranging cores

Splice fibers in accordance with splicing method
to be approved.
After the splice, insert the splice protection
sleeve in each slit accordingly.
Coil surplus fibers in the tray in a figure 8 shape.
After the arrangement, apply the O-ring into the
slit and close the tray lid.

18. Tie Tray Band and Fixing Tray­Supporter

Tie the splice trays by using splice tray band to
be provided.
And Fix the Tray-Supporter at lower main body
by using hock.

19. Assembling the Clip Handle (1)

Bend back Clip Handle as much as possible.
Push the A part of Upper Cover by using your
thumb as shown in figure and rotate the Clip
Handle direction down the closure.
A part of Upper Cover is entered inside Clip
Handle.

20. Assembling the Clip Handle (2)

Push front of Clip-Handle until there is a sound
such as clack.

* Be careful about that your finger is caught

between clip handle and upper cover.

* Check the locking levers to be horizontal to the

ground before you close the Clip Handle.

25. Rotating Locking Lever

Rotate the each Locking Lever inside 90 degree as
shown in figure.

◈◈◈◈

Cutting position according to the diameter of the cable for installation

mid span branching

Cutting line A B C D

Cable Dia. (Φ)

8mm

9mm

~

13mm

13mm

~

17mm

17mm

~

20mm

◈◈◈◈

Application method of Sheath Holder according to the diameter of cable

5 6

7 8

◈◈◈◈ Installation Instruction for mid span branching

1. Cable Preparation

Remove 3m of the cable sheath using a sheath
stripper.
Remove plastic tape and dummy filler tube.
Cut Tension member 10cm from the Cutting
Plane.

* Be careful not to cut loose tube.

2. Cutting Sheath Gasket

Cut the cone of Sheath Gasket.
Cut off one side of sheath gasket.
Apply the high vacuum grease on the cable for
excellent water-proof.

* Cutting position of Sheath Gasket: Refer to

page 7.

3. Fixing Cable and Insertion Cable

Fix the cone of gasket by using cable tie or tape.
Put the gasket on the entry of the closure. Fix the
cable through T/M, Steel-band and Sheath
Holder.

※

Application method of M5 bolt for fixing the Sheath Holder

▶Sheath Holder(Φ8~16): Length 30 ▶Sheath Holder(Φ12~20): Length 40

VISSEM VSOF--BS606G-Manual Rev.0 TEL: [phone] FAX: [phone]

All rights reserved by VISSEM Electronics Co. Ltd.

4. Arranging Loose Tube

Arrange the loose tube into the closure as using
Tube Guide
