PowerG, Wireless, PIR /Pet Tolerant Motion Detector

Installation Instructions

1. INTRODUCTION

The Next PG2 and Next K9-85 PG2 are 2-way, microprocessor-controlled, wireless digital PIR detectors. The detectors features are as follows:

 For use with all PowerMaster® control panels (version 10 and higher).  Combined Fresnel and cylindrical optics, up to 15 meters (49 ft).  The Next PG2 includes wall creep zone protection.  In Next PG2 and Next K9-85 PG2, Target Specific Imaging™ (TSI) technology is used for distinction

between human beings and pets weighing up to 38 kg (85lb).

 Includes a fully supervised PowerG transceiver.  The advanced True Motion Recognition™ algorithm (patented) allows distinguishing between the true motion

of an intruder and any other disturbances which may cause false alarms.

 Sophisticated frequency domain digital signal processing.  Built-in link quality indicators; no need for the installer to physically approach the control panel thus making

installation faster and easier.

A. LED B. Lens

Figure 1: External View

1. Keep away from heat sources.

2. Do not expose to air drafts.

3. Do not install outdoors.

4. Avoid direct sunshine.

5. Keep wiring away from power cables.

6. Do not install behind partitions.

7. Mount on solid stable surface.

8. Installed in accordance with NEC, NFPA 70.

9. Installed in accordance with UL 681, Standard for Installations and Classifications of burglar and Holdup Alarm Systems.

1 2 3

4 5 6

Figure 2. General Guidelines

Important! The Next K9-85 PG2 detector is tolerant to 38 kg (85 lb) animals moving on the floor or climbing on furniture as long as the activity takes place below 1 m (3 ft). Above the 1 m (3 ft) height limit, the detector is tolerant to 19 kg (42 lb) pets, but the pet immunity will decrease as the pet gets closer to the detector. It is therefore recommended to select a mounting location that minimizes potential close proximity of animals.

 No vertical adjustment is needed.  Motion event counter determines whether 1 or 2 consecutive motion events will trigger an alarm.  Automatic termination of walk-test after 15 minutes.  Microprocessor-controlled temperature compensation.  Sealed chamber protects the optical system.  Front cover and back tamper switches, for improved tamper protection.  White light protection.  Notes: 1. The pet immunity feature was not evaluated by UL.

2. For CE installations, the pet immunity was not evaluated by DNV.

2. INSTALLATION

2.1 General Guidance (see Fig. 2)

WARNING! To comply with FCC and IC RF exposure compliance requirements, the PIR detector should be located at a distance of at least 20 cm from all persons during normal operation. The antennas used for this product must not be co-located or operated in conjunction with any other antenna or transmitter

D-302413 NEXT PG2, NEXT K9-85 PG2 Installation Instructions 1

C D

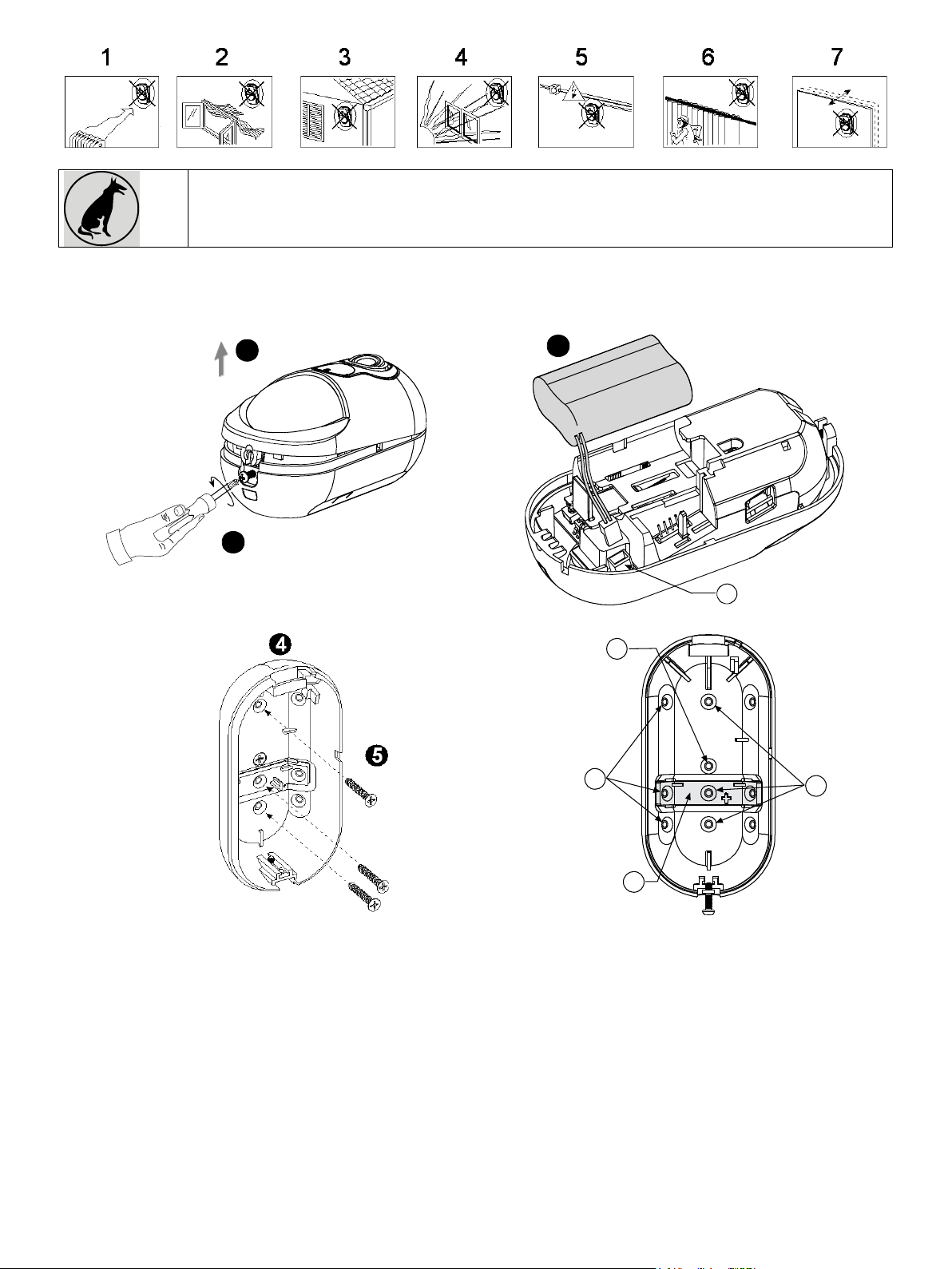

1. Release screw and remove cover.

2. Push catch and remove board.

3. Insert battery.

4. Mounting

A. Front Tamper switch B. Back Tamper switch. C. On surface D. In corner

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

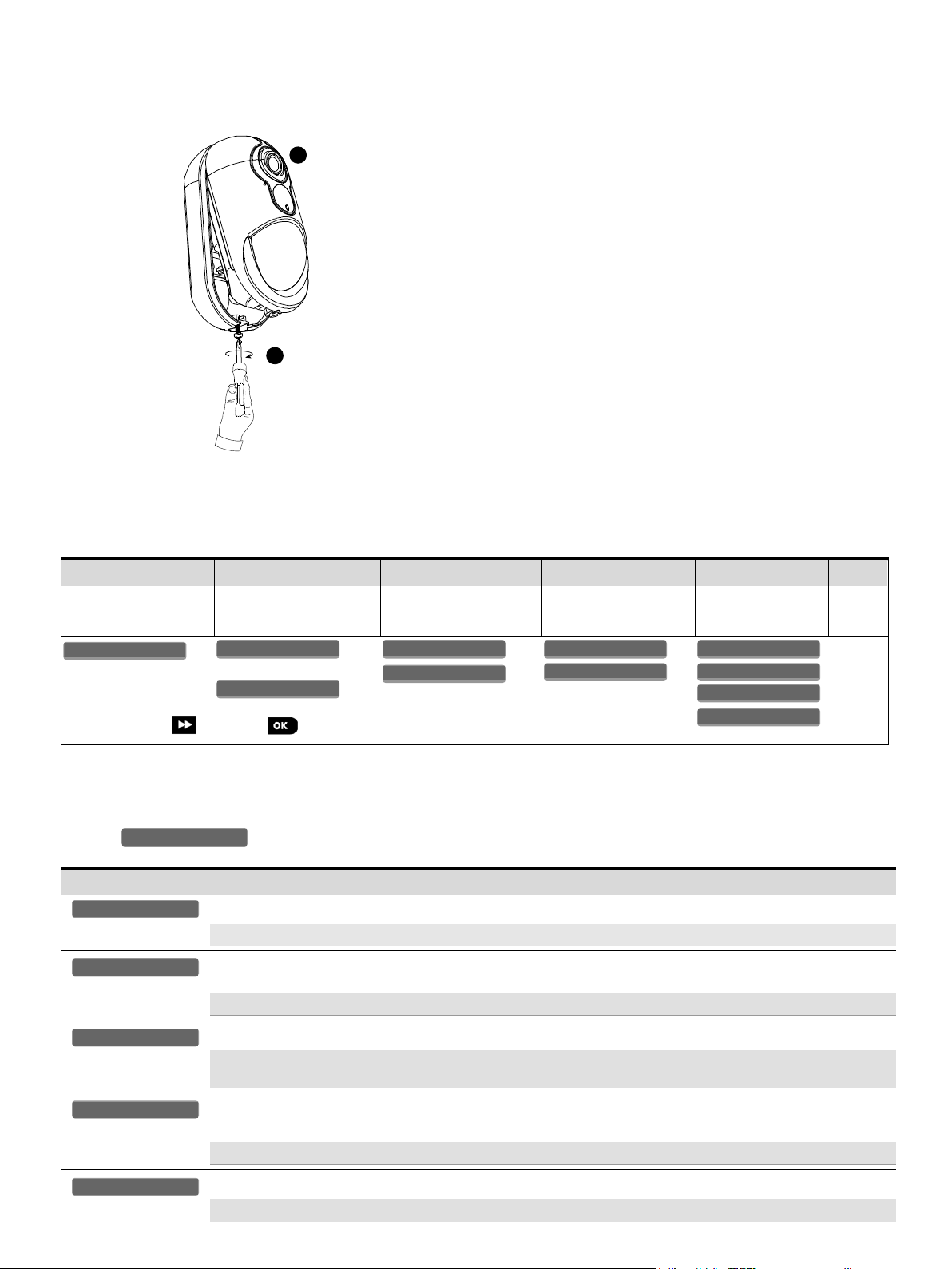

Enter the Installer menu

and select

“02:ZONES/DEVICES”

Select "ADD NEW

DEVICE" Option

See Note [1]

Enroll the device or Enter

the device ID

Select the desired Zone

Number

Configure Location,

Zone Type &

Chime Parameters

Configure

the

Detector







   means scroll and select

See Note

[2]

Option

Configuration Instructions

Here you determine whether or not the alarm LED indication will be activated.

Optional settings: LED ON (default) and LED OFF.



Here you determine whether an alarm will be activated upon continued motion (low sensitivity) or upon a single alarm event (high sensitivity)..

Optional settings: LOW sensitive (default) and HIGH sensitive.



Here you determine whether or not to set the activity time during disarm.

Optional settings: NOT Active (default), YES – no delay, YES + 5s delay, YES + 15s delay, YES + 30s delay,

YES + 1m delay, YES + 2m delay, YES + 5m delay, YES + 10m delay, YES + 20m delay and YES + 60m delay.



DISARM Activity

Event Counter

Alarm LED

DEVICE SETTINGS

Z14.DEV SETTINGS

Z14.SET CHIME

Z14.ZONE TYPE

Z14.LOCATION

ID No. 120-XXXX

Z14:Motion Sens

ENTR ID:XXX-XXXX

ENROLL NOW or

MODIFY DEVICES

ADD NEW DEVICES

02.ZONES/DEVICES

2.2 Mounting (see Fig. 3)

Notes:

1. Mount the detector so that its orientation is perpendicular to the expected intrusion path.

2. For installations of detector at 2m high, Dead zone is 2ft at 0m high and 0.5ft at 1.5m high.

Caution!

Risk of explosion if battery is replaced by an incorrect type. Dispose of used battery according to manufacturer's instructions.

Note: Back Tamper must be enabled for UL installations.Figure 3. Mounting

2.3. Enrollment

Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu. A general description of the procedure is provided in the following flow chart.

Notes: [1] If the detector is already enrolled you can configure the detector parameters via the “Modify Devices” option – see Step 2.

[2] Select the "Device Settings" option and refer to section 2.4 to configure the detector parameters.

2.4. Configuring the Detector Parameters

Enter the menu and follow the configuration instructions for the Next PG2 / Next K9-85 PG2 PIR detector as described in the following table.

2 D-302413 NEXT PG2, NEXT K9-85 PG2 Installation Instructions

3. LOCAL DIAGNOSTICS TEST

LED response

Reception

Green LED blinks

Strong

Orange LED blinks

Good

Red LED blinks

Poor

No blinks

No communication

IMPORTANT! Reliable reception must be assured. Therefore, "poor" signal strength is not acceptable. If you receive a "poor" signal from the detector, re-locate it and re-test until a "good" or "strong" signal strength is received (in regions requiring UL-compliant installation, only “strong” signal strength is permitted).

Notes:

1. For detailed Diagnostics Test instructions refer to the

control panel Installer Guide.

2. For UL/CUL installations, the test result must be “Strong”.

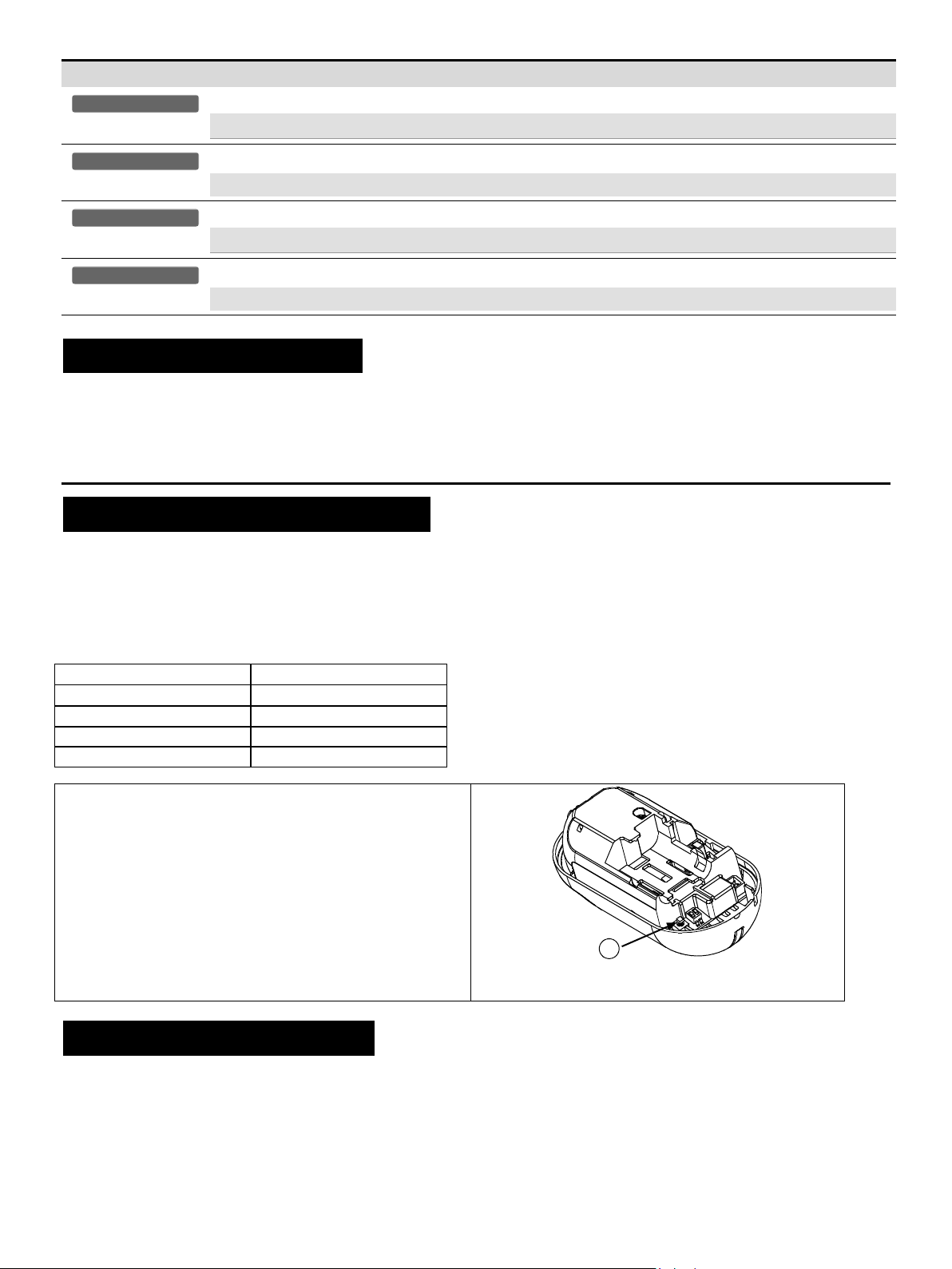

A. ENROLL button

Rx Tx

EVENT

1 2

LED

Figure 4. Device enroll button

Compliance with Standards

Europe: EN 300220, EN 50131-1 Grade 2, Class II. EN 301489, EN 50130-4, EN 60950, EN 50131-2-2,

EN 50131-6 Environmental IP55.

The NEXT PG2 and NEXT K9-85 PG2 are compatible with the RTTE requirements - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 and EN50131-1 Grade 2 Class II.

Certified by the Dutch testing and certification body Telefication BV to the following standards : EN 50131-2-2, EN 50131-6, EN 50131-5-3, EN 50130-4, and EN 50130-5. Telefication BV has certified only the 868 MHz variant of this product.

Also complies to USA: CFR47 Part 15; Canada: RSS 210; UK: This product is suitable for use in systems installed to conform to PD6662:2010 at Grade 2 and environmental class 2. DD243 and BS8243.

The Power G peripheral devices have two- way communication functionality, providing additional benefits as described in the technical brochure. This functionality has not been tested to comply with the respective technical requirements and should therefore be considered outside the scope of the product’s certification.

EN 50131-1 Security Grade

According to EN 50131-1:2006 and A1:2009, this equipment can be applied in installed systems up to and including Security Grade 2.

EN 50131-1 Environmental Class

Class II

Visonic Ltd. M/N: RFD FCC ID: WP3RFD

IC: 1467-RFD

NOTE: Run a diagnostic test at least once a year to ensure that the detector is working correctly. A. Separate the base from the cover (see Fig. 3). B. Put back the cover to return the tamper switch to its normal (undisturbed) position, and then secure the front cover to the base with the

case closure screw.

C. The Next PG2 / Next K9-85 PG2 will enter a 2 min. stability period. During this time the red LED blinks. D. Walk-test the coverage area - see Fig. 5. Walk across the far end of coverage pattern in both directions, The red LED lights each time

your motion is detected followed by 3 LED blinks.

The following table indicates received signal strength indication.

4. SPECIAL COMMENTS

Even the most sophisticated detectors can sometimes be defeated or may fail to warn due to: DC power failure / improper connection, malicious masking of the lens, tampering with the optical system, decreased sensitivity in ambient temperatures close to that of the human body and unexpected failure of a component part. The above list includes the most common reasons for failure to detect intrusion, but is by no means comprehensive. It is therefore recommended that the detector and the entire alarm system be checked weekly, to ensure proper performance. An alarm system should not be regarded as a substitute for insurance. Home and property owners or renters should be prudent enough to continue insuring their lives and property, even though they are protected by an alarm system.

5. COMPLIANCE WITH STANDARDS

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following measures:

– Re-orient or re-locate the receiving antenna. – Increase the distance between the device and the receiver. – Connect the device to an outlet on a circuit different from the one that supplies power to the receiver. – Consult the dealer or an experienced radio/TV technician.

WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s

D-302413 NEXT PG2, NEXT K9-85 PG2 Installation Instructions 3

authority to operate the equipment.

4 D-302413 NEXT PG2, NEXT K9-85 PG2 Installation Instructions

This device complies with FCC Rules Part 15 and with Industry Canada licence-exempt RSS standard(s). Operation is subject to two

The technical documentation as required by the European Conformity Assessment procedure is kept at: UNIT 6 MADINGLEY COURT CHIPPENHAM DRIVE KINGSTON MILTON KEYNES MK10 0BZ. TEL.: +44(0)845 0755800 FAX: +44(0)845 0755801

W.E.E.E. Product Recycling Declaration For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste. Directive 2002/96/EC Waste Electrical and Electronic Equipment.

GENERAL

90°

16.4

15 m

49.2 ft

32.8

16.4ft

10m

32.8ft

10m

32.8ft

5 10 15 m

2.1 m (6.9 ft)

16.4 32.8 49.2 ft

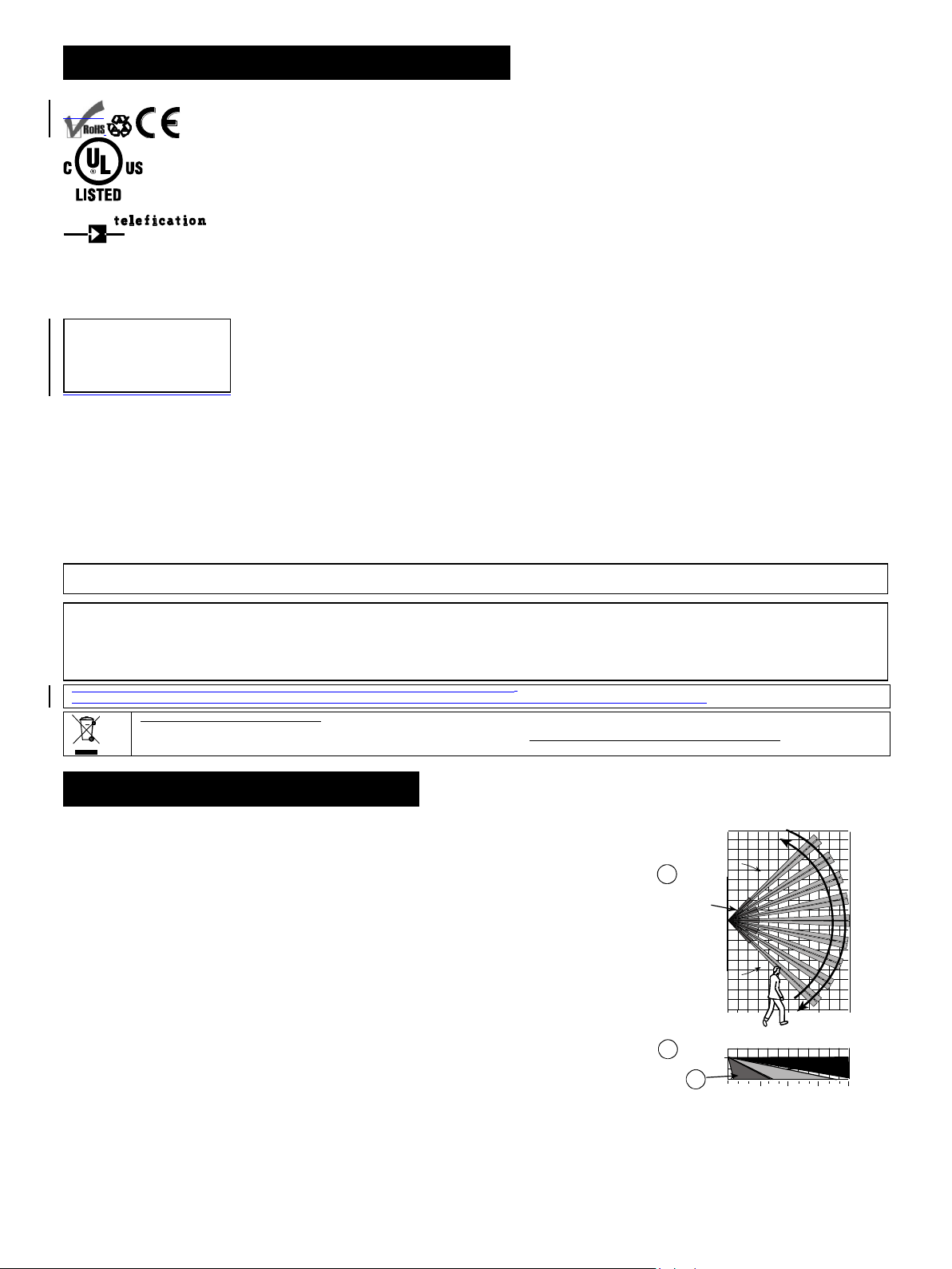

Fig. 5. Coverage Pattern & Walk-test

Detector Type

Dual element low-noise pyroelectric sensor

Lens Data

No. of Curtain Beams / curtains:

Next PG2: 18 far, 18 mid, 10 close. Next K9-85 PG2: 18 far, 18 mid, 18 close

Note: Lens – Reflex II PIR, Fresnel type lens With Optical attenuation in the lower part of the lens. Lens material is High Density Polyethylene (HDPE). Part of Enclosure Cover (Item 1) and snapped to the Enclosure Base (Item

2) by two tabs and one screw.

Max. Coverage

15 x 15 m, (49 x 49 ft) / 90°

A. HORIZONTAL VIEW B. VERTICAL VIEW C. Next PG2: 0.5-4m, Next K9-85 PG2: 2-4m

Pet Immunity (Next K9-85 PG2 only)

Up to 38 kg (85 lb) ELECTRICAL

Power Supply

Type C

Internal Battery

3V Lithium battery, type CR-123A or equivalent

Notes:

1. Use only the above battery type.

2. For UL installations use Gold Peak (GP) CR123A only.

Nominal Battery Capacity

1450 mA/h

Battery Life (for typical use)

6 to 8 years

Low Battery Threshold

2.5 V

FUNCTIONAL

True Motion Event Verification

2 remote selections at panel - LOW, HIGH

Alarm Period

2 seconds

WIRELESS

Frequency Band (MHz)

Europe and rest of world: 433-434, 868-869 USA: 912-919

Communication Protocol

PowerG

Supervision

Signaling at 4-min. intervals

Tamper Alert

Reported when a tamper event occurs and in any subsequent message, until the tamper switch is restored

MOUNTING

Height

1.8 - 2.4 m (6 - 8 ft). For Next PG2, the recommended height is up to 2.1 m (7 ft)

Installation Options

Surface or corner

ACCESSORIES

BR-1: Surface mounted swivel bracket, adjustable 30° down and 45° left/45° right. BR-2: BR-1 with a corner adapter BR-3: BR-1 with a ceiling adapter

Note: UL did not evaluate the product with the use of the BR brackets

ENVIRONMENTAL

RFI Protection

>20 V/m up to 2000 MHz, excluding inband frequencies

Operating Temperatures

-10°C to 50°C (14°F to 122°F) indoor

Note: UL tested 0°C to 49°C

Storage Temperatures

-20°C to 60°C (-4°F to 140°F)

Humidity

Average relative humidity of up to approximately 75% non-condensing. For 30 days per year the relative humidity may vary between 85 % and 95 % non-condensing

Note: For UL installations, relative humidity is 85%.

PHYSICAL

Size (H x W x D)

94.5 x 63.5 x 53.0 mm (3-11/16 x 2-1/2 x 2-1/16”)

Weight (with battery)

70 g (2.5 oz).

Color

White

PATENTS

U.S. Patents 5,693,943  6,211,522  D445,709 (another patent pending)

EMAIL: info@visonic.com INTERNET: www.visonic.com

VISONIC LTD. 2014 D-302413 NEXT PG2, NEXT K9-85 PG2 (REV. 4 5, 101/14)

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received or that may cause undesired operation. Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.

APPENDIX: SPECIFICATIONS

D-302413 NEXT PG2, NEXT K9-85 PG2 Installation Instructions 5

NEXT CAM PG2, NEXT CAM K9-85 PG2

PowerG, Wireless, [Pet-tolerant] PIR Motion detector with Integrated Camera

Installation Instructions

1. INTRODUCTION

The Next CAM PG2 / Next CAM K9-85 PG2 is a 2-way, microprocessor-controlled, wireless digital PIR detector with integrated camera and microphone for alarm verification. Activated upon PIR detection or upon demand, the Next CAM PG2 / Next CAM K9-85 PG2 sends clear images with optional audio to the Monitoring Station. It thus enables accurate status assessment of the premises.

The PIR detector's features are as follows:

 For use with all PowerMaster® control panels (version 15 and

higher).

 Up to 12 meters (40 ft).  90 angle camera overlaps PIR field of view  10 meter (33 ft) range in complete darkness overlaps PIR range  Wall creep zone protection.  For pet tolerant version - Target Specific Imaging™ (TSI) technology

is used for distinction between human beings and pets weighing up to 38 kg (85lb).

 Includes a fully supervised PowerG transceiver.

A. Microphone B. Camera lens C. IR LED D. Light sensor E. LEDs

Fig. 1. External View

 True Motion Recognition™ algorithm.  In Next CAM PG2, built-in link quality indicators; no need for the

installer to physically approach the control panel thus making installation faster and easier.

 No vertical adjustment is needed.  Temperature compensation.  Sealed chamber protects the optical system from insects.  Front cover and back tamper, for improved tamper protection.  White light protection.

The camera's features are as follows:

 Up to 10 cameras  Optional audio with images for listen -in  Images multiplexed from all cameras  Color and back & white images  Auto-setup (brightness, contrast)  Camera tuning by simple walk-test

 Day and night CMOS camera, with IR illumination. This

allows taking pictures in full darkness without letting the intruder know.

 Instant capture: guarantees capture of fast moving intruder.  Camera operation modes:

o Post alarm – pictures are taken after detection by

detector.

o On demand – pictures are taken after a command from

the monitoring station.

 An event records 2 images per second. 10-15 images total

(can be customized by request)

 Works with repeaters for extended range

Notes:

1. The camera and the listen-in feature are not to be enabled in

UL listed product.

2. The pet immunity feature was not evaluated by UL.

3. The microphone is not to be enabled in a UL listed product.

4. For CE installations, the pet immunity was not evaluated by DNV.

1. Keep away from heat sources.

2. Do not expose to air drafts.

3. Do not install outdoors.

4. Avoid direct sunshine.

5. Keep wiring away from power cables.

6. Do not install behind partitions.

7. Mount on solid stable surface.

8. Installed in accordance with NEC, NFPA 70.

9. Installed in accordance with UL 681, Standard for Installations and Classifications of

burglar and Holdup Alarm Systems.

10. Installed in accordance with C22.1, Canadian Electrical Code, Part I, Safety Standard for

Electrical Installations.

2. INSTALLATION

2.1 General Guidance (see Fig. 2)

D-302893 NEXT CAM PG2, NEXT CAM K9-85 PG2 Installation Instructions 1
