DE3591 1

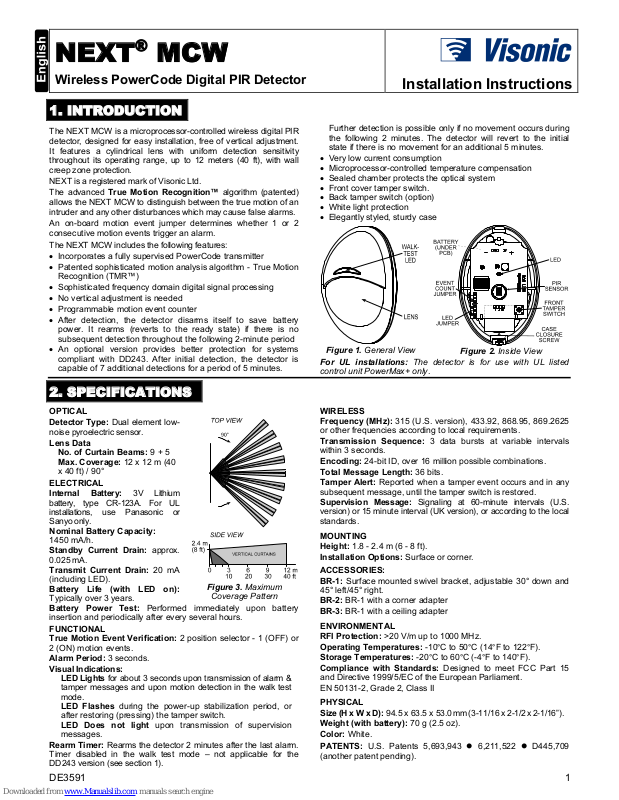

NEXT® MCW

Wireless PowerCode Digital PIR Detector

Installation Instructions

1. INTRODUCTION

The NEXT MCW is a microprocessor-controlled wireless digital PIR
detector, designed for easy installation, free of vertical adjustment.
It features a cylindrical lens with uniform detection sensitivity
throughout its operating range, up to 12 meters (40 ft), with wall
creep zone protection.
NEXT is a registered mark of Visonic Ltd.

The advanced True Motion Recognition™ algorithm (patented)
allows the NEXT MCW to distinguish between the true motion of an
intruder and any other disturbances which may cause false alarms.

An on-board motion event jumper determines whether 1 or 2
consecutive motion events trigger an alarm.

The NEXT MCW includes the following features:

• Incorporates a fully supervised PowerCode transmitter

• Patented sophisticated motion analysis algorithm - True Motion

Recognition (TMR™)

• Sophisticated frequency domain digital signal processing

• No vertical adjustment is needed

• Programmable motion event counter

• After detection, the detector disarms itself to save battery

power. It rearms (reverts to the ready state) if there is no
subsequent detection throughout the following 2-minute period

• An optional version provides better protection for systems
compliant with DD243. After initial detection, the detector is
capable of 7 additional detections for a period of 5 minutes.

Further detection is possible only if no movement occurs during
the following 2 minutes. The detector will revert to the initial
state if there is no movement for an additional 5 minutes.

• Very low current consumption

• Microprocessor-controlled temperature compensation

• Sealed chamber protects the optical system

• Front cover tamper switch.

• Back tamper switch (option)

• White light protection

• Elegantly styled, sturdy case

Figure 1. General View

Figure 2. Inside View

For UL installations: The detector is for use with UL listed

control unit PowerMax+ only.

2. SPECIFICATIONS

OPTICAL
Detector Type: Dual element low-

noise pyroelectric sensor.
Lens Data

No. of Curtain Beams: 9 + 5
Max. Coverage: 12 x 12 m (40

x 40 ft) / 90°

ELECTRICAL
Internal Battery: 3V Lithium

battery, type CR-123A. For UL
installations, use Panasonic or
Sanyo only.
Nominal Battery Capacity:
1450 mA/h.
Standby Current Drain: approx.

0.025 mA.

Transmit Current Drain: 20 mA
(including LED).

Battery Life (with LED on):
Typically over 3 years.

Figure 3. Maximum

Coverage Pattern

Battery Power Test: Performed immediately upon battery
insertion and periodically after every several hours.

FUNCTIONAL
True Motion Event Verification: 2 position selector - 1 (OFF) or

2 (ON) motion events.

Alarm Period: 3 seconds.
Visual Indications:

LED Lights for about 3 seconds upon transmission of alarm &

tamper messages and upon motion detection in the walk test
mode.
LED Flashes during the power-up stabilization period, or
after restoring (pressing) the tamper switch.
LED Does not light upon transmission of supervision
messages.

Rearm Timer: Rearms the detector 2 minutes after the last alarm.
Timer disabled in the walk test mode – not applicable for the
DD243 version (see section 1).

WIRELESS
Frequency (MHz): 315 (U.S. version), 433.92, 868.95, 869.2625

or other frequencies according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals

within 3 seconds.

Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits.
Tamper Alert: Reported when a tamper event occurs and in any

subsequent message, until the tamper switch is restored.
Supervision Message: Signaling at 60-minute intervals (U.S.

version) or 15 minute interval (UK version), or according to the local
standards.

MOUNTING
Height: 1.8 - 2.4 m (6 - 8 ft).
Installation Options: Surface or corner.

ACCESSORIES:
BR-1: Surface mounted swivel bracket, adjustable 30° down and

45° left/45° right.

BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter

ENVIRONMENTAL
RFI Protection: >20 V/m up to 1000 MHz.
Operating Temperatures: -10

°C to 50°C (14°F to 122°F).

Storage Temperatures: -20

°C to 60°C (-4°F to 140°F).

Compliance with Standards: Designed to meet FCC Part 15
and Directive 1999/5/EC of the European Parliament.

EN 50131-2, Grade 2, Class II

PHYSICAL
Size

(H x W x D): 94.5 x 63.5 x 53.0 mm (3-11/16 x 2-1/2 x 2-1/16”).

Weight (with battery): 70 g (2.5 oz).
Color: White.

PATENTS: U.S. Patents 5,693,943 z 6,211,522 z D445,709

(another patent pending).

2 DE3591

3. INSTALLATION

3.1 General Guidelines

3.2 Illustrated Installation Procedure

RESET:

With the battery in
place, press both tamper
switches simultaneously
and release them. The
LED at the front will flash
for about 2 minutes until
the detector stabilizes.

Note: The de]tector transmits
a low battery signal upon
detection of low battery.

Note:

It is recommended to wait
about 1 minute before inserting
the new battery.

A

B

BACK
TAMPER
SWITCH

(OPTION)

FRONT
TAMPER
SWITCH

OBSERVE

POLARITY !

ENROLL:

Approach the
control panel and enroll the
detector’s ID into the control
panel’s memory as shown in
the panel’s installation
manual. When required to
transmit, press both tamper
switches again and release
them.
You may enroll the de tector’s
ID while the detector’s LED
flashes.

USE A SCREWDRIV ER TO PIERCE
SURFACE OR CORNER KNOCK­OUTS, AS REQUIRED.

A

USE A LARGE
DIAMETER DRILL
BIT TO DE-BURR
THE OTHER SIDE

B

SUPPORTS
FOR BOTTOM
EDGE OF PCB

CORNER
(2 OF 4)

SURFACE

(1 OF 2)

BREAK-AWAY

SEGMENT (BACK TAMPER

SWITCH ACTUATOR - OPTION)

TOP

CATCH
FOR PCB

Attention! Lean the rear part of the break-away segment against a
piece of wood while piercing its knockouts.

B

INSERT TWO DOWELS AND

C

INSERT THE BOTTOM EDGE

D

MARK TWO DRILLING

A

SINGLE­SIDE, 45°
ANGLED
MOUNT

SURFACE

MOUNT
(1 OF 2)

ATTACH THE BASE TO THE
WALL WITH TWO SCREWS.

OF THE LARGE P.C. BOARD
UNDER THE TABS & PRESS
THE TOP EDGE IN.

POINTS AND DRILL HOLES
IN WALL.

SINGLE-

SIDE, 45°

ANGLED

MOUNT

BREAK-AWAY

SEGMENT

FOR TAMPER PROTECTION,
THE BREAK-AWAY SEGMENT
MUST BE ATTACHED TO
WALL.

1.8 - 2.4 m (6 - 8 ft) above ground

Attention!

The unit has a back tamper switch (option) under the PCB. As

long as the PCB is seated firmly within the base, the switch will be pressed
against a metal spring piece attached to the base.

Be sure to fasten the break-away segment to the wall with the screws
going through the metal spring and the break-away base segment.

If
the detector is forcibly removed from the wall, this segment will break away
from the base, causing the tamper switch to open and send a tamper alarm.

1 EVENT:

FAS T

RESPONSE

2 EVENTS:

HIGHEST

FAL SE

ALARM

PROTECTION

ON:

LED

ENABLED

OFF:

LED

DISABLED

IMPORTANT!

INSTRUCT THE USER TO WALK- TEST AT
LEAST ONCE A WEEK TO A SSURE PROPER
FUNCTION OF EACH DETECTOR.

B

WALK ACROSS THE FAR END OF COVERAGE
PATTERN IN BOTH DIRECTIONS. THE
INDICATOR SHOULD LIGHT FOR 2-3 SECONDS
EACH TIME YOUR MOTION IS DETECTED.

C

A

MOUNT THE COVER,
CLOSE IT AND
TIGHTEN THE
SCREW.
WAIT FOR THE DETECTOR
TO STABILIZE (THE LED
STOPS FLASHING).

1

2

3

Note: After closing the cover the de tector enters a 15 minute walk-test mode.
In this mode the LED will flash each time a detection occurs, regardle

ss

of LED

j

umper settin gs, and the detector will transmit on the occurrence of each event.

1

2

3

4

Open holes in the base

Disassemble the unit

Install the batter

y

Mount the base

6

5

Set the jumpers as needed

Walk

-test the coverage area
