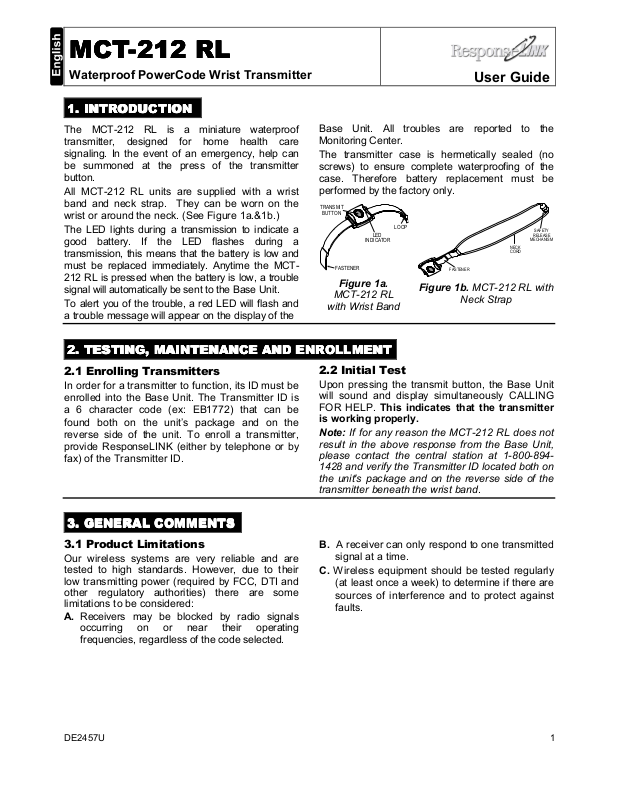

Visonic MCT212 Users Manual

MCT

MCT----212 RL

MCTMCT

212 RL

212 RL212 RL

Waterproof PowerCode Wrist Transmitter

1. INTRODUCTION

1. INTRODUCTION

1. INTRODUCTION1. INTRODUCTION

The MCT-212 RL is a miniature waterproof
transmitter, designed for home health care
signaling. In the event of an emergency, help can
be summoned at the press of the transmitter
button.

All MCT-212 RL units are supplied with a wrist
band and neck strap. They can be worn on the
wrist or around the neck. (See Figure 1a.&1b.)

The LED lights during a transmission to indicate a
good battery. If the LED flashes during a
transmission, this means that the battery is low and
must be replaced immediately. Anytime the MCT­212 RL is pressed when the battery is low, a trouble
signal will automatically be sent to the Base Unit.
To alert you of the trouble, a red LED will flash and
a trouble message will appear on the display of the

2222.

. TESTING

TESTING,,,, MAINTENANCE

. .

TESTINGTESTING

MAINTENANCE AND ENROLLMENT

MAINTENANCEMAINTENANCE

AND ENROLLMENT

AND ENROLLMENT AND ENROLLMENT

User Guide

Base Unit. All troubles are reported to the
Monitoring Center.

The transmitter case is hermetically sealed (no
screws) to ensure complete waterproofing of the
case. Therefore battery replacement must be
performed by the factory only.

TRANSMIT

BUTTON

LED

INDICATOR

FASTENER

Figure 1a.

MCT-212 RL

with Wrist Band

LOOP

FASTENER

Figure 1b. MCT-212 RL with

Neck Strap

NECK
CORD

SAFETY

RELEASE

MECHANI SM

2.1 Enrolling Transmitters

In order for a transmitter to function, its ID must be
enrolled into the Base Unit. The Transmitter ID is
a 6 character code (ex: EB1772) that can be
found both on the unit’s package and on the
reverse side of the unit. To enroll a transmitter,
provide ResponseLINK (either by telephone or by
fax) of the Transmitter ID.

3333. GENERAL COMMENTS

. GENERAL COMMENTS

. GENERAL COMMENTS. GENERAL COMMENTS

3.1 Product Limitations

Our wireless systems are very reliable and are
tested to high standards. However, due to their
low transmitting power (required by FCC, DTI and
other regulatory authorities) there are some
limitations to be considered:
A. Receivers may be blocked by radio signals

occurring on or near their operating
frequencies, regardless of the code selected.

2.2 Initial Test

Upon pressing the transmit button, the Base Unit
will sound and display simultaneously CALLING
FOR HELP. This indicates that the transmitter

is working properly.

Note: If for any reason the MCT-212 RL does not
result in the above response from the Base Unit,
please contact the central station at 1-800-894­1428 and verify the Transmitter ID located both on
the unit's package and on the reverse side of the
transmitter beneath the wrist band.

B. A receiver can only respond to one transmitted

signal at a time.

C. Wireless equipment should be tested regularly

(at least once a week) to determine if there are
sources of interference and to protect against
faults.

DE2457U 1

4. SPECIFICATIONS

4. SPECIFICATIONS

4. SPECIFICATIONS4. SPECIFICATIONS

Frequency (MHz): 315
Transmitter ID: Over 16 million possible code

combinations.

Minimum Transmit Duration: 2 sec
Power Supply: 3-volt Lithium cell type CR-2032
Battery Life Expectancy: 3 years (for typical use)

Battery Supervision:

Good battery - LED lights steadily upon activation.
Low battery - LED flashes upon activation.

Note: If transmission is still possible despite the
battery condition, the MCT-212 RL will send a low
battery report to the receiver.

Operating Temperature: 0° to 50°C (32° to
122°F).

Dimensions: 39 x 37 x 13 mm (1-9/16 x 1-7/16 x
5/8 in.).

Weight: 25 g (0.9 oz).
Color: Gray

This device complies with Part 15 of the FCC
Rules and RSS-210 of Industry and Science
Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.

WARNING: Changes or modifications to this unit
not expressly approved by the party responsible for
compliance could void the user's authority to
operate the equipment.

The digital circuit of this device has been tested and found to
comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in residential
installations. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio and television reception. However, there is no guarantee
that interference will not occur in a particular installation. If this
device does cause such interference, which can be verified by
turning the device off and on, the user is encouraged to eliminate
the interference by one or more of the following measures:

– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the

one which supplies power to the receiver.

– Consult the dealer or an experienced radio/TV technician.

IF YOU HAVE ANY QUESTIONS PLEASE CALL [phone].

W.E.E.E. Product Recycling Declaratio n

For information rega rding the recycli ng of this product you must contact the company from which you origniall y purchased it. If you are discarding thi s product and
not returning it for repair then you must en sure that it is retur ned as identifi ed by your suppli er. This product is not to be thrown away with everyday waste.
Directive 2002/96 /EC Waste Electri cal and Electro nic Equipment.

RESPONSELINK L.L.C.
9555 SEMINOLE BLVD. SUITE 207 SEMINOLE Fl. 33772. PHONE: [phone] FAX: [phone]

MCT-212 RL DE2457U (REV. 0, 12/04)
