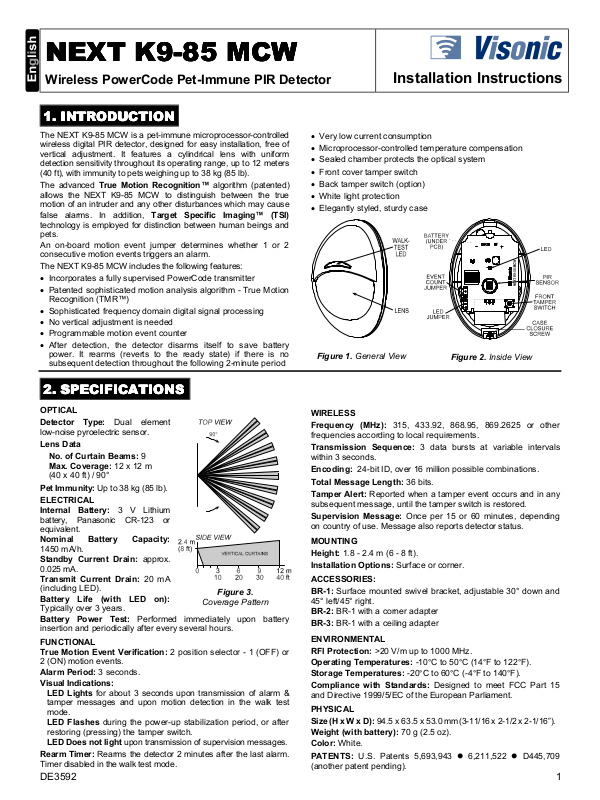

Wireless PowerCode Pet-Immune PIR Detector

1111. INTRODUCTION

. INTRODUCTION

. INTRODUCTION. INTRODUCTION

The NEXT K9-85 MCW is a pet-immune microprocessor-controlled
wireless digital PIR detector, designed for easy installation, free of
vertical adjustment. It features a cylindrical lens with uniform
detection sensitivity throughout its operating range, up to 12 meters
(40 ft), with immunity to pets weighing up to 38 kg (85 lb).

advanced

The
allows
motion of an intruder and any other disturbances which may cause
false alarms. In addition, Target Specific Imaging™ (TSI)
technology is employed for distinction between human beings and
pets.
An on-board motion event jumper determines whether 1 or 2
consecutive motion events triggers an alarm.

The NEXT K9-85 MCW includes the following features:

• Incorporates a fully supervised PowerCode transmitter

• Patented sophisticated motion analysis algorithm - True Motion

Recognition (TMR™)

• Sophisticated frequency domain digital signal processing

• No vertical adjustment is needed

• Programmable motion event counter

• After detection, the detector disarms itself to save battery

power. It rearms (reverts to the ready state) if there is no
subsequent detection throughout the following 2-minute period

the NEXT K9-85 MCW to distinguish between the true

True Motion Recognition™

algorithm (patented)

• Very low current consumption

• Microprocessor-controlled temperature compensation

• Sealed chamber protects the optical system

• Front cover tamper switch

• Back tamper switch (option)

• White light protection

• Elegantly styled, sturdy case

Installation Instructions

Figure 1. General View

Figure 2. Inside View

2222. SPECIFICATIONS

. SPECIFICATIONS

. SPECIFICATIONS. SPECIFICATIONS

OPTICAL
Detector Type: Dual element

low-noise pyroelectric sensor.

Lens Data

No. of Curtain Beams: 9
Max. Coverage: 12 x 12 m

(40 x 40 ft) / 90°

Pet Immunity: Up to 38 kg (85 lb).
ELECTRICAL

Internal Battery: 3

battery, Panasonic CR-123 or
equivalent.

Nominal Battery Capacity:

1450 mA/h.
Standby Current Drain: approx.

0.025 mA.
Transmit Current Drain: 20 mA

(including LED).

Battery Life (with LED on):

Typically over 3 years.
Battery Power Test: Performed immediately upon battery

insertion and periodically after every several hours.

FUNCTIONAL
True Motion Event Verification: 2 position selector - 1 (OFF) or

2 (ON) motion events.

Alarm Period: 3 seconds.
Visual Indications:

LED Lights for about 3 seconds upon transmission of alarm &

tamper messages and upon motion detection in the walk test
mode.

LED Flashes during the power-up stabilization period, or after
restoring (pressing) the tamper switch.

LED Does not light upon transmission of supervision messages.

Rearm Timer: Rearms the detector 2 minutes after the last alarm.

Timer disabled in the walk test mode.

V Lithium

Figure 3.

Coverage Pattern

WIRELESS
Frequency (MHz): 315, 433.92, 868.95, 869.2625 or other

frequencies according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals

within 3 seconds.

Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits.
Tamper Alert: Reported when a tamper event occurs and in any

subsequent message, until the tamper switch is restored.
Supervision Message: Once per 15 or 60 minutes, depending

on country of use. Message also reports detector status.

MOUNTING
Height: 1.8 - 2.4 m (6 - 8 ft).
Installation Options: Surface or corner.

ACCESSORIES:
BR-1: Surface mounted swivel bracket, adjustable 30° down and

45° left/45° right.

BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter

ENVIRONMENTAL
RFI Protection: >20 V/m up to 1000 MHz.
Operating Temperatures: -10
Storage Temperatures: -20
Compliance with Standards: Designed to meet FCC Part 15

and Directive 1999/5/EC of the European Parliament.

PHYSICAL
Size

(H x W x D): 94.5 x 63.5 x 53.0

Weight (with battery): 70 g (2.5 oz).
Color: White.
PATENTS: U.S. Patents 5,693,943 z 6,211,522 z D445,709

(another patent pending).

°

C to 50°C (14°F to 122°F).

°

C to 60°C (-4°F to 140°F).

mm (3-11/16 x 2-1/2 x 2-1/16”).

DE3592 1

3333. INSTALLATION

jump

y

W

. INSTALLATION

. INSTALLATION. INSTALLATION

3.1 General Guidelines

3.2 Illustrated Installation Procedure

1 2

Disassemble the unit

Open holes in the base

3 4

TOP

CATCH

FOR PCB

SURFACE

(1 OF 2)

CORNER
(2 OF 4)

B

USE A LARGE
DIAMETER DRILL
BIT TO DE-BURR
THE OTHER SIDE

A

USE A SCREWDRIVER TO PIERCE
SURFACE OR CORNER KNOCK­OUTS, AS REQUIRED.

SUPPORTS

FOR BOTTOM

EDGE OF PCB

Attention! Lean the rear part of the break-away segment against a
piece of wood while priercing its knockouts.

BREAK-AWAY

SEGMENT (BACK TAMPER

SWITCH ACTUATOR)

Install the batter

OBSERVE

POLARITY !

FRONT
TAMPER
SWITCH

BACK
TAMPER
SWITCH

RESET: With the battery in

A

place, press both tamper
switches simultaneously
and release them. The
LED at the front will flash
for about 2 minutes until
the detector stabilizes.

Note: The de]tector transmits
a low battery signal upon
detection of low battery.
Note: It is recommended to wa it
about 1 minute before inserting
the new battery.

ENROLL:

B

control panel and enroll the
detector’s ID into the control
panel’s memory as shown i n
the panel’s installation
manual. When required to
transmit, press both tamper
switches again and release
them.
You may enroll the detector’s
ID while the detector’s LED
flashes.

Approach the

Mount the base

FOR TAMPER PROTECTION,

A

1.8 - 2.4 m (6 - 8 ft) above ground

SINGLE­SIDE, 45°
ANGLED
MOUNT

BREAK-AWAY

SEGMENT

SURFACE

MOUNT
(1 OF 2)

Attention! The unit has a back tamper switch under the PCB. As long as
the PCB is seated firmly within the base, the switch will be pressed against
a special break-away base segment.
Be sure to fasten the break-away segment to the wall. If the detector
is forcibly removed from the wall, this segment will break away from the
base, causing the tamper switch to open and send a tamper alarm.

SINGLE-

SIDE, 45°

ANGLED

MOUNT

THE BREA K-AWAY SEGMENT
MUST BE ATTACHED TO
WALL.

MARK TWO DRILLING

B

POINTS AND DRILL HOLES
IN WALL.

INSERT TWO DOWELS AND

C

ATTACH THE BASE TO THE
WALL W ITH TWO SCR EWS.

INSERT THE BOTTOM EDGE

D

OF THE LARGE P.C. BOARD
UNDER THE TABS & PRESS
THE TOP EDGE IN.

Set the

5

ers as needed

alk-test the coverage area

6

2 DE3592

Important! The detector is immune to 38 kg
(85 lb) animals moving on the floor or climbing
on furniture as long as the activity takes place
below 1 m (3 ft). Above the 1 m (3 ft) height
limit, the detector is immune to 19

but the pet immunity will decrease as

pets,
the pet gets closer to the detector. It is
therefore recommended to select a mounting
location that minimizes potential close
proximity of animals.

4444. SPECIAL COMMENTS

. SPECIAL COMMENTS

. SPECIAL COMMENTS. SPECIAL COMMENTS

kg

(42 lb)

Correct use of the optional brackets:
With pets: in pet immune applications,

optional brackets should be used for
horizontal alignment only - the detector
should remain vertical (perpendicular to the
ground).

Without pets: To obtain the best possible
coverage where no pets are present, use a
bracket and tilt the detector 20º down.

4.1 Product Limitations

Visonic Ltd. wireless systems are very reliable and are tested to
high standards. However, due to their low transmitting power and
limited range (required by FCC and other regulatory authorities),
there are some limitations to be considered:

A. Receivers may be blocked by radio signals on or near their

operating frequencies, regardless of the code selected.

B. A receiver can only respond to one signal at a time.
C. Wireless equipment should be tested regularly to determine

whether there are sources of interference and to protect
against faults.

D. Even the most sophisticated detectors can sometimes be

defeated or may fail to warn due to: DC power failure /
improper connection, malicious masking of the lens,
tampering with the optical system, decreased sensitivity in
ambient temperatures near that of the human body and
unexpected failure of a component part.
The above list includes the most common reasons for failure
to detect intrusion, but is by no means comprehensive. It is
therefore recommended that the detector and the entire alarm
system be checked weekly, to ensure proper performance.

E. An alarm system should not be regarded as a substitute for

insurance. Home and property owners or renters should be
prudent enough to continue insuring their lives and property,
even though they are protected by an alarm system.

4.2 Compliance with Standards

The 315 MHz version of this device complies with Part 15 of the
FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including
interference that may cause undesired operation.

WARNING! Changes or modifications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

The digital circuit of this device has been tested and found to
comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
residential installations. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio and television reception. However, there is
no guarantee that interference will not occur in a particular
installation. If this device does cause such interference, which
can be verified by turning the device off and on, the user is
encouraged to eliminate the interference by one or more of the
following measures:

– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the

one which supplies power to the receiver.

– Consult the dealer or an experienced radio/TV technician.

4.3 Frequency Allocations for Wireless
Devices in European (EU) Countries

• 315 MHz is not allowed in any EU member state.

• 433.92 MHz has no restriction in any EU member state.

• 868.95 MHz (wide band) is allowed in all EU member states.

• 869.2625 MHz (narrow band) is not restricted in any EU

member state.

DE3592 3

WARRANTY

WARRANTY

WARRANTYWARRANTY

Visonic Ltd. and/or its subsidiaries and its affiliates ("the Manufacturer") warrants its
products hereinafter referred to as "the Product" or "Products" to be in conformance with
its own plans and specifications and to be free of defects in materials and workmanship
under normal use and service for a period of twelve months from the date of shipment by
the Manufacturer. The Manufacturer's obligations shall be limited within the warranty
period, at its option, to repair or replace the product or any part thereof. The Manufacturer
shall not be responsible for dismantling and/or reinstallation charges. To exercise the
warranty the product must be returned to the Manufacturer freight prepaid and insured.

This warranty does not apply in the following cases: improper installation, misuse,
failure to follow installation and operating instructions, alteration, abuse, accident or
tampering, and repair by anyone other than the Manufacturer.

This warranty is exclusive and expressly in lieu of all other warranties, obligations or
liabilities, whether written, oral, express or implied, including any warranty of
merchantability or fitness for a particular purpose, or otherwise. In no case shall the
Manufacturer be liable to anyone for any consequential or incidental damages for breach
of this warranty or any other warranties whatsoever, as aforesaid.

This warranty shall not be modified, varied or extended, and the Manufacturer does not
authorize any person to act on its behalf in the modification, variation or extension of this
warranty. This warranty shall apply to the Product only. All products, accessories or
attachments of others used in conjunction with the Product, including batteries, shall be
covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or
otherwise, caused by the malfunction of the Product due to products, accessories, or
attachments of others, including batteries, used in conjunction with the Products.

The Manufacturer does not represent that its Product may not be compromised and/or
circumvented, or that the Product will prevent any death, personal and/or bodily injury
and/or damage to property resulting from burglary, robbery, fire or otherwise, or that the
Product will in all cases provide adequate warning or protection. User understands that a
properly installed and maintained alarm may only reduce the risk of events such as
burglary, robbery, and fire without warning, but it is not insurance or a guarantee that
such will not occur or that there will be no death, personal damage and/or damage to
property as a result.

The Manufacturer shall have no liability for any death, personal and/or bodily injury
and/or damage to property or other loss whether direct, indirect, incidental,
consequential or otherwise, based on a claim that the Product failed to function.

However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or
damage arising under this limited warranty or otherwise, regardless of cause or origin, the
Manufacturer's maximum liability shall not in any case exceed the purchase price of the
Product, which shall be fixed as liquidated damages and not as a penalty, and shall be
the complete and exclusive remedy against the Manufacturer.

Warning: The user should follow the installation and operation instructions and among
other things test the Product and the whole system at least once a week. For various
reasons, including, but not limited to, changes in environmental conditions, electric or
electronic disruptions and tampering, the Product may not perform as expected. The user
is advised to take all necessary precautions for his/her safety and the protection of his/her
property.

6/91

VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: [phone], FAX: [phone]
VISONIC INC. (U.S.A.): 10 NORTHWOOD DRIVE, BLOOMFIELD CT. 06002-1911. PHONE: [phone] FAX: [phone]
VISONIC LTD. (UK): FRASER ROAD, PRIORY BUSINESS PARK, BEDFORD MK44 3WH. PHONE: [phone] FAX: [phone]
INTERNET:

VISONIC LTD. 2003 NEXT K9-85 MCW DE3592- (REV. 1, 1/03)

www.visonic.com

4 DE3592
