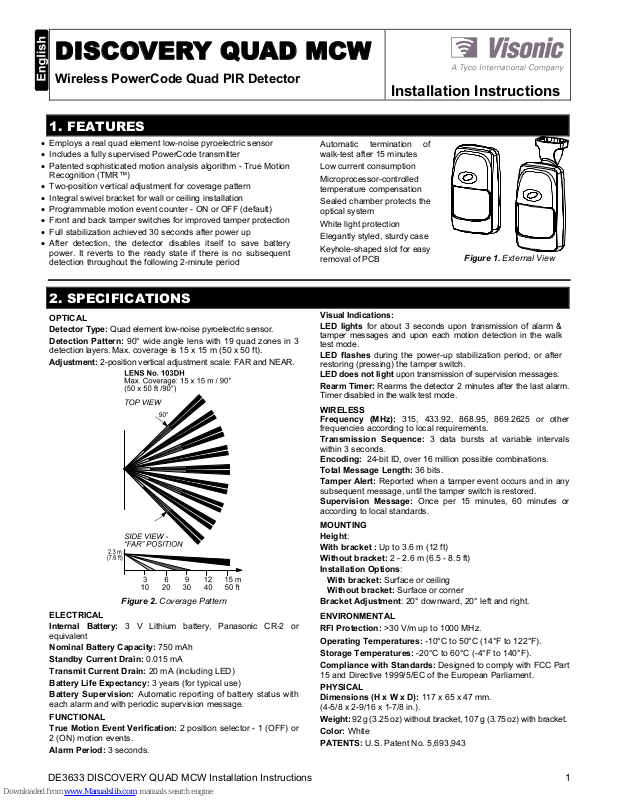

DE3633 DISCOVERY QUAD MCW Installation Instructions 1
DISCOVERY QUAD MCW
Wireless PowerCode Quad PIR Detector
Installation Instructions
1. FEATURES
Employs a real quad element low-noise pyroelectric sensor
Includes a fully supervised PowerCode transmitter
Patented sophisticated motion analysis algorithm - True Motion
Recognition (TMR™)
Two-position vertical adjustment for coverage pattern
Integral swivel bracket for wall or ceiling installation
Programmable motion event counter - ON or OFF (default)
Front and back tamper switches for improved tamper protection
Full stabilization achieved 30 seconds after power up
After detection, the detector disables itself to save battery
power. It reverts to the ready state if there is no subsequent
detection throughout the following 2-minute period
Automatic termination of
walk-test after 15 minutes
Low current consumption
Microprocessor-controlled
temperature compensation
Sealed chamber protects the
optical system
White light protection
Elegantly styled, sturdy case
Keyhole-shaped slot for easy
removal of PCB
Figure 1. External View
2. SPECIFICATIONS
OPTICAL
Detector Type: Quad element low-noise pyroelectric sensor.
Detection Pattern: 90° wide angle lens with 19 quad zones in 3
detection
layers. Max. coverage is 15 x 15 m (50 x 50 ft).
Adjustment: 2-position vertical adjustment scale: FAR and NEAR.
Figure 2. Coverage Pattern
ELECTRICAL
Internal Battery: 3
V Lithium battery, Panasonic CR-2 or
equivalent
Nominal Battery Capacity: 750 mAh
Standby Current Drain: 0.015 mA
Transmit Current Drain: 20 mA (including LED)
Battery Life Expectancy: 3 years (for typical use)
Battery Supervision: Automatic reporting of battery status with
each alarm and with periodic supervision message.
FUNCTIONAL
True Motion Event Verification: 2 position selector - 1 (OFF) or
2 (ON) motion events.
Alarm Period: 3 seconds.
Visual Indications:
LED lights for about 3 seconds upon transmission of alarm &
tamper messages and upon each motion detection in the walk
test mode.
LED flashes during the power-up stabilization period, or after
restoring (pressing) the tamper switch.
LED does not light upon transmission of supervision messages.
Rearm Timer: Rearms the detector 2 minutes after the last alarm.
Timer disabled in the walk test mode.
WIRELESS
Frequency (MHz): 315, 433.92, 868.95, 869.2625 or other
frequencies according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals
within 3 seconds.
Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits.
Tamper Alert: Reported when a tamper event occurs and in any
subsequent message, until the tamper switch is restored.
Supervision Message: Once per 15 minutes, 60 minutes or
according to local standards.
MOUNTING
Height:
With bracket : Up to 3.6 m (12 ft)
Without bracket: 2 - 2.6 m (6.5 - 8.5 ft)
Installation Options:
With bracket: Surface or ceiling
Without bracket: Surface or corner
Bracket Adjustment: 20° downward, 20° left and right.
ENVIRONMENTAL
RFI Protection: >30 V/m up to 1000 MHz.
Operating Temperatures: -10°C to 50°C (14°F to 122°F).
Storage Temperatures: -20°C to 60°C (-4°F to 140°F).
Compliance with Standards: Designed to comply with FCC Part
15 and Directive 1999/5/EC of the European Parliament.
PHYSICAL
Dimensions (H x W x D): 117 x 65 x 47 mm.
(4-5/8 x 2-9/16 x 1-7/8 in.).
Weight:
92 g (3.25 oz) without bracket, 107 g (3.75 oz) with bracket.
Color: White
PATENTS: U.S. Patent No. 5,693,943
Page 2
2 DE3633 DISCOVERY QUAD MCW Installation Instructions
3. INSTALLATION
3.1 Installation Hints
To minimize false alarms:
Do not aim at heat sources
Mount on solid, stable surfaces
Do not expose to air draughts
Do not install outdoors
Prevent direct sunlight from
reaching the detector
Keep wiring away from
electrical power cables
Do not install behind partitions
3.2 Battery Insertion
It is recommended to power up the detector and let the target
receiver “learn” the transmitter’s ID before actual installation. This
can be done only after battery installation.
1. Remove the front cover as shown in Figure 3.
Figure 3. Cover Removal
2. Insert the battery into the battery clip - observe polarity (see
Figure 4).
3. Press the tamper switch once and release it. This will
perform the reset necessary for smooth power up.
4. Put the cover on and observe the LED. It will flash until the
detector stabilizes (within about 30 seconds).
3.3 Enrolling the Transmitter ID
Refer to the target receiver’s installation instructions and follow the
procedure given there for “teaching” the transmitter's ID. It is much
easier to carry out this operation in close proximity to the receiver.
3.4 Mounting without Swivel Bracket
1. Remove the front cover as shown in Figure 3.
2. Loosen the vertical adjustment screw, slide the PCB down
and remove it via the “keyhole” (see Figure 4).
Figure 4. Inside View
3.Punch out the mounting knockouts at the base (for surface
mounting) or mounting knockouts at the angled sides of the
base (for corner mounting).
Attention! The unit has a special tamper switch under the PCB.
As long as the PCB is seated firmly within the base, the switch
lever will be pressed against a special break-away base segment
that is loosely connected to the base (Figure 5). Be sure to
fasten the break-away segment to the wall. If the detector unit
is forcibly removed from the wall, this segment will break away
from the base, causing the tamper switch to open. It is advisable
to pierce the anti-tamper knockouts from within the base
outward, while pressing the rear surface of the break-away
segment against a piece of wood.
Figure 5. Anti-Tamper Break-Away Base Segment
4. Hold the base against the wall at the selected location, mark
the drilling points, drill the holes and attach the base to the wall.
5. Return the PCB to its place: align the ”keyhole” with the
head of the vertical adjustment screw, press the PCB against
the base, slide the PCB up and temporarily tighten the screw.
3.5 Mounting with Swivel Bracket
1. Remove the front cover as shown in Figure 3.
2. Loosen the vertical adjustment screw, slide the PCB down
and remove it via the “keyhole” (see Figure 4).
3. Punch out the large knockout in the round bulge at the top
part of the base (see Figure 6).
4. Assemble the bracket as shown in Figure 6.
Figure 6. Attaching the Bracket
5. Rotate the bracket to the desired position (see Figure 7)
but do not yet tighten the screw fully.
Page 3
DE3633 DISCOVERY QUAD MCW Installation Instructions 3
Figure 7. Wall and Ceiling Positions of Bracket
6. Mark the points for drilling through the two mounting holes of
the bracket. Attach the bracket to the mounting surface.
7. Tilt down or swivel the detector to face the desired
direction. Figure 8 shows the tilt/swivel possibilities.
Figure 8. Tilt/Swivel Limits
3.6 Setting the Motion Event Counter
The location of the motion event jumper is shown in Figure 4.
Refer to Figure 9 below and mount the jumper as desired.
Figure 9. Motion Event Counter Setting Options
3.7 Setting the LED Control Jumper
ON Position: Setting the jumper as shown enables
the LED. Remember that the detector disables
itself for 2-minutes after detection!
OFF Position: Setting the jumper as shown
disables the LED.
Note: At power up or reset, the LED flashes for 30 seconds
regardless of the jumper position and then enters walk-test mode.
After 15 minutes the detector enters normal mode in which the LED
functions according to the LED control jumper position.
3.8 Vertical Adjustment
Refer to Figure 10. Loosen the vertical adjustment screw and
slide the printed circuit board up or down to obtain the desired
coverage. When done, tighten the screw well.
Figure 10. Vertical Adjustment
3.9 Walk Testing
Upon battery insertion or closing of the cover (which results in
closing of the tamper switch) the detector goes into walk-test mode
and automatically exits the mode after 15 minutes.
1. Set the motion event counter as required
(see Paragraph 3.6).
2. Adjust the vertical angle as desired (see Paragraph 3.8).
3. Remount the cover and fasten the case closure screw. This
results in the resetting of the detector and the start of walktest mode.
4. Wait until the LED stops flashing (about 30 seconds).
5. Walk-test the entire protected area by walking slowly
across the detector's field of view, observing the LED. Pause
for 5 seconds after each detection to allow the detector to
complete its 3-transmission sequence (see Appendix A); the
LED will light for about 3 seconds.
6. When the walk-test is completed (after 15 minutes), the
detector's setting automatically changes according to the LED
control jumper setting.
Notes:
1. The OFF setting is recommended to prevent unauthorized
people from tracing the detector’s coverage pattern.
2. If the LED is disabled, you may use the control panel’s visual
and audible indicators to verify proper function of the detector.
Attention! To assure proper function of the detector, the
range and coverage area should be checked at least twice a
year. Furthermore, the user should be instructed to perform a
walk test at the far end of the coverage pattern to assure an
alarm signal prior to each time the alarm system is armed.
4. MISCELLANEOUS COMMENTS
4.1 Product Limitations
Visonic Ltd. wireless systems are very reliable and are tested to
high standards. However, due to their low transmitting power and
limited range (required by FCC and other regulatory authorities),
there are some limitations to be considered:
A. Receivers may be blocked by radio signals on or near their
operating frequencies, regardless of the code selected.
B. A receiver can only respond to one transmitted signal at a
time.
C. Wireless equipment should be tested regularly to
determine whether there are sources of interference and to
protect against faults.
4.2 Frequency Allocations for Wireless
Devices in European (EU) Countries
433.92 MHz has no restriction in any EU member state.
315 MHz is not allowed in any EU member state.
868.95 MHz (wide band) is allowed in all EU member states.
869.2625 MHz (narrow band) is not restricted in any EU
member state.
Page 4
4 DE3633 DISCOVERY QUAD MCW Installation Instructions
4.3 Compliance with Standards
This device is designed to comply with the essential requirements and
provisions of Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio and telecommunications terminal
equipment.
The 315 MHz model of this device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must
accept any interference that may be received, including interference
that may cause undesired operation.
The user is cautioned that changes or modifications to the
unit, not expressly approved by the party responsible, could
void the user's FCC authority to operate the equipment.
APPENDIX A. THE VISONIC LTD. POWERCODE SYSTEM
A-1. The PowerCode Message Format
The PowerCode message transmitted by the DISCOVERY QUAD
MCW includes the 24-bit ID and a status report (see Fig. A1).
Figure A1. Transmitted Data
A message includes the following data:
Detector's ID: Any message transmitted starts with the 24-
bit ID assigned to the particular detector unit.
Tamper / Restore: Upon removal of the unit's front cover, a
message will be transmitted with a "tamper marker" ON. If
the unit's cover is put back, a message will be transmitted
with the tamper marker OFF ("Tamper Restore").
Alarm: Once the detector is in alarm, a message will be
transmitted with an "alarm marker" ON.
Low Battery: A special battery condition marker is used to
report the battery status in any message. The battery is
tested once an hour and if found low, the "low battery
marker" is set to ON in all following messages.
Supervision Message: A special "supervision message
marker", when set to ON, identifies the periodic supervision
messages transmitted automatically at 1 hour or 15 minute
intervals. This marker will be OFF in all other messages.
Transmitter Type: A special marker indicates the type of
the transmitter:
Supervised or non-supervised
Reports or does not report restorals after alarm
The DISCOVERY QUAD MCW does not report restorals
after alarms.
Checksum: Checksum bits at the end of the message allow
the receiver to determine whether an incoming message is
valid (error-free). This feature considerably enhances the
reliability of the wireless communication link.
-2. Anti-Collision
To overcome message collisions at the receiving end,
PowerCode transmitters transmit 3 data bursts at random
intervals, with 6 repetitions of the same message in each burst
(Fig. A2). This redundancy improves the probability of reception.
Note: Periodic supervision messages are an exception to this
rule - they consist of a single 6-message burst.
Figure A2. Anti-Collision Transmission Sequence
WARRANTY
Visonic Limited (the “Manufacturer") warrants this product only (the "Product") to the or iginal purchaser only (the
“Purchaser”) against defective workmanship and materials under normal use of the Product for a period of twelve
(12) months from the date of shipment by the Manufacturer.
This Warranty is absolutely conditional upon the Product having been properly installed, maintained and operated
under conditions of normal use in accor dance with the Manufacturers recommended installation and operation
instructions. Products which have become defective for any other reason, according to the Manufacturers
discretion, such as improper installation, failure to follow recom mended installation and operational instructions,
neglect, willful damage, misuse or vandalism, acc idental damage, alteration or tampering, or repair by anyone
other than the manufacturer, are not covered by this Warranty.
The Manufacturer does not represent that this Product may not be compr omised and/or circumvented or that the
Product will prevent any death and/or personal injury and/or damage to property resulting from burglary, robbery,
fire or otherwise, or that the Product will in all cases provide adequate warning or protection. The Product,
properly installed and maintained, only reduces the risk of such events without warning and it is not a guarantee
or insurance that such events will not occur.
THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, OBLIGATIONS
OR LIABILITIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE. IN NO CASE SHALL
THE MANUFACTURER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
FOR BREACH OF THIS WARRANTY OR ANY OTHER WARRANTIES WHATSOEVER, AS AFORESAID.
THE MANUFACTURER SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES OR FOR LOSS, DAMAGE, OR EXPENSE, INCLUDING LOSS
OF USE, PROFITS, REVENUE, OR GOODWILL, DIRECTLY OR INDIRECTLY ARISING FROM
PURCHASER’S USE OR INABILITY TO USE THE PRODUCT, OR FOR LOSS OR DESTRUCTION OF
OTHER PROPERTY OR FROM ANY OTHER CAUSE, EVEN IF MANUFACTURER HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
THE MANUFACTURER SHALL HAVE NO LIABILITY FOR ANY DEATH, PERSONAL AND/OR BODILY
INJURY AND/OR DAMAGE TO PROPERTY OR OTHER LOSS WHETHER DIRECT, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR OTHERWISE, BASED ON A CLAIM THAT THE PRODUCT FAILED TO FUNCTION.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or damage arising under this
limited warranty, THE MANUFACTURER'S MAXIMUM LIABILITY (IF ANY) SHALL NOT IN ANY CASE
EXCEED THE PURCHASE PRICE OF THE PRODUCT, which shall be fixed as liquidated damages and not as a
penalty, and shall be the complete and exclusive remedy against the Manufacturer.
When accepting the delivery of the Product, the Purchaser agrees to the said c onditions of sale and warranty and
he recognizes having been informed of.
Some jurisdictions do not allow the exclusion or limitation of incidental or c onsequential damages, so these
limitations may not apply under certain circumstances.
The Manufacturer shall be under no liability whatsoever arising out of the corruption and/or m alfunctioning of any
telecommunication or electronic equipment or any program s.
The Manufacturers obligations under this W arranty are limited solely to repair and/or replace at the
Manufacturer’s discretion any Product or part ther eof that may prove defective. Any repair and/or replacement
shall not extend the original Warranty period. The Manufacturer s hall not be responsible for dismantling and/or
reinstallation costs. To exercise this Warranty the Product must be returned to the Manufacturer f reight pre-paid
and insured. All freight and insurance costs are the r esponsibility of the Purchaser and are not included in this
Warranty.
This warranty shall not be modified, varied or extended, and the Manufacturer does not authorize any person to
act on its behalf in the modification, variation or extension of this warranty. This warranty shall apply to the
Product only. All products, accessories or attachments of others used in conjunction with the Product, including
batteries, shall be covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or otherwise, caused by the
malfunction of the Product due to products, ac cessories, or attachments of others, including batteries, used in
conjunction with the Products. This Warranty is exclus ive to the original Purchaser and is not assignable.
This Warranty is in addition to and does not af fect your legal rights. Any provision in this warranty which is
contrary to the Law in the state or country were the Product is supplied shall not apply.
Warning: The user must follow the Manufacturer’s installation and operational instructions including testing the
Product and its whole system at least once a week and to take all necessary precautions for his/her s afety and
the protection of his/her property.
1/08
EMAIL: info@visonic.com
INTERNET:
www.visonic.com
VISONIC LTD. 2002, 2013 DISCOVERY QUAD MCW DE3633- (REV. 2, 1/13)
Loading...
