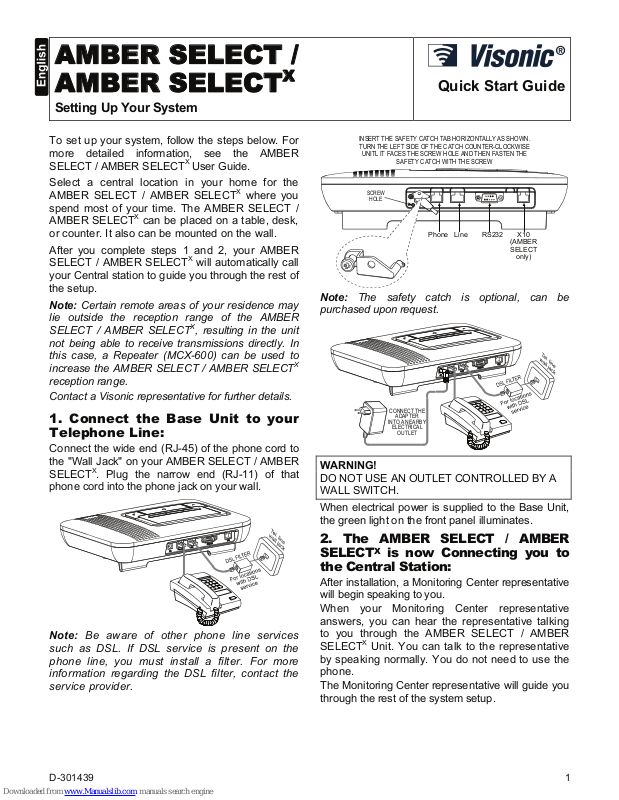

Visonic AMBER SELECT, AMBER SELECTx Quick Start Manual

D-301439 1

AMBER SELECT /
AMBER SELECT

X

Setting Up Your System

Quick Start Guide

To set up your system, follow the steps below. For
more detailed information, see the AMBER
SELECT / AMBER SELECT

X

User Guide.

Select a central location in your home for the
AMBER SELECT / AMBER SELECT

X

where you
spend most of your time. The AMBER SELECT /
AMBER SELECT

X

can be placed on a table, desk,

or counter. It also can be mounted on the wall.

After you complete steps 1 and 2, your AMBER
SELECT / AMBER SELECT

X

will automatically call
your Central station to guide you through the rest of
the setup.

Note: Certain remote areas of your residence may
lie outside the reception range of the AMBER
SELECT / AMBER SELECT

X

, resulting in the unit
not being able to receive transmissions directly. In
this case, a Repeater (MCX-600) can be used to
increase the AMBER SELECT / AMBER SELECT

X

reception range.
Contact a Visonic representative for further details.

1. Connect the Base Unit to your
Telephone Line:

Connect the wide end (RJ-45) of the phone cord to
the "Wall Jack" on your AMBER SELECT / AMBER
SELECT

X

. Plug the narrow end (RJ-11) of that

phone cord into the phone jack on your wall.

Note: Be aware of other phone line services
such as DSL. If DSL service is present on the
phone line, you must install a filter.

For more

information regarding the DSL filter, contact the
service provider.

Phone Line RS232 X10

(AMBER
SELECT

only)

INSERT THE SAFETY CATCH TAB HORIZONTALLY AS SHOWN.
TURN THE LEFT SIDE OF THE CATCH COUNTER-CLOCKWISE

UNITL IT FACES THE SCREW HOLE AND THEN FASTEN THE

SAFETY CATCH WITH THE SCREW

SCREW

HOLE

Note: The safety catch is optional, can be
purchased upon request.

CONNECT THE

ADAPTER

INTO A NEARBY

ELECTRICAL

OUTLET

WARNING!

DO NOT USE AN OUTLET CONTROLLED BY A
WALL SWITCH.

When electrical power is supplied to the Base Unit,
the green light on the front panel illuminates.

2. The AMBER SELECT / AMBER
SELECT

X

is now Connecting you to

the Central Station:

After installation, a Monitoring Center representative
will begin speaking to you.

When your Monitoring Center representative
answers, you can hear the representative talking
to you through the AMBER SELECT / AMBER
SELECT

X

Unit. You can talk to the representative
by speaking normally. You do not need to use the
phone.

The Monitoring Center representative will guide you
through the rest of the system setup.

2 D-301439

3. Intruder Alarm Function:

To arm system from the unit; press and hold the
CHECK button for 3 seconds. The unit announces
and displays (AMBER SELECT only) ARMING
AWAY, PLEASE EXIT NOW. After a delay, the
unit will announce AWAY stating the current
status. Active reminders will be disabled.
To disarm system, enter the protected area. The
unit announces PLEASE DISARM and displays
(AMBER SELECT only) ENTRY on the screen.

Disarm can be performed in one of two ways, via
the remote transmitter (this can be performed
outside the protected area) or press and hold the
CHECK button on the unit for 3 seconds (if pre­defined when programming the unit). Reminders
will be active.

The alarm function can include a door transmitter,
motion detectors, in addition to smoke, flood and
carbon monoxide sensors.

W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.

Directive 2002/96/EC Waste Electrical and Electronic Equipment.
