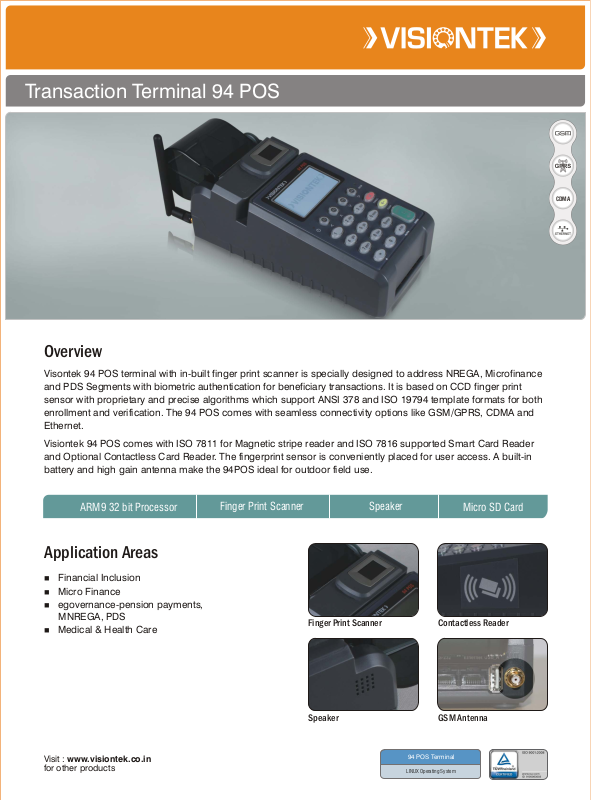

Transaction 94 POS Terminal
Overview
Visontek 94 POS terminal with in-built finger print scanner is specially designed to address NREGA, Microfinance
and PDS Segments with biometric authentication for beneficiary transactions. It is based on CCD finger print
sensor with proprietary and precise algorithms which support ANSI 378 and ISO 19794 template formats for both
enrollment and verification. The 94 POS comes with seamless connectivity options like GSM/GPRS, CDMA and
Ethernet.
CDMA
Visiontek 94 POS comes with ISO 7811 for Magnetic stripe reader and ISO 7816 supported Smart Card Reader
and Optional Contactless Card Reader. The fingerprint sensor is conveniently placed for user access. A built-in
battery and high gain antenna make the 94POS ideal for outdoor field use.
ARM9 32 bit Processor
Finger Print Scanner
Speaker
Micro SD Card
Application Areas
nFinancial Inclusion
nMicro Finance
negovernance-pension payments,
MNREGA, PDS
nMedical & Health Care
Finger Print Scanner Contactless Reader
Speaker GSM Antenna
Visit :
www.visiontek.co.in
for other products
94 POS Terminal
LINUX Operating System
Features
¾A well designed finger guide for the scanner
¾Built-in Magnetic Swipe Card Reader, Smart
Card Reader / Contactless Reader *
¾Large Memory
¾Finger Print Scanner of ANSI and ISO formats *
¾Linux operating system
¾Display : 128 x 64 graphic FSTN LCD
¾In-built Speaker for announcements
Specifications
Display 128 x 64 pixel Graphic FSTN LCD
Processor ARM9 Core CPU @ 400MHz 32 bit
Memory
Operating System LINUX OS (2.6)
Keypad 19 keys including 4 function keys and 3 command keys with LED Back lighting
Printer Thermal graphic printer;
Interfaces/Connectors a) RS-232 (RJ45 Connector for console / Serial port)
Speaker 1W Speaker Supporting MP3 and WAV Files
Finger Print Scanner Capacitive Finger Print Scanner
Magnetic Swipe Card Reader 3 Track Bi-directional
Smart Card Reader * ISO7816 Contact Smart Card Reader
Contactless reader ISO14443, NFC Mifare
Communication Modules
Power Adaptor AC input 100 - 240V, 50/60Hz DC output 9V, 2.2A
Battery Li-ion 7.4V/2200mAh
Enclosure ABS+PC
Temperature Operating 0°C to 55°C
Humidity 95% RH non condensing
Immunity IEC 61000-4-2, Level 3
Safety CE Certified
Dimensions in mm 245 x 96 x 85 (L x W x H)
Weight
Note: We pursue a policy of continuous research and product development. Specifications and features are subject to change without notice
128 MB RAM (DDR)
256 MB Flash
8 dots/mm: 57mm (2.25 in.) wide paper
b) One USB Host
c) One USB Device
d) Micro SD (upto 16GB)
e) 2 SAM Slots
Dual Contact Smart Card reader working simultaneously
*
*
a) GSM / GPRS (Quad / Dual band) (SMA female antenna connection)
*
b) CDMA (1X2000) (SMA female antenna connection)
*
c) LAN 100 BASE-T (Standard RJ45 connection)
IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6,
IEC 61000-4-8, IEC 61000-4-9, all Level 4
750 gms.
*Indicates optional feature
Linkwell Telesystems Pvt. Ltd. 1-11-252/1B, Behind Shoppers Stop, Begumpet, Hyderabad 500 016, Andhra Pradesh, INDIA
Telephone: +91 40 66388000, Fax: +91 40 66388006, e-mail: www.visiontek.co.ininfo@visiontek.co.in
®
Disclaimer: VISIONTEK is a registered trademark owned by Linkwell Telesystems Pvt. Ltd.
BR-071113-P-94POS-Rev.2.1
