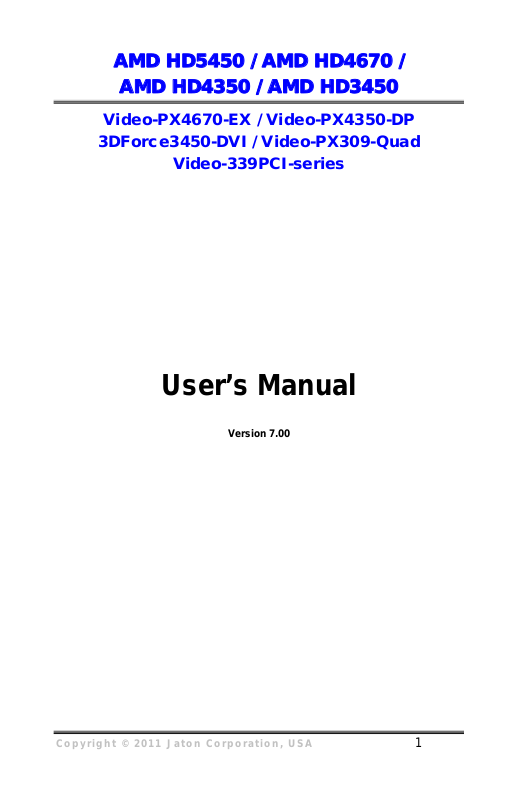

VisionTek HD 3450 User Manual
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450
Video-PX4670-EX / Video-PX4350-DP
3DForce3450-DVI / Video-PX309-Quad
Video-339PCI-series
User’s Manual
Version 7.00
Copyright © 2011 Jaton Corporation, USA 1
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450
Contents
INTRODUCTION ......................................................................... 4
EXPERIENCE THE POWER OF HD .................................................... 4
HD VIDEO BEYOND 1080P .............................................................4
HD GAMING TECHNOLOGY .............................................................4
BREAK-THROUGH EFFICIENCY.........................................................4
FEATURES AND SPECIFICATIONS.........................................5
AMD RADEON HD 3450, HD 4350, 4670 AND HD 5450 SERIES..... 5
OPERATING SYSTEMS ....................................................................6
COMPATIBILITY............................................................................... 6
SYSTEM REQUIREMENT .......................................................... 7
CHECK LIST ............................................................................... 7
HARDWARE DESCRIPTION...................................................... 8
VIDEO-339PCI-HLX / VIDEO-339PCI-HEX....................................8
VIDEO-339PCI-HLP / VIDEO-339PCI-HLPI....................................9
VIDEO-PX4670-EX ..................................................................... 10
VIDEO-PX4350-DP.....................................................................10
3DFORCE3450-DVI.....................................................................11
VIDEO-PX309-QUAD ................................................................... 11
DISPLAY DEVICES OUTPUT................................................... 13
VIDEO-339PCI-HLX / VIDEO-339PCI-HEX..................................13
VIDEO-339PCI-HLP / VIDEO-339PCI-HLPI..................................14
VIDEO-PX4670-EX ..................................................................... 15
VIDEO-PX4350-DP.....................................................................16
Copyright © 2011 Jaton Corporation, USA 2
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450
3DFORCE3450-DVI.....................................................................17
VIDEO-PX309-QUAD ................................................................... 17
HARDWARE INSTALLATION..................................................18

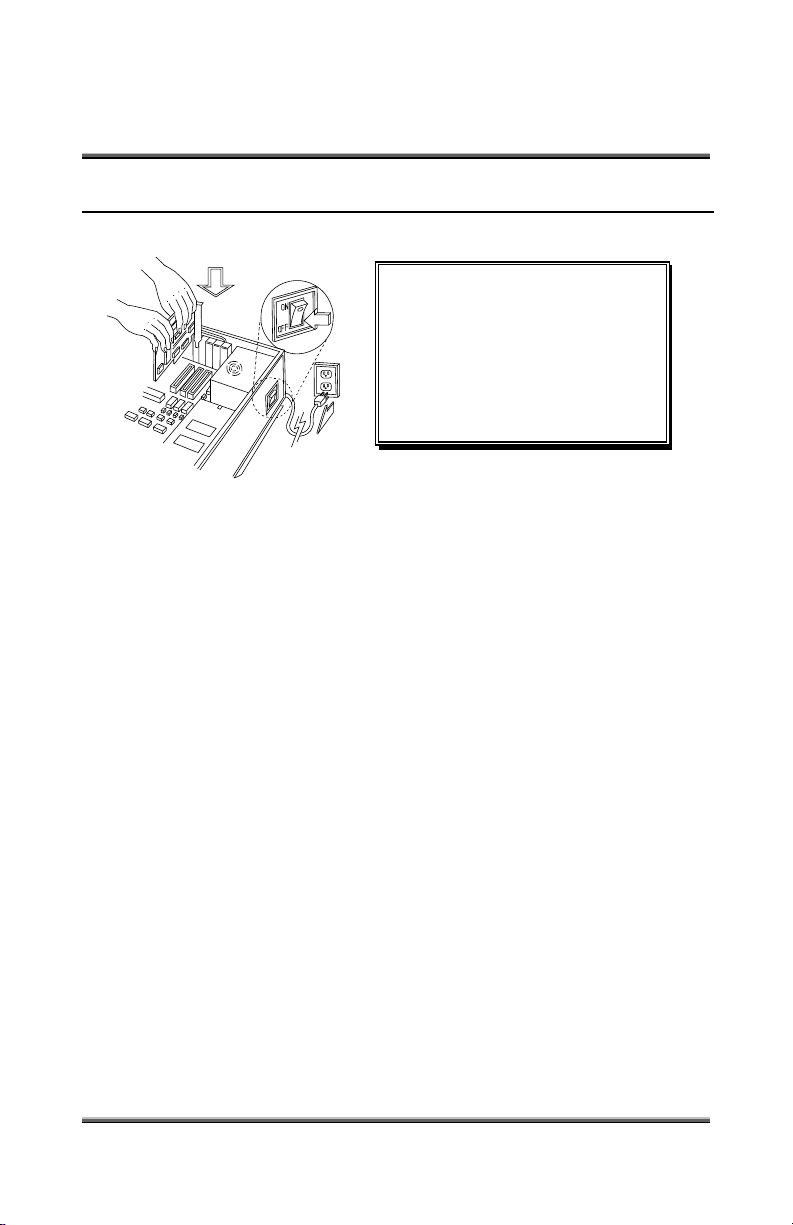

INSTALLATION PROCEDURES......................................................... 18
SOFTWARE INSTALLATION................................................... 20
INSTALLING THE AMD CATALYST™ SOFTWARE SUITE (WINDOWS OS)
...................................................................................................20

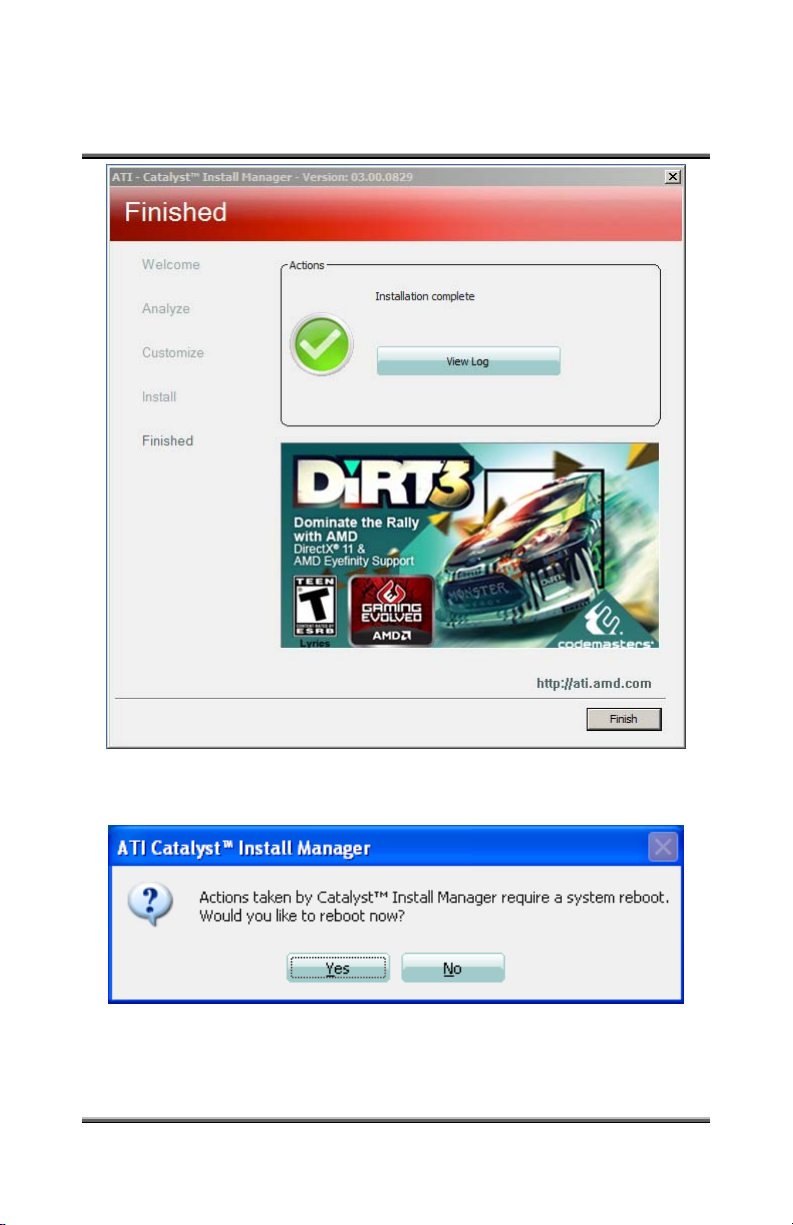

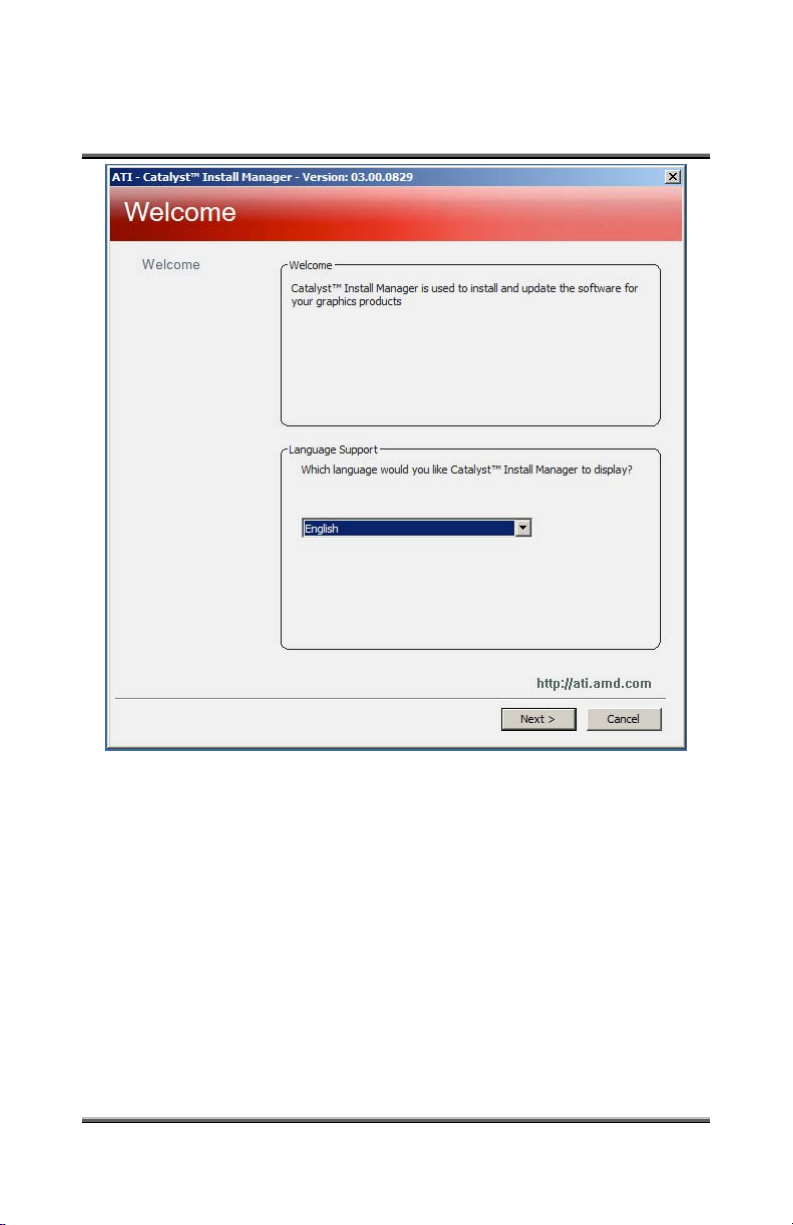

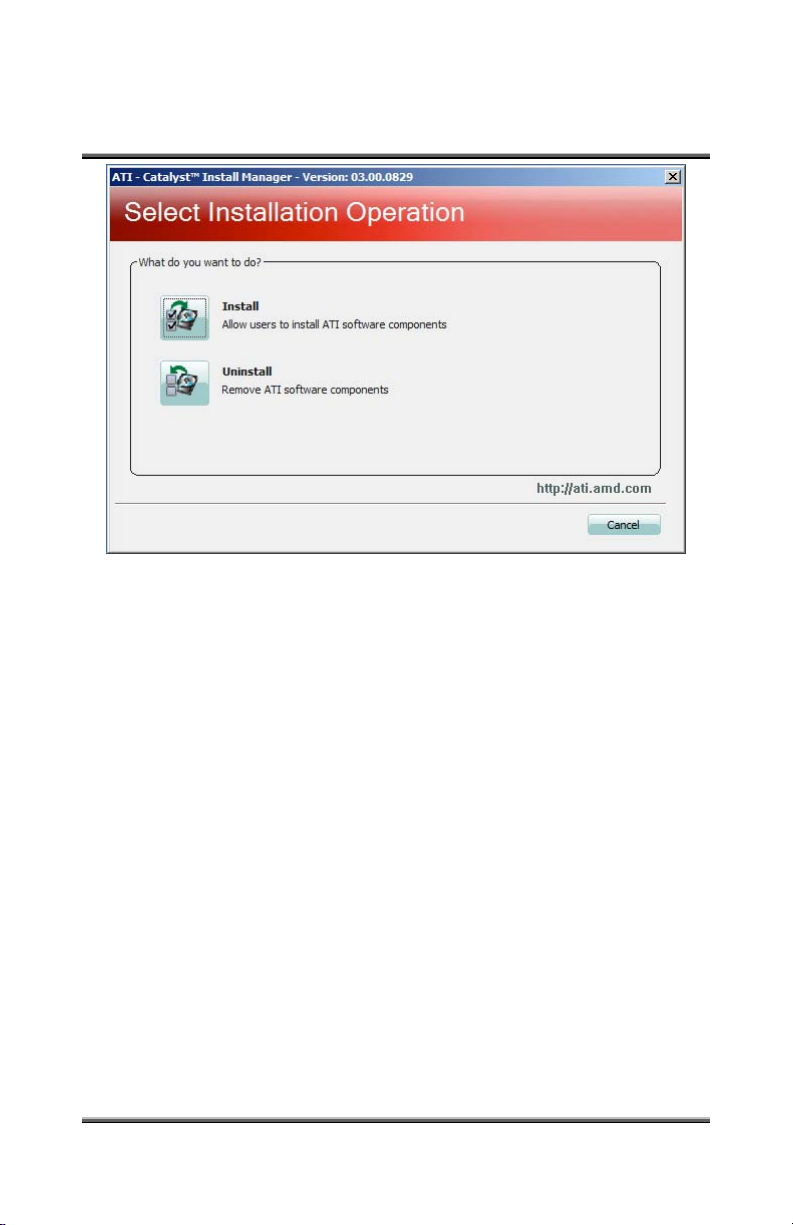

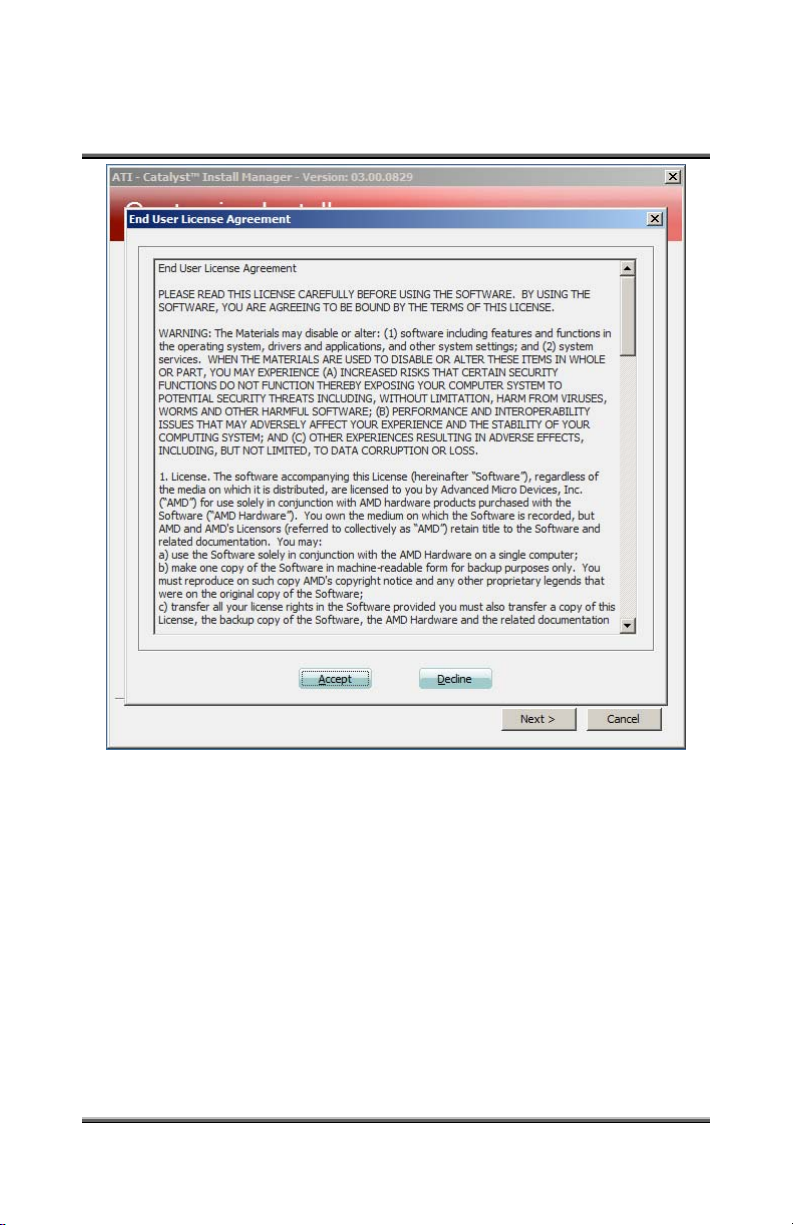

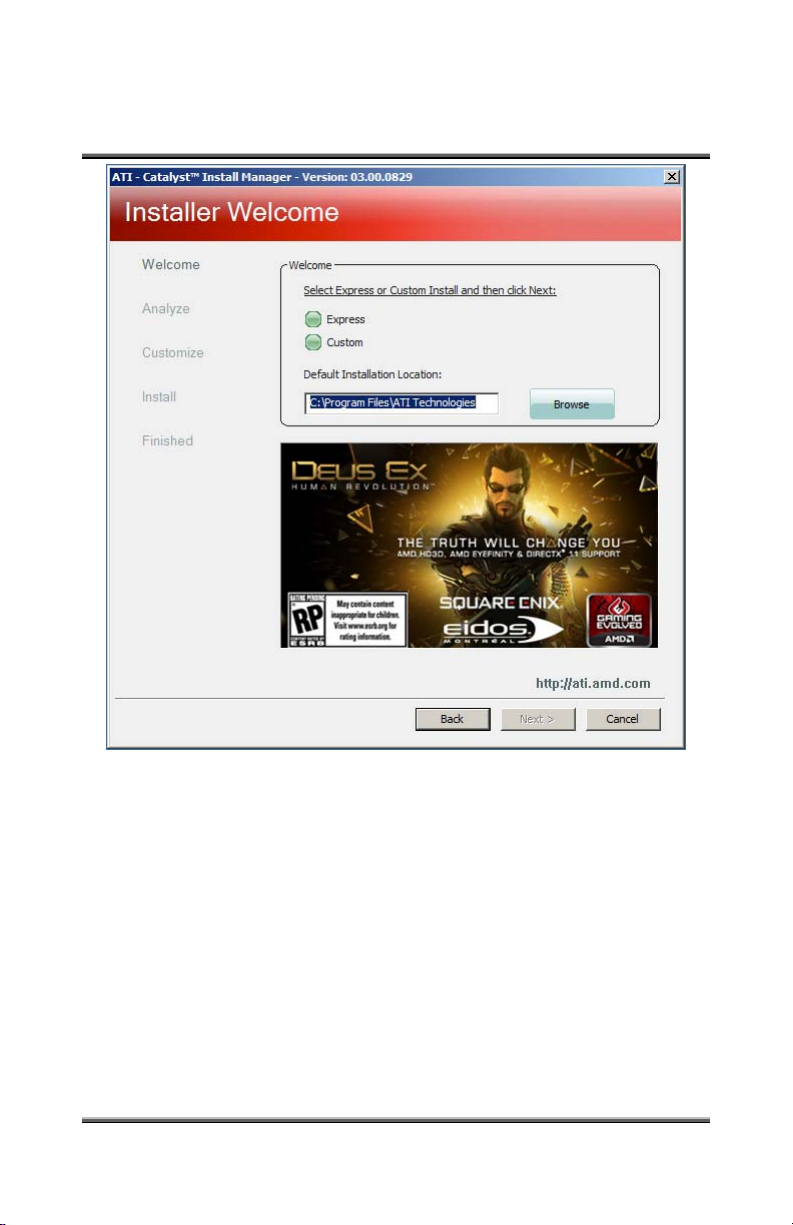

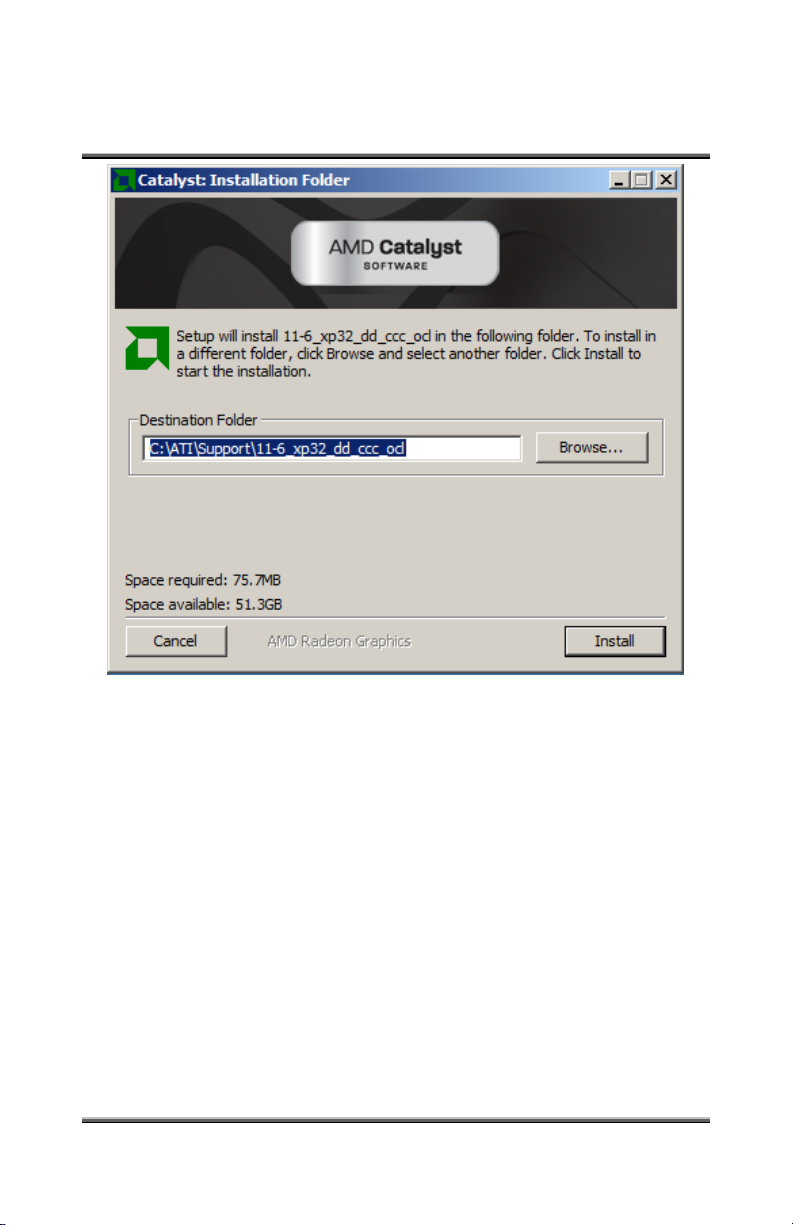

á WINDOWS® 7, VISTA AND XP DRIVER INSTALLATION .............20
TECHNICAL ASSISTANCE...................................................... 28
TECHNICAL SUPPORT................................................................... 30
HOW TO OBTAIN WARRANTY SERVICE...........................................30
LIMITED WARRANTY .............................................................. 32
OTHER LIMITS..............................................................................34
EXCLUSIVE OBLIGATION ...............................................................34
OTHER STATEMENTS.................................................................... 34
TERMS AND CONDITIONS ..............................................................35
SERVICES AGREEMENT:................................................................35
ENTIRE OBLIGATION..................................................................... 36
REDUCING WARRANTY CLAIM REJECTIONS.....................37
WARRANTY SERVICE USE ONLY ...................................................38
Copyright © 2011 Jaton Corporation, USA 3
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450
Introduction
Experience the Power of HD
Experience the power of HD with the AMD Radeon HD
3450/4670/5450 Series of GPUs - graphics processing designed for
entertainment and productivity.
HD Video Beyond 1080p
With AMD Avivo™ HD technology, the latest Blu-ray and HD DVD
movies play as smoothly as intended; at True HD 1080p. The Unified
Video Decoder (UVD) relieves your CPU from the taxing video
decode process and enables time-saving multi-tasking. Enjoy quality
to spare with resolutions upscaled beyond 1080p for the most
processing-intensive content. And with a choice of digital outputs, you
have more options when enjoying your digital entertainment.
HD Gaming Technology
Play the next generation of HD games featuring life-like graphics
realism from Microsoft® DirectX® 10.1/11 compatibility. With PCI
Express® 2.0/2.1 support, you’re ready for games that demand fast
throughput. And boost your gaming experience with AMD Hybrid
Graphics multi-GPU technology – get an easy performance upgrade
when you plug into a compatibility AMD 7-Series Integrated Chipsetbased motherboard.
1
Break-through Efficiency
AMD Radeon™ HD 4670 series graphics processors deliver breakthrough efficiency from cutting-edge technology and new energysaving features that can help lower your energy costs and enable cool,
quiet PCs. Be more productive with advanced multi-monitor support
and enjoy the extraordinary value.
1 - 1080p capable HD display required
Copyright © 2011 Jaton Corporation, USA 4
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450
Features and Specifications
AMD Radeon HD 3450, HD 4350, 4670 and HD 5450 Series
• Improved Unified Video Decoder – View and manipulate the latest
Blu-ray and HD DVD content with a dedicated hardware video
decoder that leaves your CPU free to perform other tasks.
• Ultimate Image Quality – Performance that rivals high-end HDDVD and Blu-ray players on displays with resolutions that
exceed 1080p – up to 2560x1600.
• Integrated Digital Outputs – Enjoy your digital content the way you
want to, with built-in HDMI that includes 5.1 surround audio for
big screen entertainment and the latest in display connectivity;
DisplayPort™ technology.
• PCI Express® 2.0/2.1 – Get ready for the most demanding
graphics applications with PCI Express 2.0 support, which allows
up to twice the throughput of current AMD PCI Express cards.
1
• DirectX® 10.1/11 Compatibility – You’ll be blown away by life-like
graphics from Microsoft® DirectX® games, with stunning 3D
graphics and shading effects.
AMD Hybrid Graphics – Combine an AMD Radeon™ HD Series
•
graphics card with a compatibility AMD 7-Series Integrated
Chipset to improve gaming performance and multi-monitor
productivity.
• AMD CrossFireX™ multi-GPU – Upgrade to even greater 3D
performance quickly and easily thanks to plug-and-play AMD
CrossFireX technology.
AMD PowerPlay™ Technology – power saving features that
•
reduce power consumption at idle or during low-usage
Copyright © 2011 Jaton Corporation, USA 5
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450
• Runs Cool and Quiet – With a smaller chip designed to use less
power, your system can take advantage of high-end Windows
Vista® features while running more efficiently and quieter than
ever.
• Be More Productive – See more and do more of your work and
entertainment with advanced multi-monitor support.
• Support 3.3V, 5V and Universal 32-bit PCI slot – Video-339PCIseries
Operating Systems
• Microsoft Windows 7
• Microsoft Windows XP
• Microsoft Windows Vista
Compatibility
• OpenGL 2.0/2.1 support
• Microsoft DirectX 10.1/11 support
• WHQL-certified for Windows Vista, Windows XP, Windows 7
Copyright © 2011 Jaton Corporation, USA 6
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450
System Requirement
• Intel Pentium® P4 or compatible system with PCI, PCI-
Express Bus (x16) Extension Slot or AGP slot depends on
card purchased
• CD-ROM/DVD drive, Quad speed or faster
• Hard Drive with at least 200MB Free space
• MS Windows® 7/Vista/XP operating system
• 300 Watt or greater power supply recommended –
3DForce3450
• 400 Watt (550 Watt for dual AMD CrossFireX™) or greater
power supply recommended – Video-PX4350-DP, VideoPX4670-EX, Video-PX309-Quad, Video-339PCI-series
• 1GB of system memory recommended
• 3DForce3450-DVI requires a 4-pin power connector
connected to the card
• For an AMD Hybrid Graphics system, a compatible AMD 7-
Series Chipset-based motherboard is required
• For a complete AMD CrossFireX™ system, a second same
CrossFireX ready graphics card, an AMD CrossFireX Ready
motherboard and one AMD CrossFireX Bridge Interconnect
cable is required.
Check List
• Video-PX4670-EX, Video-PX4350-DP, Video-339PCI-series,
Video-PX309-Quad, or 3DForce3450 Multimedia Accelerator
• LFH 59 pin to Dual DVI adapter cable (part# CB59DVI-I2C00)
x 1 – Video-339PCI-HLP, Video-339PCI-HLPi
x 2 – Video-PX309-Quad
• HDTV/TV out – converter cable for Component --- Video-
PX4670-EX
• HDTV/TV out – converter for RCA (Composite) --- Video-
PX4670-EX
• DVI to HDMI converter x 1 --- Video-PX4670-EX
• Display Port to HDMI adapter - Video-PX4350-DP
• Software & Documents CD
• Quick Start Guide (Printed)
Copyright © 2011 Jaton Corporation, USA 7
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450
Hardware Description

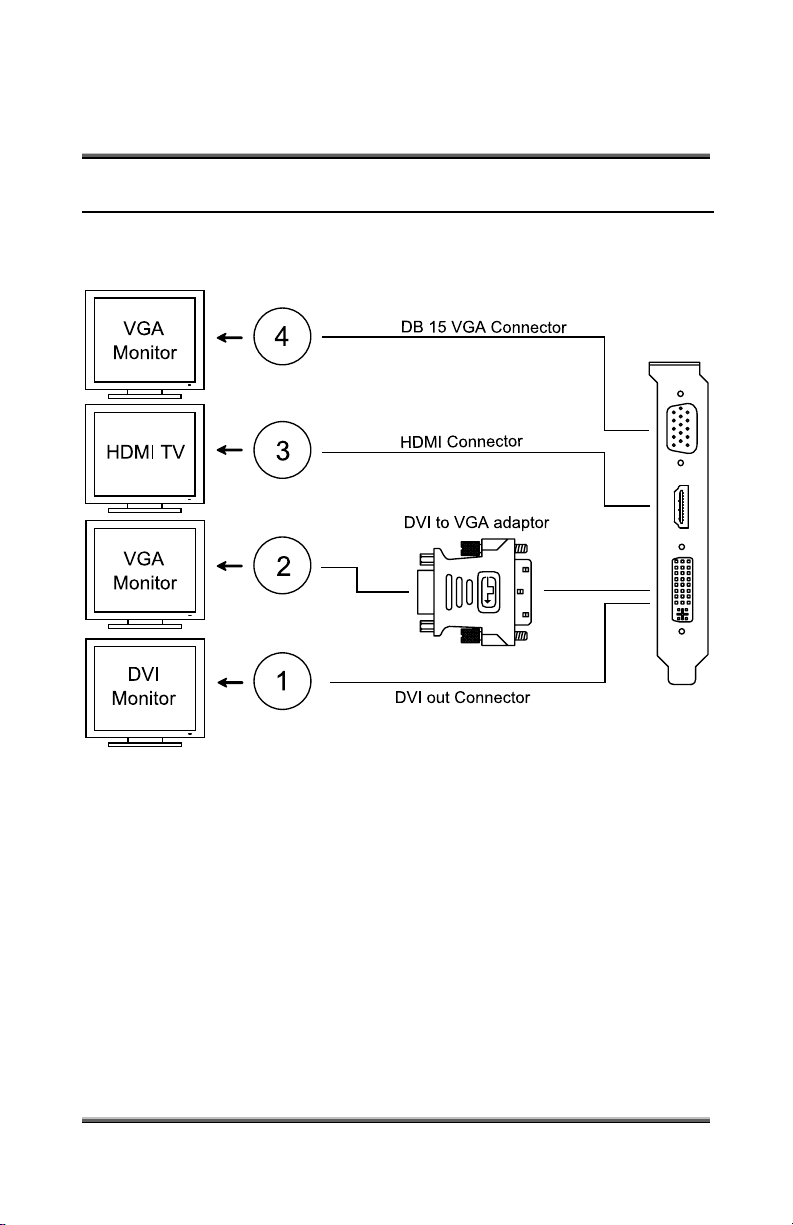

Video-339PCI-HLX / Video-339PCI-HEX
Low Profile Bracket
Copyright © 2011 Jaton Corporation, USA 8
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450

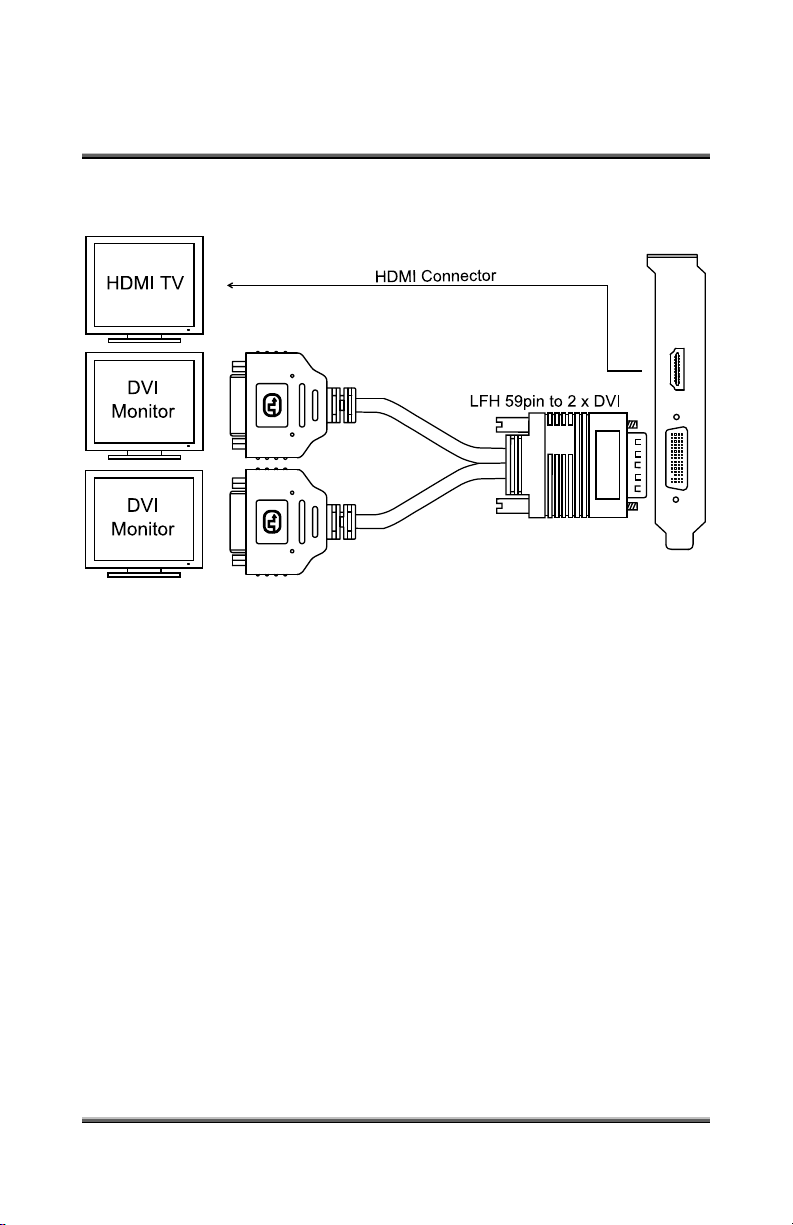

Video-339PCI-HLP / Video-339PCI-HLPi
Low Profile Bracket
Copyright © 2011 Jaton Corporation, USA 9
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450

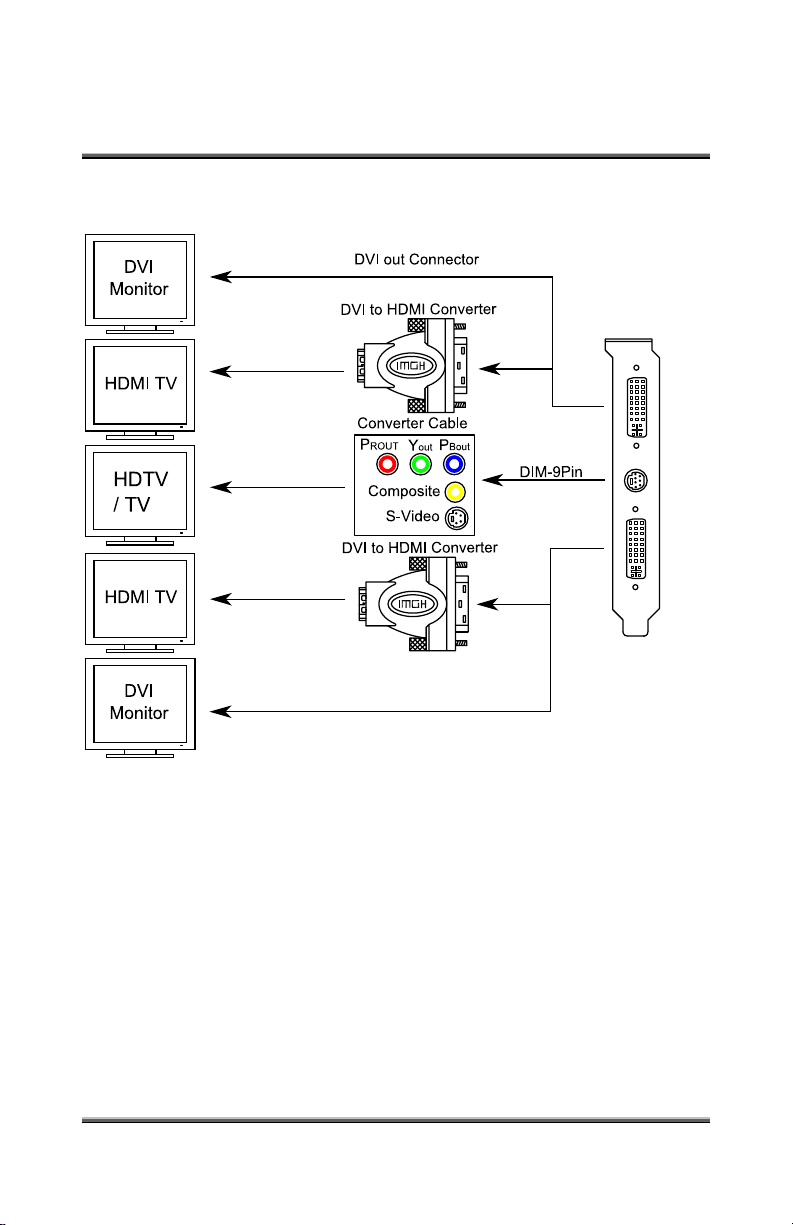

Video-PX4670-EX

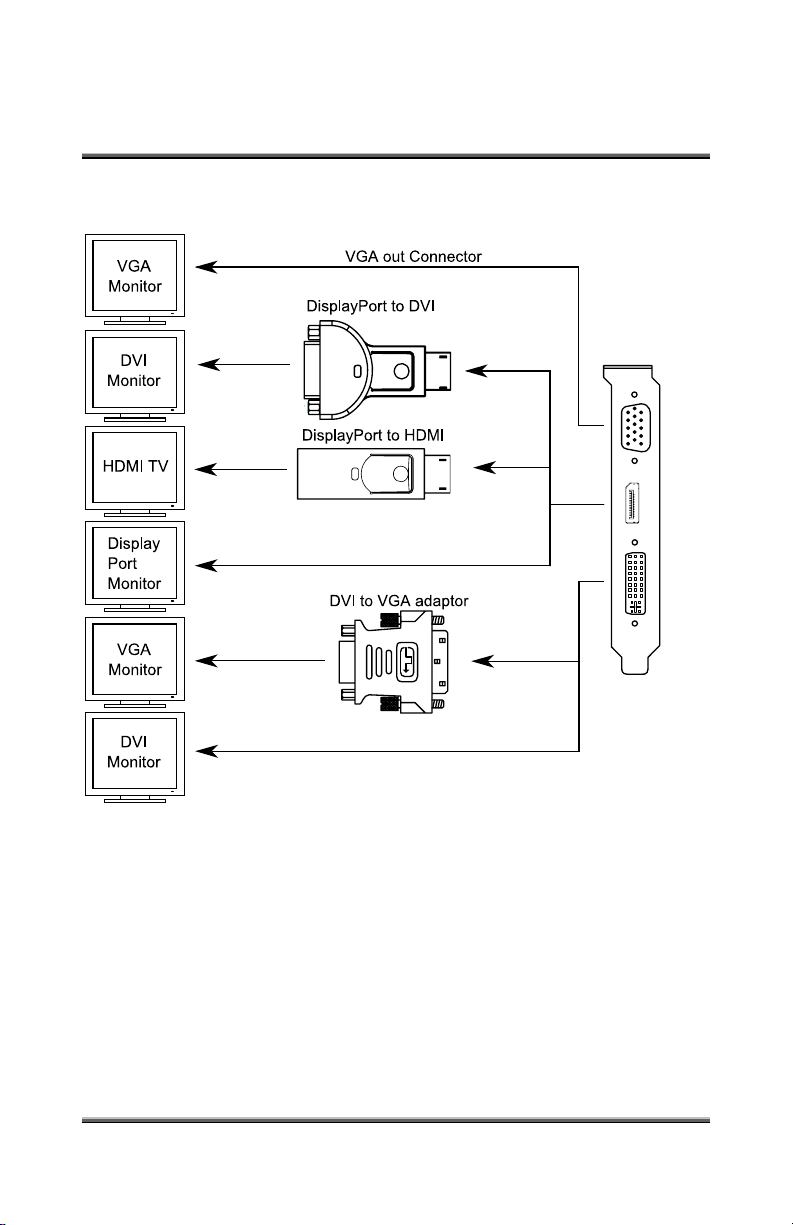

Video-PX4350-DP
Copyright © 2011 Jaton Corporation, USA 10
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450

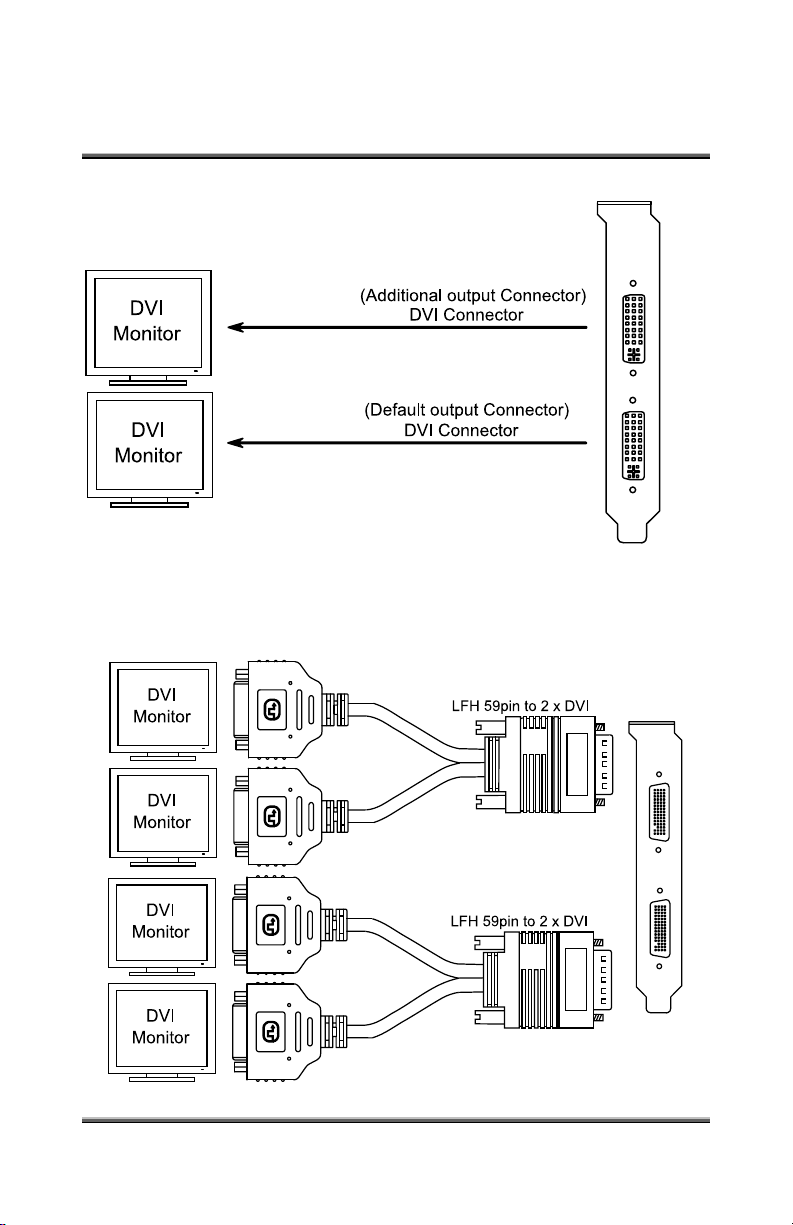

3DForce3450-DVI
* Requires a 4-pin power connector from power supply to video card.
Video-PX309-Quad
Copyright © 2011 Jaton Corporation, USA 11
AMD HD5450 / AMD HD4670 /
AMD HD4350 / AMD HD3450
Product name / PCB version Core Chipset PCB Size Memory Size
3DForce3450-DVI 82309A AMD Radeon HD 3450 169.00mm x 96.00mm 64M x 16 DDR2 512MB
Video-339PCI-HLX 82339P AMD Radeon HD 5450 145.05mm x 68.91mm 64M x 16 DDR3 512MB
Video-339PCI-HEX 82339P AMD Radeon HD 5450 145.05mm x 68.91mm 64M x 16 DDR3 1GB
Video-339PCI-HLPi 82339Q AMD Radeon HD 5450 145.05mm x 68.91mm 64M x 16 DDR3 512MB
Video-339PCI-HLP 82339Q AMD Radeon HD 5450 145.05mm x 68.91mm 64M x 16 DDR3 1GB
Video-PX309-Quad 82309W AMD Radeon HD 3450 167.64mm x 111.13mm 64M x 16 DDR2 1GB *
Video-PX4670-EX 82319A AMD Radeon HD 4670 167.64mm x 111.15mm 64M x 16 DDR3 1GB
Video-PX4350-DP 82329B AMD Radeon HD 4350 167.64mm x 68.90mm 64M x 16 DDR2 512MB
* 1GB is the total amount of memory onboard. The actual memory for each Graphics Processor Unit is 512MB.
Accessories for VGA cards are sold separately. Please go to
http://Store.anvshopper.net for details
Copyright © 2011 Jaton Corporation, USA 12
