VisionTek 86VT User Manual

www.visiontek.co.in

User’s Manual

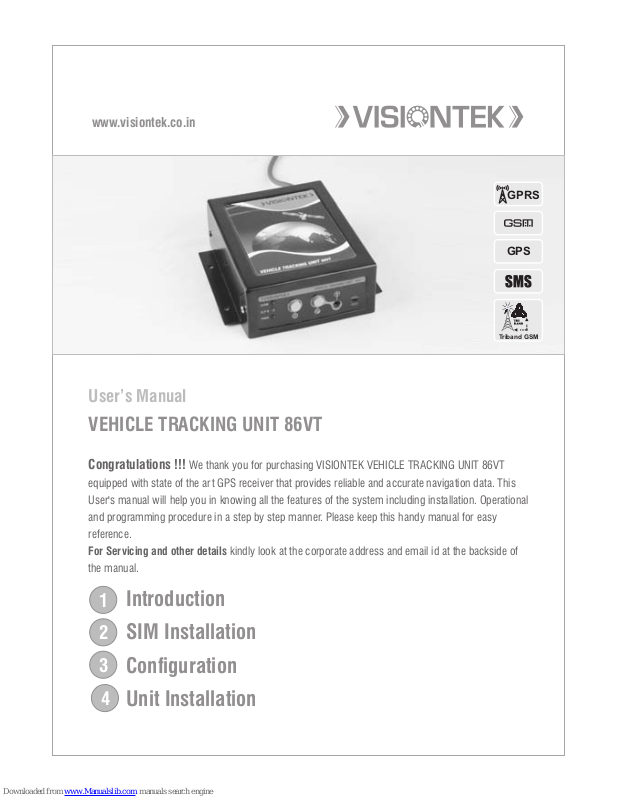

VEHICLE TRACKING UNIT 86VT

Congratulations !!! We thank you for purchasing VISIONTEK VEHICLE TRACKING UNIT 86VT

equipped with state of the art GPS receiver that provides reliable and accurate navigation data. This
User's manual will help you in knowing all the features of the system including installation. Operational
and programming procedure in a step by step manner. Please keep this handy manual for easy
reference.
For Servicing and other details kindly look at the corporate address and email id at the backside of
the manual.

GPRS

Triband GSM

GPS

1

2

3

Introduction

SIM Installation

Configuration

Unit Installation

4

Visiontek Vehicle Tracking Unit 86VT, equipped with state of the art GPS receiver provides
reliable and accurate navigation data. The unit enables the vehicle owners or third parties to
track the location of a Truck, Ship, Container, Car or any object which is moving.

All the communication with the user/server is handled by Tri-Band GSM/GPRS module which
accurately delivers all the navigation date. The communication is either through Short
Message Service (SMS) or GPRS network.

The Visiontek 86VT is provided with a RS-232 port for configuration of the unit. The unit can be
also remotely configured (OTA Configuration). In addition the unit is provided with two
switches (One for Voice & One for SMS) for communicating with pre-defined numbers. A voice
port is provided for two way communication and buzzer is provided for incoming calls alert.
The unit can be configured to receive the incoming calls from pre-defined numbers.

FEATURES:

nTri-band 900/1800/1900 MHz GSM/Gprs Module
n20 Channels GPS receiver (SiRF III)
nRS232 Serial Port
nBuilt-in battery
nIgnition ON/OFF detection
nWide DC input voltage range (10.5V-30V)
nLocal & Remote Configuration
nSMS / GPRS Communication
nSupport TCP & UDP
nReal Time Clock (RTC)
nOn-Line and Off-Line tracking.
nLED indication for GSM, GPS and Power status
nSwitch for voice & SMS communication
nBuzzer for incoming calls indication
nConfigure upto 5 incoming call numbers
nGSM + GPS Combo antenna

1

Introduction

1

2

SIM Installation

NOTE : PIN Code of the SIM Card must be DISABLED

1. The Visiontek 86VT unit can be easily opened by removing the four screws connected as
shown in the figure. Make sure that the power cable is not connected to the power source

2

Internal battery installation

Open the SIM tray, Insert the SIM card
and close the tray

GSM and GPS antenna
