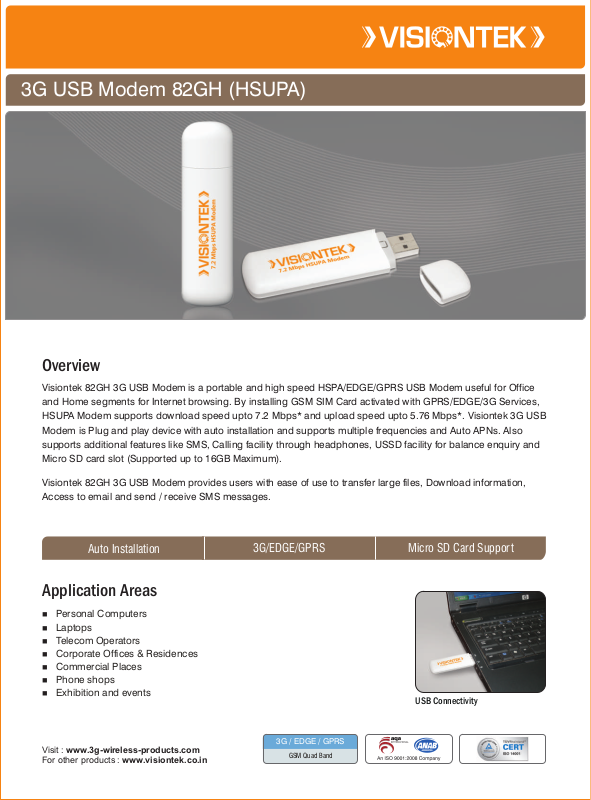

3G USB Modem 82GH (HSUPA)
Overview
Visiontek 82GH 3G USB Modem is a portable and high speed HSPA/EDGE/GPRS USB Modem useful for Office
and Home segments for Internet browsing. By installing GSM SIM Card activated with GPRS/EDGE/3G Services,
HSUPA Modem supports download speed upto 7.2 Mbps* and upload speed upto 5.76 Mbps*. Visiontek 3G USB
Modem is Plug and play device with auto installation and supports multiple frequencies and Auto APNs. Also
supports additional features like SMS, Calling facility through headphones, USSD facility for balance enquiry and
Micro SD card slot (Supported up to 16GB Maximum).
Visiontek 82GH 3G USB Modem provides users with ease of use to transfer large files, Download information,
Access to email and send / receive SMS messages.
Auto Installation
3G/EDGE/GPRS
Micro SD Card Support
Application Areas
Personal Computers
n
Laptops
n
Telecom Operators
n
Corporate Offices & Residences
n
Commercial Places
n
Phone shops
n
Exhibition and events
n
USB Connectivity
Visit : www.3g-wireless-products.com
For other products : www.visiontek.co.in
3G / EDGE / GPRS
GSM Quad Band
Benefits
nMicro SD Card for personal memory storage
nIndoor and outdoor applications
nInstant connectivity
nEasy to install and operate
nAuto Installation, No CD required
nPhone book function with SIM and PC storage
nSmall and Compact
nEngineered to last a life time for rugged use
Features
n3G/HSPA/UMTS 2100 MHz
nGSM 850/900/1800/1900 MHz Quad-Band
nSupports 3G/EDGE/GPRS operation
nSend & Receive SMS messages
nAccessing E-mail and Internet browsing
nSIM PIN protection
nMicro SD memory support (Up to 16GB)
nUSSD Facility
nSupports Rx Diversity
nOne-touch Access to Frequently Visited Websites
nAutomatic & Manual Network selection
nSupports 3V SIM card
nAutomatic & Manual connection
nStatistics display
nSignal bar display
nPhone Book Management
nCalling facility
Specifications
Frequency
SIM Interface Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102.
External Interfaces
Micro SD Card Slot Supported
Additional Features
Operating System Supported WIN NT / 2000 / XP / Vista (32 & 64 bit) / WIN 7 (32 & 64 bit) / MAC OS (Up to LINON VERSION 10.7 ) /
System Requirements Card Slots: USB Interface
Dimensions (mm x mm x mm)
Weight
Environmental
Note: We pursue a policy of continuous research and product development. Specifications and features are subject to change without notice
3G/HSPA/UMTS
GSM/GPRS/EDGE 850/900/1800/1900 MHZ Quad-Band
HSUPA
HSDPA
EDGE
GPRS
Internal antenna
Standard USB Interface
USB 2.0 High Speed
Powered Via USB interface
SIM Card
3GPP TS 27.005/3GPP TS27.007 supported
Maximum up to 16GB
Phone Book
Short Message Service (SMS)
Plug & Play with Auto installation
APN Auto Management
Statistics
Simultaneous SMS & DATA
LED Indication for different states
USSD Facility
Calling facility with Head Phones
Linux (UBUNTU 11.04)
CPU: P4, 1Ghz or above
Memory: 128MB RAM or above
Hard Disk: 100 MB or above
87.5 L x 27 W x 12.3 H
24 grams
Operating Temperature: -20°C to +55°C
Storage Temperature: -30°C to +65°C
2100 MHz.
3GPP, Rev 6, DL Speed upto 7.2 Mbps, UL Speed upto 5.76 Mbps
3GPP, Rev 6, DL Speed upto 3.6 Mbps, UL Speed upto 384 Kbps
3GPP, Rev 4, Multi slot, Class 12, DL Speed upto 236 Kbps & UL Speed upto115 Kbps
3GPP, Rev 4, Multi slot, Class 10, upto 115.2 Kbps & 42.8 KbpsDL Speed UL Speed upto
* Network Dependent
®
