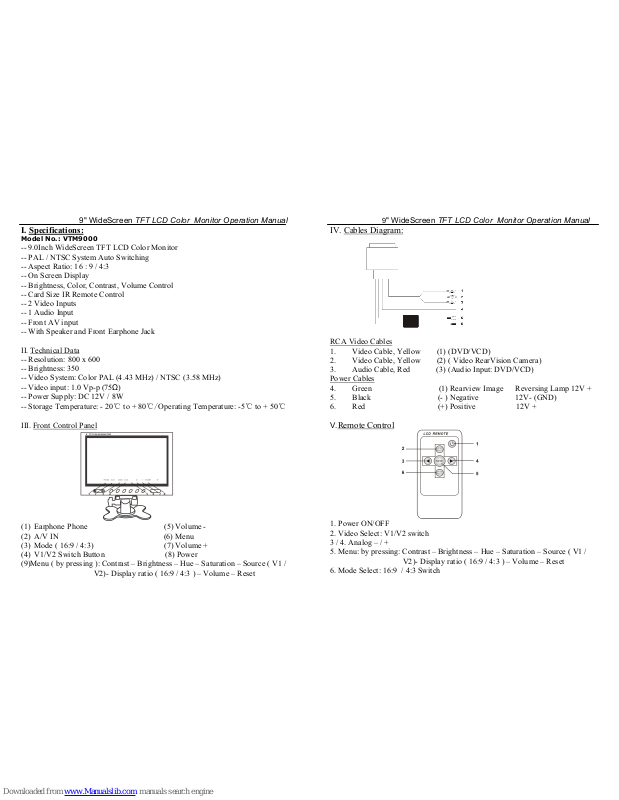

Vision Tech VTM9000 Operation Manual

9" WideScreen TFT LCD Color Monitor Operation Manual

I. Specifications:

Model No.: VTM9000

-- 9.0Inch WideScreen TFT LCD Color Monitor

-- PAL / NTSC System Auto Switching

-- Aspect Ratio: 16 : 9 / 4:3

-- On Screen Display

-- Brightness, Color, Contrast, Volume Control

-- Card Size IR Remote Control

-- 2 Video Inputs

-- 1 Audio Input

-- Front AV input

-- With Speaker and Front Earphone Jack

II. Technical Data

-- Resolution: 800 x 600

-- Brightness: 350

-- Video System: Color PAL (4.43 MHz) / NTSC (3.58 MHz)

-- Video input: 1.0 Vp-p (75Ω)

-- Power Supply: DC 12V / 8W

-- Storage Temperature: - 20℃ to + 80℃/Operating Temperature: -5℃ to + 50℃

III. Front Control Panel

(1) Earphone Phone (5) Volume -
(2) A/V IN (6) Menu
(3) Mode ( 16:9 / 4:3) (7) Volume +
(4) V1/V2 Switch Button (8) Power
(9)Menu ( by pressing ): Contrast – Brightness – Hue – Saturation – Source ( V1 /

V2)- Display ratio ( 16:9 / 4:3 ) – Volume – Reset

9" WideScreen TFT LCD Color Monitor Operation Manual

IV. Cables Diagram:

RCA Video Cables

1. Video Cable, Yellow (1) (DVD/VCD)

2. Video Cable, Yellow (2) ( Video RearVision Camera)

3. Audio Cable, Red (3) (Audio Input: DVD/VCD)
Power Cables

4. Green (1) Rearview Image Reversing Lamp 12V +

5. Black (- ) Negative 12V- (GND)

6. Red (+) Positive 12V +

V.Remote Control

1. Power ON/OFF

2. Video Select: V1/V2 switch
3 / 4. Analog – / +

5. Menu: by pressing: Contrast – Brightness – Hue – Saturation – Source ( V1 /
V2)- Display ratio ( 16:9 / 4:3 ) – Volume – Reset

6. Mode Select: 16:9 / 4:3 Switch
