Vision Tech VTM7000Q User Manual

Thank you for purchasing our product.
Please read this user Manual before
using the product. Change without Notice

7” TOUCH PANEL LCD MONITOR

USER MANUAL

2

Federal Communications Commission (FCC) Statement

This Equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

- Consult the dealer or an experienced radio / TV technician for help.

l You are cautioned that changes or modifications not expressly approved by

the party responsible for compliance could void your authority to operate the
equipment.

SAFETY PRECAUTIONS

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and,
(2) This device must accept any interference received, including interference

that may cause undesired operation

3

Safety Precaution.………………………....…………………………………………..........2

Table of Content.….………………………………………………………………………3

Features….………………………………………………………………………………...4

1. Package Contents…….………………………………………………………………..5

2. TFT Installation……………………………………………….…………………………6

3. Signal Cable Description……..………………………………….…………………..7

4. Control Cable Description……..…………………………………….……………….9

5. Front Panel Control.……………………………………………………..………… 10

Main OSD Menu……….........……………………………………………….………11

Screen Menu.…………………………………………………………………………...13

Display Menu…….…………………………………………………………….…15

Camera Menu...……………………………….…………..................................16

Factory Setting Menu.……………………………………………………………..18

6. Vehicle Installation ……………………………………….……………………..19

7. Specification…..………………………………………..……………………….20

8. Attachment…..……………………………………………….……………………21

TABLE OF CONTENT

4

l Professional Mobile Touch Panel Solution

l Advanced OSD Menu for easy use

l Support up to 4 CCD Camera inputs (Mini din connector)

l Extra RCA input for multimedia while parking (VCD, DVD, Game device)

l Provide 2 Video / 1 Audio Signal Output (Live Out)

l Support Single / Dual / Triple / Quad Screen (Cam Out)

l Signal Trigger for Side / Rear View

l Auto Day & Night Control via Photo Diode Sensor

l Auto Detection for NTSC / PAL System

l OSD Control for Individual Normal / Mirror Camera Image for every camera

l Auto power on when users are making left turn or right turn even reverse

l Able to select CAM A / B/C / R’s monitoring screen

l Supported 9.6V~32V Car power system working

l Professional Metal Case with Anti Shocking Design

FEATURE

5

Item Qty.

1. 7” LCD Monitor 1

2. Sun-Hood 1

3. Mounting Bracket 1

4. Accessories 1

5. Control Cable 1

6. User Manual 1

1. Package Contents

6

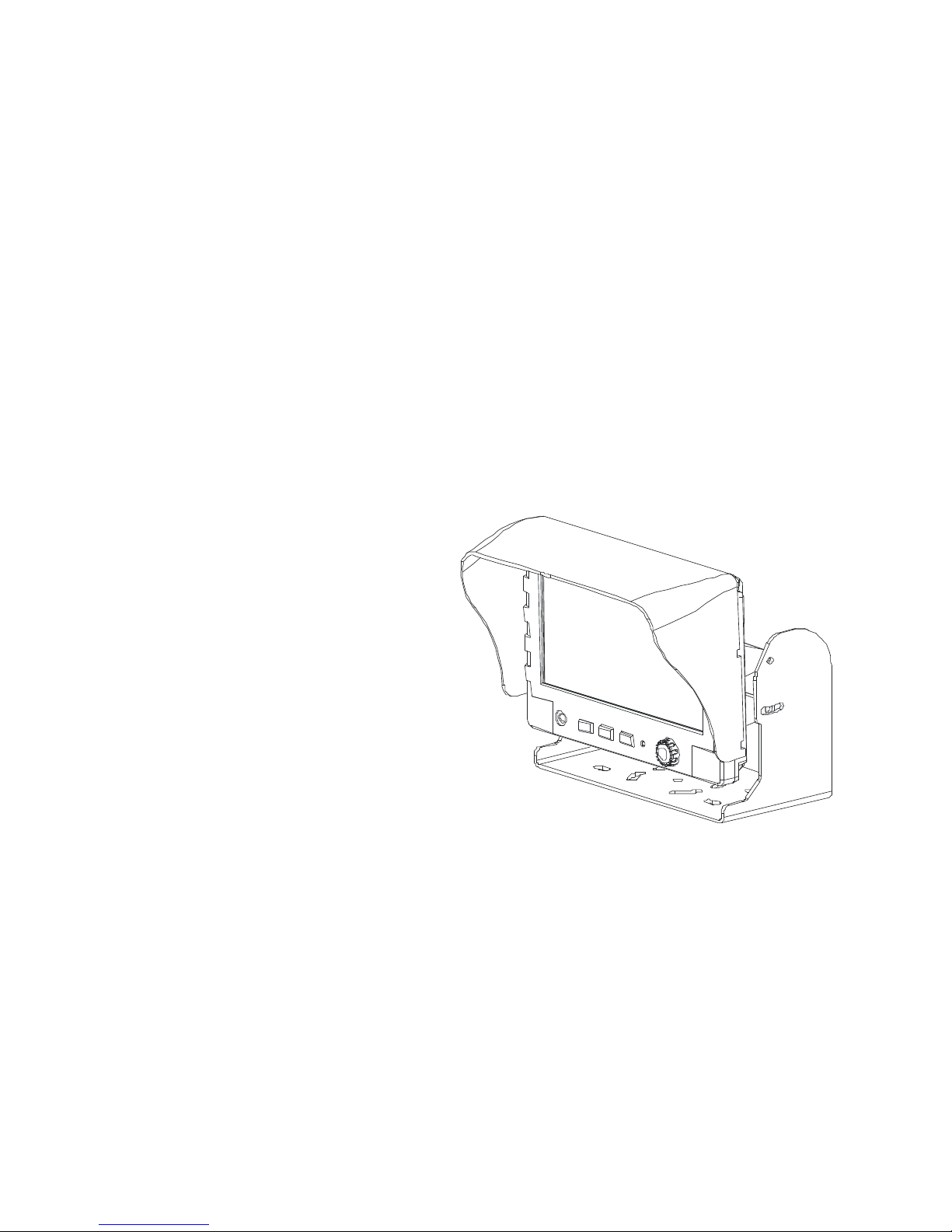

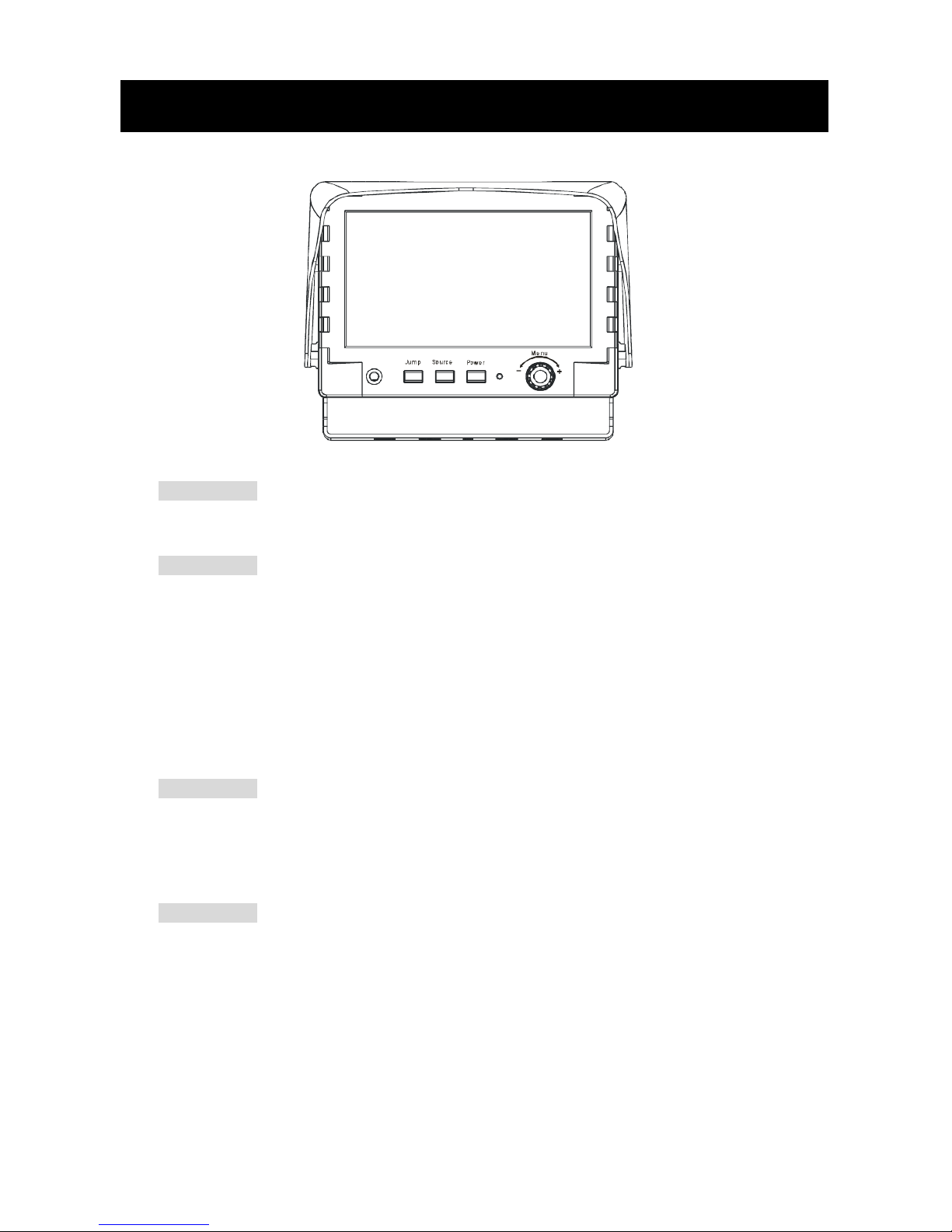

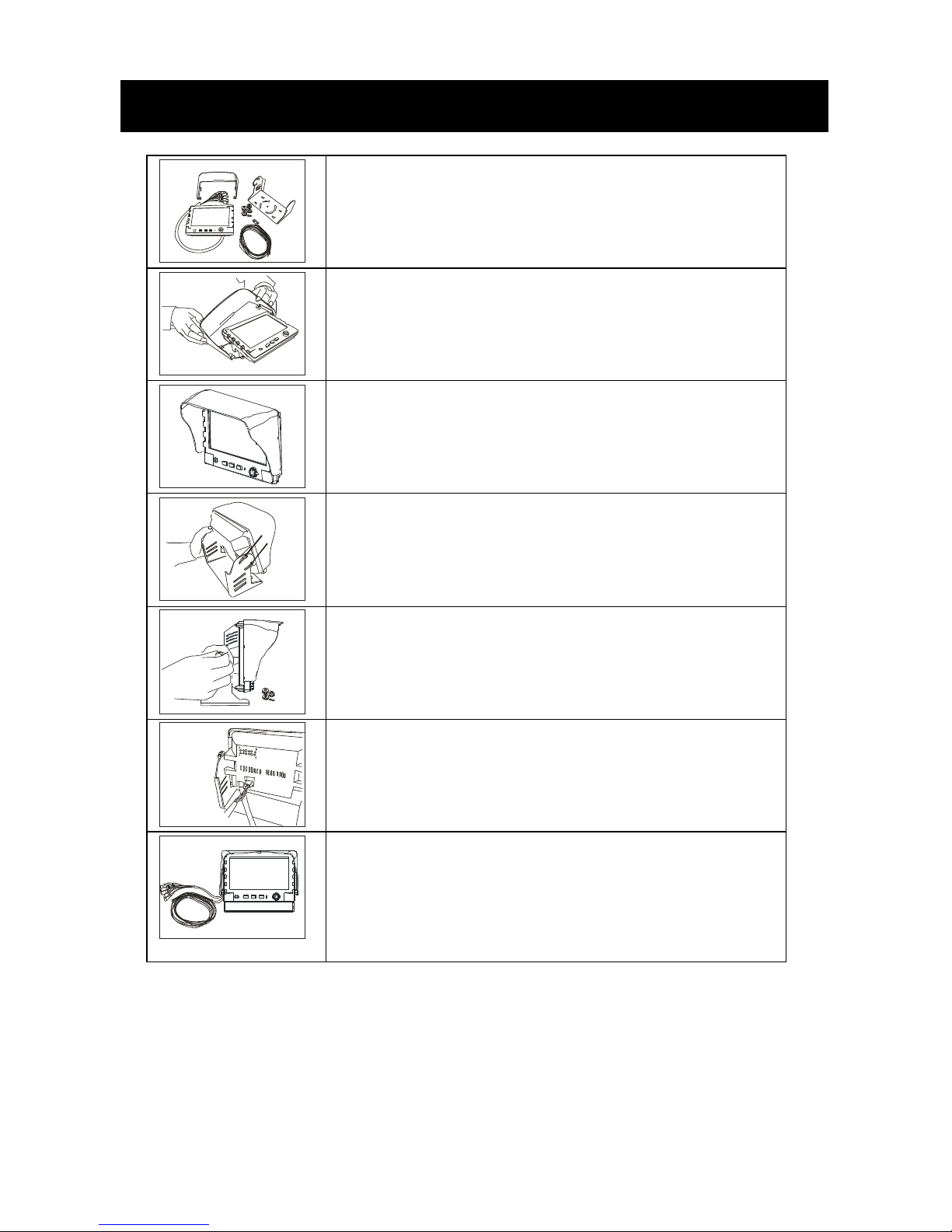

Step 1

Check the package and make sure all parts are included.

Step 2

Clip the sun-hood on to the monitor.

Step 3

Make sure it is installed properly.

Step 4

Install the monitor on to the bracket.

Step 5

Adjust the monitor to an appropriate / comfortable viewing
angle before tightening the screws.

Step 6

Connect the control cable included to the power socket
which located at rear side of monitor.

Step 7

Monitor installation is now completed. Each control cable
wire is attached with a sticker to indicate its signal function.
Referred to the identification sticker for further installation.

2. TFT Installation

7

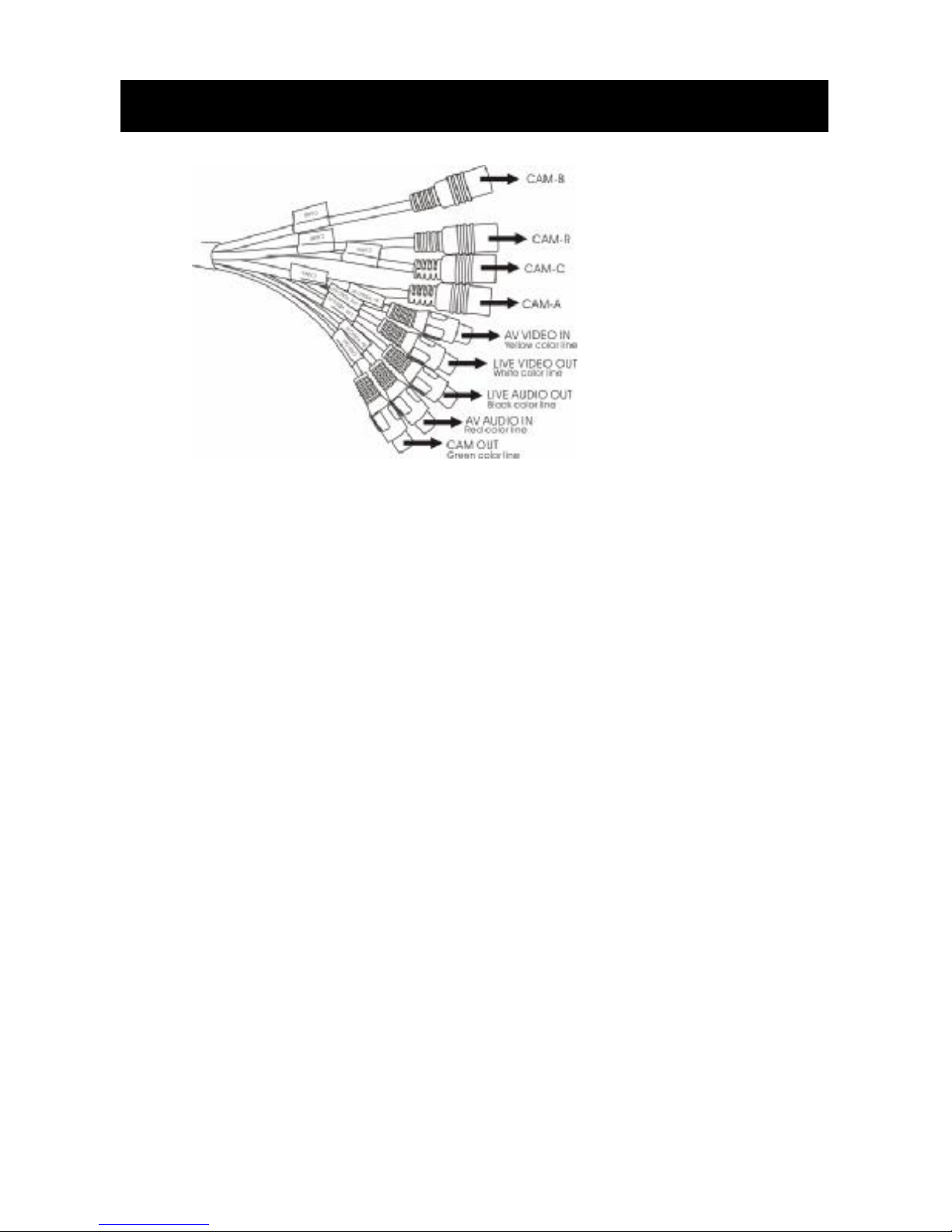

1. CAM R (Mini din) (NTSC/PAL system presume by this car rear CCD)

For 1st camera connection

2. CAM A (Mini din)
For 2nd camera connection

3. CAM B (Mini din)
For 3rd camera connection

4. CAM C (Mini din)
For 4th camera connection

5. LIVE VIDEO OUT (White Color RCA Jack)
On screen video loop out (for recording, second monitor or other device)

6. LIVE AUDIO OUT (Black Color RCA Jack)
On screen audio loop out (for recording, second monitor or other device)

7. AV VIDEO IN (Yellow Color RCA Jack)
Connection for any Video signal (DVD, VCD, Game)

8. AV AUDIO IN (Red Color RCA Jack)
Connection for any Audio signal (such as DVD, VCD, Game)

9. CAM OUT (Green Color RCA Jack)
Video loop out (for recording, second monitor or other device)

3. Signal Cable Description

8

Function of the Audio

※ Cam Out: Composite video loop out signal to recorder, monitor or other device.
※ Live Video/Audio Out: On screen video/audio signal loop out to recorder, monitor

or other device.

Cam A Audio from Cam A

Cam B Audio from Cam B

Cam C Audio from Cam C

Cam R Audio from Cam R

Cam A + Cam B Audio from Cam A

Cam C+ Cam R Audio from Cam R

Cam A+ Cam R Audio from Cam R

Cam R+ Cam B Audio from Cam R

Cam A + Cam C Audio from Cam A

Cam C+ Cam B Audio from Cam C

Cam R / Cam AB Audio from Cam R

Quad Audio from Cam R

AV Audio from AV

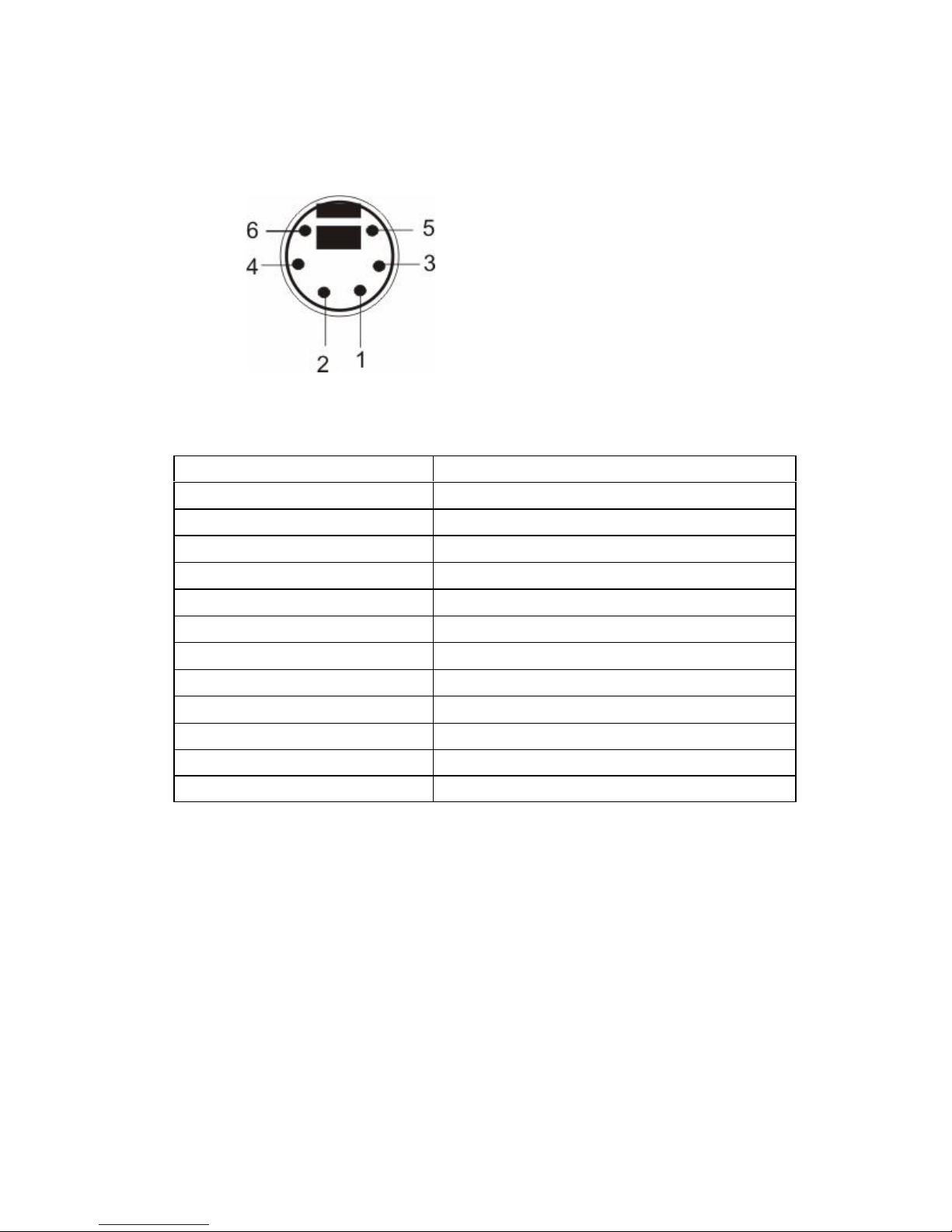

Mini Din Pin Assignment

* Type 1 (Standard):

1. ----- 4. GND

2. ----- 5. +12V

3. Audio 6. Video

*Type 2 (Optional):

1. GND 4. +12V

2. ------ 5. -------

3. Video 6. Audio

9

1. The control cable sequence : Reverse > Right / Left > Park (AV)

2. With car power is on, the monitor power is off, when making a reverse / right / left
turn, the monitor will display default screen.

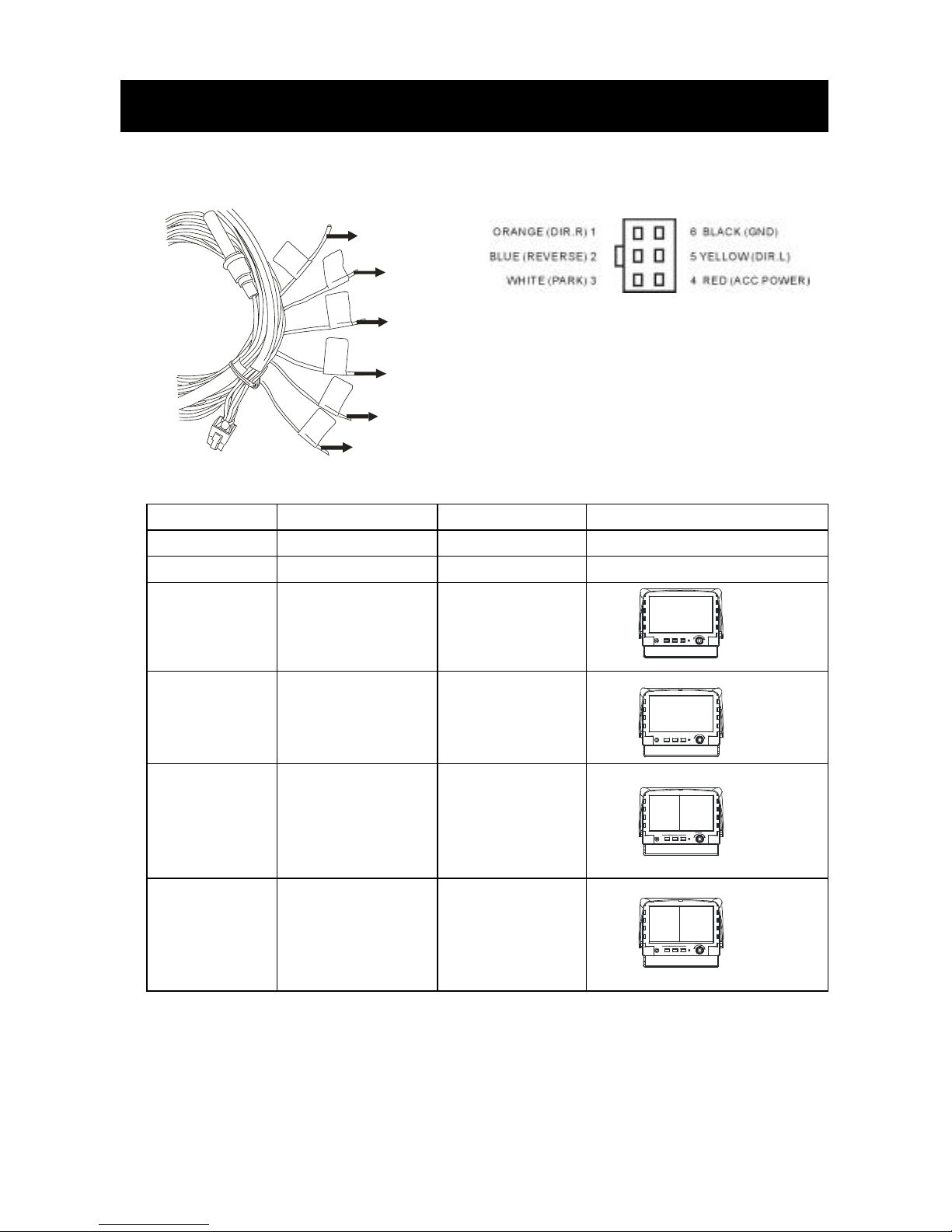

WIRE COLOR FUNCTION REMARK ON SCREEN VIEW

RED ACC POWER

BLACK GND

WHITE Parking Control Active GND

BLUE Reverse Control Active Power

Level Connect to
Reverse Light

ORANGE Right Turn Control Active Power

Level Connect to
Direction Light
(R)

YELLOW Left Turn Control Active Power

Level Connect to
Direction Light
(L)

4. Control cable Description

PARK

RIGHT

POWER

GND

LEFT

REVERSE

RIGHT

Orange color line

Black color line

GND

PARK

White color line

Red color line

POWER

Yellow color line

LEFT

Blue color line

Reverse

Jump Source Power

Menu

AV

Jump Source Power

Menu

CAM R

CAM R

CAM B

CAM A CAM R

10

POWER Press the power button to activate the monitor or to keep the monitor

under stand by mode (In Red Led).

SOURCE With power on, press this button to select image sequence

CAM A+B→CAM C+R→CAM A+RàCAM R+Bà CAM A+Cà
CAM C+B àCAM R+A+B→CAM A→ CAM B→CAM C→
CAM R→CAM A+B…….
With pull hand break, press this button to select image sequence
AV→ CAM A+B→CAM C+R→CAM A+RàCAM R+Bà CAM A+Cà
CAM C+B à CAM R+A+B→CAM A→ CAM B →CAM C→CAM R→
AV……..

JUMP Press this button to display defined camera input, user can select

QUAD / CAM A+B / CAM C+R / CAM A+RàCAM R+Bà
CAM A+CàCAM C+Bà CAM R+A+B/ CAM A / CAM B / CAM C /
CAM R via OSD as default value.

MENU This encoder switch provides the following function:

1. Activate OSD menu: Press the Menu switch to activate the OSD menu.
After the OSD menu is activated, in case users does not proceed for

further set up, the OSD menu will then automatically turn off within
several seconds.

2. Enter Function: Press the encoder switch to act as “Enter” function
under the OSD menu.

5. Front Panel Control

11

3. Volume Value: Exit the OSD menu, user can turn this switch

left or right to adjust the volume value.

*When pull the hand break, user need to press SOURCE button again to
display AV IN picture.

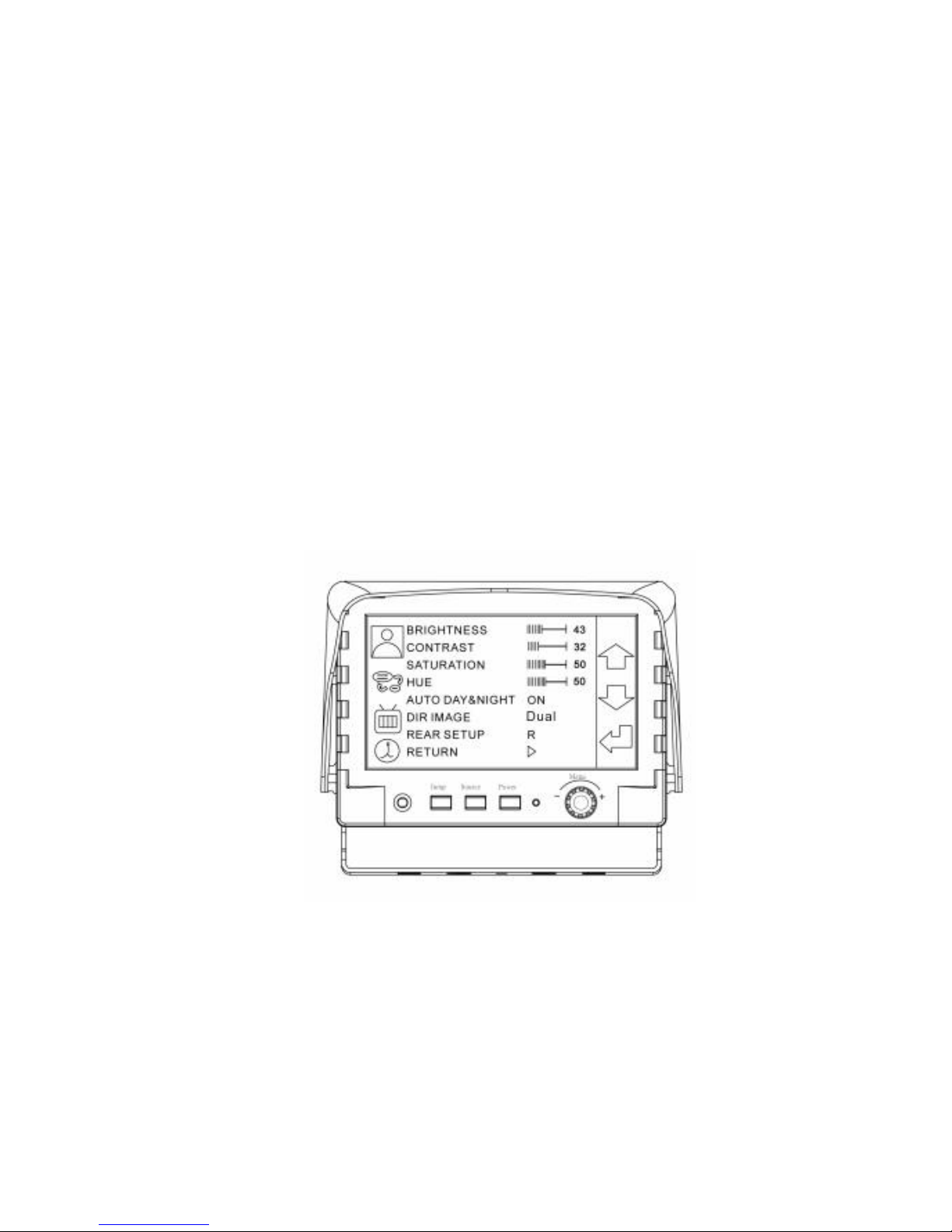

OSD MENU

1. Press the MENU button to enter to the OSD Menu

2. Turn the MENU button left or right to select the setting you
wish to proceed. The color of the content will turns YELLOW

to identify your selection. Turn the MENU button left or right to
adjust your setting value.

3. Press the MENU button once back to submenu and then press menu

button again in order to return to OSD menu.

Enter to Main menu:

12

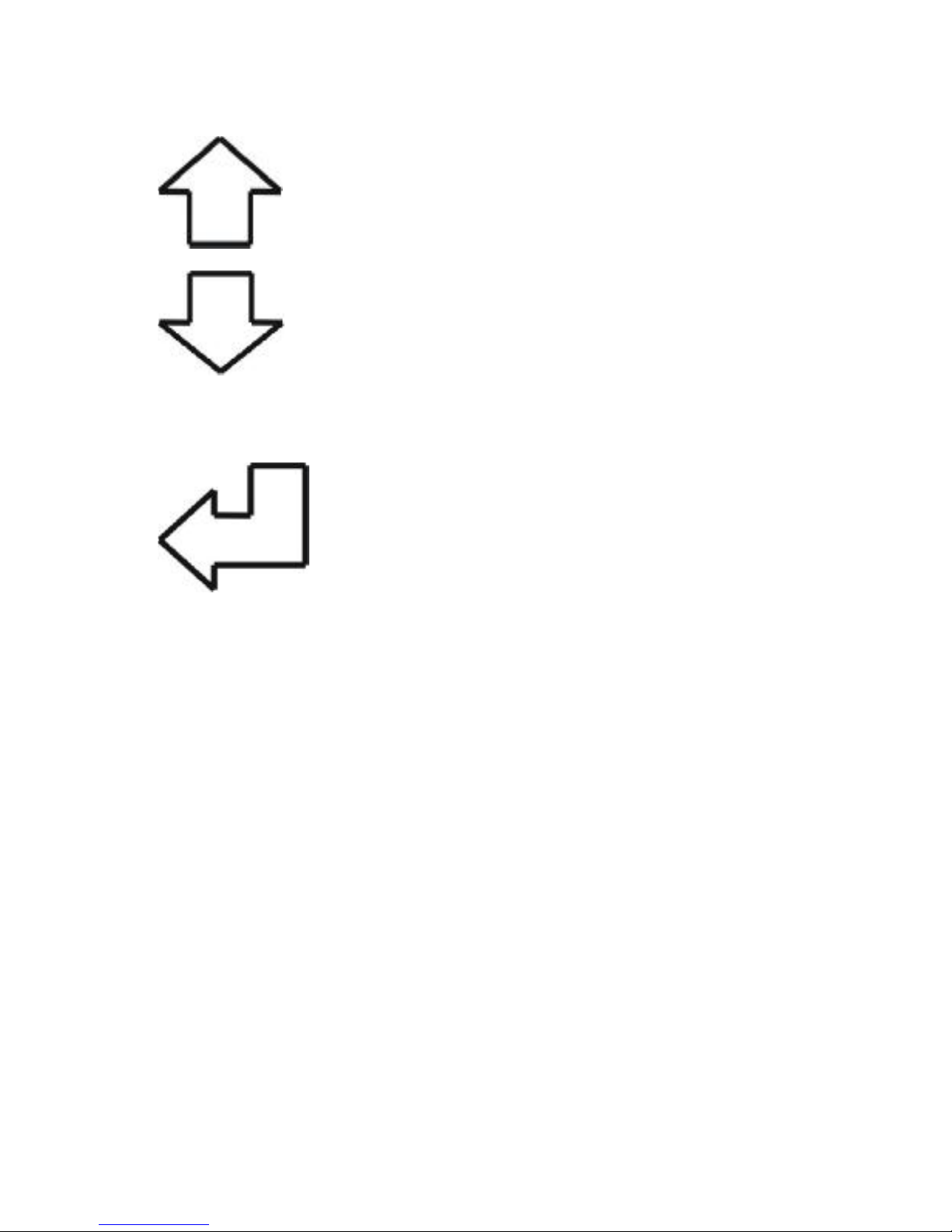

※Above direction keys are the function buttons of touch panel

Up and Down Direction buttons

Up and down arrow of the touch panel LCD

are working as direction button. Users are able

to use them to move up and down between

each menu by click on them.

Enter button

It is working as enter functioning button of

this touch Panel. Users will able to use it to

make the selections between each menu by

click on it.

Touch Panel Function for Quad or Dual screen

Under Jump key display, press the touch panel

of the position two times then it will be change to

the full screen. Press two times again it will be

returning back.

13

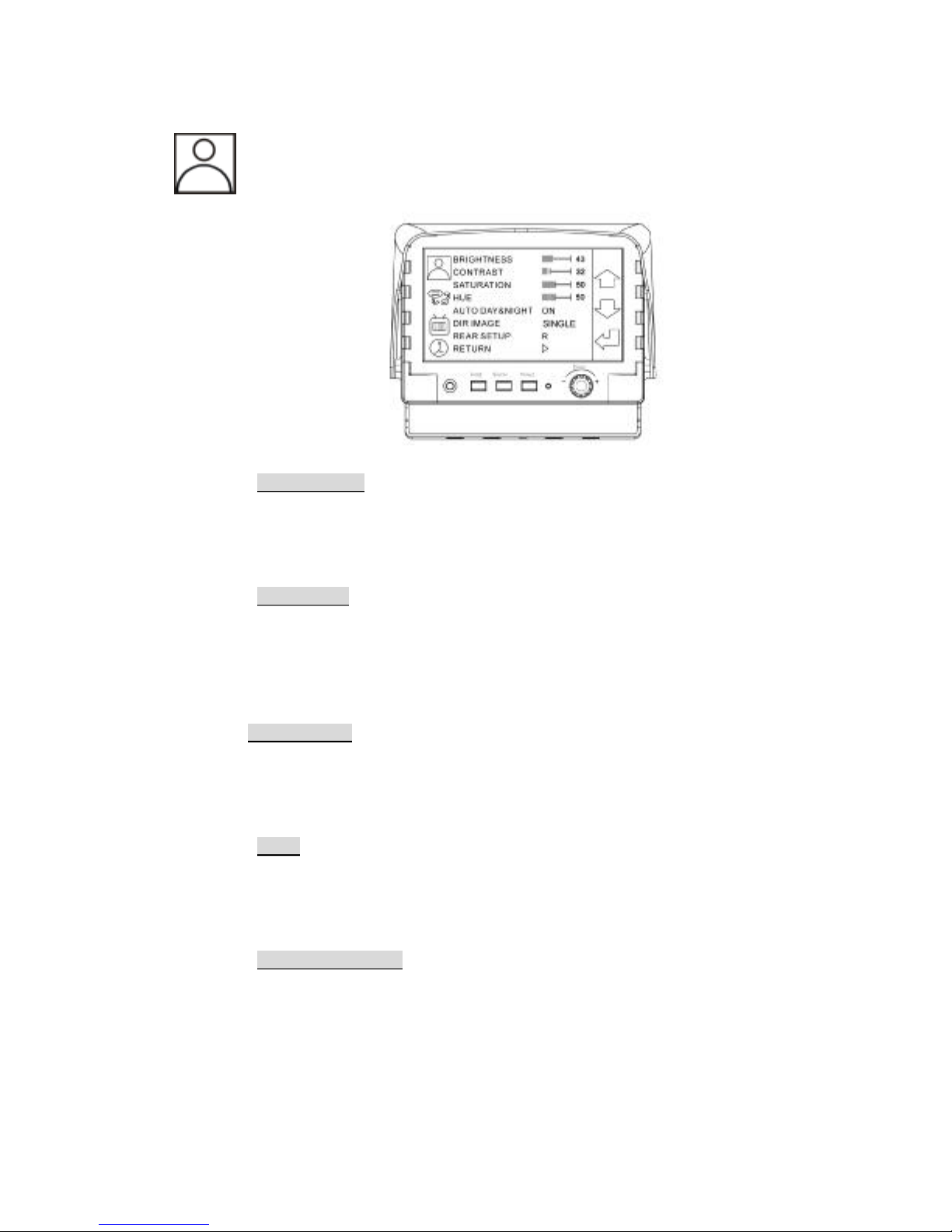

SCREEN Menu

The Screen menu set up contains different setting for the TFT:

BRIGHTNESS

Provide adjustment for the overall picture shade and brightness of TFT
display. Setting value from 0 ~ 100.

CONTRAST

Provide adjustment for the contrast level of the TFT display between the
light and dark areas. Setting value from 0 ~ 100.

SATURATION

Provide adjustment for the color of TFT display between the light and
dark area . Setting value from 0 ~ 100.

HUE

Provide adjustment for the picture TINT between light and dark area.
Setting value from 0 ~ 100.

AUTO DAY&NIGHT

Select “ON” to activate the auto day & night function or “OFF” to
deactivate it.

14

DIR IMAGE

The screen image setting of this touch panel during left / right turn:

TRIPLE: When you are making a right turn or left turn, the screen of

touch panel will display triple images for left hand side, right
hand side and rear view when you are making a right turn
or left turn.

DUAL: With proper wiring, the screen will display dual image for

both rear and right hand side view when making a right turn.
While left turning, the screen will show dual image for both
rear and left hand side view.

SINGLE: Screen of touch panel shows only single picture on direction

turn. The screen will show only left side view on left turn and
only right side view on right turn.

REAR SETUP

The screen image setting of this touch panel during reverse gear:

R: Screen will display single image for Cam R only.
R+A: Screen will display dual image for both Cam R and Cam A.
R+B: Screen will display dual image for both Cam R and Cam B.
R+A+B Screen will display triple image from Cam R、Cam A、Cam B.

RETURN

Return to OSD menu selection screen.

15

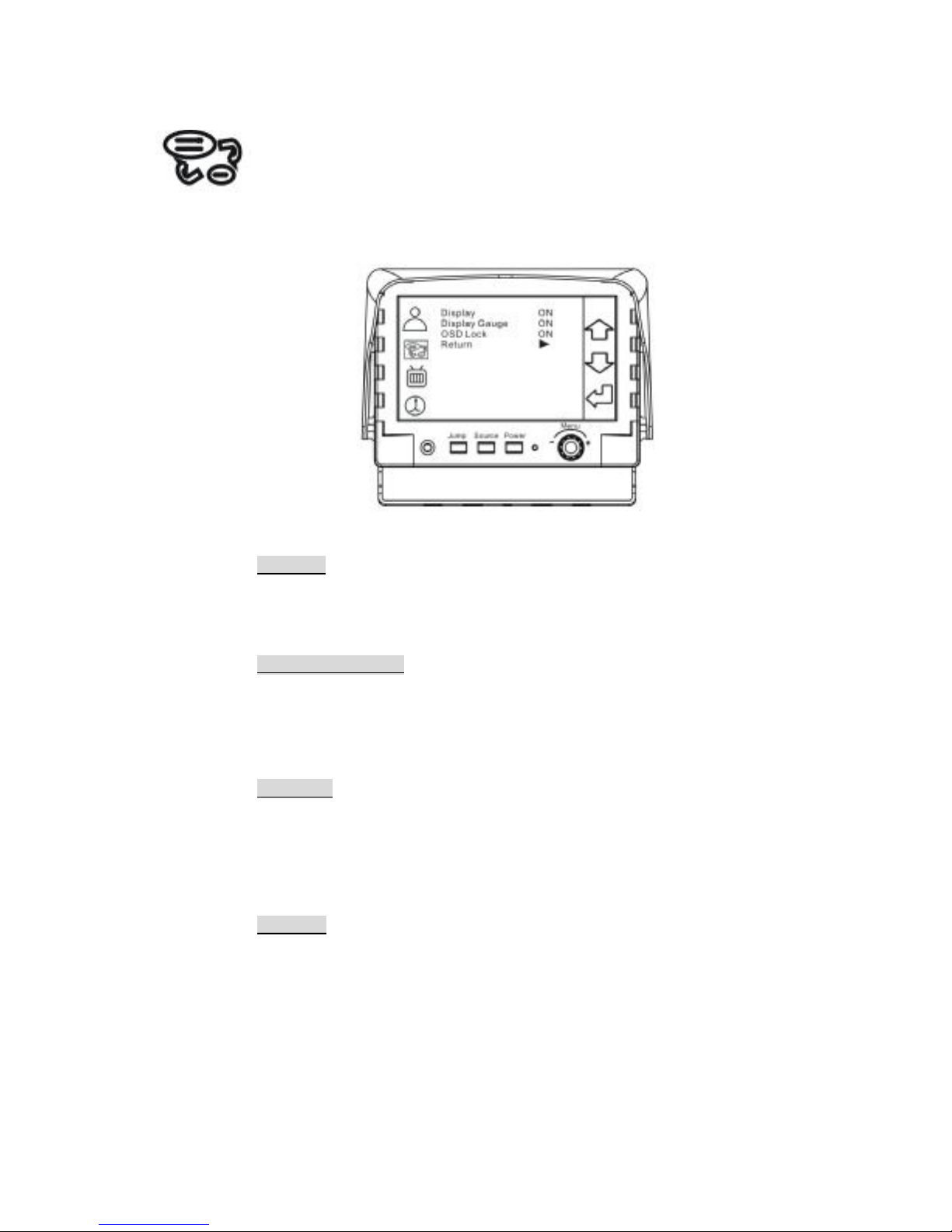

DISPLAY MENU

The DISPLAY MENU set up contains the on screen identification
and the activation of the distance gauge.

DISPLAY
Set “ON” to show the source of video input on screen or “OFF” to keep it
invisible.

DISTANCE GAUGE
Set the distance gauge “ON” to show the distance gauge on screen while
reserving or “OFF” to de-activate the distance gauge.
(This “DISTANCE GAUGE” is for user’s reference only)

OSD Lock

This function provides protection when an unauthorized person tries to

access the OSD settings to release key lock function press JUMP key

and Source for over 5 sec.

RETURN
Return to OSD menu selection screen.

16

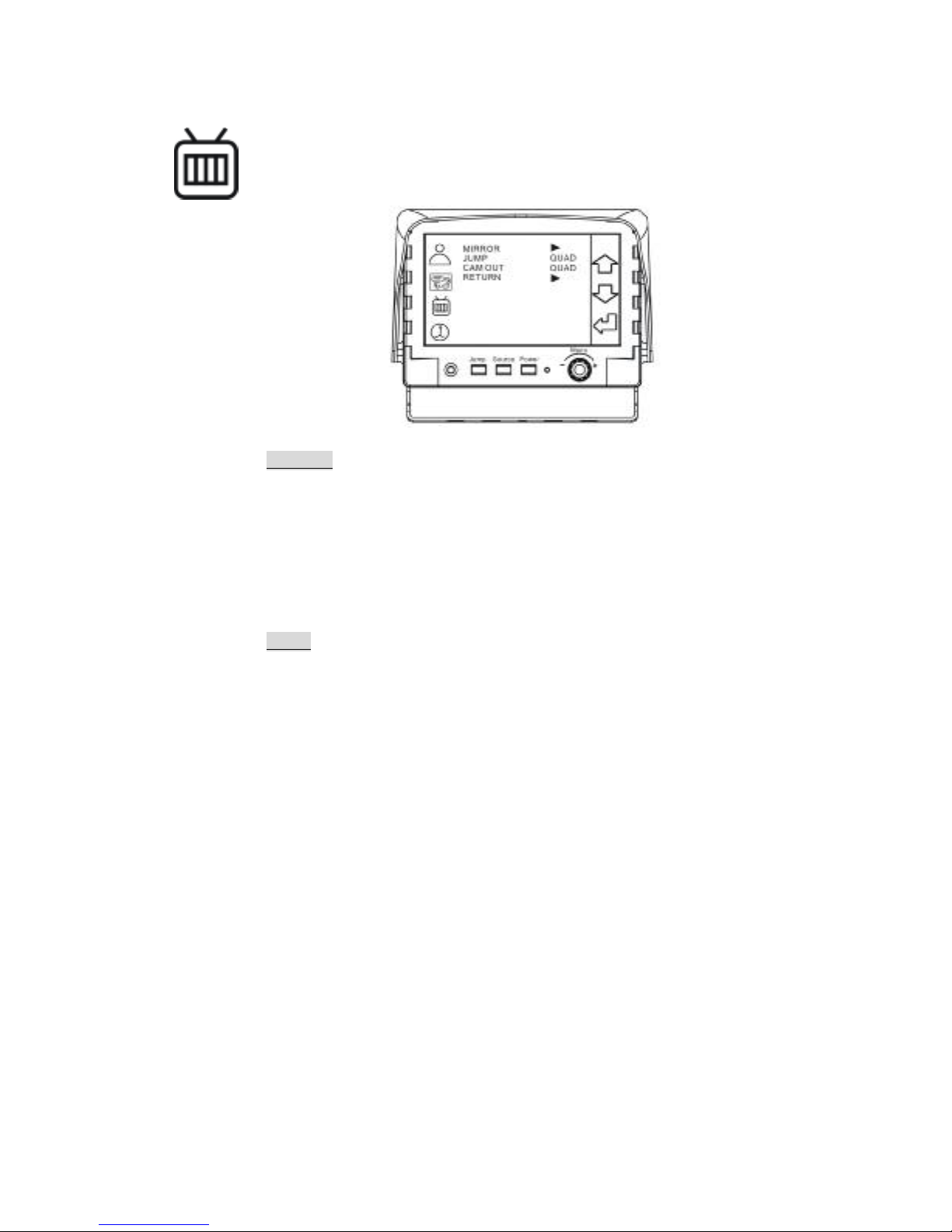

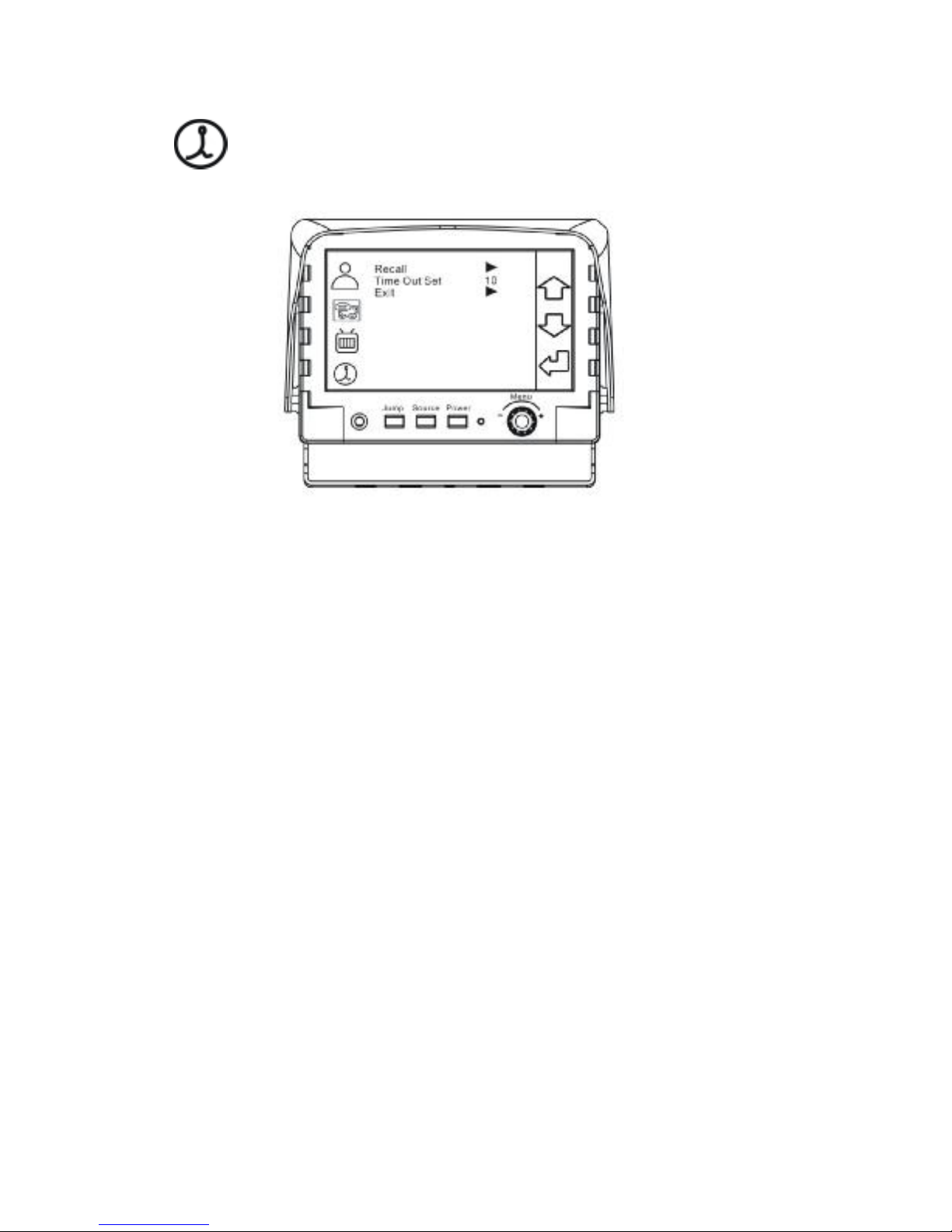

CAMERA MENU

MIRROR

Select “ON” to activate the mirror function for different cameras or
“OFF” for a normal image.

CAM A “OFF”

CAM B “OFF”
CAM C “OFF”
CAM R “ON”

JUMP

By pressing this button, the driver will be able to obtaine the image
selected under this setting.

QUAD Obtain image from all camera input in quad

picture while pressing the JUMP button and press source
key to returning back to the last screen.
CAM A+B

Obtain image from camera A+B in dual picture

while pressing the JUMP button and press again
to returning back to the last screen.

CAM C+R Obtain image from camera C+R in dual picture

while pressing the JUMP button and press source key to
returning back to the last screen.

CAM A+R Obtain image from camera A+R in dual picture

While pressing the JUMP button and press
source key to returning back to the last screen.

17

CAM R+B Obtain image from camera R+B in dual picture while

pressing the JUMP button and press source key to
returning back to the last screen.

CAM A+C Obtain image from camera A+C in dual picture while

pressing the JUMP button and press source key to
returning back to the last screen.

CAM C+B Obtain image from camera C+B in dual picture while

pressing the JUMP button and press source key to
returning back to the last screen.

CAM R+A+B Obtain image from camera R+A+B in triple picture

while pressing the JUMP button and press source
key to returning back to the last screen.

CAM A Obtain image from camera A while pressing the

JUMP button and press source key to returning back
to the last screen.

CAM B Obtain image from camera B while pressing the

JUMP button and press source key to returning back
to the last screen.

CAM C Obtain image from camera C while pressing the

JUMP button and press source key to returning back
to the last screen.

CAM R Obtain image from camera R while pressing the

JUMP button and press source key to returning back
to the last screen.

CAM OUT

Composite video loop out to recorder, monitor or other device

QUAD Recording or viewing from the output device in quad

mode

CAM A Recording or viewing from the output device for CAM

A image

CAM B Recording or viewing from the output device for CAM

B image

CAM C Recording or viewing from the output device for CAM

C image

CAM R Recording or viewing from the output device for CAM

R image

RETURN : Return to OSD menu selection screen.

18

Factory Setting Menu

RECALL: Use this feature to recall the factory default settings.

Time Out: When splite screen under Jump mode setting, the time back to

splite screen after touched for desired camera screen

Setting value from 0 ~ 100.

EXIT: Use this feature to exit OSD menu.

19

(This “ DISTANCE GAUGE” is for user’s reference only)

a. Install Camera R (for rear view)
b. Use a measuring tool to mark out the distance behind the vehicle.
c. Adjust the viewing angle of the camera so that the distance gauge shown

from the TFT match to the distance marks behind the vehicle.

Switch to Rear view with source button, the screen always display on 16:9
While rear viewing, the screen always display on 4:3 to correct size percentage

SOURCE button: Rear viewing:

6. Vehicle Installation

0M 1M 2M 3M
Red Yellow Green

Camera

Green

Red

Yellow

1M

9

4 3

16

20

Screen size

7 Inch Touch Panel ( diagonal )
Active area 154.08(H) x 86.58(V)
Pixel configuration 0.107 x 0.370
Resolution 1440(W) x 234 (H)
Viewing angle UP:40° / Down:60° / Left: 60° / Right:60°
Power source: DC9.6V ~DC32V
Contrast ratio 300:1 ※
Brightness 400 cd/m

2

※

Composite Video In

Connector RCA
Input Signal 1Vpp
Impedance 75 Ohms

Camera MINI DIN In

Connector 6 PIN MINI DIN (Standard)
Input video signal level 1Vpp
Impedance 75 Ohms
Input audio signal level 1Vpp
Power output for camera DC12V 350mA

AV AUDIO IN

Connector RCA
Input video signal level 1Vpp
Impedance 75 Ohms
Composite Video Live Out
Connector RCA
Input signal level 1Vpp
Impedance 75 Ohms

CAM OUT

Connector RCA
Input signal level 1Vpp
Impedance 75 Ohms

Audio LIVE OUT

Connector RCA
Input signal level 1Vpp
Impedance 75 Ohms

Dimension

W x H x D : 192 x140.5 x 51.8mm
Weight N.W./G.W.: 2kg/ 2.28kg

Environmental:

Operation temperature -10℃~70℃
Storage temperature -30℃~80℃
Humidity 20%-80%

The brightness※ and contrast ratio specifications are from panel specification.

Design and Specifications are subject to change without notice.

V1.42

7. Specification

21

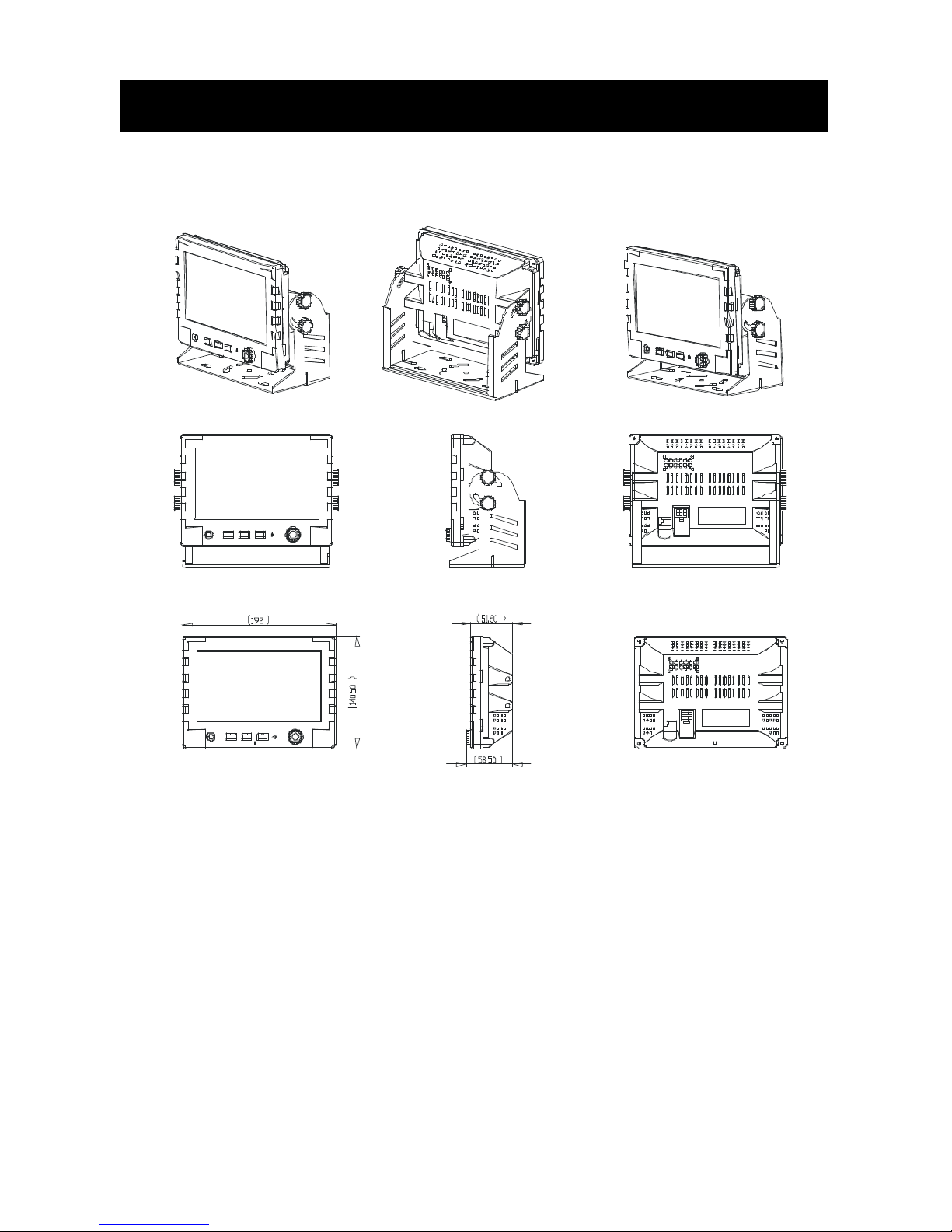

Attachment 1: Dimension Chart

8. ATTACHMENT

22

Notice:

Please proceed with suggested installation instruction according to above

picture to avoid any malfunction of the product.

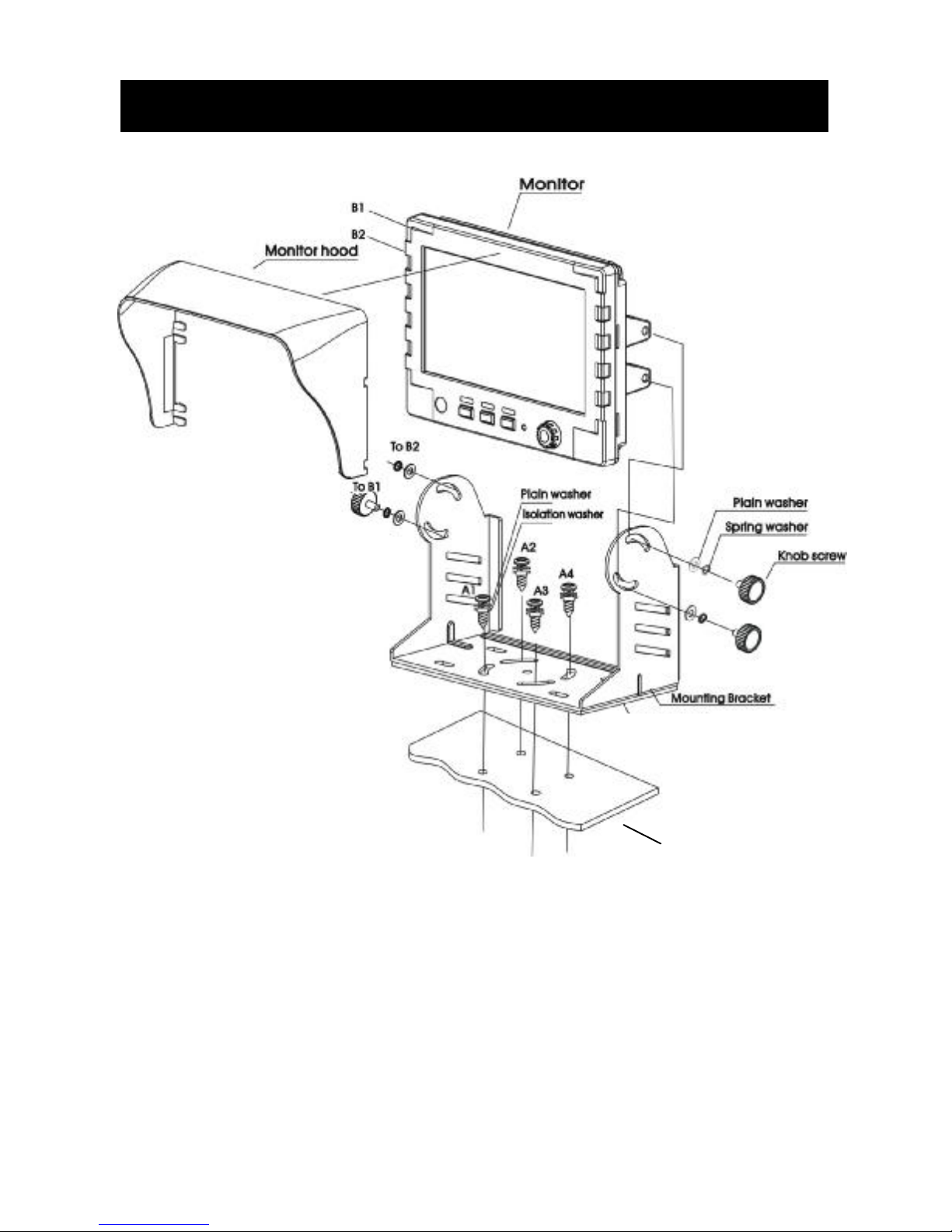

ATTACHMENT 2: Installation Chart

Insulation spacer

(Rubber Pad)
