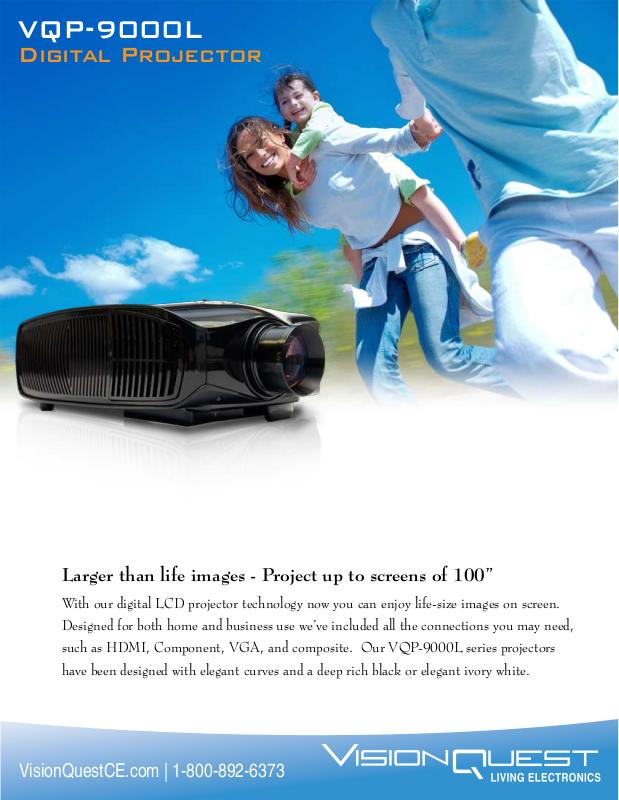

VisionQuest 9000L Product Sheet

VQP-9000L

Digital Projector

Larger than life images - Project up to screens of 100”

With our digital LCD projector technology now you can enjoy life-size images on screen.
Designed for both home and business use we’ve included all the connections you may need,
such as HDMI, Component, VGA, and composite. Our VQP-9000L series projectors
have been designed with elegant curves and a deep rich black or elegant ivory white.

VisionQuestCE.com | 1-800-892-6373

Digital Projector Series

Description

VQP-9000L

Audio / Video

Inputs & Outputs

Power

• Display Technology

• Optimal Resolution

• Supported HD Resolutions

• Lamp Power

• Picture Aspect Ratio

• Screen size

• Brightness

• Contrast

• Projection Methods

• Keystone Correction

• Speakers

• PIP

• Component Inputs

• S-Video

• Composite Video Input

• Audio Input

• VGA 15 Pin RGB Input

• HDMI

• Power Requirements

• Max Power Consumption

LCD
800 x 600
720p / 1080p
150W
4:3 Native / 16:9 Capable
60-100”
1500
600:1

Front / Ceiling
± 15 Degrees
1 Speaker built-in
PC and HDMI Only

1
1
1
1 RCA
1
1 4:3 Only

120V AC, 60Hz
250W

Weight & Dimensions

• Dimensions of Unit (W x D x H)
*Not including lens

• Net Weight

• Regulations

• UPC Code

Optional Accessories from VisionQuest

Projector Lamp Ceiling Mount Electric Screen

290mm x 210mm x 110mm

5Kgs
CCC, CE
N/A

VisionQuestCE.com | 1-800-892-6373
