Access Control Outdoor IP66 Card Reader
Only Compatible with Wiegand 26 Bit
VIS-3100 / VIS-3101
User Manual
1. Introduction
The VIS-3100 / VIS-3101 is a slim Wiegand Output Proximity Reader, compatible with 125KHz EM format card.
The reader is fully potted, and can function at extreme temperatures (-40°~60°C), which allows it is capable to
be mounted either indoor or outdoor.
2. Specifications
Model
VIS-3100 / VIS-3101
Operation Voltage
9~24V DC
Standby Current
≤25mA
Frequency
125KHz
Card Type
EM card
Read Range
Up to 2.75 inches (7cm)
Output Format
26bits Wiegand (default)
(26~37bits available upon request)
Operating Temperature
-40°C~60°C(-40°F~140°F)
Operating Humidity
10% to 95% RH
Color
VIS-3100 (Black) / VIS-3101 (White)
Index of Protection
IP66
Dimension
(H x W x T)
102L x 48An x 20Al (mm)
4.01L x 1.88An x 0.78Al (in.)
Net Weight
100g
Shipment Weight
150g
3. Installation
• Drill 2 holes (A, C) on the wall for the screws and one hole for the cable
• Knock the rubber bungs to the holes (A, C)
• Fix the back cover on the wall with 2 screws
• Thread the cable though the cable hole (B)
• Attach the unit to the back cover

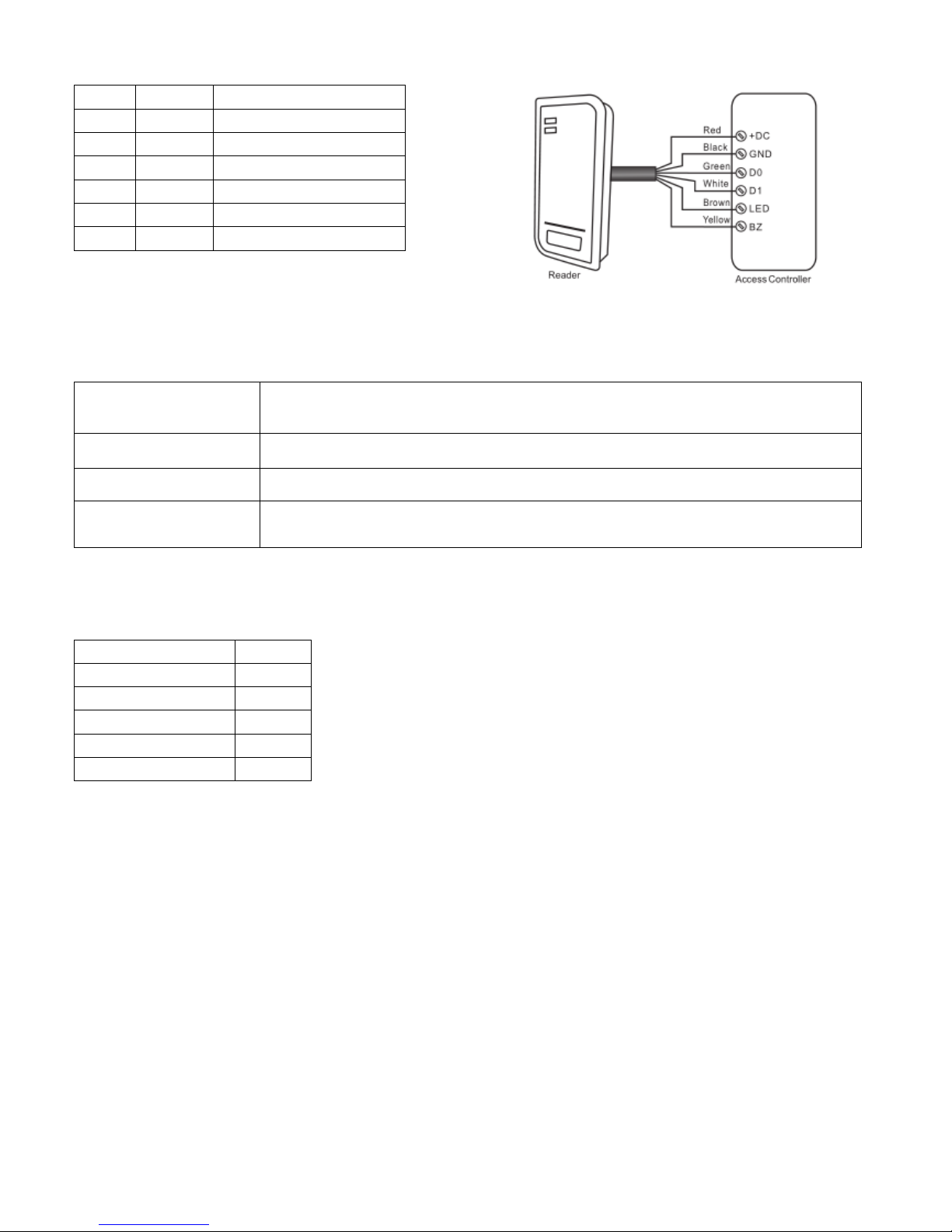

Wiring Connection Diagram
(Remarks: Brown and Yellow wires are optional connections)
4. Function Table sheet
Read Card
The LED light will be turn into Green, and the buzzer sounds a beep, at the
meantime, the reader outputs the Wiegand signal
External LED Control
When the input voltage for LED is low, the LED will turn into Green
External Buzzer Control
When the input voltage for Buzzer is low, the Buzzer will sound
Wiegand Data Output
Wiegand 26~37 bits range available for VIS-3100 / VIS-3101, factory default
setting is Wiegand 26 bits.
Packing List
Name
Quantity
Reader
1
Manual
1
Screw Driver
1
Wall Fixing Plugs
2
Self Tapping Screws
2
Color
Function
Notes
Red
Power
+DC (9-24V DC)
Black
GND
Ground
Green
D0
Data 0
White
D1
Data 1
Brown
LED
Green LED Light Control
Yellow
Buzzer
Buzzer Control
