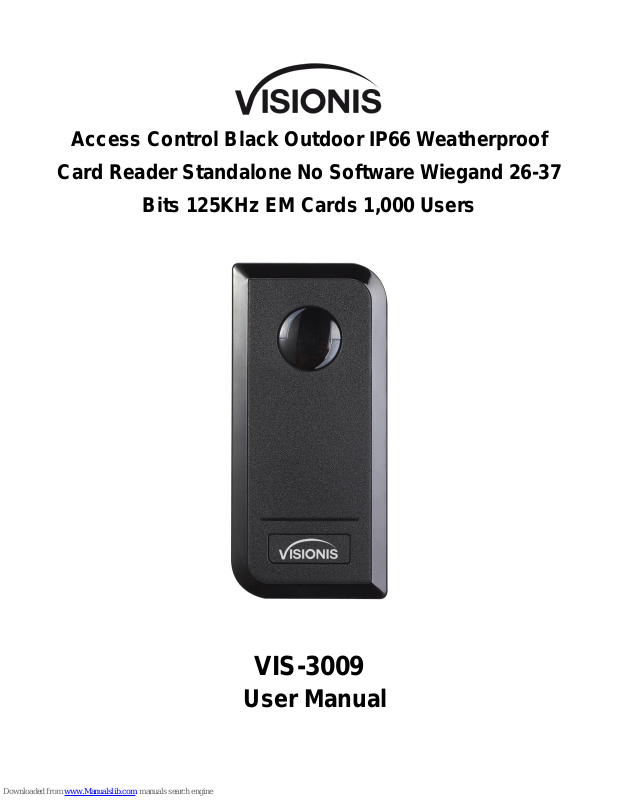

Access Control Black Outdoor IP66 Weatherproof
Card Reader Standalone No Software Wiegand 26-37
Bits 125KHz EM Cards 1,000 Users
VIS-3009
User Manual
INTRODUCTION
The VIS-3009 is single door multifunction standalone access controller or a Wiegand output card reader. It uses
Atmel microcontroller assures maximum performance in any environment, and the low-power circuit makes its
service life prolonged.
The VIS-3009 supports 1,000 users (998 common users + 2 panic users), all user data can be downloaded and
uploaded. It has extra features including block enrollment, interlocked, Wiegand 26~37 bits interface…etc.
Features
Waterproof, conform to IP66
One relay, Remote infrared programmer
1,000 users (998 common users + 2 panic users)
User data can be downloaded and uploaded
With Wiegand 26~37 input & output
Pulse mode, Latch mode
Card block enrolment
Tri-colour LED status display
Built in light dependent resistor (LDR) for anti tamper
Integrated Alarm Buzzer & Output
Low temperature resistance (-40°C)
Specifications:
User Capacity
Common User
Panic User
1000
998
2
Operating Voltage
Idle Current
12~24V AC/DC
＜35mA
Proximity Card Reader
Radio Technology
Read Range
EM
125KHz Proximity Card
2~6 cm (0.78~2.36 in.)
Wiring Connections
Relay Output, Exit Button
Relay
Adjustable Relay Output Time
Lock Output Load
One (NO, NC, Common)
1-99 Seconds (5 seconds default)
2 Amp Maximum
Environment
Operating Temperature
Operating Humidity
Meets IP66
-40°C ~60°C (-40°F ~ 140°F)
0%RH-98%RH
Physical
Colour
Dimensions
Unit Weight
Shipping Weight
ABS Shell
Black
102L x 48W x 20H (mm) – 4.01L x 1.88W x 0.78 (in.)
125g
150g
Carton Inventory
INSTALLATION
Remove the back cover from the unit
Drill 2 holes (A,C) on the wall for the screws and one hole for the cable
Knock the supplied rubber bungs to the screw holes (A,C)
Fix the back cover firmly on the wall with 4 flat head screws
Thread the cable through the cable hole (B)
Attach the unit to the back cover.
Wiring
Wire Color
Function
Notes
Basic Stand Alone Wiring
Red
12-24V AC/ DC
12-24V AC/DC Regulated Power Input
Black
GND
Negative Pole of DC Power Input
Pink
12-24V AC
12-24V AC Regulated Power Input
Blue
Relay NO
Normally Open Relay Output (install diode provided)
Purple
Relay Common
Common Connection for Relay Output
Orange
Relay NC
Normally Closed Relay Output (Install diode provided)
Yellow
OPEN
Request to Exit (REX) Input
Pass-Through Wiring (Wiegand Reader)
Green
Data 0
Wiegand Output (Pass-through) Data 0
White
Data 1
Wiegand Output (Pass-through) Data 1
Advanced Input and Output Features
Grey
Alarm Output
Negative contact for Alarm
Brown
Contact Input
Door/Gate Contact Input (Normally Closed)
Connection Diagram
DC Power Supply:
AC Power Supply:
Attention: Install a 1N4004 or equivalent diode is needed when use a common power supply, or the reader might
be damaged. (1N4004 is included in the packing)
Access Control Power Supply:
BASIC PROGRAMMING
Programming will vary depending on access confirguration. Follow the instructions according to your access
configuration.
General Programming Information
Remote Control: Please use the Infrared Remote Control to program the Reader. The infrared receiver
head is near LED, so when program the reader, please direct the Remote Control to the LED.
User ID number:Assign a user ID to the access card in order to track it. The common user ID number can be
any number fom 0~997, the panic user ID is from 998~999. IMPORTANT: User IDs do not have to be
proceeded with any leading zeros. Recording of User ID is crical. Modifications to the user require the User
ID be available.
Proximity Card: Any 125KHz industry standard 26 bit EM Proximity card.
Enter and Exit Program mode
Set Master Code
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Update Master Code
0（New Master Code）#（Repeat New Master
Code）#
3. Exit Program Mode
*
Add Common Users
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
Add Card User
2. Add Card: Using Auto ID
(Allows VIS-3009 to assign Card to next
available User ID number)
OR
2. Add Card: Select Specific ID
(Allows manager to define a specific User
ID to associate the card to)
OR
2. Add Card: by Card Number
OR
2. Add Card: Block Learn
1 (Read Card) #
Repeat Step 2 for additional user cards
1 (User ID) # (Read Card) #
The user ID is any number from 0-997.
1 (Input 8/10 digits Card number) #
1 ( User ID number) # (Card quantity)
Programming Step
Keystroke Combination
Enter Program Mode
* (Master Code) #
Factory default is 123456
Exit Program Mode
*
(Allows manager to add up to 998 cards to
the Reader in a single step.) Takes 2
minutes to program.
#(The first card number) #
Cards’ number must be consecutive;
Card quantity = number of card to be enrolled.
3. Exit
*
Add Panic Users
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Add Card:
1 (User ID) # (Read Card / Input 8/10 digits
Card number) #
3. Exit
*
Delete User Card
Programming Step
Keystroke Combination
1. Enter Program Mode
﹡(Master Code) #
2. Delete User – By User ID
OR
2. Delete User – By Card
OR
2. Delete User – By Card number
OR
2. Delete All User
2 (User ID ) #
2(Read Card)#
2(Input 8/10 digits Card number)#
2(Mater Code) #
3. Exit
﹡
Set Relay Configuration
The relay configuration sets the behaviour of the output relay on activation.
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Pulse Mode
OR
2. Latch Mode
3 (1-99) #
The relay time is 1-99 seconds. (1 is 50mS.)
Default is 5 seconds.
3 0 #
Sets the relay to ON/OFF Latch mode
3. Exit
*
Set Access Mode
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Card access
OR
2. Multi-Cards access
4 0 #
4 3 (2~9) #
3. Exit
*
Set Strike-out Alarm
The strike-our alarm will engage after 10 failed card attempts. Factory is OFF. The strike-our alarm ca be set to
deny access for 10 minutes after engaging or it can be set disengage only after entering a valid card or Master
code.
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Strike-Out OFF
OR
2. Strike-Out ON
OR
2. Strike-Out ON (Alarm)
Set alarm time
6 0 # (factory default)
6 1 # Access will be denied for 10 minutes
6 2 #
5 (0 ~ 30) #, factory default is 1 minute
Enter Master code # or valid user card to
silence
3. Exit
*
Set Audible and Visual Response
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Control Sounds
OR
2. Control LED
OFF = 7 0 #
OFF = 7 4 #
ON = 7 1 #
ON = 7 5 #
(Factory defaults are ON)
3. Exit
*
Users Operation:
Open the door: Read the valid user card on the Infrared Remote Control, the door will open.
Remove Alarm: Read valid user card on the Infrared Remote Control, or Input Master Code #
Reset to Factory Default:
To reset to factory default, power off, press the Exit Button, hold it and power on, there will be two beeps, and the
LED light turns into yellow, release the exit button, then read any two 125KHz EM card, the LED will turn into red,
means reset to factory default successfully. Of the two cards reading, the 1st one is Master Add Card, the 2nd one
is the Master Delete Card.
Remarks: Reset to factory default, the user’s information is still retained.
ADVANCE PROGRAMMING
Set Device Operation Mode:
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Controller mode
OR
2. Wiegand Reader mode
7 2 # (Factory default)
7 3 #
3. Exit
*
Set Wiegand Output Options:
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Wiegand output bits
8 (26~37) # (Factory default is 26bits)
3. Exit
*
Set Interlocked:
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Interlocked-OFF
OR
2. Interlocked-ON
9 0 # (Factory default)
9 1 #
3. Exit
*
Connection diagram see picture “Interlock” at page 13
Set Card Reading Type:
Programming Step
Keystroke Combination
1. Enter Program Mode
* (Master Code) #
2. Read EM card
OR
2. Read EM card ONLY
9 3 # (Factory default)
9 4 #
3. Exit
*
Sound and Light Indication
Operation Status
LED
Buzzer
Stand by
Red light bright
-
Enter into programming mode
Red light shines
One beep
In the programming mode
Yellow light bright
One beep
Operation error
-
Three beeps
Exit from the programming mode
Red light bright
One beep
Open lock
Green light bright
One beep
Alarm
Red light Shines quickly
Beeps
Wiegand Mode
- Pass through mode (VIS-3009 operating as a Wiegand Output Reader)
In this mode the VIS-3009 supports a Wiegand 26~37bit output so the Wiegand data lines can be connected to
any controller which supports a Wiegand 26~37 bit input, and then the VIS-3009 will be operated as a slave
reader.
Transmission Format:
● Card Transmission
The Reader will transmit the card number (the 10 digits number on the card) when it reads the Card
- Controller Mode (VIS-3009 operating as a Controller)
VIS-3009 supports a Wiegand 26~37 bit input so an external Wiegand device with a 26~37 bit output can be
connected to the Wiegand input terminals on the VIS-3009. Either an ID card reader (125 KHz) or an IC card
reader (13.56MHz) can be connected to the VIS-3009. Cards are required to be added at the external reader,
except where an external EM reader is used, in this case cards can be added at either reader or controller.
APPLICATION
How to upload & download user data?
Precondition:
● The related devices must support upload & download function
● The connected device must be set to factory default setting and without any user information.
● Make connection for D0 &D0, D1 & D1 of device A, B, and powered at the same time
● Can upload/download 1000 users in 3 minutes
Method:
For example:
Device A: Master code is 222222, with User data
Device B: Master code MUST be 123456, without User
1) Make connection: D0 (A) connect D0 (B), D1 (A) connect D1 (B)
2) Powered at the same time
3) Program on A: * 222222 # 9 6 #
Green light shines, after 3 minutes, B will download all user data from A.
How to Interlocked 2 devices?
● Add user on device A, then download all user to device B
● Set interlocked on A, B (Turn on Interlock function: 9 1 #)
● Then connect, as below
VIS-3009 - Simplified Instruction
Function description Choose from the relevant functions below and input
Enter the programming mode
*- 123456 - #
then you can do the programming
(123456 is the default factory master code)
change the master code
0 – new code - # - repeat the new code - #
(code: 6 digits)
Add card user
1- Read Card - #
(can add Cards continuously)
Delete user
2 – Read Card -#
2 – User ID -#
Exit from the programming mode
*
How do release the door
Card User
Read card
