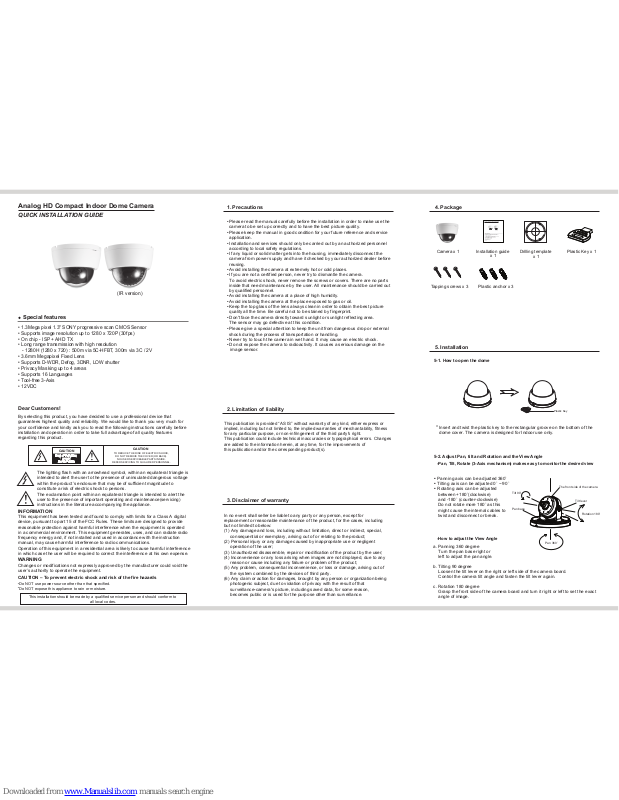

Vision Hi-Tech VD80AHD Quick Installation Manual

Dear Customers!
The lighting flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
INFORMATION
CAUTION – To prevent electric shock and risk of the fire hazards
This installation should be made by a qualified service person and should conform to
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
Do NOT use power source other than that specified. Do NOT expose this appliance to rain or moisture.
By selecting this product, you have decided to use a professional device that guarantees highest quality and reliability. We would like to thank you very much for your confidence and kindly ask you to read the following instructions carefully before installation and operation in order to take full advantage of all quality features regarding this product.
• Please read the manual carefully before the installation in order to make use the
camera to be set up correctly and to have the best picture quality.
• Please keep the manual in good condition for your future reference and service
application.
• Installation and services should only be carried out by an authorized personnel
according to local safety regulations.
• If any liquid or solid matter gets into the housing, immediately disconnect the camera from power supply and have it checked by your authorized dealer before
reusing.
• Avoid installing the camera at extremely hot or cold places.
• Avoid installing the camera at a place of high humidity.
• Avoid installing the camera at the place exposed to gas or oil.
• If you are not a certified person, never try to dismantle the camera.
To avoid electric shock, never remove the screws or covers. There are no parts inside that need maintenance by the user. All maintenance should be carried out by qualified personnel.
• Keep the top glass of the lens always clean in order to obtain the best picture
quality all the time. Be careful not to be stained by fingerprint.
• Don't face the camera directly toward sunlight or sunlight reflecting area.
The sensor may go defective at this condition.
• Please give a special attention to keep the unit from dangerous drop or external
shock during the process of transportation or handling.
• Never try to touch the camera in wet hand. It may cause an electric shock.
• Do not expose the camera to radioactivity. It causes a serious damage on the
image sensor.
This publication is provided “AS IS” without warranty of any kind, either express or
implied, including but not limited to, the implied warranties of merchantability, fitness
for any particular purpose, or non-infringement of the third party's right.
This publication could include technical inaccuracies or typographical errors. Changes are added to the information herein, at any time, for the improvements of this publication and/or the corresponding product(s).
In no event shall seller be liable to any party or any person, except for
replacement or reasonable maintenance of the product, for the cases, including but not limited to below: (1) Any damage and loss, including without limitation, direct or indirect, special, consequential or exemplary, arising out of or relating to the product;
(2) Personal injury or any damage caused by inappropriate use or negligent
operation of the user;
(3) Unauthorized disassemble, repair or modification of the product by the user; (4) Inconvenience or any loss arising when images are not displayed, due to any
reason or cause including any failure or problem of the product; (5) Any problem, consequential inconvenience, or loss or damage, arising out of the system combined by the devices of third party.
(6) Any claim or action for damages, brought by any person or organization being photogenic subject, due to violation of privacy with the result of that surveillance-camera's picture, including saved data, for some reason,
becomes public or is used for the purpose other than surveillance.
1. Precautions
2. Limitation of liability
3. Disclaimer of warranty
CAUTION
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
4. Package
5-2. Adjust Pan, tilt and Rotation and the View Angle
a. Panning 360 degree
Turn the pan base right or
left to adjust the pan angle.
b. Tilting 90 degree Loosen the tilt lever on the right or left side of the camera board.
Control the camera tilt angle and fasten the tilt lever again.
c. Rotation 180 degree Grasp the front side of the camera board and turn it right or left to set the exact
angle of image.
Panning axis can be adjusted 360˚
Tilting axis can be adjusted 0˚ ~ 90˚
Rotating axis can be adjusted between +180˚(clockwise) and -180˚ (counter-clockwise) Do not rotate more 180˚ as this
might cause the internal cables to twist and disconnect or break.
-How to adjust the View Angle
-Pan, Tilt, Rotate (3-Axis mechanism) makes easy to monitor the desired view
5. Installation
Plastic Key
Insert and twist the plastic key to the rectangular groove on the bottom of the
dome cover. The camera is designed for Indoor use only.
*
5-1. How to open the dome
QUICK INSTALLATION GUIDE
Analog HD Compact Indoor Dome Camera
Special features
• 1.3Mega pixel 1.3" SONY progressive scan CMOS Sensor
• Supports image resolution up to 1280 x 720P (30fps)
• On chip - ISP + AHD TX
• Long range transmission with high resolution
- 1280H (1280 x 720) : 500m via 5C-HFBT, 300m via 3C / 2V
• 3.6mm Megapixel Fixed Lens
• Supports D-WDR, Defog, 3DNR, LOW shutter
• Privacy Masking up to 4 areas
• Supports 16 Languages
Tool-free 3-Axis
• 12VDC
Pan 360˚
Pan base
Rotation 180˚
Tilt lever
The front side of the camera
Tilt 90˚
(IR version)
Drilling template
x 1
Installation guide
x 1
Camera x 1
Tapping screws x 3
Plastic anchor
x 3
Plastic
Key x 1
Template
QUICK INSTALLATIONGUIDE
Analog HD Compact Indoor Dome Camera
Special features
• 1.3Mega pixel 1.3" SONY progressive scan CMOS Sensor
• Supports image resolution up to 1280 x 720P (30fps)
• On chip - ISP + AHD TX
• Long range transmission with high resolution
- 1280H (1280 x 720) : 500m via 5C-HFBT, 300m via 3C / 2V
• 3.6mm Megapixel Fixed Lens
• Supports D-WDR, Defog, 3DNR, LOW shutter
• Privacy Masking up to 4 areas
• Supports 16 Languages
Tool-free 3-Axis
• 12VDC
(IR version)
150428-1AHD
5. Installation
5-4. Application of AHD output
6. Function and operation
6-2. Configure the camera setting
8. Dimension (mm)
9. Specification
90
Ø113.8
Ø81.4
48.2
120°
120°
120°
Ø5
Ø91.4
① Paste a Drilling Template on the ceiling (or wall). ②
Drill screw points which will be done for installation.
Fix the plastic anchors in the holes (in case of masonry ceiling or wall).
Mount the camera set by using Tapping Screws with Ø4 provided.
Set the position and angle of the cameras to a desired direction and assemble
the dome cover.
5-3. How to mount to Ceiling
7. Troubleshooting
If there are problems in operating, please refer to the checklist below. If the problem persists, please contact the agent where this product is purchased.
Problems
Nothing appears on the screen.
The dim image on the screen.
The dark image on the screen.
The camera is not working properly, and the body of the camera is hot.
Color is not correct.
Please check that the power cord and line connection between the camera and monitor are fixed properly. Please check that you have properly connected VIDEO cable to the camera VIDEO output jack.
Is lens stained with dirt? Clean your lens with soft, clean cloth. Set the monitor to proper condition. If the camera is exposed to too strong light, change the camera position. Please check if the power supply is within the specification & cables. (Due to the voltage drop with distance and gauges, LED will light poor)
Adjust the contrast feature of the monitor.
If there is an intermediate device, set the 75Ω / Hi-Z
properly (Please check the impedance)
Please check if the power supply is regulated and is within the standard requirement of the products
Please check the setting of White Balance setup.
Please check if the camera is facing directly towards sunlight or fluorescent light.
Troubleshooting
*
*
* *
*
*
*
*
*
*
*
• Specifications are subject to be changed without notice for improvement.
The screen is flickering.
DC JACK BNC Yellow Color (AHD or CVBS)
Drilling template Plastic anchor (3EA)
Camera set
Tapping Screw (3EA)
Dome Cover Ass'y
LCD-Monitor
Coaxial Cable : 500M Coaxial Cable : 500M
AHD-DVR
6. Function and operation
6-1. On Screen Display
SETUP
LENS
MANUAL
EXPOSURE
SHUTTER
D-WDR
AGC
DEFOG
SENS-UP BRIGHTNESS RETURN
BACKLIGHT
BLC HSBLC OFF
WHITE BAL
ATW AWC  SET
AWB OUTDOOR INDOOR MANUAL
DAY&NIGHT
AUTO EXT B/W COLOR
NR
2DNR 3DNR RETURN
SPECIAL
CAM TITLE
LANGUAGE
D-EFFECT
DEFECT
MOTION PRIVACY RETURN
ADJUST
SHARPNESS
DISTANCE
MONITOR
MONITOR OUT
LSC VIDEO.OUT RETURN
EXIT
SAVE&END
NOT SAVE RESET
DOWN
UP
MENU (Press)
RIGHTLEFT
Function and operation
-For use OSD menu, please Press the Tack Switch Board (OSD Key) to open OSD menu.
-In case of no Switch Board built-in the setting is available by coaxial communication. (The DVR should support coaxial communication, too.)
-How to use tactile switch on the OSD control. Push – to enter the menu or to save settings. Push up or down – to select functions. Push left or right – to adjust levels.
-How to use Connect an Extra video output (BNC cable) to the camera and connect its BNC connector to the test monitor for adjustment. (Only available on the CVBS mode of video output setting)
EXT-Video
Note For detailed information regarding OSD menu options, refer to the guide of the OSD Manual.
MODEL
Analog HD Compact Indoor Dome Camera
Non-IR Version
IR Version
Image sensor 1.3 Mega pixel 1.3" SONY progressive scan CMOS Sensor H. Resolution 1000TV Lines Total Pixel 1312(H) x 1069(V) 1.40 Megapixel Effective Pixels
1305(H) x 1049(V) 1.37 Megapixel Scanning system Progressive scan Video output 1280 x 720P 30fps Output AHD S/N ratio More t han 52dB (AGC OFF / Weight ON) OSD
PRIVACY MASK ON / OFF (4 zone) MOTION Detection ON / OFF (4 zone) H-REV (Flip) ON / OFF V-REV (Mirro) ON / OFF FREEZE ON / OFF Min. Illumination 0.5Lux
0Lux (IR On), 0.5Lux (IR off)
White Balance
AWB / ATW / AWC  SET / INDOOR / OUTDOOR / MANUAL (2,000˚K ~ 20,000˚K)
Shutter Speed AUTO / MANUAL (1/100 ~ 1/50,000 NTSC, 1/120 ~ 1/50,000 PAL) Sens-up AUTO / OFF (Selectable Limit x2 ~ x30) BLC ON / OFF / HSBLC Gain Control 0 ~ 15 3DNR OFF / LOW / MIDDLE / HIGH DAY / NIGHT AUTO / DAY / NIGHT / EXT SHARPNESS Level Adjustable LENS Shading ON / OFF DEFOG ON / OFF LENS
Lens 3.6mm Megapixel Fixed lens Day & Night AUTO / CO LOR / BLACK & WHITE / EXT IR Distance -
20m ELECTRICAL
Power Source 12VDC
Operating Temperature
-10°C ~ 50°C
Operating Humidity (Humidity : 0%RH ~ 90%RH) Measurement(mm) 113.8(Ф) x 90(H) Weight(Approx. g) 160g
180g
Language
ENG / ARB / HEB / JPN / KOR / TUR / NED / POR / RUS / POL / SPA / ITA / FRA / GER / CHN2 / CHN1
