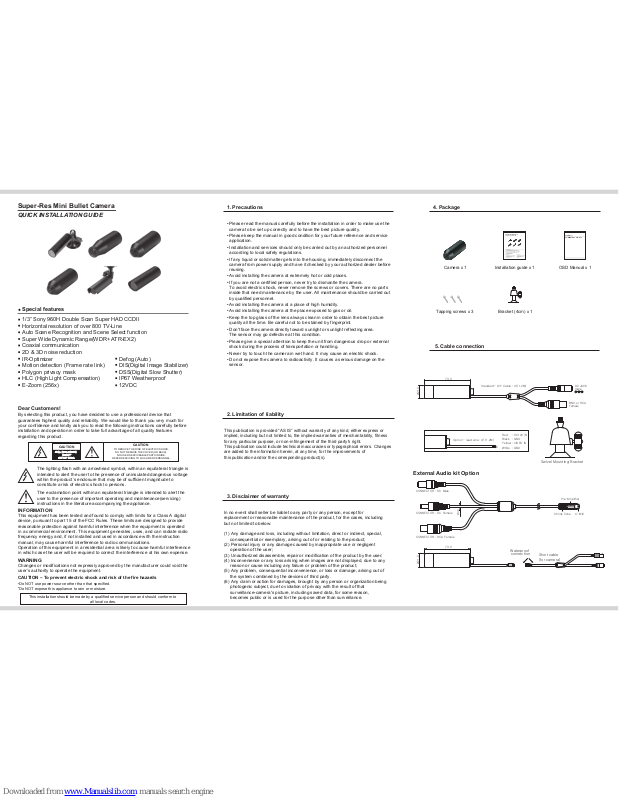

Vision Hi-Tech VB21S3 Quick Installation Manual
QUICK INSTALLATION GUIDE
Super-Res Mini Bullet Camera
Dear Customers!
The lighting flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
INFORMATION
CAUTION – To prevent electric shock and risk of the fire hazards
This installation should be made by a qualified service person and should conform to
all local codes.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance(servicing)
instructions in the literature accompanying the appliance.
This equipment has been tested and found to comply with limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Do NOT use power source other than that specified.
Do NOT expose this appliance to rain or moisture.
By selecting this product, you have decided to use a professional device that
guarantees highest quality and reliability. We would like to thank you very much for
your confidence and kindly ask you to read the following instructions carefully before
installation and operation in order to take full advantage of all quality features
regarding this product.
• Please read the manual carefully before the installation in order to make use the
camera to be set up correctly and to have the best picture quality.
• Please keep the manual in good condition for your future reference and service
application.
• Installation and services should only be carried out by an authorized personnel
according to local safety regulations.
• If any liquid or solid matter gets into the housing, immediately disconnect the
camera from power supply and have it checked by your authorized dealer before
reusing.
• Avoid installing the camera at extremely hot or cold places.
• Avoid installing the camera at a place of high humidity.
• Avoid installing the camera at the place exposed to gas or oil.
• If you are not a certified person, never try to dismantle the camera.
To avoid electric shock, never remove the screws or covers. There are no parts
inside that need maintenance by the user. All maintenance should be carried out
by qualified personnel.
• Keep the top glass of the lens always clean in order to obtain the best picture
quality all the time. Be careful not to be stained by fingerprint.
• Don't face the camera directly toward sunlight or sunlight reflecting area.
The sensor may go defective at this condition.
• Please give a special attention to keep the unit from dangerous drop or external
shock during the process of transportation or handling.
• Never try to touch the camera in wet hand. It may cause an electric shock.
• Do not expose the camera to radioactivity. It causes a serious damage on the
sensor.
This publication is provided “AS IS” without warranty of any kind, either express or
implied, including but not limited to, the implied warranties of merchantability, fitness
for any particular purpose, or non-infringement of the third party's right.
This publication could include technical inaccuracies or typographical errors. Changes
are added to the information herein, at any time, for the improvements of
this publication and/or the corresponding product(s).
1. Precautions
2. Limitation of liability
4. Package
In no event shall seller be liable to any party or any person, except for
replacement or reasonable maintenance of the product, for the cases, including
but not limited to below:
(1) Any damage and loss, including without limitation, direct or indirect, special,
consequential or exemplary, arising out of or relating to the product;
(2) Personal injury or any damage caused by inappropriate use or negligent
operation of the user;
(3) Unauthorized disassemble, repair or modification of the product by the user;
(4) Inconvenience or any loss arising when images are not displayed, due to any
reason or cause including any failure or problem of the product;
(5) Any problem, consequential inconvenience, or loss or damage, arising out of
the system combined by the devices of third party.
(6) Any claim or action for damages, brought by any person or organization being
photogenic subject, due to violation of privacy with the result of that
surveillance-camera's picture, including saved data, for some reason,
becomes public or is used for the purpose other than surveillance.
3. Disclaimer of warranty
5. Cable connection
Installation guide x 1 OSD Manual x 1Camera x 1
Tapping screws x 3 Bracket (4cm) x 1
CAUTION
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
◆ Special features
QUICK INSTALLATION GUIDE
Super-Res Mini Bullet Camera
◆ Special features
1/3” Sony 960H Double Scan Super HAD CCDII
Horizontal resolution of over 800 TV-Line
Auto Scene Recognition and Scene Select function
Super Wide Dynamic Range(WDR+ ATR-EX2)
Coaxial communication
2D & 3D noise reduction
IR-Optimizer
Motion detection (Frame rate link)
Polygon privacy mask
HLC (High Light Compensation)
E-Zoom (256x)
Defog (Auto)
DIS(Digital Image Stabilizer)
DSS(Digital Slow Shutter)
IP67 Weatherproof
12VDC
1/3” Sony 960H Double Scan Super HAD CCDII
Horizontal resolution of over 800 TV-Line
Auto Scene Recognition and Scene Select function
Super Wide Dynamic Range(WDR+ ATR-EX2)
Coaxial communication
2D & 3D noise reduction
IR-Optimizer
Motion detection (Frame rate link)
Polygon privacy mask
HLC (High Light Compensation)
E-Zoom (256x)
Defog (Auto)
DIS(Digital Image Stabilizer)
DSS(Digital Slow Shutter)
IP67 Weatherproof
12VDC
OSD Manual
Please read this manual carefully before installation and operation of the product.
For WIDELUX 3 Cameras
Ø21.0
Femaie
BNC or RCA
DC JACK
male
73.0
Ø21.0
73.0
Ø3.0
CONNECTOR : DC Male
CONNECTOR : DC Female
CONNECTOR : RCA Female
C-MICShrink Tube
Pre-Amplifier
Standard - DIY Cable : 4f (1.2M)
Option - lead wire : 4f (1.2M)
Red
: DC12V IN
Black : GND
Yellow : VIDEO IN
White : GND
External Audio kit Option
Swivel Mounting Bracket
Waterproof
connection
Short cable
(for camera)
141215-1 S3
7. Installation 8. Troubleshooting
9. Dimension (mm)
If there are problems in operating, please refer to the checklist below.
If the problem persists, please contact the agent where this product is purchased.
Nothing appears on
the screen.
The image on the
screen
is dim.
The image on the
screen is dark.
The camera is not
working properly, and
the surface of the
camera is hot.
Color is not correct.
The screen flickers
continually.
·
Please check that the power cord and line connection
between the camera and the monitor are fixed properly.
·
Please check that you have properly connected VIDEO
cable to the VIDEO output jack of the camera.
·
Is lens stained with dirt? Clean your lens with soft,
clean cloth.
·
Set the monitor to proper condition.
·
Adjust the contrast feature of the monitor.
·
If you have an interim device, set the 75Ω / Hi-z properly.
·
Please check that you have properly connected the camera
to an appropriate power source.
·
Please check the setting of AWB menu
·
Please check that direction of camera turns toward the Sun.
Problems Troubleshooting
10. Specification
specifications are subject to change without prior notice for improvement.
*
- How to use Coaxial Remote Controller
* Option
Press the PWR button to turn on the remote.
The LED should be turned on. When the
LED blinks, Replace the battery.
Exit
Auto Focus
- OSD Control: Press SET button to turn on the OSD menu.
Use the arrow buttons to navigate through the menu.
OSD Right Arrow
(Foucs Far)
OSD Left Arrow
(Focus Near)
OSD Up Arrow
(Zoom IN)
OSD Down Arrow
(Zoom OUT)
- Motorized focus and zoom
FAR : Focus Far
FAR : Focus Near
TELE : Zoom IN
WIDE : Zoom Out
* System Connection Diagram
Electrical
Image sensor
Effective Pixels NTSC : 976(H) x 494(V), PAL : 976(H) x 582(V)
H. Resolution 800TV Lines
Synchronizing system Internal
Scanning system NTSC : 525 Lines PAL : 625 Lines 2:1 Interlaced
Video output 1.0Vp-p Composite 75 Ohms
Gamma Correction Standard γ =0.45
Smear Effect 0.005%
S/N ratio More than 50dB (AGC OFF)
Scene Select function
FULL AUTO / INDOOR / OUTDOOR / BACKLIGHT / ITS /
CUSTOM (OFF)
PICT ADJUST Brightness / Contrast / Sharpness / Hue / Color gain
EZOOM electronic zoom images to ON or OFF
DIS Digital Image Stabilizer function ON / OFF selection
PRIVACY MASK 15EA Privacy mask setting
MOTION Detection 4 frames Monitoring frame function / 96EA Dead band setting
FLIP Top bottom / Left right / Rotation by 180 degrees
LCD / CRT Monitor type selection LCD / CRT
Camera ID character string of up to 26 characters on 2 lines
Language
English / Spanish / Russian / Portuguese / German / French
/ Japanese
White pix mask white pixel detection (AUTO / MANUAL / DATA CLEAR)
Shutter / AGC
Auto : 1/50[s] 1/60[s] ~ 1/100,000[s]
Manual / Fix : 6～44.8[dB] / 2 ~ 256 FLD
White balance
1,800K ~ 10,500K AUTO
ATW / PUSH / USER1 / USER2 / Manual / PUSH LOCK
HLC / BLC HLC / BLC / OFF control
WDR / ATR-EX WDR / ATR-EX / OFF control
DNR Adjusted to 0-6 steps
DAY / NIGHT AUTO / DAY / NIGHT
IR OPTIMIZER ON (AUTO, CENTER) / OFF
LENS Shading ON / OFF
DEFOG ON / OFF
Flickerless AUTO / ON / OFF
ANTI CR
AUTO / ON / OFF
Lens
2.9mm(120°), 3.6mm(92°), 4.3mm(78°), 6.0mm(54°), 8mm(39°)
Pinhole Lens Option : 2.8mm(120°), 3.7mm(90°), 5.0mm(60°)
Day & Night
Auto
Power Source 12VDC
Operating current
90mA
Operation Temperature -10℃ to +50℃
Humidity 0% to 90% RH
Measurement (mm) 21(Ø) x 105.5(L)
Weight (Approx. g) 180 / 200 / 240g
Communication Coaxial Communication (Pelco-C only)
MODEL
OSD
Lens
Super-Res Mini Bullet Camera
1/3" Sony 960H Double Scan Super HAD CCDII
