Vision grills RX-K18F1M4, RX-W19D1L5, Sanibel Setup

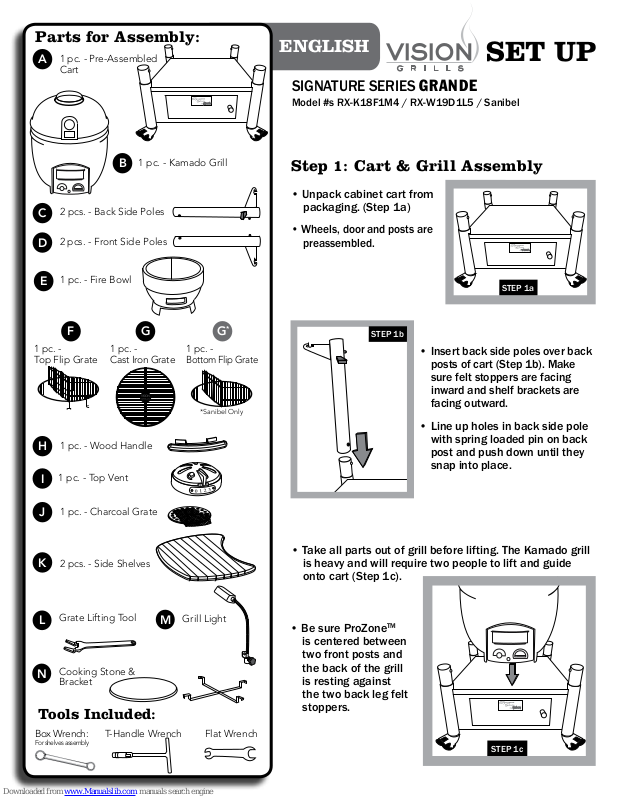

Parts for Assembly:

1 pc. - Pre-Assembled

A

Cart

ENGLISH

SET UP

2 pcs. - Back Side Poles

C

2 pcs. - Front Side Poles

D

1 pc. - Fire Bowl

E

F

1 pc. ­Top Flip Grate

1 pc. - Wood Handle

H

1 pc. - Top Vent

I

1 pc. - Kamado Grill

B

G

1 pc. ­Cast Iron Grate

*

G

1 pc. ­Bottom Flip Grate

*Sanibel Only

SIGNATURE SERIES

Model #s RX-K18F1M4 / RX-W19D1L5 / Sanibel

GRANDE

Step 1: Cart & Grill Assembly

• Unpack cabinet cart from
packaging. (Step 1a)

• Wheels, door and posts are
preassembled.

STEP 1a

STEP 1b

•

Insert back side poles over back
posts of cart (Step 1b). Make
sure felt stoppers are facing
inward and shelf brackets are
facing outward.

• Line up holes in back side pole
with spring loaded pin on back
post and push down until they
snap into place.

1 pc. - Charcoal Grate

J

2 pcs. - Side Shelves

K

Grate Lifting Tool

L

Cooking Stone &

N

Bracket

M

Grill Light

Tools Included:

For shelves assembly

T-Handle Wrench Flat WrenchBox Wrench:

• Take all parts out of grill before lifting. The Kamado grill
is heavy and will require two people to lift and guide
onto cart (Step 1c).

• Be sure ProZone

TM

is centered between
two front posts and
the back of the grill
is resting against
the two back leg felt
stoppers.

STEP 1c

STEP 1d

Step 1 (continued): Grill Assembly

•(Step 1d:) Lower re bowl into grill with the ash drawer

opening lined up with the opening in the main ceramic
body. Place cast iron grate with attached starter pocket

into re bowl. Align tabs of starter pocket with electric
starter port in re bowl.

• Insert front side poles over front posts. Snap post into
place by lining up holes in poles with spring loaded pins
on each post.

Step 2: Handle and Side Shelf Mounting

• To assemble handle, remove nuts and washers from bolts
welded on the top banding opposite the hinge.

• Remove paper washers and attach handle bracket over studs.

On each stud place a at washer and an acorn nut, then tighten

(Step 2).

•

Mount side shelves by inserting the shelf rod into the shelf bracket.

Tilting the shelf up slightly and sliding in or out allows you to deploy
the shelves.

Step 3: Install Grill Light

STEP 3a

• Remove nut and washer from the rst

bolt on right side of bottom banding.

•

Slide exible light bracket over bolt, then

replace washer and bolt and tighten
(Step 3a) and

insert exible light into

bracket and tighten knob (Step 3b).

STEP 2

STEP 3b

STEP 4

Step 4: Lava Stone & Bracket Assembly

• Open grill and take off grill grates to expose

re bowl.

• Spread bracket so it makes an “X” shape and

lower into re bowl, allowing the bracket to
rest on edge of re bowl.

• Lower Lava Stone onto the bracket.
