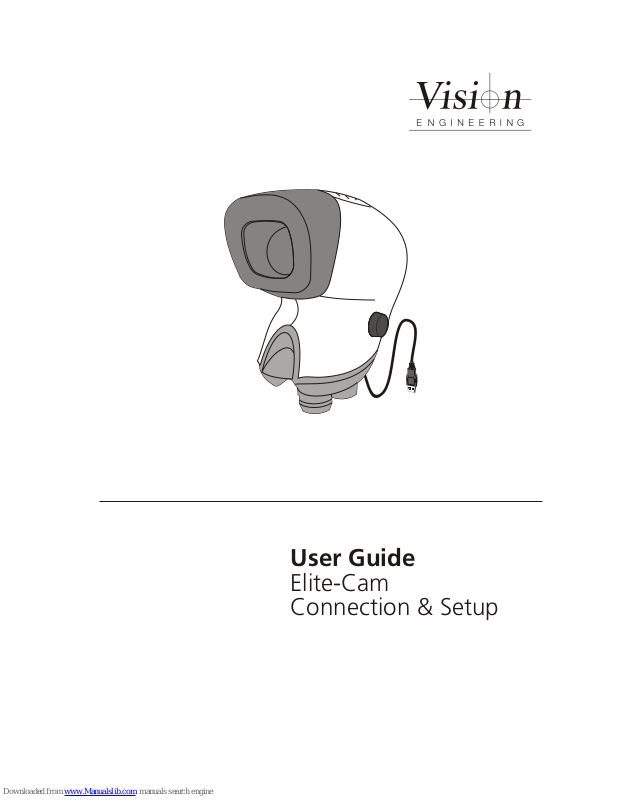

Vision Engineering Elite-Cam User Manual

User Guide

Elite-Cam
Connection & Setup

INTRODUCTIONElite-Cam Integrated USB Digital Camera

The Elite-Cam is a permanently-engaged USB digital camera solution for integration with Vision
Engineering products.

Health & Safety

Vision Engineering and its products conform to the requirements of the EC Directives on Waste
Electrical and Electronic Equipment (WEEE) and Restriction of Hazardous Substances (RoHS).

www.visioneng.com/support Elite-Cam Connection & Setup

INTRODUCTION

i

CONTENTS

Pack contents

Elite-Cam viewing head

Software CD

Interconnect cable.

Elite-Cam AMCap user guide (not shown)

Mantis Elite user guide (not shown)

Mantis Elite-Cam user guide (not shown)

www.visioneng.com/support Elite-Cam Connection & Setup

CONTENTS

1

12345

6

INTRODUCTION

Elite-Cam Integrated USB Digital Camera i

Health & Safety i

CONTENTS

Pack contents 1

Assembly 2

Operation 2

General care and maintenance 2

WARRANTY

Assembly

u Follow the Mantis Elite user guide to mount the viewing head to the stand.

u Install software contained on the software CD , as per Elite-Cam AMCap software user

guide.

u Connect cable to the viewing head and then the chosen computer as per

Elite-Cam AMCap software user guide.

Operation

u Refer to Mantis Elite user guide provided for general operation.

u Refer to Elite-Cam AMCap user guide to take an image or video capture of the subject.

General care and maintenance

u For all care and maintenance guidelines see the Mantis Elite user guide.

Elite-Cam Connection & Setup www.visioneng.com/support

CONTENTS

2

123

1

WARRANTY

WARRANTY

This product is warranted to be free from defects in material and workmanship for a period of one
year from the date of invoice to the original purchaser.

If during the warranty period the product is found to be defective, it will be repaired or replaced at
facilities of Vision Engineering or elsewhere, all at the option of Vision Engineering. However, Vision
Engineering reserves the right to refund the purchase price if it is unable to provide replacement,
and repair is not commercially practicable or cannot be timely made. Parts not of Vision Engineering
manufacture carry only the warranty of their manufacturer. Expendable components such as fuses
carry no warranty.

This warranty does not cover damage in transit, damage caused by misuse, neglect, or carelessness,
or damage resulting from either improper servicing or modification by other than Vision
Engineering approved service personnel. Further, this warranty does not cover any routine
maintenance work on the product described in the user guide or any minor maintenance work
which is reasonably expected to be performed by the purchaser.

No responsibility is assumed for unsatisfactory operating performance due to environmental
conditions such as humidity, dust, corrosive chemicals, deposition of oil or other foreign matter,
spillage, or other conditions beyond the control of Vision Engineering.

Except as stated herein, Vision Engineering makes no other warranties, express or implied by law,
whether for resale, fitness for a particular purpose or otherwise. Further, Vision Engineering shall
not under any circumstances be liable for incidental, consequential or other damages.
