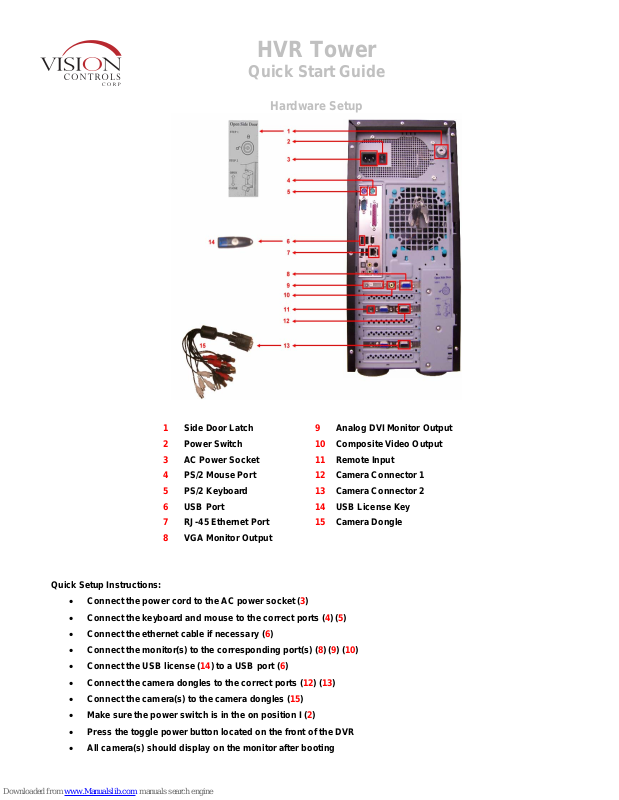

HVR Tower
Hardware Setup
Quick Start Guide
1
Side Door Latch
2
Power Switch
3
AC Power Socket
4
PS/2 Mouse Port
5
PS/2 Keyboard
6
USB Port
7
RJ-45 Ethernet Port
8
VGA Monitor Output
Quick Setup Instructions:
• Connect the power cord to the AC power socket (3)
• Connect the keyboard and mouse to the correct ports (4) (5)
• Connect the ethernet cable if necessary (6)
• Connect the monitor(s) to the corresponding port(s) (8) (9) (10)
• Connect the USB license (14) to a USB port (6)
• Connect the camera dongles to the correct ports (12) (13)
• Connect the camera(s) to the camera dongles (15)
• Make sure the power switch is in the on position I (2)
• Press the toggle power button located on the front of the DVR
• All camera(s) should display on the monitor after booting
9
10
11
12
13
14
15
Analog DVI Monitor Output
Composite Video Output
Remote Input
Camera Connector 1
Camera Connector 2
USB License Key
Camera Dongle
HVR
Software Setup
Quick Start Guide
1
Exit the HVR Software
2
Camera (live display)
3
Guard: Setup for event detection
4
Scan: Turn on/off auto scan option
5
Set: General system setup
6
Schedule: Scheduled recording setup
7
Start: Start/Stop services
8
Play: Brings up playback interface
9
Time: Date and Time
10
Disk: Shows available space
11
Views: Change the layout views
12
PTZ: PTZ controls
13
Max: Maximizes cameras / hides controls
14
Min: Minimizes the HVR application
