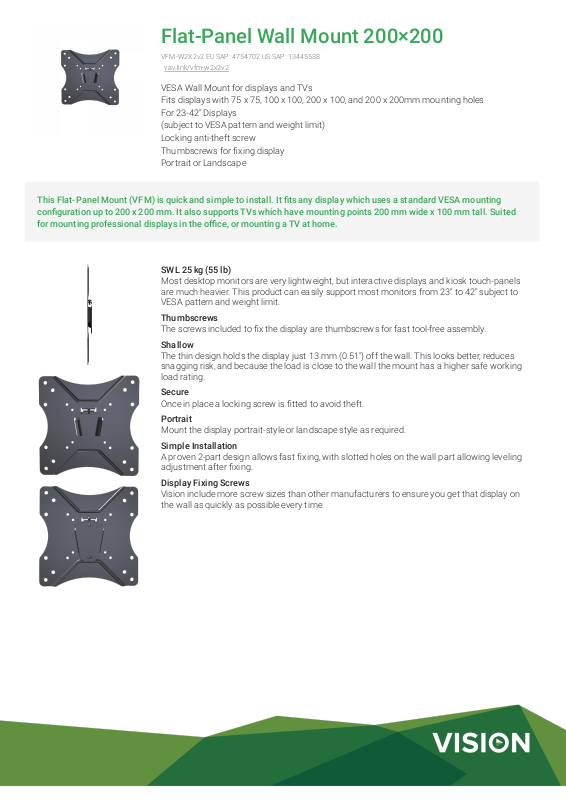

Vision VFM-W2X2V2 User Manual
This Flat-Panel Mount (VFM) is quick and simple to install. It ts any display which uses a standard VESA mounting
conguration up to 200 x 200 mm. It also supports TVs which have mounting points 200 mm wide x 100 mm tall. Suited
for mounting professional displays in the oce, or mounting a TV at home.
Flat-Panel Wall Mount 200×200
VFM-W2X2v2 EU SAP: 4754702 US SAP: 13445538
vav.link/vfm-w2x2v2
VESA Wall Mount for displays and TVs
Fits displays with 75 x 75, 100 x 100, 200 x 100, and 200 x 200mm mountingholes
For 23-42″ Displays
(subject to VESA pattern and weight limit)
Locking anti-theft screw
Thumbscrews for xing display
Portrait or Landscape
SWL 25 kg (55 lb)
Most desktop monitors are very lightweight, but interactive displays and kiosk touch-panels
are much heavier. This product can easily support most monitors from 23″ to 42″ subject to
VESA pattern and weight limit.
Thumbscrews
The screws included to x the display are thumbscrews for fast tool-free assembly.
Shallow
The thin design holds the display just 13 mm (0.51″) off the wall. This looks better, reduces
snagging risk, and because the load is close to the wall the mount has a higher safe working
load rating.
Secure
Once in place a locking screw is tted to avoid theft.
Portrait
Mount the display portrait-style or landscape style as required.
Simple Installation
A proven 2-part design allows fast xing, with slotted holes on the wall part allowing leveling
adjustment after xing.
Display Fixing Screws
Vision include more screw sizes than other manufacturers to ensure you get that display on
the wall as quickly as possible every time.
3677/en/2019-10-24 21:07:07/2020-01-16 01:28:19
MANUAL
Quick manual
EN PDF 3.30 MB
les.visionaud iovisual.com/prod ucts/VFM-W2X2V2/m anuals/VFM- W2X2V2_quick_manual.pdf
Product Images
ZIP 44.52 MB
les.visionaud iovisual.com/prod ucts/VFM-W2X2V2/images/VFM -W2X2V2.zip
SPECIFICATIONS
PRODUCT DIMENSIONS
230 x 230 x 13 mm / 9.1″ x 9.1″ x 0.5″ (height x width x depth)
PACKAGED DIMENSIONS
239 x 239 x 25 mm / 9.4″ x 9.4″ x 1.0″
PRODUCT WEIGHT
0.71 kg (1.56 lbs)
PACKAGED WEIGHT
0.97 g (2.14 lbs)
SAFE WORKING LOAD
25 kg (55 lbs)
CONTRUCTION MATERIAL
Steel
COLOUR
Black
VESA SIZES
200 × 200 mm 200 x 100 mm 100 × 100 mm 75 x 75 mm
ACCESSORIES INCLUDED
4 x M4 25 mm (1″) screw 4 x M5 12 mm (0. 5″) screw 4 x M5 25 mm (1″) screw 4 x M6 12 mm
(0.5″) s crew 4 x M6 25 mm (1″) screw 4 x M8 16 mm (0. 6″) screw 4 x M8 25 mm (1″) screw
WARRANTY
Lifetime return-to-base
COMPLIANCES
REACH
ORDER PART CODE
VFM-W2X2v2 [EU SAP: 4754702 / US SAP: 13445538]
