VisibleWave VSAT01 User Manual

HD Free to Air

Satellite Receiver

User Guide

VSAT01

visiblewave

®

Technical Support

For further information visit www.labgear.co.uk

or Email: [e-mail]

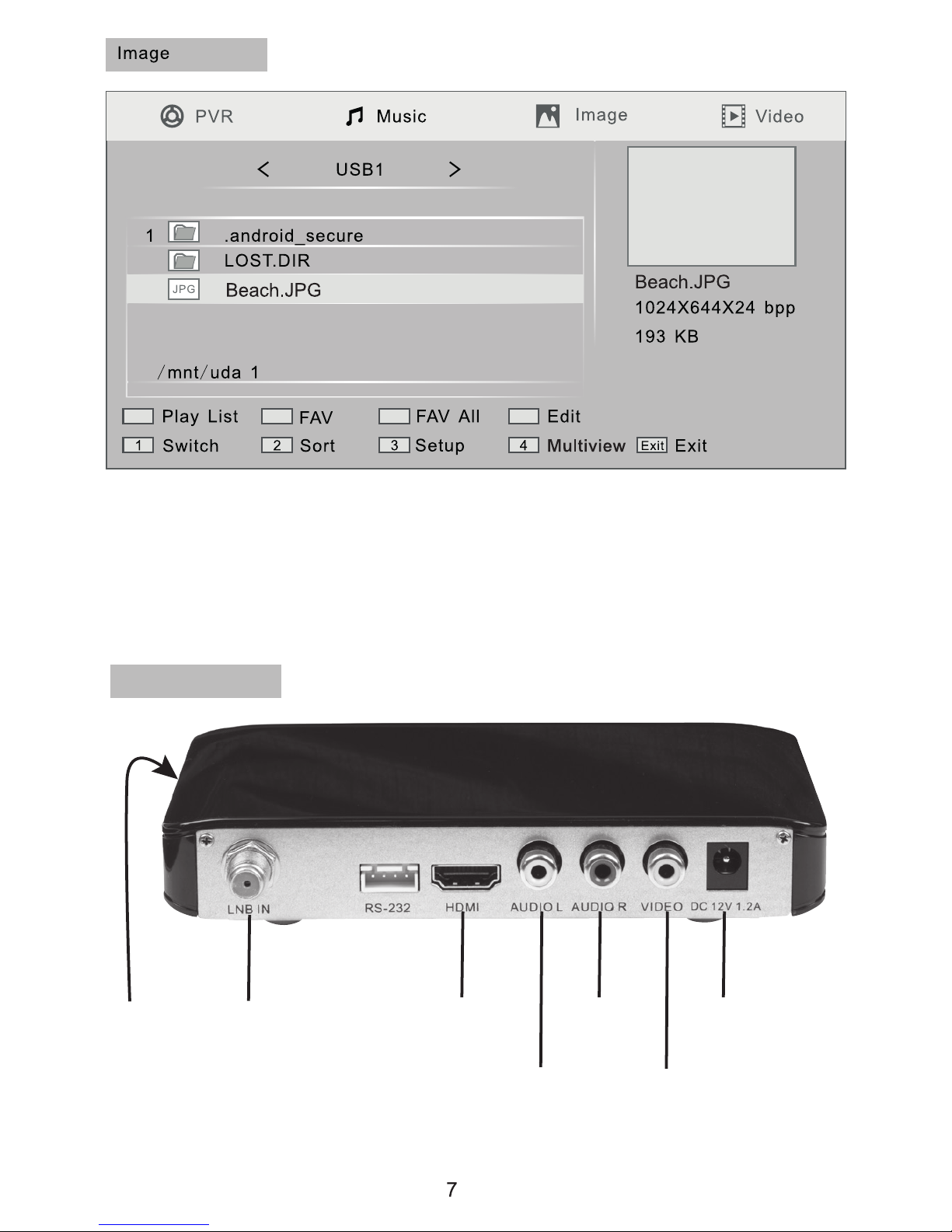

Connect the satellite receiver to your TV with the HDMI cable supplied.
Then select the relevant HDMI input on your TV menu. Press [menu] on the
satellite receiver remote control and the main menu shown above will appear
on screen. Press the keys on the remote to select menu items, and press
the [OK] key to conrm your selections. To leave a screen press [EXIT].

Enter “Single Satellite Search” menu, to search for available channels on
a satellite. Select and conrm the satellite information using the keys.
FTA only should be set to Yes as this receiver will not decode scrambled/
encrypted channels. In “Scan Mode” function, choose “Blind Scan” to locate all
available channels. You can use “Auto Scan” but if any of the channels you
want don't appear you will then need to try searching again with Blind Scan.
Some channels will be suxed 'Fail' this indicates that no Free to Air channels
have been found on this transponder.

Installation and Operation

Main Menu

(1/1) Astra 2E

PLEASE NOTE This search mode is only used for motorised dishes.
Enter the "Multi Satellite Search" window. Press the "Left" and "Right" keys to
select a“Satellite”. Then change the search settings to match the satellites you
want to search for. (The available settings are the same as for “Single Satellite
Search”). Parameter information available from www.lyngsat.com or ysat.com
Before a Multi Satellite Search, you need to rst select the satellites you want
to searchfor in the "Satellite List" window. Press [OK] key to select the satellites
and they will be marked with a heart- shaped Icon.

If after searching you are still missing channels you want to view from a
satellite. You can enter the TP List menu to search by transponder. Select the
correct satellite using the arrow keys. You will then need to enter the frequency,
symbol rate and orientation of the transponder (these can be looked up on
sites like lyngsat.com). You can then search, edit, add or delete using the
indicated colour key.

Yes

(1/1) Astra 2E

Astra 1 Hotbird

10714

22000 KS/s
