Vishay MBR15..CTPbF Series Data Sheet

TO-220AB

Schottky Rectifier, 2 x 7.5 A

FEATURES

• 150 °C TJ operation

Base

common

Anode

2

cathode

2

Common

13

cathode

Anode

• Center tap TO-220 package

• Low forward voltage drop

• High frequency operation

• High purity, high temperature epoxy
encapsulation for enhanced mechanical strength and
moisture resistance

• Guard ring for enhanced ruggedness and long term
reliability

• Lead (Pb)-free (“PbF” suffix)

• Designed and qualified for industrial level

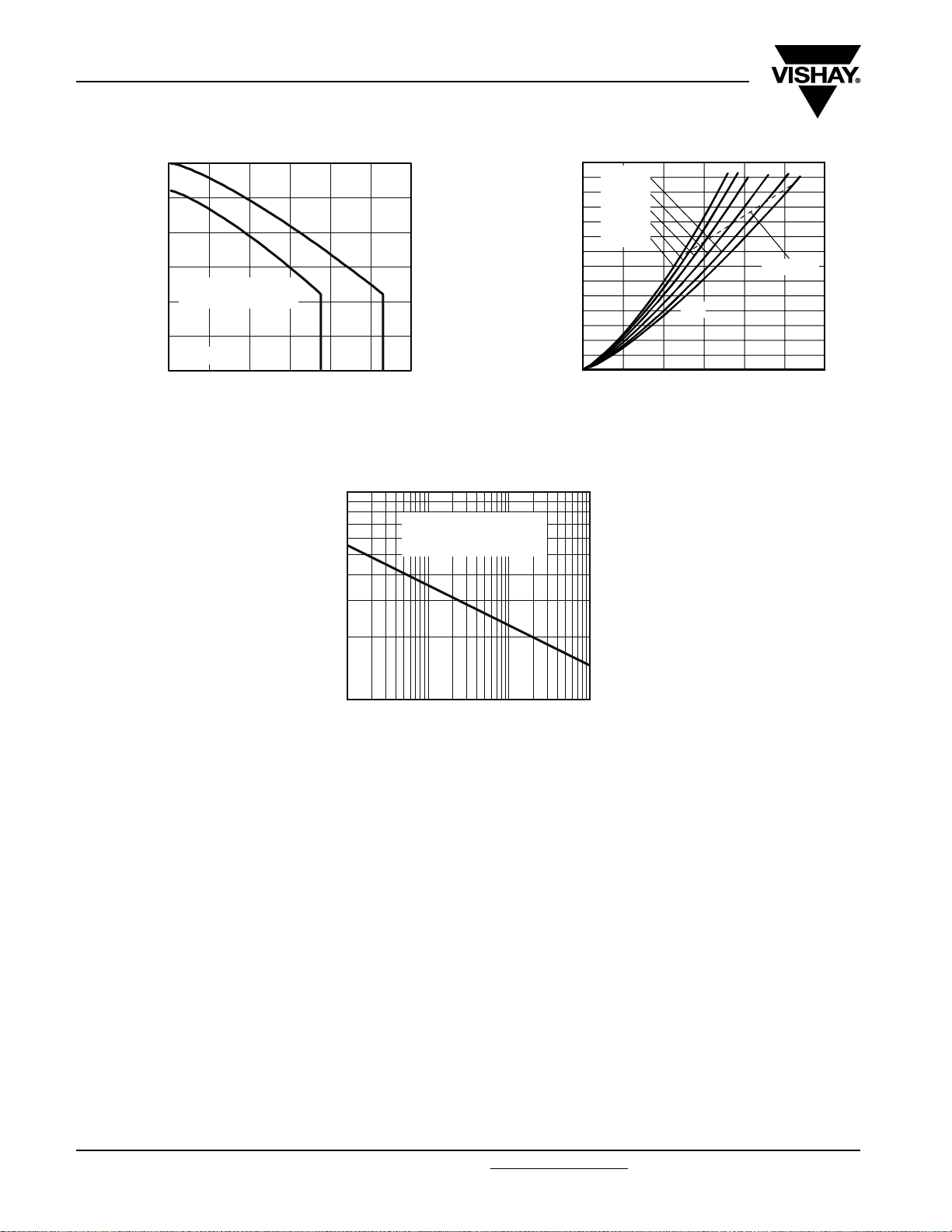

MBR15..CTPbF Series

Vishay High Power Products

Pb-free

Available

RoHS*

COMPLIANT

PRODUCT SUMMARY

I

F(AV)

V

R

I

RM

2 x 7.5 A

35/45 V

15 mA at 125 °C

DESCRIPTION

The MBR15..CTPbF center tap Schottky rectifier has been
optimized for low reverse leakage at high temperature. The
proprietary barrier technology allows for reliable operation up
to 150 °C junction temperature. Typical applications are in
switching power supplies, converters, freewheeling diodes,
and reverse battery protection.

MAJOR RATINGS AND CHARACTERISTICS

SYMBOL CHARACTERISTICS VALUES UNITS

I

F(AV)

V

RRM

I

FSM

V

F

T

J

Rectangular waveform 15 A

35/45 V

tp = 5 µs sine 690 A

7.5 Apk, TJ = 125 °C 0.57 V

Range - 65 to 150 °C

VOLTAGE RATINGS

PARAMETER SYMBOL MBR1535CTPbF MBR1545CTPbF UNITS

Maximum DC reverse voltage V

Maximum working peak reverse voltage V

R

RWM

35 45 V

ABSOLUTE MAXIMUM RATINGS

PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS

Maximum average
forward current

Maximum peak one cycle
non-repetitive surge

Non-repetitive avalanche energy per leg E

Repetitive avalanche current per leg I

per leg

per device 15

I

F(AV)

I

FSM

AR

TC = 131 °C, rated V

5 µs sine or 3 µs rect. pulse

Surge applied at rated load condition half wave
single phase 60 Hz

TJ = 25 °C, IAS = 2 A, L = 3.5 mH 7 mJ

AS

Current decaying linearly to zero in 1 µs
Frequency limited by T

R

Following any rated load
condition and with rated
V

applied

RRM

maximum VA = 1.5 x VR typical

J

7.5

690

150

2A

A

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 94285 For technical questions, contact: [e-mail]
Revision: 21-Aug-08 1

www.vishay.com

MBR15..CTPbF Series

Vishay High Power Products

Schottky Rectifier, 2 x 7.5 A

ELECTRICAL SPECIFICATIONS

PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS

15 A TJ = 25 °C 0.84

Maximum forward voltage drop V

FM

(1)

15 A 0.72

Maximum instantaneous reverse current I

Maximum junction capacitance C

Typical series inductance L

RM

(1)

T

= 125 °C 15

J

VR = 5 VDC (test signal range 100 kHz to 1 MHz) 25 °C 400 pF

T

Measured from top of terminal to mounting plane 8.0 nH

S

TJ = 25 °C

Maximum voltage rate of change dV/dt Rated V

T

= 125 °C

J

Rated DC voltage

R

0.57

0.1

10 000 V/µs

Note

(1)

Pulse width < 300 µs, duty cycle < 2 %

THERMAL - MECHANICAL SPECIFICATIONS

PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS

Maximum junction temperature range T

Maximum storage temperature range T

Maximum thermal resistance,
junction to case per leg

Typical thermal resistance,
case to heatsink

Maximum thermal resistance,
junction to ambient

J

Stg

R

DC operation 3.0

thJC

R

R

thCS

thJA

Mounting surface, smooth and greased 0.50

DC operation 60

Approximate weight

Mounting torque

minimum 6 (5)

maximum 12 (10)

Marking device Case style TO-220AB MBR1545CT

- 65 to 150

- 65 to 175

2g

0.07 oz.

kgf · cm
(lbf · in)

V7.5 A

mA

°C

°C/W

www.vishay.com For technical questions, contact: [e-mail]

Document Number: 94285

2 Revision: 21-Aug-08

MBR15..CTPbF Series

Schottky Rectifier, 2 x 7.5 A

100

10

1

- Instantaneous Forward Current (A)

F

I

0.40 0.2 0.6 1.0 2.0

0.8 1.4

VFM - Forward Voltage Drop (V)

Fig. 1 - Maximum Forward Voltage Drop Characteristics

(Per Leg)

TJ = 150 °C

= 125 °C

T

J

= 25 °C

T

J

1000

1.61.2 1.8

Vishay High Power Products

100

10

1

0.1

0.01

- Reverse Current (mA)

R

0.001

I

0.0001

0

5152535

Fig. 2 - Typical Values of Reverse Current vs.

TJ = 150 °C

TJ = 125 °C

TJ = 100 °C

TJ = 75 °C

TJ = 50 °C

TJ = 25 °C

4540302010

VR - Reverse Voltage (V)

Reverse Voltage (Per Leg)

TJ = 25 °C

- Junction Capacitance (pF)

T

C

100

10

040

20

VR - Reverse Voltage (V)

Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage (Per Leg)

10

1

0.1

0.01

Single pulse

(thermal resistance)

D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20

- Thermal Impedance (°C/W)

thJC

Z

0.001

0.00001 0.0001 0.001 0.01 0.1

t1 - Rectangular Pulse Duration (s)

Fig. 4 - Maximum Thermal Impedance Z

5030

Notes:

1. Duty factor D = t

2. Peak TJ = PDM x Z

Characteristics (Per Leg)

thJC

P

DM

t

1

t

2

1/t2

+ T

thJC

C

1

10

Document Number: 94285 For technical questions, contact: [e-mail]

www.vishay.com

Revision: 21-Aug-08 3

MBR15..CTPbF Series

Vishay High Power Products

150

140

Square wave (D = 0.50)

applied

Rated V

130

Allowable Case Temperature (°C)

120

06

Fig. 5 - Maximum Allowable Case Temperature vs.

R

See note (1)

4

2

I

- Average Forward Current (A)

F(AV)

Average Forward Current

1000

8 10 12

Schottky Rectifier, 2 x 7.5 A

DC

Average Power Loss (W)

At any rated load condition
and with rated V
following surge

RRM

applied

7

D = 0.20

6

D = 0.25
D = 0.33

5

D = 0.50
D = 0.75

4

3

2

1

0

010

2468

I

- Average Forward Current (A)

F(AV)

DC

RMS limit

12

Fig. 6 - Forward Power Loss Characteristics

Note

(1)

Formula used: TC = TJ - (Pd + Pd
Pd = Forward power loss = I
Pd

= Inverse power loss = VR1 x IR (1 - D); IR at VR1 = Rated V

REV

x VFM at (I

F(AV)

- Non-Repetitive Surge Current (A)

100

FSM

I

100 1000

tp - Square Wave Pulse Duration (µs)

Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg)

) x R

REV

;

thJC

/D) (see fig. 6);

F(AV)

R

10 00010

www.vishay.com For technical questions, contact: [e-mail]

Document Number: 94285

4 Revision: 21-Aug-08

MBR15..CTPbF Series

Schottky Rectifier, 2 x 7.5 A

Vishay High Power Products

ORDERING INFORMATION TABLE

Device code

Dimensions http://www.vishay.com/doc?95222

Part marking information http://www.vishay.com/doc?95225

SPICE model http://www.vishay.com/doc?95294

MBR 15 45 CT PbF

51324

1 - Schottky MBR series

2 - Current rating (15 = 15 A)

3 - Voltage ratings

4 - CT = Essential part number

5 - None = Standard production

PbF = Lead (Pb)-free

LINKS TO RELATED DOCUMENTS

35 = 35 V
45 = 45 V

Document Number: 94285 For technical questions, contact: [e-mail]
Revision: 21-Aug-08 5

www.vishay.com

DIMENSIONS in millimeters and inches

13

2

D

D1

H1

Q

13

2

C

C

D

D

3 x b23 x b

(b, b2)

b1, b3

(H1)

D2

Detail B

C

A

B

L

e1

Lead tip

E

E2

Ø P

0.014 AB

M M

0.015 AB

MM

Seating

plane

c

A2

A1

A

A

A

Lead assignments

Diodes

1. - Anode/open

2. - Cathode

3. - Anode

Conforms to JEDEC outline TO-220AB

(6)

(6)

(7)

(6)

(7)

e

2 x

L1

(2)

Detail B

Section C - C and D - D

View A - A

Base metal Plating

(4)

(4)

c1

c

(6)

Thermal pad

(E)

E1

(6)

Outline Dimensions

Vishay Semiconductors

TO-220AB

SYMBOL

A 4.25 4.65 0.167 0.183 E 10.11 10.51 0.398 0.414 3, 6
A1 1.14 1.40 0.045 0.055 E1 6.86 8.89 0.270 0.350 6
A2 2.56 2.92 0.101 0.115 E2 - 0.76 - 0.030 7

b 0.69 1.01 0.027 0.040 e 2.41 2.67 0.095 0.105
b1 0.38 0.97 0.015 0.038 4 e1 4.88 5.28 0.192 0.208
b2 1.20 1.73 0.047 0.068 H1 6.09 6.48 0.240 0.255 6, 7
b3 1.14 1.73 0.045 0.068 4 L 13.52 14.02 0.532 0.552

MILLIMETERS INCHES

MIN. MAX. MIN. MAX. MIN. MAX. MIN. MAX.

c 0.36 0.61 0.014 0.024 L1 3.32 3.82 0.131 0.150 2
c1 0.36 0.56 0.014 0.022 4 Ø P 3.54 3.73 0.139 0.147

D 14.85 15.25 0.585 0.600 3 Q 2.60 3.00 0.102 0.118
D1 8.38 9.02 0.330 0.355  90° to 93° 90° to 93°
D2 11.68 12.88 0.460 0.507 6

Notes

(1)

Dimensioning and tolerancing as per ASME Y14.5M-1994

(2)

Lead dimension and finish uncontrolled in L1

(3)

Dimension D, D1 and E do not include mold flash. Mold flash
shall not exceed 0.127 mm (0.005") per side. These dimensions
are measured at the outermost extremes of the plastic body

(4)

Dimension b1, b3 and c1 apply to base metal only

(5)

Controlling dimensions: inches

(6)

Thermal pad contour optional within dimensions E, H1, D2 and
E1

Document Number: 95222 For technical questions within your region, please contact one of the following: www.vishay.com
Revision: 08-Mar-11 [e-mail]

NOTES SYMBOL

, [e-mail], [e-mail] 1

(7)

(8)

Dimensions E2 x H1 define a zone where stamping and
singulation irregularities are allowed
Outline conforms to JEDEC TO-220, except A2 (maximum) and
D2 (minimum) where dimensions are derived from the actual
package outline

MILLIMETERS INCHES

NOTES

Legal Disclaimer Notice

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree
to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and
damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay
or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to
obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Document Number: 91000 www.vishay.com
Revision: 11-Mar-11 1
