Vishay HFA70NC60C Data Sheet
PD -2.464 rev. B 01/99
HFA70NC60C
TM
Ultrafast, Soft Recovery DiodeHEXFRED
Features
• Reduced RFI and EMI
• Reduced Snubbing
• Extensive Characterization of
Recovery Parameters
VR = 600V
VF(typ.) = 1.2V
I
= 70A
F(AV)
Qrr (typ.) = 210nC
I
(typ.) = 6A
RRM
trr(typ.) = 30ns
di
/dt (typ.) = 180A/µs
(rec)M
Description
HEXFREDTM diodes are optimized to reduce losses and EMI/RFI in high frequency
power conditioning systems. An extensive characterization of the recovery
behavior for different values of current, temperature and di/dt simplifies the
calculations of losses in the operating conditions. The softness of the recovery
eliminates the need for a snubber in most applications. These devices are ideally
suited for power converters, motors drives and other applications where
switching losses are significant portion of the total losses.
D-61-8
Absolute Maximum Ratings (per Leg)
Parameter Max. Units
V
R
IF @ TC = 25°C Continuous Forward Current 56
IF @ TC = 100°C Continuous Forward Current 27 A
I
FSM
E
AS
PD @ TC = 25°C Maximum Power Dissipation 150
PD @ TC = 100°C Maximum Power Dissipation 59
T
J
T
STG
Cathode-to-Anode Voltage 600 V
Single Pulse Forward Current 200
Non-Repetitive Avalanche Energy 220 µJ
Operating Junction and
Storage Temperature Range
-55 to +150 °C
W
Thermal - Mechanical Characteristics
Parameter Min. Typ. Max. Units
R
thJC
R
thCS
Wt Weight –––– 7.8 (0.28) –––– g (oz)
Note: Limited by junction temperature
L = 100µH, duty cycle limited by max T
125°C
Junction-to-Case, Single Leg Conducting –––– –––– 0.85
Junction-to-Case, Both Legs Conducting –––– –––– 0.42
Case-to-Sink, Flat , Greased Surface –––– 0.30 ––––
Mounting Torque lbf•in
J
35 (4.0) –––– 50 (5.7)
°C/W
K/W
(N•m)
1
HFA70NC60C
PD-2.464 rev. B 01/99
Electrical Characteristics (per Leg) @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Test Conditions
V
BR
V
FM
I
RM
C
T
L
S

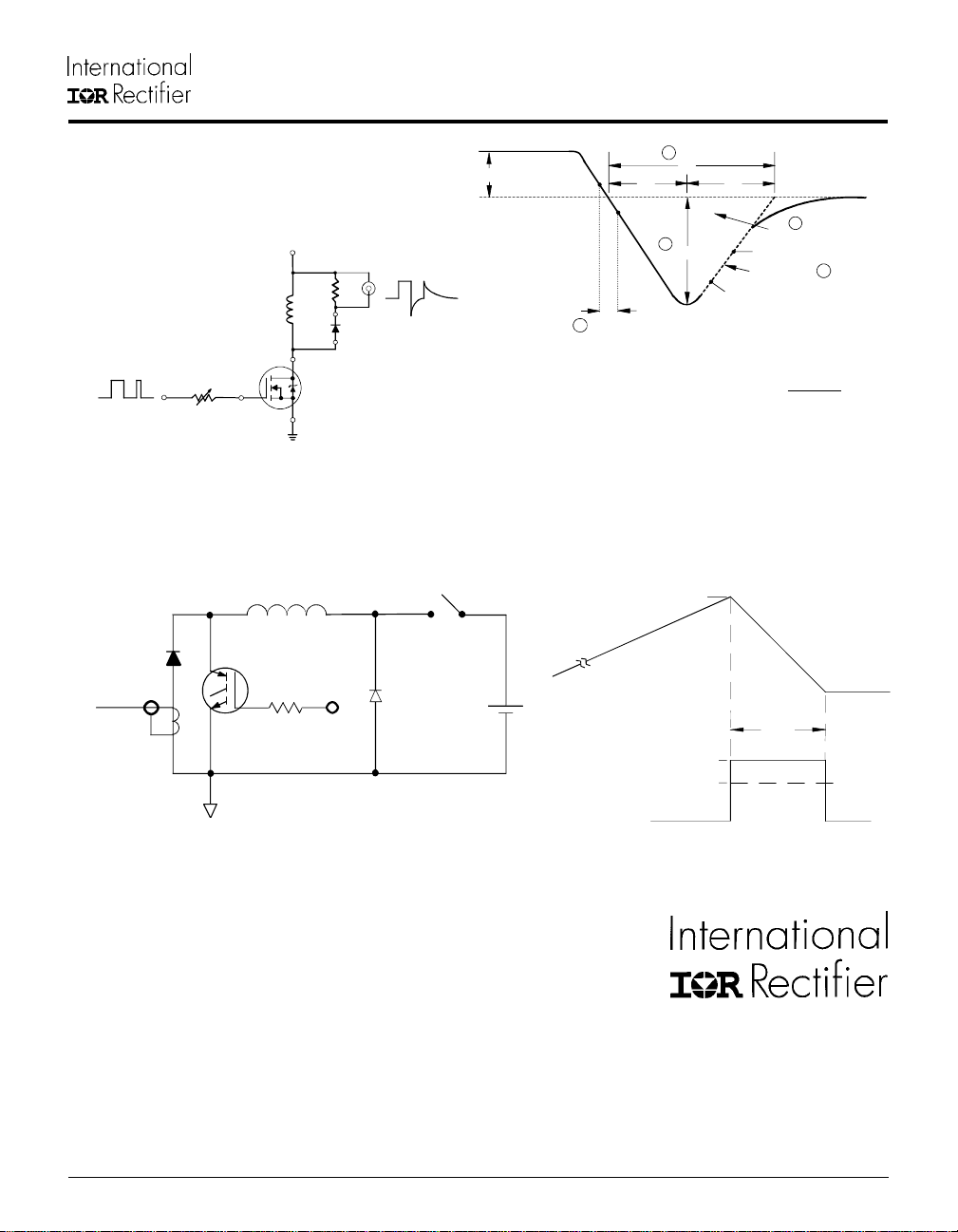

Dynamic Recovery Characteristics (per Leg) @ TJ = 25°C (unless otherwise specified)
t
rr
t
rr1
t
rr2
I
RRM1
I
RRM2
Q
rr1
Q
rr2
di
(rec)M
di
(rec)M
Cathode Anode Breakdown Voltage 600 ––– ––– V IR = 100µA
Max Forward Voltage ––– 1.3 1.5 IF = 35A
––– 1.5 1.7 V IF = 70A
––– 1.2 1.4 IF = 35A, TJ = 125°C
Max Reverse Leakage Current ––– 2.0 10 µ A VR = VR Rated
––– 0.50 2.0 mA TJ = 125°C, VR = 480V
Junction Capacitance ––– 68 100 pF VR = 200V
Series Inductance ––– 5.5 ––– nH Lead to lead 5mm from package body
Parameter Min. Typ. Max. Units Test Conditions
Reverse Recovery Time ––– 30 ––– IF = 1.0A, dif/dt = 200A/µs, VR = 30V
––– 70 110 ns TJ = 25°C
––– 115 180 TJ = 125°C IF = 35A
Peak Recovery Current ––– 6. 0 1 1 TJ = 25°C
––– 9.0 16 TJ = 125°C VR = 200V
Reverse Recovery Charge ––– 2 10 580 TJ = 25°C
––– 520 1400 TJ = 125°C dif/dt = 200A/µs
/dt1 Peak Rate of Fall of Recovery Current ––– 280 ––– TJ = 25°C
/dt2 During t
b
––– 180 ––– TJ = 125°C
A
nC
A/µs

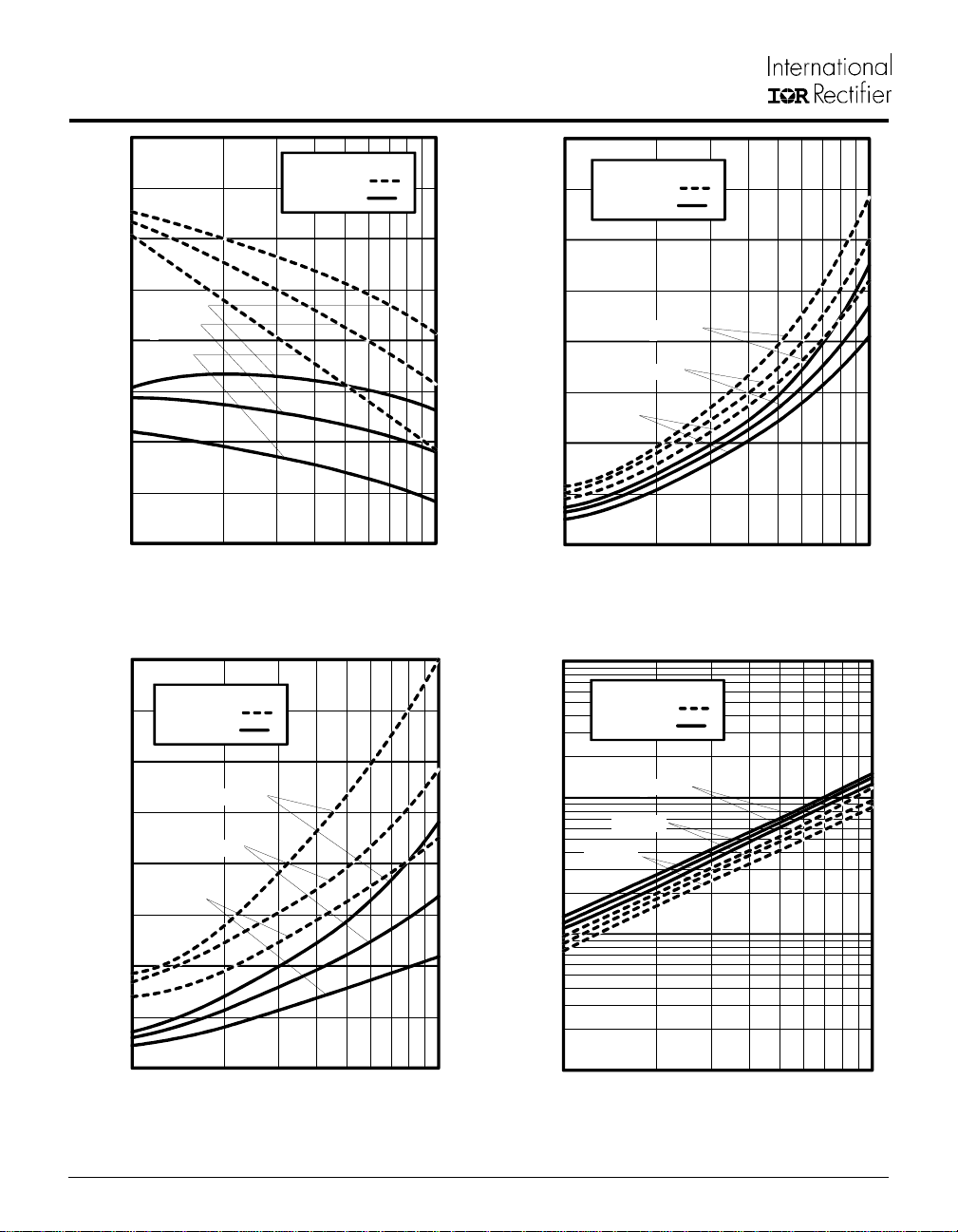

See Fig.
5
See Fig.
6
See Fig.
7
See Fig.
8

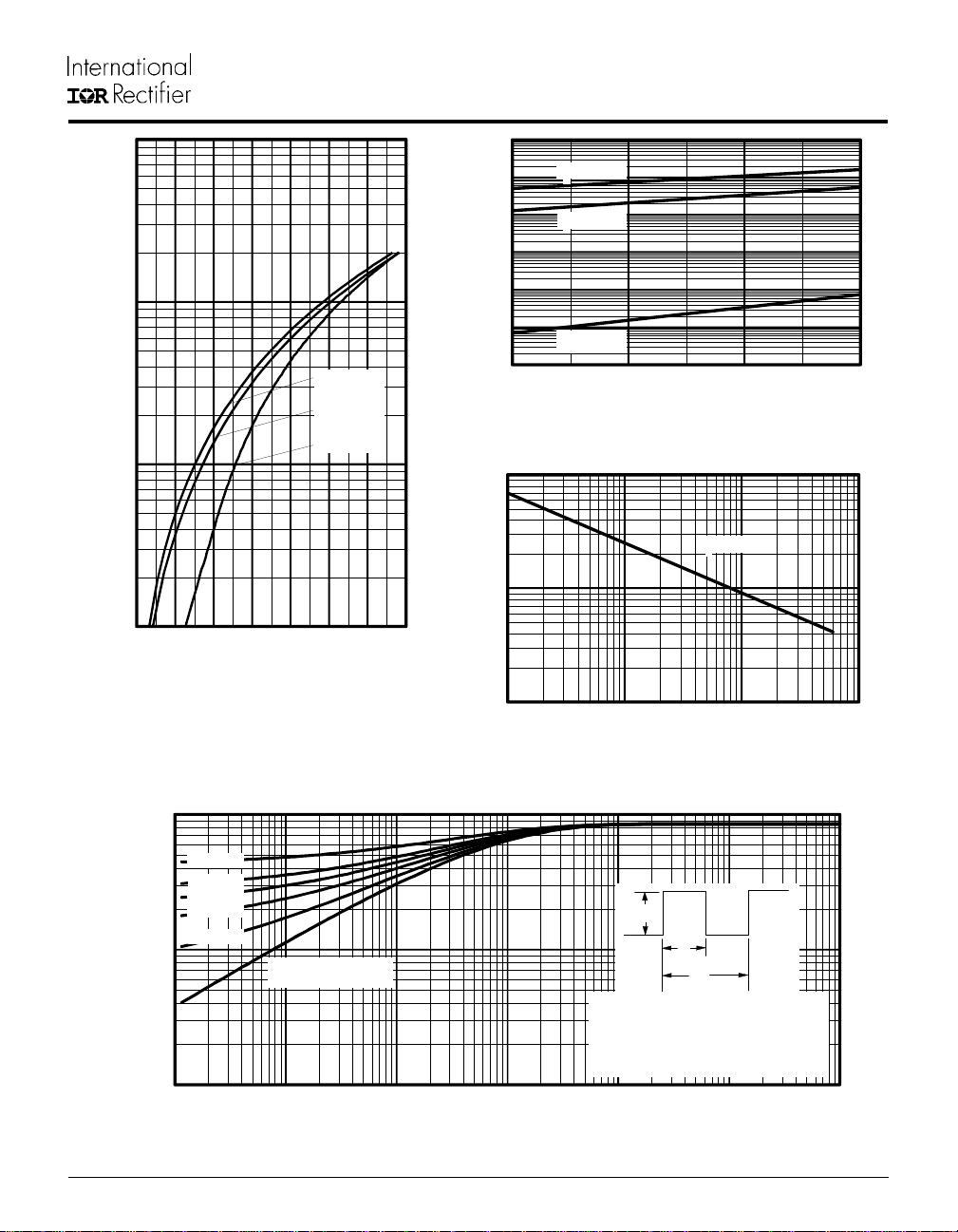

See Fig. 1
See Fig. 2
See Fig. 3
Dimensions in millimeters and (inches)
Outline D 61- 8
2
