AZ23C2V7–AZ23C51

300 mW Dual Surface Mount Zener Diodes

Features

D

SOT–23 surface mount package

D

300 mW power dissipation rating

D

Ideally suited for automatic insertion

DDVZ for both diodes in one case is ≤ 5%
D

Common cathode style available see DZ series

Vishay Telefunken

94 8550

Absolute Maximum Ratings

Tj = 25_C

Parameter Test Conditions Symbol Value Unit
Power dissipation on fiberglass substrate P
Junction and storage temperature range Tj=T

Maximum Thermal Resistance

Tj = 25_C

Parameter Test Conditions Symbol Value Unit
Junction ambient on fiberglass substrate R

d

thJA

stg

300 mW

–55...+150

420 K/W

°

C

Document Number 85591
Rev. 1, 01-Apr-99 1 (4)

www.vishay.de • FaxBack [phone]

AZ23C2V7–AZ23C51

Vishay Telefunken

Type Marking V

Z

AZ23C... V

@ IZT=5mA @ IZT=5mA @ IZT=1mA @ IR=0.1mA
2V7 KD1 2.5 to 2.9 83 500 –0.065 –
3V0 KD2 2.8 to 3.2 95 500 –0.060 –
3V3 KD3 3.1 to 3.5 95 500 –0.055 –
3V6 KD4 3.4 to 3.8 95 500 –0.055 –
3V9 KD5 3.7 to 4.1 95 500 –0.050 –
4V3 KD6 4.0 to 4.6 95 500 –0.035 –
4V7 KD7 4.4 to 5.0 78 500 –0.015 –
5V1 KD8 4.8 to 5.4 60 480 +0.005 0.8
5V6 KD9 5.2 to 6.0 40 400 +0.020 1.0
6V2 KDA 5.8 to 6.6 10 200 +0.030 2.0
6V8 KDB 6.4 to 7.2 8 150 +0.045 3.0
7V5 KDC 7.0 to 7.9 7 50 +0.050 5.0
8V2 KDD 7.7 to 8.7 7 50 +0.055 6.0
9V1 KDE 8.5 to 9.6 10 50 +0.065 7.0

10 KDF 9.4 to 10.6 15 70 +0.065 7.5
11 KDG 10.4 to 11.6 20 70 +0.070 8.5
12 KDH 11.4 to 12.7 20 90 +0.075 9.0
13 KDI 12.4 to 14.1 25 110 +0.080 10.0
15 KDJ 13.8 to 15.6 30 110 +0.080 11.0
16 KDK 15.3 to 17.1 40 170 +0.090 12.0
18 KDL 16.8 to 19.1 50 170 +0.090 14.0
20 KDM 18.8 to 21.2 50 220 +0.090 15.0
22 KDN 20.8 to 23.3 55 220 +0.090 17.0
24 KDO 22.8 to 25.6 80 220 +0.090 18.0
27 KDP 25.1 to 28.9 80 250 +0.090 20.0
30 KDQ 28 to 32 80 250 +0.090 22.5
33 KDR 31 to 35 80 250 +0.090 25.0
36 KDS 34 to 38 90 250 +0.090 27.0
39 KDT 37 to 41 90 300 +0.110 29.0
43 KDU 40 to 46 100 700 +0.110 32.0
47 KDV 44 to 50 100 750 +0.110 35.0
51 KDW 48 to 54 100 750 +0.110 38.0

1) Device on fiberglass substrate

2) Tested with IZT current pulses. Pulse width = 5 ms.

Z

ZT

W W

Z

ZK

T

C

V

R

%/°C V

www.vishay.de • FaxBack [phone] Document Number 85591

Rev. 1, 01-Apr-992 (4)

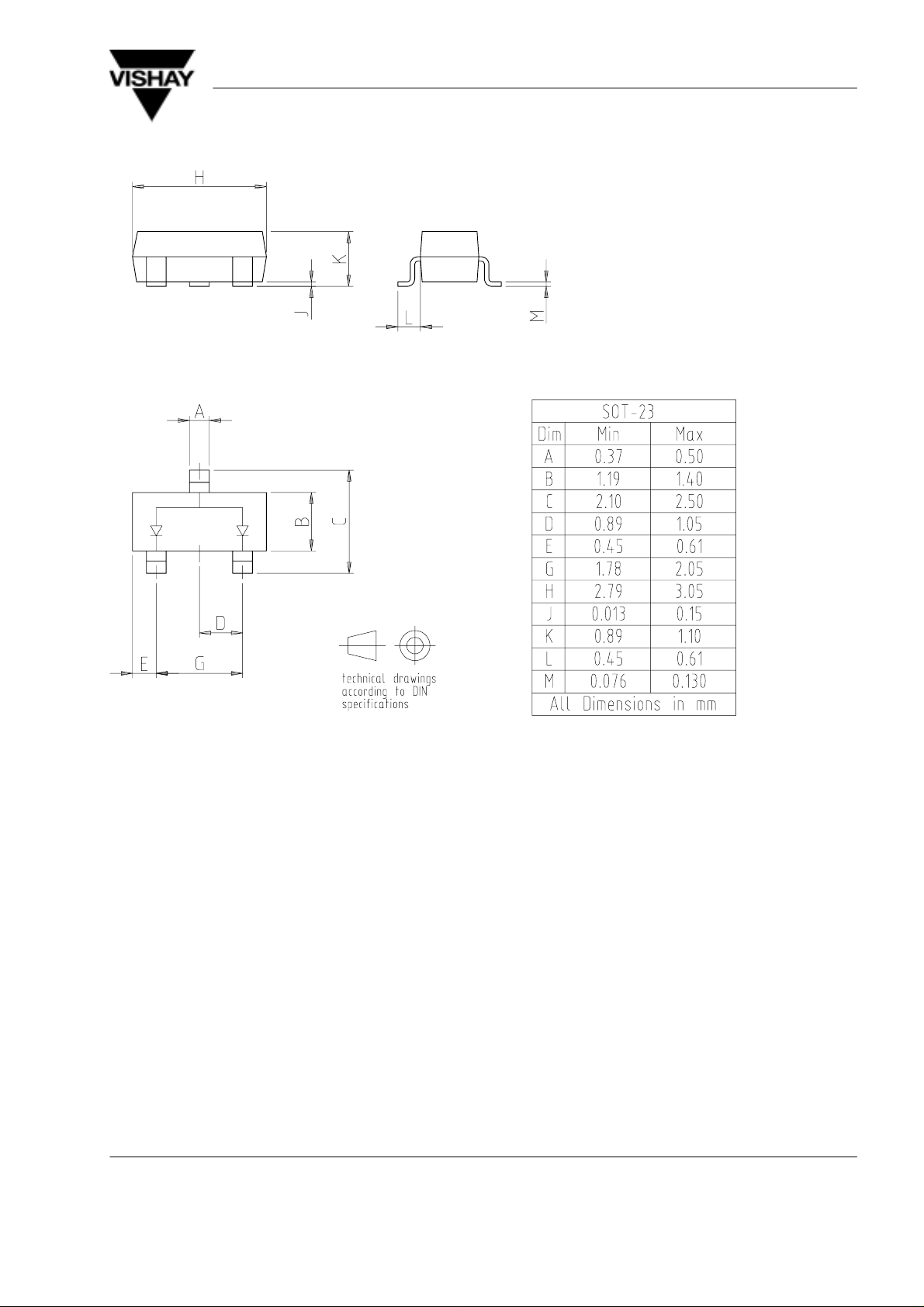

Dimensions in mm

AZ23C2V7–AZ23C51

Vishay Telefunken

top view

Case: SOT23, molded plastic
Mounting position: any
Approx. weight: 0.008 grams

14371

Document Number 85591
Rev. 1, 01-Apr-99 3 (4)

www.vishay.de • FaxBack [phone]

AZ23C2V7–AZ23C51

Vishay Telefunken

Ozone Depleting Substances Policy Statement

It is the policy of Vishay Semiconductor GmbH to

1. Meet all present and future national and international statutory requirements.

2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems

with respect to their impact on the health and safety of our employees and the public, as well as their impact on
the environment.

It is particular concern to control or eliminate releases of those substances into the atmosphere which are known as
ozone depleting substances (ODSs).

The Montreal Protocol (1987) and its London Amendments (1990) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. V arious national and international initiatives are pressing for an earlier ban
on these substances.

Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use of
ODSs listed in the following documents.

1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively

2. Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency (EPA) in the USA

3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C (transitional substances) respectively.

Vishay Semiconductor GmbH can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.

We reserve the right to make changes to improve technical design and may do so without further notice.

Parameters can vary in different applications. All operating parameters must be validated for each customer application

by the customer. Should the buyer use Vishay-Telefunken products for any unintended or unauthorized application, the

buyer shall indemnify Vishay-Telefunken against all claims, costs, damages, and expenses, arising out of, directly or

indirectly , any claim of personal damage, injury or death associated with such unintended or unauthorized use.
