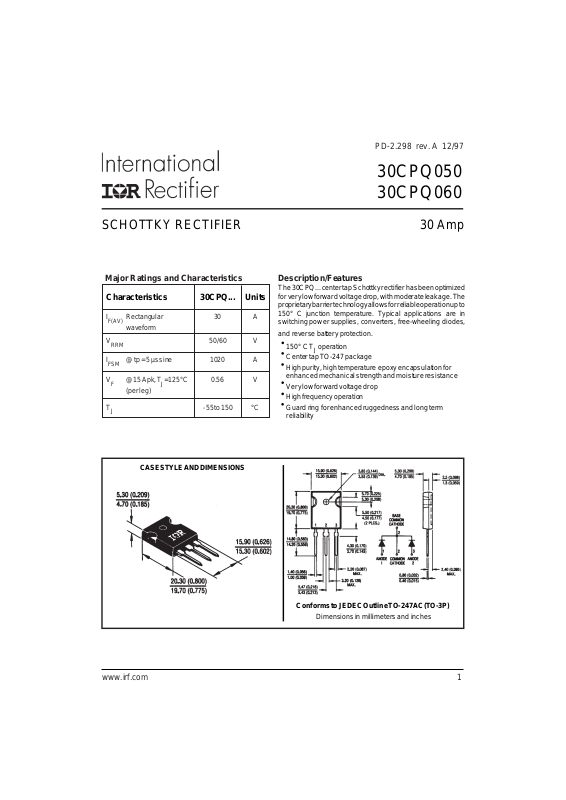

PD-2.298 rev. A 12/97
30CPQ050
30CPQ060
SCHOTTKY RECTIFIER 30 Amp
Major Ratings and Characteristics
Characteristics 30CPQ... Units
I
Rectangular 30 A
F(AV)
waveform
V
RRM
@ tp = 5 µs sine 1020 A
I
FSM
VF@ 15 Apk, TJ=125°C 0.56 V
(per leg)
T
J
CASE STYLE AND DIMENSIONS
50/60 V
- 55 to 150 °C
Description/Features
The 30CPQ... center tap Schottky rectifier has been optimized
for very low forward voltage drop, with moderate leakage. The
proprietary barrier technology allows for reliable operation up to
150° C junction temperature. Typical applications are in
switching power supplies, converters, free-wheeling diodes,
and reverse battery protection.
150° C TJ operation
Center tap TO-247 package
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Very low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Conforms to JEDEC Outline TO-247AC (TO-3P)
Dimensions in millimeters and inches
1www.irf.com
30CPQ050, 30CPQ060
PD-2.298 rev. A 12/97
Voltage Ratings
Part number 30CPQ050 30CPQ060
VRMax. DC Reverse Voltage (V)
V
Max. Working Peak Reverse Voltage (V)
RWM
50 60
Absolute Maximum Ratings
Parameters 30CPQ... Units Conditions
I
Max. Average Forward Current 30 A 50% duty cycle @ TC = 112 °C, rectangular wave form
F(AV)
* See Fig. 5
I
Max. Peak One Cycle Non-Repetitive 1020 5µs Sine or 3µs Rect. pulse
FSM
Surge Current (Per Leg) * See Fig. 7 2 65 10ms Sine or 6ms Rect. pulse
EASNon-Repetitive Avalanche Energy 13 mJ T
(Per Leg)
A
= 25 °C, I
J
= 1.50 Amps, L = 11.5 mH
AS
IARRepetitive Avalanche Current 1.50 A Current decaying linearly to zero in 1 µsec
(Per Leg) Frequency limited by T
Following any rated
load condition and with
rated V
max. VA = 1.5 x VR typical
J
RRM
applied
Electrical Specifications
Parameters 30CPQ... Units Conditions
VFMMax. Forward Voltage Drop 0.60 V @ 15A
(Per Leg) * See Fig. 1 (1) 0.80 V @ 30A
0.56 V @ 15A
0.70 V @ 30A
IRMMax. Reverse Leakage Current 0.80 mA TJ = 25 °C
(Per Leg) * See Fig. 2 (1) 45 mA TJ = 125 °C
CTMax. Junction Capacitance (Per Leg) 720 p F VR = 5VDC, (test signal range 100Khz to 1Mhz) 25°C
LSTypical Series Inductance (Per Leg) 7.5 nH Measured lead to lead 5mm from package body
dv/dt Max. Voltage Rate of Change 10,000 V/ µs
(Rated V
)
R
TJ = 25 °C
TJ = 125 °C
= rated V
V
R
(1) Pulse Width < 300µs, Duty Cycle <2%
R
Thermal-Mechanical Specifications
Parameters 30CPQ... Units Conditions
TJMax. Junction Temperature Range -55 to 150 °C
T
Max. Storage Temperature Range -55 to 150 °C
stg
Max. Thermal Resistance Junction 2.20 °C/W DC operation * See Fig. 4
R
thJC
to Case (Per Leg)
R
Max. Thermal Resistance Junction 1.10 °C/W DC operation
thJC
to Case (Per Package)
Typical Thermal Resistance, Case 0.24 °C/W Mounting surface , smooth and greased
R
thCS
to Heatsink
wt Approximate Weight 6 (0.21) g (oz.)
T Mounting Torque Min. 6 (5) Non-lubricated threads
Max. 12 (10)
Kg-cm
(Ibf-in)
Case Style TO-247AC(TO-3P) JEDEC
2 www.irf.com
30CPQ050, 30CPQ060
0
5
0
2
PD-2.298 rev. A 12/97
1000
100
F
10
1000
T = 150° C
100
J
10
R
1
.1
Reverse Current - I (m A)
.01
.001
125°C
100°C
75°C
50°C
25°C
010203040506
Re verse V oltage - V (V)
Fig. 2 - Typical Values Of Reverse Current
R
Vs. Reverse Voltage (Per Leg)
T = 150°C
J
T = 125°C
Instantaneous Forward Current - I (A )
1
J
T = 25°C
J
1000
T
T = 25°C
J
.1
0.2.4.6.811.21.41.61.8
Forward V oltage Drop - V (V)
FM
Fig. 1 - Max. Forward Voltage Drop Characteristics
(Per Leg)
10
D = 0.50
1
D = 0.33
th J C
Thermal Imp edance - Z (°C /W)
D = 0.25
D = 0.17
D = 0.08
.1
.01
.00 1
.00001 .0001 .001 .01 .1 1 10 10
Sing le Puls e
(Thermal Resistance)
t , R ectangular Pulse Duration (Seconds)
1
Fig. 4 - Max. Thermal Impedance Z
Junction Capacitance - C (pF)
100
0 5 10 15 20 25 30 35 40 45 50 55 60 6
P
DM
Notes:
1. Du ty factor D = t / t
2. P ea k T = P x Z + T
Characteristics (Per Leg)
thJC
Reverse Voltage - V (V)
R
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage (Per Leg)
t
1
t
2
1
2
JDM
thJC C
3www.irf.com
30CPQ050, 30CPQ060
2
PD-2.298 rev. A 12/97
155
R ( DC ) = 2.20°C /W
thJC
145
135
DC
125
Allowable Cas e Temperature - (°C)
115
0246810121416182022
A v e r a g e Forward Current - I ( A )
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current (Per Leg)
FSM
F(AV)
1000
At Any Rated Load Condition
And With Rated V Applied
Following Surge
RRM
14
D = 0.08
D = 0.17
12
D = 0.25
D = 0.33
10
D = 0.50
8
6
RMS Limit
4
Av erage P ow er Loss - (W atts)
2
0
024681012141618202
A v erag e Forward Curre n t - I ( A)
Fig. 6 - Forward Power Loss Characteristics
(Per Leg)
DC
F(AV)
Non-Re petitive Surge Current - I (A)
100
10 100 1000 10000
Squar e Wave Pul se Durati on - t (microsec)
p
Fig. 7 - Max. Non-Repetitive Surge Current (Per Leg)
L
HIGH-SPEED
SWITCH
FREE- WH EEL
DIODE
40HFL40S02
Vd = 25 Volt
+
CURRENT
MONITOR
DUT
IRFP46 0
Rg = 25 ohm
Fig. 8 - Unclamped Inductive Test Circuit
4 www.irf.com
