Vishay 25TTS..FP Data Sheet
Bulletin I2135 rev. D 03/99
SAFEIR Series
25TTS..FP
PHASE CONTROL SCR TO-220 FULLPAK
Description/Features
The 25TTS..FP SAFEIR series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125° C junction temperature.
Typical applications are in input rectification (soft start) and these products are designed to be used with International Rectifier input diodes, switches and output rectifiers which are available in identical package outlines.
Fully isolated package (VINS = 2500 VRMS)
UL E78996 approved
VT |
< 1.25V @ 16A |
ITSM |
= 300A |
VRRM |
800 to 1600V |
|
|
Output Current in Typical Applications
Applications |
|
|
Single-phase Bridge |
Three-phase Bridge |
Units |
|||
|
|
|
|
|
|
|||
Capacitive input filterTA = 55°C,TJ =125°C, |
|
18 |
|
22 |
A |
|||
commonheatsinkof1°C/W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Major Ratings and Characteristics |
|
|
|

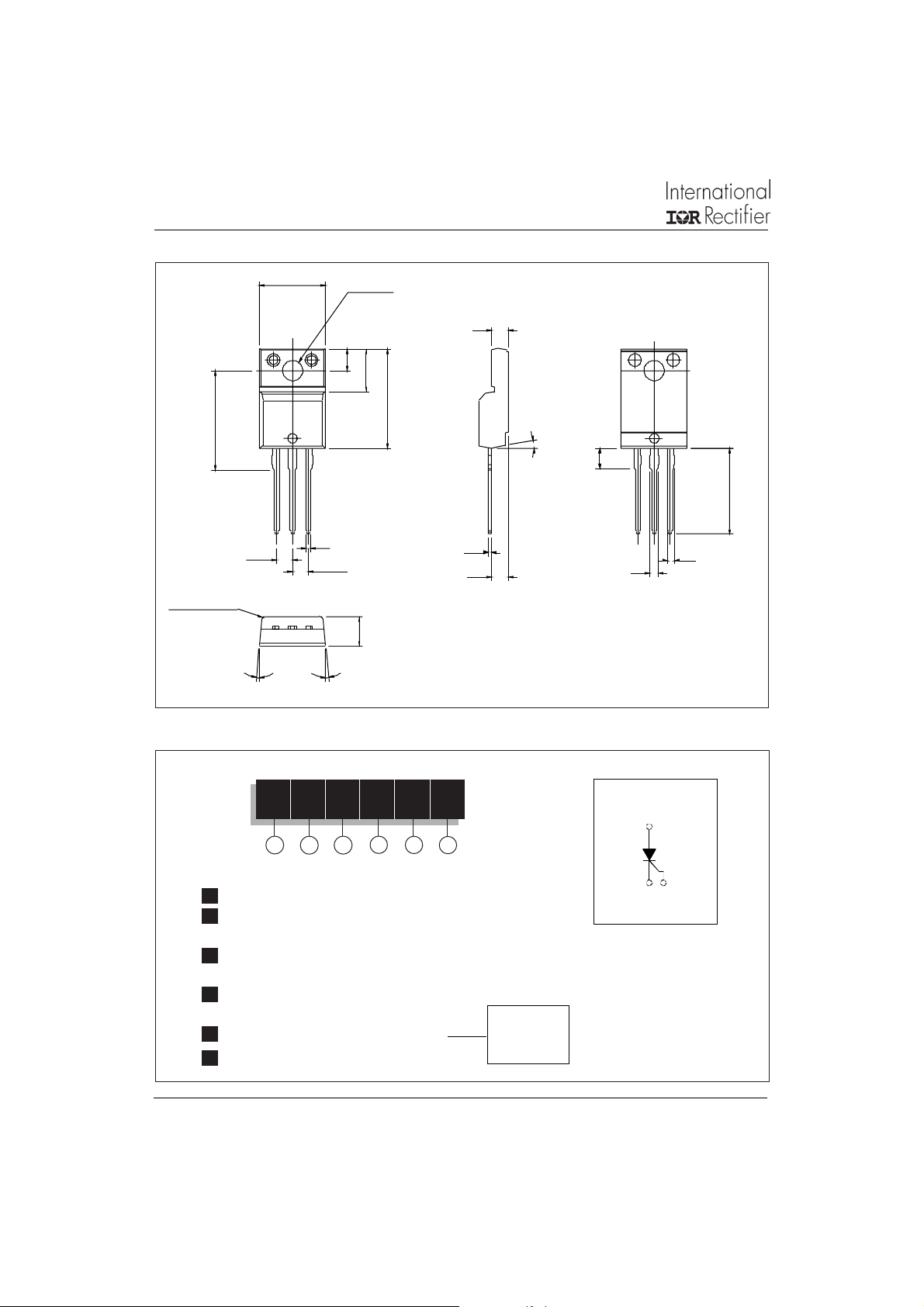

Package Outline |
|
|||
|
|
|
|
|
|
|
|
|
Characteristics |
25TTS..FP |
Units |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
IT(AV) |
Sinusoidal |
16 |
|
A |
|
|
|
|
|
waveform |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IRMS |
|
25 |
|
A |
|
|
|
|
VRRM/VDRM |
upto1600 |
|
V |
|
|
|
|
|
ITSM |
|
300 |
|
A |
|
|
|
|
VT |
@ 16 A, TJ = 25°C |
1.25 |
|
V |
|
|
|
|
|
|
|
|
|
|
|
|
|
dv/dt |
|
500 |
V/µs |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
di/dt |
|
150 |
A/µs |
|
|
TO-220 FULLPAK |
|
|
|
|
|
|
|
|
|
|
|
T |
|
-40to125 |
°C |
|
|
|
||
|
|
|
|
|
||||
J |
|
|
|
|
|
|
|
|
www.irf.com |
1 |
25TTS..FP SAFEIR Series
Bulletin I2135 rev. D 03/99
Voltage Ratings
|
VRRM, maximum |
VDRM , maximum |
IRRM/IDRM |
Part Number |
peak reverse voltage |
peak direct voltage |
125°C |
|
V |
V |
mA |
|
|
|
|
25TTS08FP |
800 |
800 |
10 |
|
|
|
|
25TTS12FP |
1200 |
1200 |
|
|
|
|
|
25TTS16FP |
1600 |
1600 |
|
|
|
|
|
Absolute Maximum Ratings
|
Parameters |
25TTS..FP |
Units |
|
|
Conditions |
||
|
|
|
|
|
|
|
|
|
IT(AV) |
Max.AverageOn-stateCurrent |
16 |
|
A |
@TC=85°C,180°conductionhalfsinewave |
|||
IRMS |
Max.RMSOn-stateCurrent |
25 |
|
|
|
|
|
|
ITSM |
Max.PeakOneCycleNon-Repetitive |
300 |
|
10msSinepulse,ratedVRRMapplied |
||||
|
SurgeCurrent |
350 |
|
10msSinepulse,novoltagereapplied |
||||
|
|
|
|
|
|
|
||
I2t |
Max. I2t for fusing |
450 |
A2s |
10msSinepulse,ratedVRRMapplied |
||||
|
|
630 |
|
10msSinepulse,novoltagereapplied |
||||
|
|
|
|
|
|
|
||
I2Öt |
Max. I2Öt for fusing |
6300 |
A2Ös |
t=0.1to10ms,novoltagereapplied |
||||
|
|
|
|
|
|
|
||
VTM |
Max.On-stateVoltageDrop |
1.25 |
V |
@16A, TJ = 25°C |
||||
rt |
On-state slope resistance |
12.0 |
mW |
TJ = |
125°C |
|||
VT(TO) |
Threshold Voltage |
1.0 |
|
V |
|
|
|
|
IRM/IDM Max.Reverse and Direct |
0.5 |
|
mA |
TJ = |
25 °C |
VR = rated VRRM/ VDRM |
||
|
Leakage Current |
10 |
|
|
TJ = 125 °C |
|||
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
IH |
Holding Current |
Typ. |
|
Max. |
|
Anode Supply = 6V, Resistive load, Initial IT=1A |
||
|
|
-- |
|
100 |
mA |
25TTS08FP, 25TTS12FP |
||
|
|
|
|
|
|
|
||
|
|
100 |
|
150 |
|
25TTS16FP |
||
|
|
|
|
|
|
|||
IL |
Max.LatchingCurrent |
200 |
mA |
AnodeSupply=6V,Resistiveload |
||||
dv/dt |
Max. Rate of Rise of off-state Voltage |
500 |
V/µs |
|
|
|
||
|
|
|
|
|
|
|
|
|
di/dt |
Max. Rate of Rise of turned-on Current |
150 |
A/µs |
|
|
|
||
|
|
|
|
|
|
|
|
|
2 |
www.irf.com |
|
|
|
|
|
25TTS..FP SAFEIR Series |
|
|
|
|
|
|
Bulletin I2135 rev. D 03/99 |
|
|
|
|
|
|
|
|
Triggering |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Parameters |
|
25TTS..FP |
Units |
Conditions |
|
PGM |
Max. peak Gate Power |
|
8.0 |
W |
|
|
PG(AV) Max. average Gate Power |
|
2.0 |
|
|
|
|
+ IGM Max. paek positive Gate Current |
1.5 |
A |
|
|
||
|
|
|
|
|
|
|
- VGM Max. paek negative Gate Voltage |
10 |
V |
|
|
||
|
|
|
|
|
|
|
IGT |
Max. required DC Gate Current |
60 |
mA |
Anode supply = 6V, resistive load, TJ = - 10°C |
|
|
|
to trigger |
|
45 |
|
Anode supply = 6V, resistive load, TJ = 25°C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
Anode supply = 6V, resistive load, TJ = 125°C |
|
|
|
|
|
|
|
|
VGT |
Max. required DC Gate Voltage |
2.5 |
V |
Anode supply = 6V, resistive load, TJ = - 10°C |
|
|
|
to trigger |
|
2.0 |
|
Anode supply = 6V, resistive load, TJ = 25°C |
|
|
|
|
|
|
|
|
|
|
|
1.0 |
|
Anode supply = 6V, resistive load, TJ = 125°C |
|
|
|
|
|
|
|
|
VGD |
Max. DC Gate Voltage not to trigger |
0.25 |
|
TJ = 125°C, V DRM = rated value |
||
IGD |
Max. DC Gate Current not to trigger |
2.0 |
mA |
TJ = 125°C, V DRM = rated value |
||
Switching |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Parameters |
|
25TTS..FP |
Units |
Conditions |
|
tgt |
Typical turn-on time |
|
0.9 |
µs |
TJ = 25°C |
|
trr |
Typical reverse recovery time |
4 |
|
TJ = 125°C |
||
tq |
Typical turn-off time |
|
110 |
|
|
|
Thermal-Mechanical Specifications |
|
|
|
|||
|
|
|
|
|
|
|
|
Parameters |
|
25TTS..FP |
Units |
Conditions |
|
|
|
|
|
|
|
|
TJ |
Max. Junction Temperature Range |
- 40 to 125 |
°C |
|
|
|
Tstg |
Max. Storage Temperature Range |
- 40 to 125 |
|
|
|
|
RthJC |
Max. Thermal Resistance Junction |
1.5 |
°C/W |
DC operation |
||
|
to Case |
|
|
|
|
|
RthJA |
Max. Thermal Resistance Junction |
62 |
|
|
|
|
|
to Ambient |
|
|
|
|
|
|
|
|
|
|
|
|
RthCS |
Typ. Thermal Resistance Case |
1.5 |
|
Mountingsurface,smoothandgreased |
||
|
toHeatsink |
|
|
|
|
|
wt |
Approximate Weight |
|
2 (0.07) |
g (oz.) |
|
|
|
|
|
|
|
|
|
T |
Mounting Torque |
Min. |
6 (5) |
Kg-cm |
|
|
|
|
|
|
|
|
|
|
|
Max. |
12 (10) |
(Ibf-in) |
|
|
|
|
|
|
|
|
|
|
CaseStyle |
|
TO-220FULLPAK |
(94/V0) |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
www.irf.com |
|
|
|
3 |
|
|
