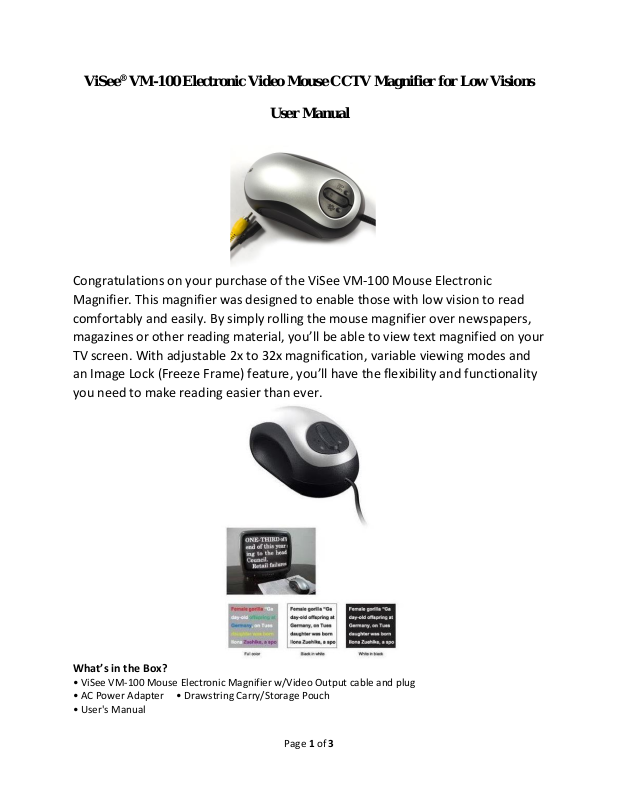

ViSee® VM-100 Electronic Video Mouse CCTV Magnifier for Low Visions
User Manual
Congratulations on your purchase of the ViSee VM-100 Mouse Electronic
Magnifier. This magnifier was designed to enable those with low vision to read
comfortably and easily. By simply rolling the mouse magnifier over newspapers,
magazines or other reading material, you’ll be able to view text magnified on your
TV screen. With adjustable 2x to 32x magnification, variable viewing modes and
an Image Lock (Freeze Frame) feature, you’ll have the flexibility and functionality
you need to make reading easier than ever.
What’s in the Box?
• ViSee VM-100 Mouse Electronic Magnifier w/Video Output cable and plug
• AC Power Adapter • Drawstring Carry/Storage Pouch
• User's Manual
Page 2
Page 2 of 3
Main Features of Mouse Electronic Magnifier:
• 8 adjustable magnification levels (2x-32x) to accommodate varying user needs
• Multiple viewing modes: full color, black on white, white on black, high contrast
• Built-in LED lighting system allows for operation in different lighting environments
• Ergonomically designed and easy to use
• Image Lock/Freeze Frame: Freeze images on screen for
Mouse Magnifier Button Functions:
1. "M": Mode selection button (Full Color - Black on White - White on
Black - High Contrast)
2. "+": Zoom in
3. "-": Zoom out
4. "*": Image Lock (Freeze Frame)
5. Camera On/Off Switch
Installing & Using the Mouse Electronic Magnifier - (Wired Version for TV):
1. Plug the Video Output (yellow plug) into your TV’s Video In jack
2. Plug the AC power cord into a standard electrical outlet
3. Slide the switch on the mouse to "On" and you’re ready to go!
4. Just place the Mouse on top of the reading material and view it magnified on your TV screen.
Gently slide the mouse across thepage as you read.
5. Use the "Plus" and "Minus" keys to adjust the magnifying power (2x to 32x)
6. Use "M" to choose Color, Black on White, White on Black or High Contrast mode
7. Use "*" Image Lock button to ‘freeze’ an image for extended viewing/reading
Page 3
Page 3 of 3

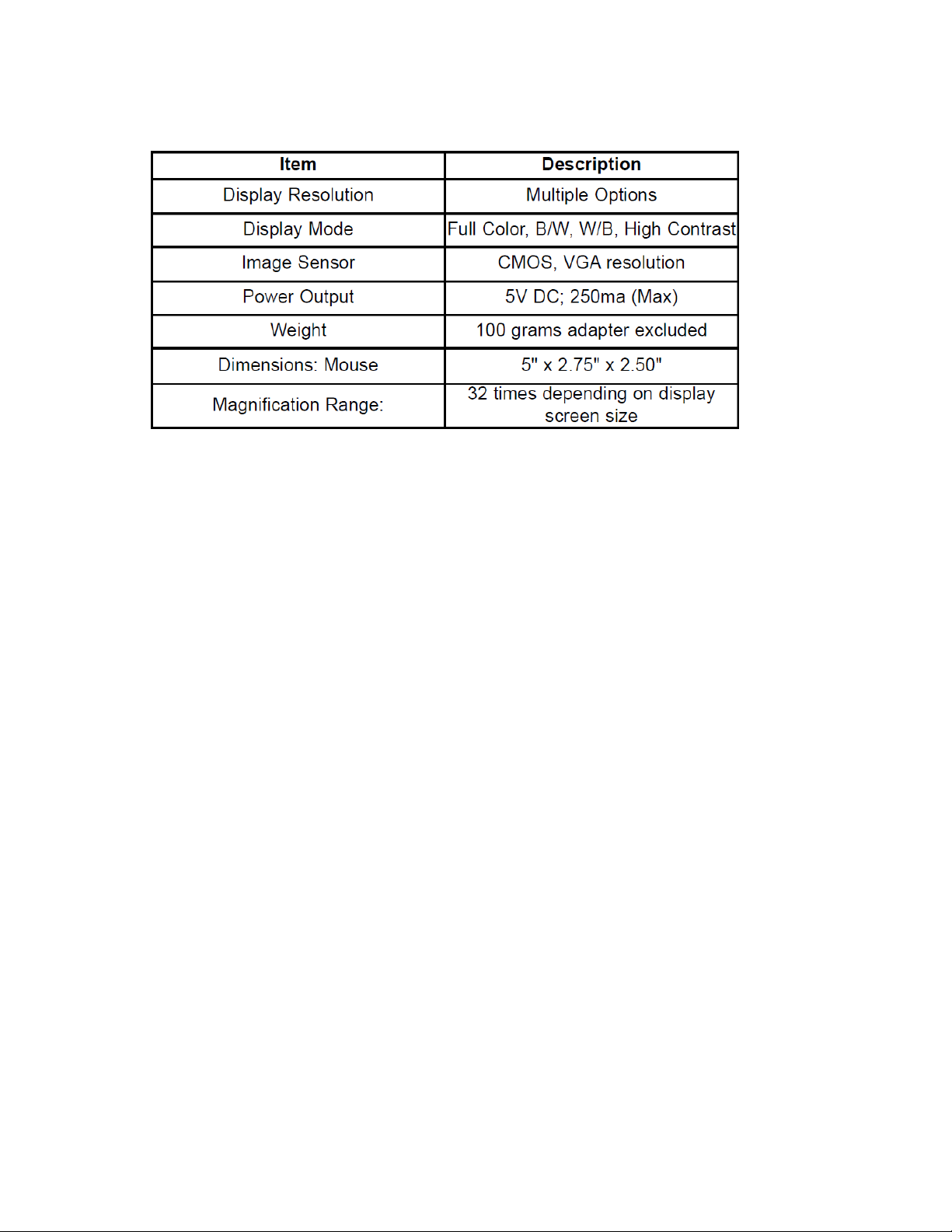

Technical Specifications:
Important Safety Precautions
To keep the unit in good condition and to ensure safe usage, please refer to the following
guidelines:
• Read the instructions in this user’s guide before starting to use the unit.
• Do not attempt to repair the unit or open its case. This product contains no user serviceable
parts.
• Keep the unit away from wet areas, rain, and other sources of liquids or high humidity. Do not
submerge the unit.
• Always operate the unit in a place where the temperature is between 10° and 40° C (50° and
104° F).
• Always store where the temperature is between -20° and 65° C (-4° and 149° F).
• Always use the unit on a stable, level, hard surface such as a deskor table.
• Never force connectors into the unit’s ports. All appropriate connectors should fit easily into the
ports. If the connector does not fit, turn itaround, and try again.
• Use only the power cable that came with your unit. Other adapters may damage the magnifier.
• When cleaning the unit, make sure it is unplugged. To clean it, lightly dampen a soft, clean
cloth with water or mild detergent.
• Do not bend or twist the cable excessively.
• Do not leave the power cable or product cable where someone might trip over it.
Oasis Scientific / ViSee Tech
3110 Wade Hampton Blvd. Suite 18
Taylors, SC 29687
www.oasisscientific.com
www.viseetech.com
