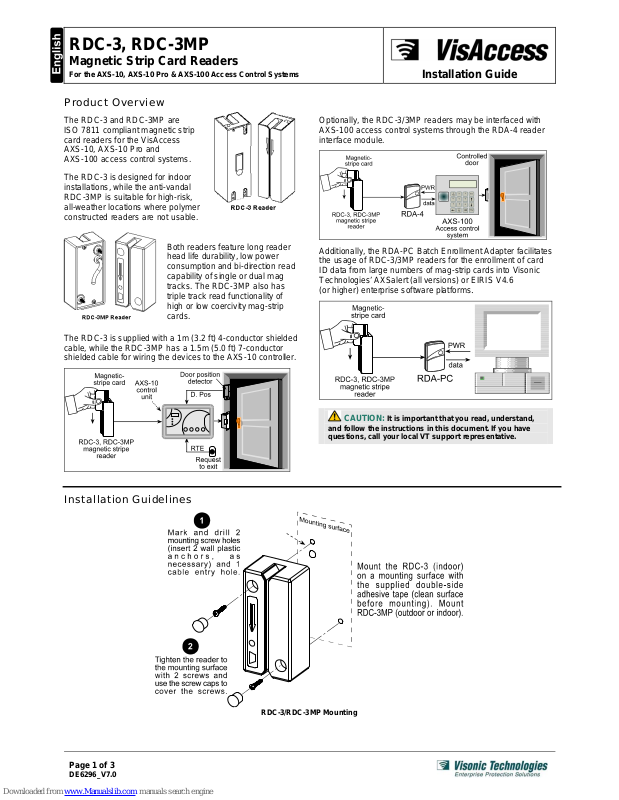

Page 1
Page 1 of 3
DE6296_V7.0
RDC-3, RDC-3MP
Magnetic Strip Card Readers
For the AXS-10, AXS-10 Pro & AXS-100 Access Control Systems
Installation Guide
Product Overview
The RDC-3 and RDC-3MP are
ISO 7811 compliant magnetic strip
card readers for the VisAccess
AXS-10, AXS-10 Pro and
AXS-100 access control systems.
The RDC-3 is designed for indoor
installations, while the anti-vandal
RDC-3MP is suitable for high-risk,
all-weather locations where polymer
constructed readers are not usable.
Both readers feature long reader
head life durability, low power
consumption and bi-direction read
capability of single or dual mag
tracks. The RDC-3MP also has
triple track read functionality of
high or low coercivity mag-strip
cards.
The RDC-3 is supplied with a 1m (3.2 ft) 4-conductor shielded
cable, while the RDC-3MP has a 1.5m (5.0 ft) 7-conductor
shielded cable for wiring the devices to the AXS-10 controller.
Optionally, the RDC-3/3MP readers may be interfaced with
AXS-100 access control systems through the RDA-4 reader
interface module.
Additionally, the RDA-PC Batch Enrollment Adapter facilitates
the usage of RDC-3/3MP readers for the enrollment of card
ID data from large numbers of mag-strip cards into Visonic
Technologies’ AXSalert (all versions) or EIRIS V4.6
(or higher) enterprise software platforms.
CAUTION: It is important that you read, understand,
and follow the instructions in this document. If you have
questions, call your local VT support representative.
Installation Guidelines
RDC-3/RDC-3MP Mounting
Page 2
RDC-3, RDC-3MP
Magnetic Strip Card Readers – Installation Guide
Page 2 of 3
DE6296_V7.0
Wiring Readers
RDC-3 to AXS-10
CoRDC-3MP to AXS-10
AXS-10 DIP Switch Setting for
Magnetic Stripe Readers
RDC-3 to RDA-4/RDA-PC
RDC-3MP to RDA-4 / RDA-PC
Page 3
RDC-3, RDC-3MP
Magnetic Strip Card Readers – Installation Guide
Page 3 of 3
DE6296_V7.0
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it.
If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your
supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
RDC-3 Specifications
Power 5.0 VDC nominal ± 5%
Current Less than 10mA
Power Source
AXS-10 access controller
AXS-100 access controller via RDA-4 adapter
Card Standard ISO 7811
Data Tracks 2 (IATA)
Reading Method 210BPI
Output Levels High - 2.4V min, low - 0.8V max
Feeding Speed 15 - 120 cm/sec
Head Life 300,000 card passes minimum
Construction Polymer plastic - indoor usage only
Dimensions (L x W x D): 99.0 x 31.0 x 32.0mm (3.875 x 1.187 x 1.25 inches)
Color Black
Weight 45 grams (1.6 ounces) approximate
Temperature &
Humidity
0° to 50°C (32° to 122°F);
20% to 80% non-condensing
Supplied Cable 1m (3 ft), 4-conductor shielded cable
Maximum Cable Length
from Controller
5.0 meters (16.4 feet)
Compatible Software
EIRIS V4.6 or higher or AXSalert (all versions)
via the RDA-PC batch enrollment adapter
Warranty One year limited warranty
RDC-3MP Specifications
Power 4.5 - 5.5 VDC nominal ± 5%
Current Less than 35mA
Power Source
AXS-10 access controller
AXS-100 access controller via RDA-4 adapter
Card Standard ISO 7811
Data Tracks Track 1, 2 (or 3, in high or low coercivity)
Reading Method 210BPI
Output Type Open-collector (pulled up internally by 4,700 ohm res.)
Protocol AB (TTL + LED)
Feeding Speed 15 - 120 cm/sec
Head Life 300,000 card passes minimum
LED Status Indicator
Red: In-valid card
Green: Valid card
Construction Stainless steel – indoor/outdoor usage
Dimensions (L x W x D): 104 x 49.5 x 35.0mm (3.875 x 1.187 x 1.25 inches)
Color Natural aluminum color
Weight 45 grams (1.6 ounces) approximate
Operating Temperature
& Humidity
0° to 50°C (32° to 122°F);
05% to 95% non-condensing
Storage Temperature -20 to +70°C (-4 to 158°F)
Supplied Cable 1.5 m ( 5. 0 ft), 7-conductor shielded cable
Maximum Cable Length
from Controller
5.0 meters (16.4 feet)
Compatible Software
EIRIS V4.6 or higher or AXSalert (all versions)
via the RDA-PC batch enrollment adapter
Warranty One year limited warranty
Ordering Details
Part Information
3-6295-0 RDC-3, Plastic, Indoor magnetic-stripe reader
3-6297-0 RDC-3MP, Metal, anti-vandal, Indoor/Outdoor magnetic strip reader
Compatible Accessories
3-6319-0 RDA-4, Reader interface module for AXS-100r
3-6227-0 RDA-PC, Batch enrollment adapter/110V 60Hz transformer
3-6227-1 RDA-PC, Batch enrollment adapter/230V 50Hz transformer
Product Warranty
Visonic Technologies Ltd. (VT or the Company), and its affiliates, warrant s its products
(hereinafter referred to as "the Product”) t o be free of defects in materials and workmanship under
normal operating conditions and use for a period of one year from the dat e of shipment by VT.
The Company’s obligations shall be limited within the warranty period, at its option, to repair or to
replace the defective Product or any defective component or part thereof. To exercise t his
warranty, the product must be returned to the manufacturer freight prepaid and insured.
This warranty does not apply to repairs or replacement caused by improper installation, Product
misuse, failure to follow installation or operating instructions, alterat ion, abuse, accident,
tampering, repair by anyone other than VT, external causes, and failure to perform required
preventive maintenance. This warranty also does not apply to any products, accessories, or
attachments used in conjunction with the Product, including batteries, which shall be covered
solely by their own warranties, if any. VT shall not be liable for any damage or loss whatsoever,
whether directly, indirectly, incidentally, consequentially or otherwise, resulting from a malf unct ion
of the Product due to products, accessories, or attachments of others, including batteries, used in
conjunction with the Product.
VT MAKES NO EXPRESS WARRANTIES EXCEPT THOSE STATED IN THIS STATEMENT. VT
DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION IMPLIED WARRANTIES O F MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. VT’S SOLE RESPONSIBILITY FOR WARRANTY CLAIMS IS
LIMITED TO REPAIR OR TO REPLACE AS SET FORTH IN THIS STATEMENT.
VT shall have no liability for any death, personal injury, property damage, or other loss whether
direct, indirect, incidental, consequential, or otherwise, based on a claim that the Product failed to
function. However, if VT is held liable, whether directly or indirectly, for any loss or damage arising
under this limited warranty or otherwise, regardless of cause or origin, VT' s maximum liability shall
be limited to the purchase price of the Product, which shall be fixed as liquidated damages and
not as a penalty, and shall be the complete and exclusive liability of VT.
VT shall not, under any circumstances whatsoever, be liable for any inaccuracy, error of
judgment, default, or negligence of VT, its employees, officers, agents, or any other party, or of
the purchaser or user, arising from any assistance or communication of any kind regarding the
configuration, design, installation, or creation of securit y system involving the Product, that being
the responsibility of the purchaser or user.
If VT is unable to make such repair or replacement, VT’s ent ire liability shall be limited to the cost
of a reasonable substitute product. VT shall not be responsible for any dismantling, installation,
reinstallation, purchasing, shipping, insurance, or any similar charges.
VT shall have no liability for any damages, including without limitation, any direct, indirect,
incidental, special, or consequential damages, expenses, costs, profits, lost savings or ear nings,
or other damages arising out of the use of the Product or t he r emoval, installation, reinstallation,
repair or replacement of the Product or any related events. In the event that ther e is any liability
against VT, such liability shall be limited to the purchase price of the Product which amount shall
be fixed as liquidated damages.
The purchaser and user understand that this Product may be compromised or circumvented by
intentional acts; that the Product will not in all cases prevent death, personal injury, property
damage, or other loss resulting from burglary, robbery, fire or other causes; and that the Product
will not in all cases provide adequate warning or protection. The purchaser and user also
understand that a properly installed and maintained alarm may reduce the risk of events such as
burglary, robbery, and fire without warning, but it is not insurance or a guarantee that such events
will not occur or that there will be no death, personal injury, property damage, or other loss as a
result of such events.
By purchasing the Product, the purchaser and user shall defend, indemnify and hold VT, its
officers, directors, affiliates, subsidiaries, agents, servants, employees, and authorized
representatives harmless from and against any and all claims, suits, costs, damages, and
judgments incurred, claimed, or sustained whether for death, personal injur y, pr operty damage, or
otherwise, because of or in any way related to the configuration, design, installation, or creation of
a security system involving the Product, and the use, sale, distribution, and installation of the
Product, including payment of any and all attorney’s fees, costs, and expenses incurred as a
result of any such events.
The purchaser or user should follow the Product installation and operation instructions and test
the Product and the entire system at least once each week. For various reasons, including but not
limited to changes in environmental conditions, electric, electronic, or electrom agnetic disruptions,
and tampering, the Product may not perform as expected. The purchaser and user ar e advised to
take all necessary precautions for the protection and safety of persons and property.
This statement provides certain legal rights. Other right s may vary by state or country. Under
certain circumstances, some states or countries may not allow exclusion or limitation of incidental
or consequential damages or implied warranties, so the above exclusions may not apply under
those circumstances and in those states or countries.
VT reserves the right to modify this statement at any time, in its sole discret ion without not ice to
any purchaser or user. However, this statement shall not be modified or varied except by VT in
writing, and VT does not authorize any single individual to act on its behalf to modify or vary this
statement. Any questions about this statement should be directed to VT. 3/07
