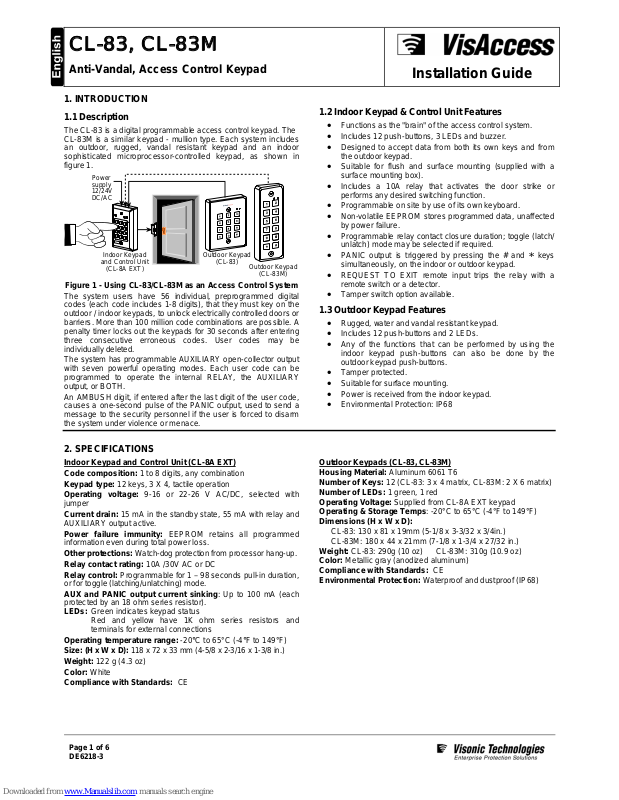

VisAccess CL-83, CL-83M Installation Manual
Page 1 of 6
DE6218-3
CL-83, CL-83M
Anti-Vandal, Access Control Keypad
Installation Guide
1. INTRODUCTION
1.1 Description
The CL-83 is a digital programmable access control keypad. The
CL-83M is a similar keypad - mullion type. Each system includes
an outdoor, rugged, vandal resistant keypad and an indoor
sophisticated microprocessor-controlled keypad, as shown in
figure 1.
Power
supply
12/24V
DC/AC
Outdoor Keypad
(CL-83)
Outdoor Keypad
(CL-83M)
Indoor Keypad
and Control Unit
(CL-8A EXT)
Figure 1 - Using CL-83/CL-83M as an Access Control System
The system users have 56 individual, preprogrammed digital
codes (each code includes 1-8 digits), that they must key on the
outdoor / indoor keypads, to unlock electrically controlled doors or
barriers. More than 100 million code combinations are possible. A
penalty timer locks out the keypads for 30 seconds after entering
three consecutive erroneous codes. User codes may be
individually deleted.
The system has programmable AUXILIARY open-collector output
with seven powerful operating modes. Each user code can be
programmed to operate the internal RELAY, the AUXILIARY
output, or BOTH.
An AMBUSH digit, if entered after the last digit of the user code,
causes a one-second pulse of the
PANIC output, used to send a
message to the security personnel if the user is forced to disarm
the system under violence or menace.
1.2 Indoor Keypad & Control Unit Features
•
Functions as the "brain" of the access control system.
• Includes 12 push-buttons, 3 LEDs and buzzer.
• Designed to accept data from both its own keys and from
the outdoor keypad.
• Suitable for flush and surface mounting (supplied with a
surface mounting box).
• Includes a 10A relay that activates the door strike or
performs any desired switching function.
• Programmable on site by use of its own keyboard.
• Non-volatile EEPROM stores programmed data, unaffected
by power failure.
• Programmable relay contact closure duration; toggle (latch/
unlatch) mode may be selected if required.
• PANIC output is triggered by pressing the # and
*
keys
simultaneously, on the indoor or outdoor keypad.
• REQUEST TO EXIT remote input trips the relay with a
remote switch or a detector.
• Tamper switch option available.
1.3 Outdoor Keypad Features
•
Rugged, water and vandal resistant keypad.
• Includes 12 push-buttons and 2 LEDs.
• Any of the functions that can be performed by using the
indoor keypad push-buttons can also be done by the
outdoor keypad push-buttons.
• Tamper protected.
• Suitable for surface mounting.
• Power is received from the indoor keypad.
• Environmental Protection: IP68
2. SPECIFICATIONS
Indoor Keypad and Control Unit (CL-8A EXT)
Code composition: 1 to 8 digits, any combination
Keypad type: 12 keys, 3 X 4, tactile operation
Operating voltage: 9-16 or 22-26 V AC/DC, selected with
jumper
Current drain: 15 mA in the standby state, 55 mA with relay and
AUXILIARY output active.
Power failure immunity: EEPROM retains all programmed
information even during total power loss.
Other protections: Watch-dog protection from processor hang-up.
Relay contact rating: 10A /30V AC or DC
Relay control: Programmable for 1 – 98 seconds pull-in duration,
or for toggle (latching/unlatching) mode.
AUX and PANIC output current sinking: Up to 100 mA (each
protected by an 18 ohm series resistor).
LEDs: Green indicates keypad status
Red and yellow have 1K ohm series resistors and
terminals for external connections
Operating temperature range: -20°C to 65°C (-4°F to 149°F)
Size: (H x W x D): 118 x 72 x 33 mm (4-5/8 x 2-3/16 x 1-3/8 in.)
Weight: 122 g (4.3 oz)
Color: White
Compliance with Standards: CE
Outdoor Keypads (CL-83, CL-83M)
Housing Material: Aluminum 6061 T6
Number of Keys: 12 (CL-83: 3 x 4 matrix, CL-83M: 2 X 6 matrix)
Number of LEDs: 1 green, 1 red
Operating Voltage: Supplied from CL-8A EXT keypad
Operating & Storage Temps: -20°C to 65°C (-4°F to 149°F)
Dimensions (H x W x D):
CL-83: 130 x 81 x 19mm (5-1/8 x 3-3/32 x 3/4in.)
CL-83M: 180 x 44 x 21mm (7-1/8 x 1-3/4 x 27/32 in.)
Weight: CL-83: 290g (10 oz) CL-83M: 310g (10.9 oz)
Color: Metallic gray (anodized aluminum)
Compliance with Standards: CE
Environmental Protection: Waterproof and dustproof (IP68)
Page 2 of 6
DE6218-3
3. INSTALLATION
3.1 Indoor Keypad Mounting
Do not install outdoors!
Surface Mounting
2
Use back box as a template, mark &
drill holes in mounting surface . Fasten
the back box to the mounting surface.
Fasten the keypad to its back box
with 2 screws.
Remove screws and remove the
keypad from from the back box.
1
Mounting
knockouts
Wiring
knockout
Mounting
knockouts
Wiring knockout
(1 OF 2)
Flush Mounting Optional
Standard, single-gang
electrical switch box
2
Fasten the keypad to a single-gang
electrical switch box, pr ovided t hat
its internal dimensions are n ot les s
than 5cm (2 in.) wide by 7cm (2.8 in.)
high, by using 2 screws.
Remove screws and remove the
keypad back box (not used).
1
Supplied
box
Figure 2 - Indoor Keypad Surface and Flush Mounting
3.2 Outdoor Keypad Mounting
Note: The CL-83M is designed for installation on a door frame.
Drill 2 holes in the mounting surface, insert wall anchors as
necessary and fasten the outdoor keypad to the mounting surface
by using 2 screws.
CL-83
CL-83M
RUBBER
GASKET
(***)
RUBBER
GASKET
Screw
caps (*)
Screw
caps (*)
Cable
hole
(**)
Cable
hole
(**)
Figure 3 - Outdoor Keypad Mounting
* Screw caps should be installed only
after the system
mounting and test is completed.
** Cable hole diameter: 10-12 mm.
*** The rubber gasket is designed for mounting the CL-83/CL-
83M on an uneven surface and/or to prevent the formation of
dampness and dust inside the keypad.
3.3 Wire Gauges and Routing
Use # 20 AWG or larger diameters for relay connections to the
door strike, to the control panel or any other system used. All
other connections are to be made with # 22 AWG or larger. Route
the wires through the wiring knockouts on the back box. Two
cables (1 meter long) are supplied with the CL-83 / CL-83M, P/N
PAW 80011, 6x6005/AWG#22.
3.4 Wiring
IMPORTANT! Before wiring be sure to set The indoor keypad jumper
JP3 in the position that corresponds with the power source you are
using:
9 - 16 Volts - mount the jumper across the two pins of JP3.
22-26 Volts - remove the jumper or mount it on a single pin of JP3.
Perform wiring as follows (see figure 4A/4B):
A. Connect the door strike
leads between one of the door control
power supply terminals and terminal 11 (N.O.) of the indoor
keypad. In case of a magnetic door lock, connect the lock’s
leads between one of the door control power supply terminals
and terminal 12 (N.C.) of the indoor keypad.
B. Connect the remaining terminal of the door control power
supply to terminal 10 (COM) of the indoor keypad.
C. Connect the panic buzzer / relay (a 12 or 24 VDC unit,
depending on power supply) between terminal 8 (PANIC) of
the indoor keypad and power supply positive (+) terminal.
D. Connect the auxiliary buzzer or relay (a 12 or 24 VDC unit,
depending on the power supply) between terminal 9 (AUX) of
the indoor keypad and the positive (+) terminal of the power
supply.
–+
N.O.
BUZ.
OR
REL.
DOOR
STRIKE
OR
RELA Y
MAG-
NETIC
LOCK
12V OR 24 V
AC / DC POWER
SUPPLY
6 - 28 V AC / DC
DOOR CONTROL
POWER SUPPLY
+12 OR 24 VDC
RED LED
+
+
–
BUZ.
OR
REL.
–
123456789101112
JP1
JP3
1K 1K
1818
100 mA MAX.
100 mA MAX.
Indoor
Keypad
2345679101112
1
YEL. LED
+
–
Outdoor Keypad CL-83
Use supp lied cable
(see par. 3.3)
Figure 4A - Wiring with CL-83
–+
N.O.
BUZ.
OR
REL.
DOOR
STRIKE
OR
RELAY
MAG-
NETIC
LOCK
12V OR 24 V
AC / DC POWER
SUPPLY
6 - 28 V AC / DC
DOOR CONTROL
POWER SUPPLY
+12 OR 24 VDC
RED LED
+
+
–
BUZ.
OR
REL.
–
123456789101112
JP1
JP3
1K 1K
1818
100 mA MAX.
100 mA MAX.
Indoor
Keypad
YEL. LED
+
–
Outdoor Keypad CL-83M
Use supplie d cable
(see par. 3.3)
2
3
4
5
6
7
9
10
11
12
1
BUZZER
Figure 4B - Wiring with CL-83M
Important: When a 12VAC power source is used, LEDs connected
to the PANIC or AUX open collector outputs will light normally when
the output pulls down. Buzzers will not function properly, and should
therefore be avoided. When a 24VAC power source is used, neither
LEDs nor buzzers should be connected to the PANIC and AUX.
