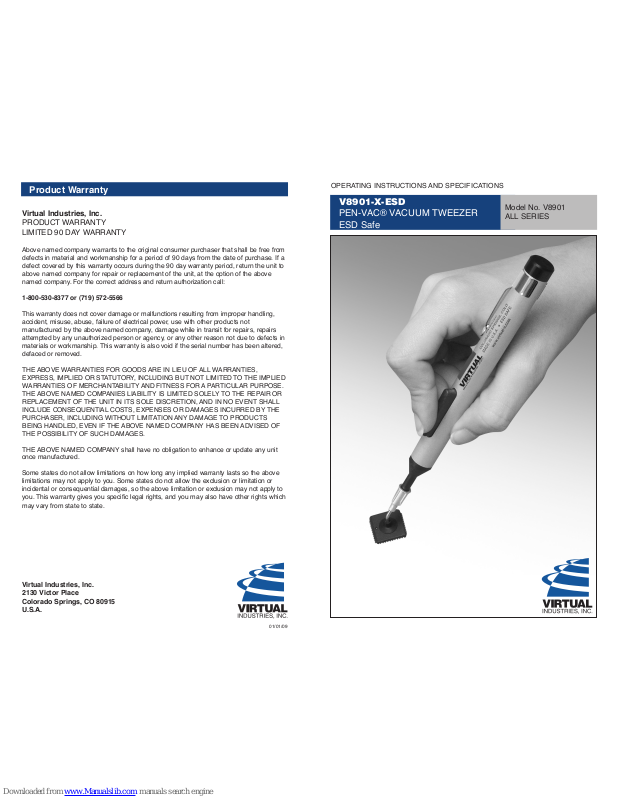

OPERATING INSTRUCTIONS AND SPECIFICATIONS

V8901-X-ESD

PEN-VAC® VACUUM TWEEZER
ESD Safe

Model No. V8901
ALL SERIES

01/01/09

Virtual Industries, Inc.

PRODUCT WARRANTY
LIMITED 90 DAY WARRANTY

Above named company warrants to the original consumer purchaser that shall be free from
defects in material and workmanship for a period of 90 days from the date of purchase. If a
defect covered by this warranty occurs during the 90 day warranty period, return the unit to
above named company for repair or replacement of the unit, at the option of the above
named company. For the correct address and return authorization call:

1-800-530-8377 or [phone]

This warranty does not cover damage or malfunctions resulting from improper handling,
accident, misuse, abuse, failure of electrical power, use with other products not
manufactured by the above named company, damage while in transit for repairs, repairs
attempted by any unaut

horized person or agency, or any other reason not due to defects in
materials or workmanship. This warranty is also void if the serial number has been altered,
defaced or removed.

THE ABOVE WARRANTIES FOR GOODS ARE IN LIEU OF ALL WARRANTIES,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE ABOVE NAMED COMPANIE

S LIABILITY IS LIMITED SOLELY TO THE REPAIR OR
REPLACEMENT OF THE UNIT IN ITS SOLE DISCRETION, AND IN NO EVENT SHALL
INCLUDE CONSEQUENTIAL COSTS, EXPENSES OR DAMAGES INCURRED BY THE
PURCHASER, INCLUDING WITHOUT LIMITATION ANY DAMAGE TO PRODUCTS
BEING HANDLED, EVEN IF THE ABOVE NAMED COMPANY HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.

THE ABOVE NAMED COMPANY shall have no obligation to enhance or update any unit
once manufactured.

Some states do not allow limitations on how long any implied warranty lasts so the above
limitations may not apply to you. Some states do not allow the exclusion or limitation or
incidental or consequential damages, so the above limitation or exclusion may not apply to
you. This warranty gives you specific legal rights, and you may also have other rights which
may va

ry from state to state.

Virtual Industries, Inc.
2130 Victor Place
Colorado Springs, CO 80915
U.S.A.

Product Warranty

1. Select a probe with a

vacuum cup that is
slightly smaller in
diameter to the outline
of the parts that you
want to pick and place.
Securely install it on
the tapered end of the
vacuum handle.
Selecting a vacuum
cup that is too large or
too small will result in
improper operation.

2. To pick and place a

part:

a. Place index finger on

vacuum button and
push in, hold this
position and gently
place the vacuum cup
on

t

op of the part that
you wish to pick up,
now release button, the
part should now be
firmly grasped by the
vacuum cup.

b. Now move the part to

where you want it.

c. To release the part

simply push vacuum
button in.

Operation of the V8901-X-ESD

VACUUM PUSH
BUTTON

POCKET CLIP

REMOVABLE
CAP FOR
REAR
STORAGE
(Available on
standard unit
only)

ESD SAFE:

STATIC DISSAPATIVE PLASTIC NOZZLE

DIMENSIONS:

LENGTH DIAMETER

5.75” (146mm) .50” (1.27mm)

WEIGHT:

.060 OZ.

V8901-X-ESD OPTIONS

SELECTION OF VACUUM CUPS WITH PROBES
The vacuum cups are a soft rubber material that allow handling a wide variety of small
parts.

VACUUM PEN HOLDER VBM-3
Bench mount holder with posts to accommodate up to eight of our luer slip vacuum tips.
The holder can be used to hold any o

f o

ur vacuum handles or vacuum pens and helps

protect the vacuum tips when not in use.

For technical assistance call toll free 1-800-590-2829

Tele: 719-572-5566
Fax: [phone]

8:00 A.M. to 4:30 P.M. Mountain Standard Time

Specifications
