Virgin Ocean 2, Ocean User Manual

February 2009

Introducing the Ocean 2

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

2

Agenda

Feature Summary
Positioning

- What’s New?

- Portfolio Comparison

- Competitive Positioning

- Ocean 2 vs. Ocean

- Ocean 2 vs. iPhone 3G

Ocean 2 Overview

- Ocean 2 Overview

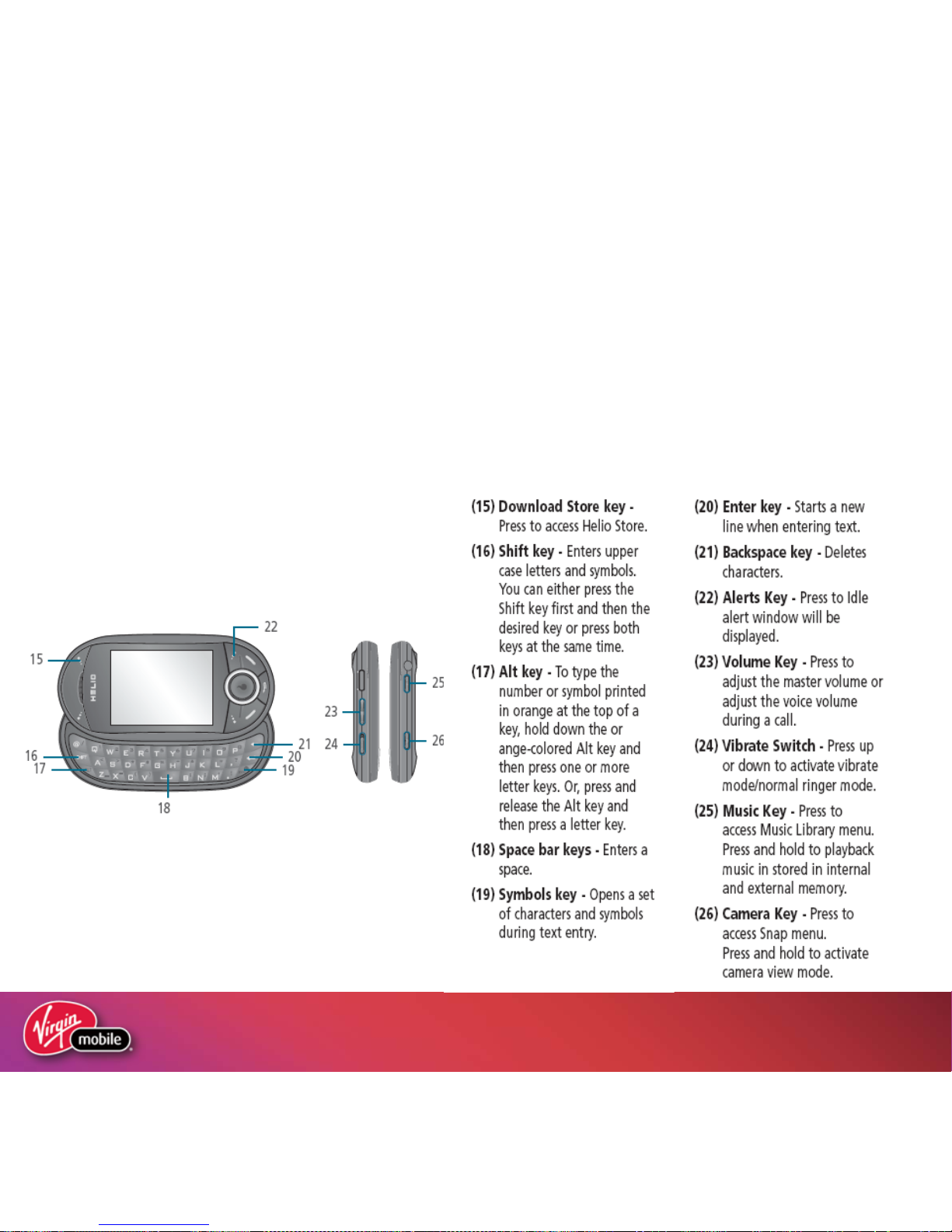

- Function Keys

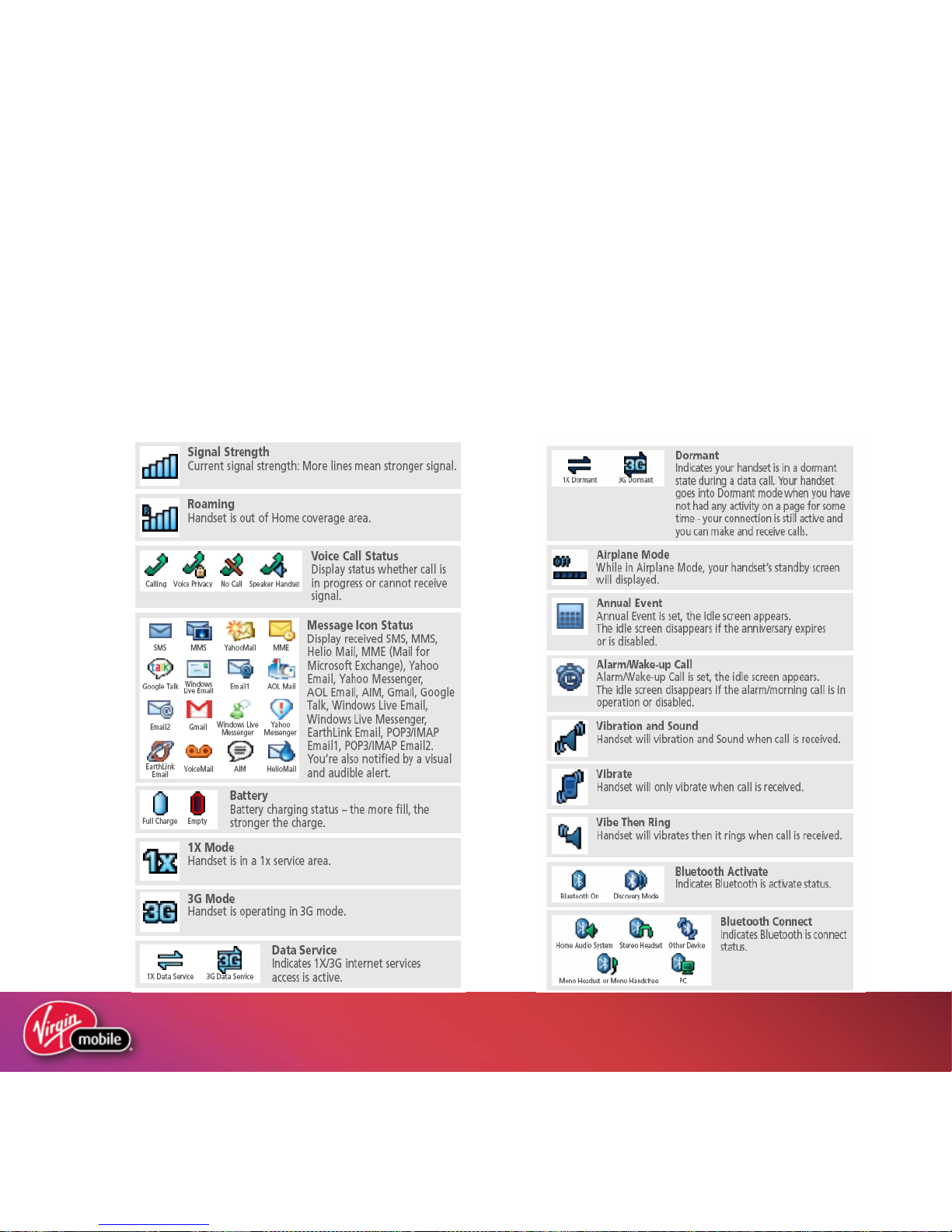

- Display Icons

- Menu Tree

- Accessories

Applications Overview
Customer Experience Improvements

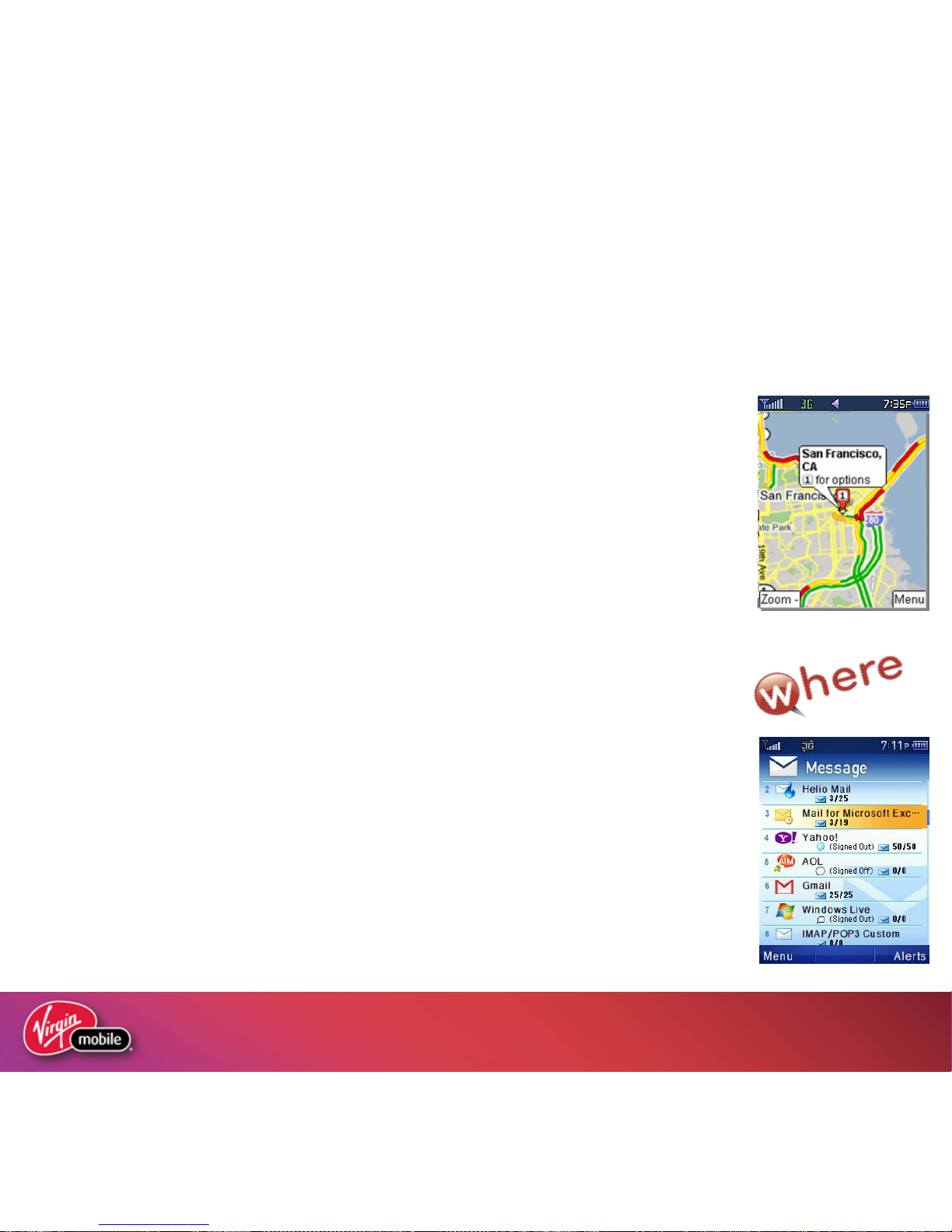

- Main Menu

-Style

- Browser, SMS/MMS

- Camera

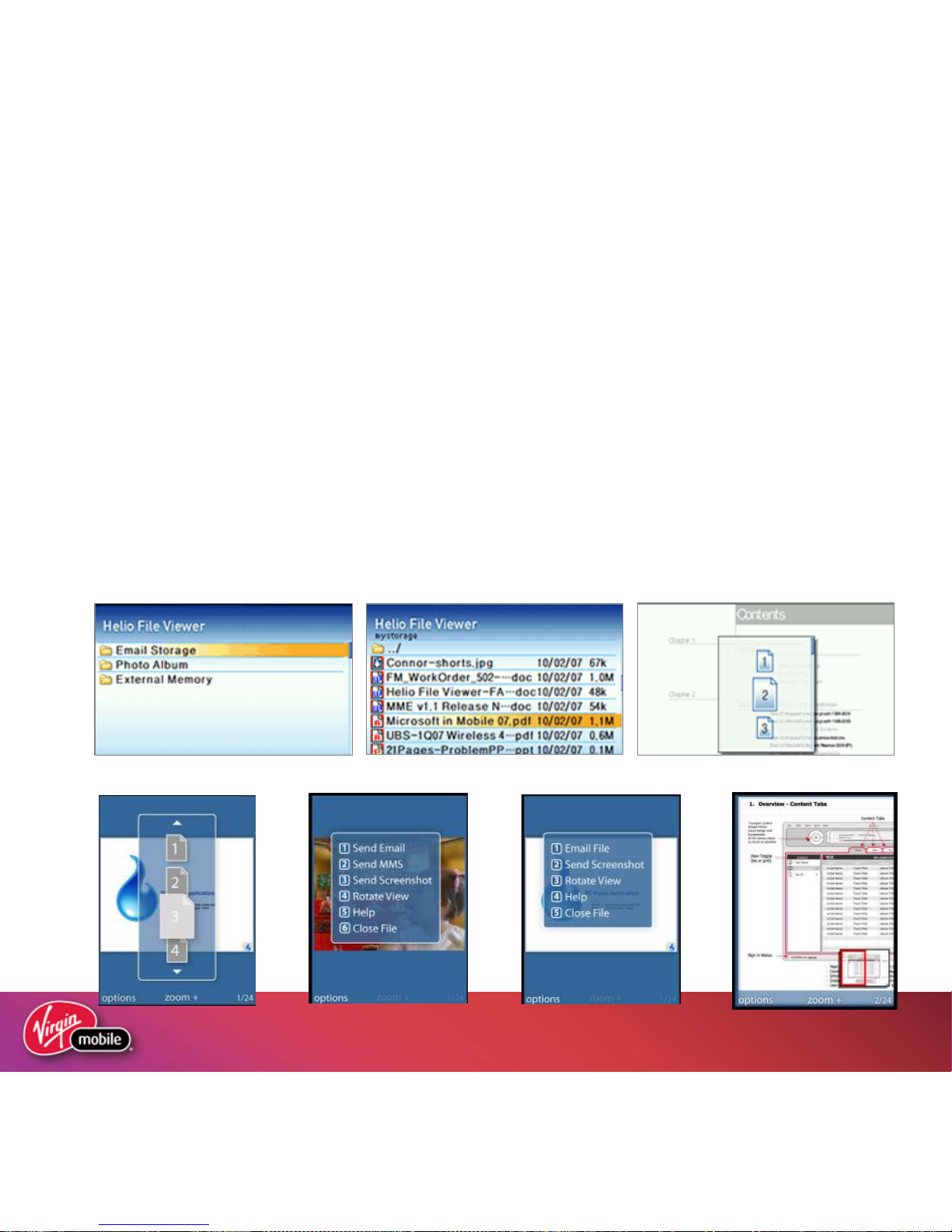

- File Viewer

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

3

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

3

Feature Summary

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

4

Ocean 2 is Helio by Virgin Mobile’s next generation

flagship personal communication device featuring

upgrades to Ocean in every category including a

larger display, improved multimedia capabilities,

usability, and performance.

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

5

Feature Summary

Key Differentiators

– Big 2.6” QVGA LCD Screen
– Full background music play along with 3.5mm ear-jack
– Industrial design improvement with Mercury concept
– Analog scroll functionality through optical sensor
– Updated Helio User Interface with new Helio main menu

Upgrades from the Ocean

– Integrated Alert management system for email, call events, IM, SMS/MMS
– 512mb External Memory card bundles with Device
– Turn by turn navigation, GPS enabled Google map
– Microsoft mail for Exchange (MME) support for full outlook calendar, contact, and email sync
– Ultimate Inbox with integrated Email and IM from all leading Portals (Yahoo, AOL, MSN,

Google)

– Buddy Beacon 2.0 with increased performance, User Interface, and the ability to connect with

non-Helio members

– Community Applications, including YouTube, MySpace, and Facebook

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

6

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

6

Ocean 2 Positioning

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

7

What’s New?

Category What’s New?

Industrial Design

Keyboard/keypad layers switched for more comfortable QWERTY experience
External dedicated silent mode slide button

Optical Sensor Optical sensor enabled navigation button for more responsive menu scrolling and page browsing

Camera

Night shot mode
Location tagging on pictures

Web

Send URL to Friend
Multi-Tab Browsing
Insert Contact Info … integrated with device Address Book
Location based integration with several Content Partners

Applications

Buddy Beacon 2.0
TellMe

Games

Same great, unique landscape gaming capabilities
New simple ability to upgrade rental games to full versions
Six (6) new preloaded game demos

Multimedia

Improved video playback (QVGA 384kbps)
MTP data transfer & Windows DRM compatible
Background Music Playback

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

8

What’s New?

Category What’s New?

Voice Search Voice-activate Search using TellMe

Address Book & Contacts

Backup

Same great Address Book and Smart Dialer
Improved integration between Device and MME contacts
Reminder prompts to backup/sync.
Ability to initiate Buddy Beacon & ‘locate’ a contact from Address Book

Messaging

Ultimate inbox providing email through Gmail, Yahoo, AOL, MyHelio, Earthlink
IM through Yahoo, AOL, MSN, and now Google Talk
Text and Pic message threading functionality

Location Based Services

Same great Google Maps and Garmin Mobile applications available for directions and navigation

Search

Improved Yahoo search results with OneSearch upgrade and implementation of LBS/Local integration

upgrades

Consistent Search results from Dialpad and Helio WAP portal

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

9

Ocean 2 vs. Ocean

Ocean 2 ™ Ocean ™

“Multitasking”

Support for full Background Music play Background music play only during browsing

Video Performance

15 FPS at 384 kbps playback with additional *avi. formats supported 7 FPS playback with 16-bit sound

Messaging/Ultimate Inbox

Text & Pic message threading
Same as Ocean with addition of Gtalk

All messaging portal including MSN, Yahoo, AOL

Browser

New Browser lid ‘Send URL to a Friend’& Multi-Tab Browsing Single tab browsing

Idle Mode Local Search

Text-based and voice-based search, both GPS-enabled, direct from
the dialpad & QWERTY

Text-based and voice-based search, both GPS-enabled, direct from the
dialpad & QWERTY

Voice Feature Access

TellMe voice search application None

GUI

Update Main Menu Design and GUI Update for simple yet classy
look

Colorful GUI with Main Menu

Key Interface

Bigger space bar & Qwerty keypad, Improve usability on the
numeric key

Qwerty + Numeric keypad

Speakerphone

Improved speakerphone with a bigger size and position of the
speaker

Limited to 15pi stereo output

LCD

Larger 2.6” LCD for improved experience 2.4” QVGA

Analog Input

Has optical senor for better experience scrolling through largetext file
External vibrate (Silent Mode) slide switch

None

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

10

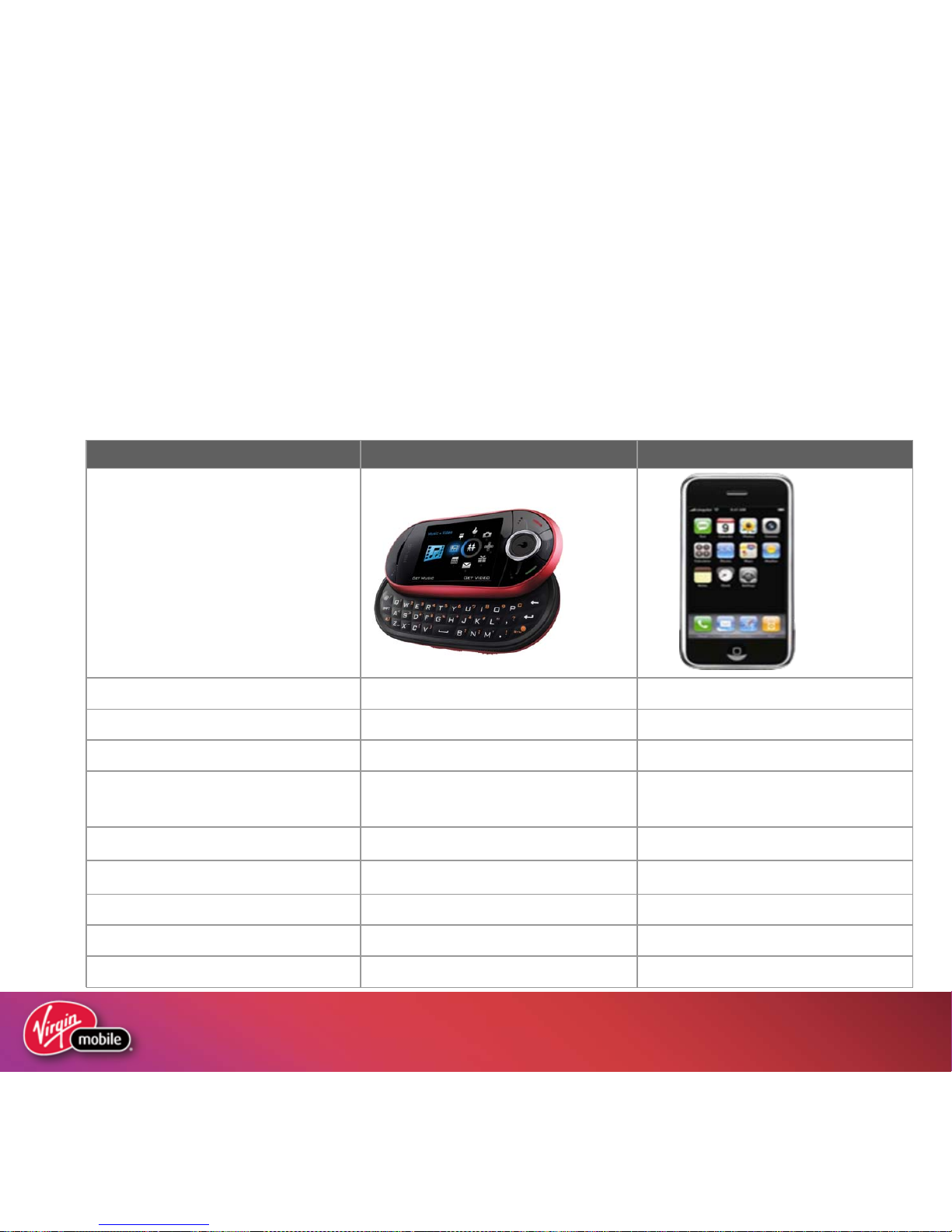

Item

Ocean 2™ iPhone 3G™

Stereo Bluetooth (A2DP)

Yes No

Voice Feature Access

TellMe voice search application SayNDrive

Network/speed

3G EVDO network (up to 2.5Mbps) 3G HSDPA network (up to 14.4 Mbps), WiFi

GPS

Yes, (Google Maps, Garmin, Buddy Beacon, Browser
integration including WHERE widgets)

Yes, (Loopt, Buddy Beacon, WHERE widgets, Google

Maps, GeoCache, Find Me!, various public transit apps,

and more)

IM

AIM, Yahoo!, MSN and Google Talk with presence
detection integrated w/Address Book

Support for IM only through third-party apps not
preloaded on device

Email

AOL, Yahoo!, MSN/Hotmail, Gmail, POP/IMAP, and
Microsoft Exchange

Mac, Yahoo, GMail, AOL, POP/IMAP, and Exchange
ActiveSync support

LCD

2.6” QVGA (320 x 240) 3.5” QVGA+ (320 x 480)

H/W keyboard

Qwerty and numeric None (touch screen)

MMS Support

Yes No

Ocean 2 vs. iPhone 3G

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

11

Portfolio Comparison

Features Ocean 2 ™ Ocean™ Fin™ Mysto™

Camera 2 Megapixel 2 Megapixel 3 Megapixel 2 Megapixel

Internal Memory 133 MB 200 MB 100 MB 100 MB

MicroSD External Memory

SDHC support

(512 MB included)

microSD Up to 4GB max Up to 4GB max

Device Size

4.56” x 2.28” x 0.81” 4.33" x 2.20" x .86" 4.06” x 2.04” x 0.45” 4.1” x 1.9” x 0.5”

Screen Size and Display

2.6” QVGA

2.4” QVGA 260k color 2.3” QVGA 262k colors 2.2” QVGA 262k colors

MP3 + MPEG 4 Player Y Y Y Y

Stereo Speakers No, 17pi single speaker Yes, Dual 15pi No N0, 15pi single speaker

Talk Time/Standby Time 5.4 hr / up to 7 days 5hr / up to 7 days 3hr/ up to 8 days -

Battery Size 1320mAh 1320mAh 800mAh 880 mAh

Free GPS-enabled Services Y Y Y Y

Music + Video Services Y (Windows Media DRM) Y (Windows Media DRM) Y (SKT-DRM) Y (SKT-DRM)

Free MySpace Mobile Service Y Y Y Y

Free H.O.T. Information Service N N Y Y

Stereo Bluetooth Y (v2.0) Y Y Y

Bluetooth® Pictbridge Printing Y Y Y Y

Built-in Photo Studio N N Y Y

Ultimate Inbox Y Y Y Y

Selling Points – “All in one” device – Ultimate Mobile machine – Thinnest EVDO device – Stylish device

Super Fast 3G Network CDMA 1x/EVDO, Dual-band (800/1900MHz)

Best in category

Worst in category

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

12

Competitive Positioning

Features Ocean 2 ™ iPhone 3G ™ BlackBerry Curve ™ LG Vo yag er ™

Carrier Helio AT&T T-Mobile Verizon

Camera 2 M egapixel 2 Megapixel 2 Megapixel 2 Megapixel

Weight 166g 143.2g 111g 133g

Internal / External Memory

133MB / microSD

(512MB inbox)

8 GB / 16 GB 64MB -

Device Size

4.56” x 2.28” x 0.81” 4.5" x 2.4" x 0.46" 4.21" x 2.36" x 0.61" 2.64” x 2.12” x 0.71”

Screen Size and Display

2.6’ QVGA (240 x 320)
262k color

3.5’ QVGA+ (320x 480)

262k color, touch Screen

2.4” QVGA (240 x 320)
65k color

2.81” (240 x400)

262k color, Touch screen

MP3 + MPEG 4 Player Y Y Y Y

Stereo Speakers N, 17pi Speaker N N Y

Talk Time/Standby Time 5.4 hr / up to 7 da ys 8hr / up to 10 days 4hr / up to 17 days 4hr / up to 20 days

Battery Size 1320 mAh - 1100 mAh 950 mAh

Free GPS-enabled Services Y Y Y N

Music + Video Services Y Y Y Y

Free MySpace Mobile Service Y Y - -

Stereo Bluetooth and Pictbridge Y N Y Y

Location tagging on pictures Y N N N

Speaker Phone Y Y Y Y

Background Music Play Y Y N Y

DRM Y (Windows Media DRM) Y (Apple FairPlay DRM) N Y (Windows Media DRM)

3G network Y Y N Y

IM Y (Yahoo!, Gtalk, MSN, AOL) Y Y Y (AOL, MSN, Yahoo!)

Best in category

Worst in category

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

13

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

13

Ocean 2 Overview

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

14

Ocean 2 Overview

KEY FEATURES

– Multimedia Player : Supports MP3, MPEG-4,

VOD, MMS, h.264, WMA

– Bluetooth® : Mono and Stereo (A2DP)

Bluetooth support

– Camera : 2 Megapixel, Night shot mode
– Video Camera : MPEG-4 video recording
– Display : Large 2.6” QVGA TFT Screen with

Landscape Mode

– Internet : Full HTML Browser with Page Zoom,

Visual Tab, Mini Map

– Messaging : Ultimate Inbox for Text and

Picture messaging as well as all your Email and
IM from Yahoo!, Google, AOL, and MSN. And
POP3/IMAP email support.

– Memory : USB Mass Storage Capability

through MTP

– Contacts Synch: OTA Address book Synch
– Sensor : Optical senor on CSK to provide

analog scroll input capability

– Alert : Centralized alert management for IM,

Email, SMS/MMS, missed call

BASIC ESSENTIALS

– Speakerphone
– Planner (Calendar, To-Do List, Notepad,

Stopwatch, Wake-up Call, Alarm, Calculator, Tip
Calculator, World Time Clock)

– English and Korean Language Support

TECHNICAL SPECIFICATIONS

– Digital Dual-Band: EVDO, Digital Only; CDMA 1x

EVDO: 800, 1900 MHz

– Dimensions: 4.65” x 2.28” x 0.81”
– Weight: 167g
– Display: 2.6-inch QVGA 240 X 320 Pixels, 260

TFT Color

– Standard Battery: 3.7 Volt Lithium Poly,

1320mAh

– Talk Time: 323 mins
– Standby Time: 7 days

HELIO SERVICES

– Ultimate Inbox
– Mail for Microsoft Exchange
– HelioUp with Flickr and YouTube Integration
– MySpace Application
– YouTube Application
– Answer Rings
– Music on Demand Service
– Video Service
– Rings, VideoRings, and Screens Services
– Helio File Viewer
– Google™ Maps (GPS-Enabled)
– TellMe Voice-Activated Local Search (GPS-

Enabled)

– Buddy Beacon™ 2.0 (GPS-Enabled)
– Garmin Navigation (GPS-Enabled)

MEMORY

– 133 MB Internal Memory
– External memory Mass stor age through MTP
– Up to 2GB of External Memory (MicroSD)

CALL MANAGEMENT AND SERVICES

– Picture Caller ID
– Voicemail
– Caller ID
– Call Forwarding
– Call Waiting
– Three-Way Calling

ACCESSORIES

– Car charger
– Holster
– Holster carrying changing
– Stereo Bluetooth handset (Ocean 1)
– Mono bluetooth handset (Ocean 1)
– MicroSD (Ocean 1)

STANDARD IN-BOX PACKAGE

– Device
– 512 MB microSD
– Standard Lithium Poly Battery
– User Guide (CD)
– Travel Charger
– Charging Data Cable
– Stereo Hands-Free Headset
– Charm
– Quick Start Guide
– Helio Referral Card
– Health and Safety Guide

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

15

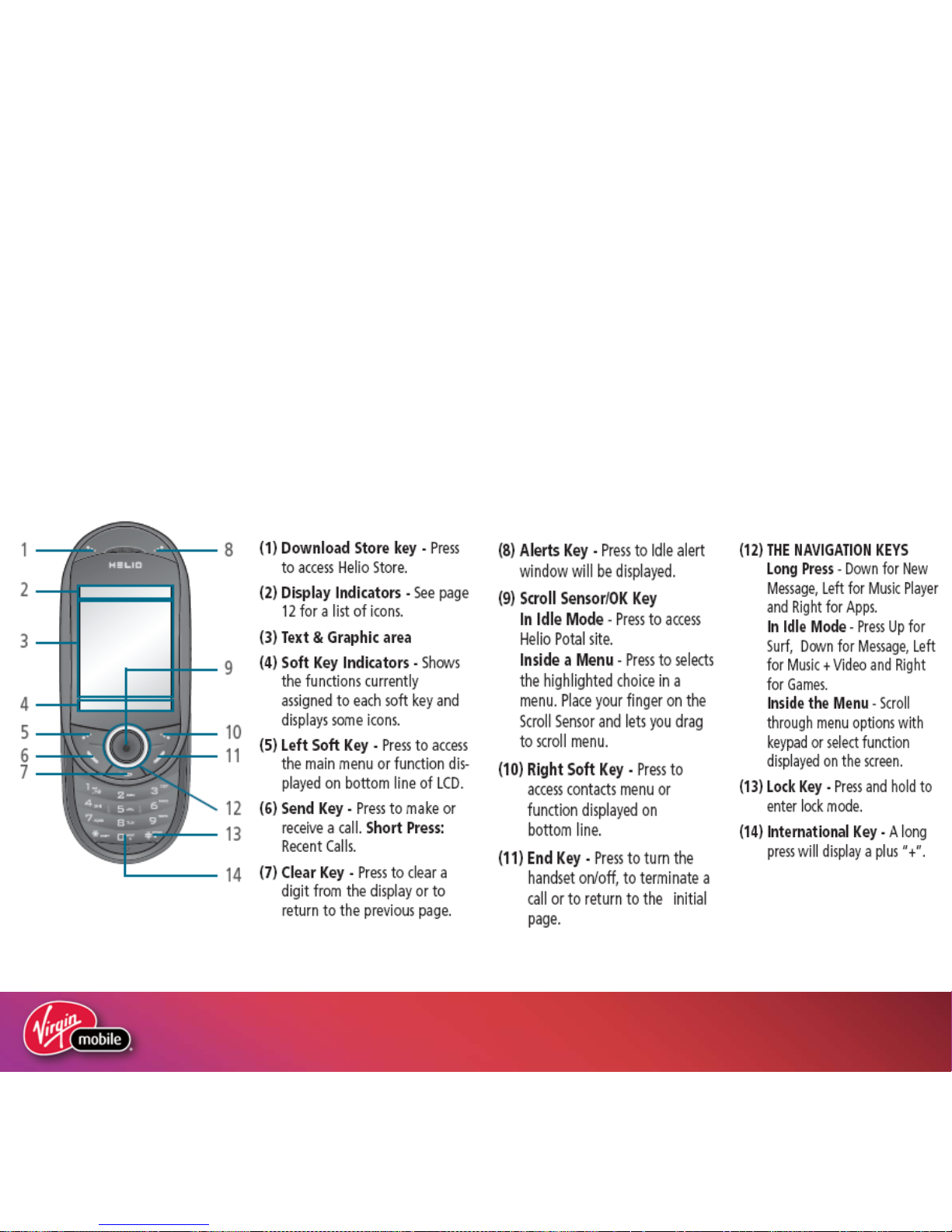

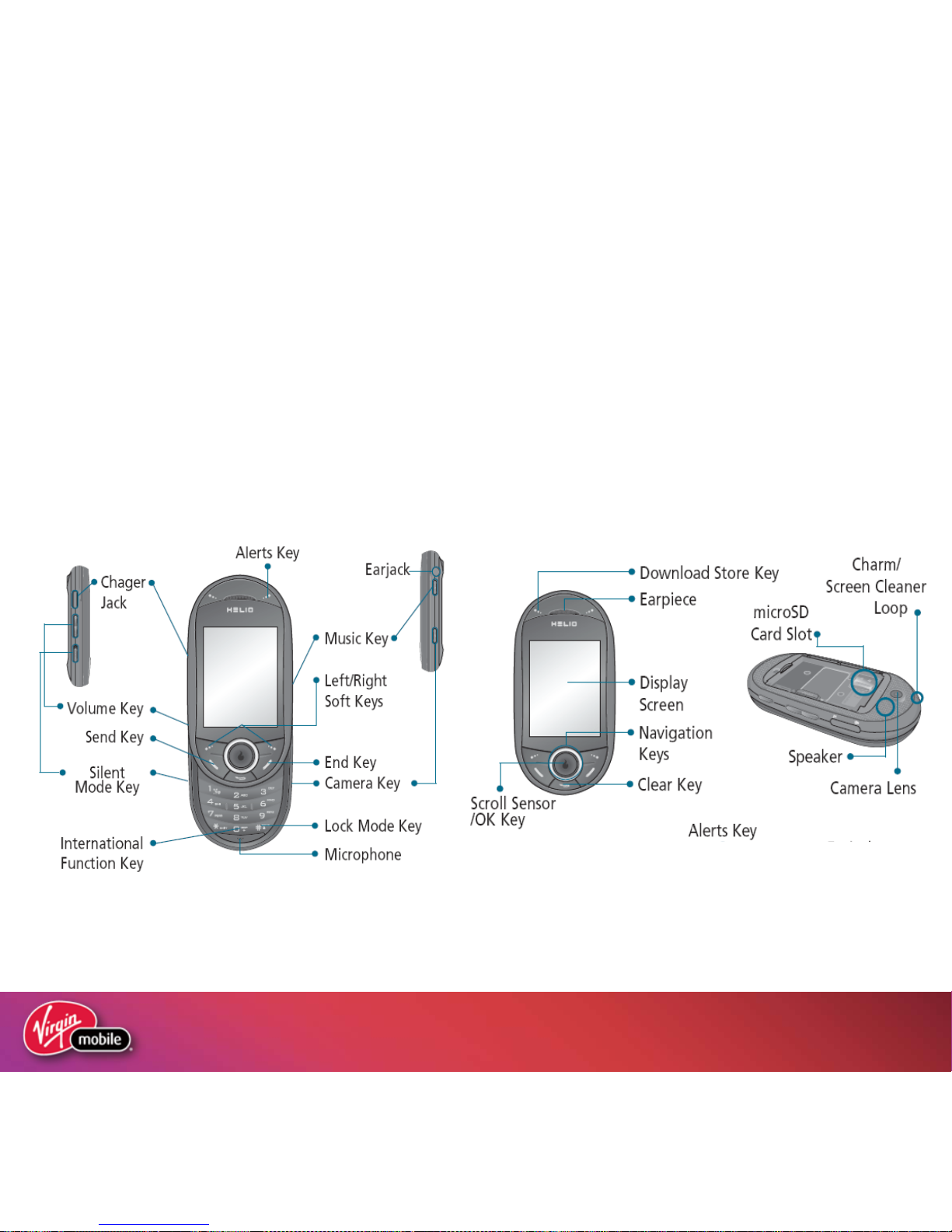

Function Keys

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

16

Function Keys (continued)

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

17

Function Keys (continued)

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

18

Display Icons

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

19

Menu Tree

7.2 Sound Systems

7.2.1 New message

7.2.2 Keypad

7.2.3 Slide

7.2.4 D-Pad Keys

7.2.5 Confirm Pop up

7.2.6 Cancel/Wait Pop up

7.2.7 Core Keys

7.2.8 Back/Cancel Key

7.2.9 Call Connect

7.2.10 Minute Notification

7.2.11 No Service

7.2.12 Low Battery

7.3 Scroll Sensor
Sensitivity

7.4 Language

7.4.1 Display

7.5 Alerts Manager

7.6 Call Options

7.6.1 Answer Call On

7.6.2 Auto Functions

7.6.3 Call Forwarding

7.6.4 Call Block

7.6.5 Voice Privacy

7.6.6 TTY

7.7 Security

7.7.1 Phone Lock

7.7.2 Change Password

7.8 Mode Transition Time

7.9 Network

CUSTOMIZE

1. Rings

1.1 Rings

1.1.1 Download Rings

1.1.2 Downloaded Rings

1.1.3 Free Rings

1.2 Answer Rings

1.3 Alert Rings

2. Screens

2.1 Home Screen

2.1.1 Download Home
Screens

2.1.2 Screens

2.1.3 Video Screens

2.1.4 Media

2.1.5 Album Slideshow

2.1.6 Free Screens

2.2 Overlay

2.2.1 Calendar

2.2.2 Clock

2.2.3 Dual Clock

2.2.4 Animated Sticker

2.3 Banner

2.3.1 Banner

2.3.2 Text

2.3.3 Font Color

2.4 Main Menu

2.4.1 Original

2.4.2 Dashboard

3. Ring Vibration

3.1 IF SOUND SWITCH ON:

3.2 IF SOUND SWITCH OFF:

4. Volume

4.1 Ring

4.2 Receiver

4.3 Keypad

4.4 Effects

4.5 Wake-Up Call

4.6 Alerts

4.7 Power Up/Down

5. Airplane Mode

6. Bluetooth

6.1 Turn Bluetooth On/Off

6.2 Add Device

6.3 Trusted Devices

6.4 Send + Receive

6.4.1 Receive Mode

6.4.2 Send Photos

6.4.3 Send Videos

7. Settings

7.1 Backlight

7.1.1 Display Time

7.1.2 Display Brightness

7.1.3 Keypad Backlight

7.1.4 Alerts

8.0 Device

8.1 Memory

8.1.1 Memory Info

8.1.2 Clear Memory

8.2 Reset

8.2.1 Reset All

8.2.2 Clear Contacts

8.3 Software Info

SURF

1. Access Helio Portal

SNAP

1. Capture

2. All Media

2.1 Internal Memory

2.2 External Memory

3. My Albums

3.1 Internal Memory

3.2 External Memory

4. Date View

4.1 Internal Memory

4.2 External Memory

5. Helio Album

5.1 Access Helio Portal

6. Settings

6.1 On Closed Slide

6.2 Call Receiving

6.3 Shutter Sound

6.4 Voice Recording

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

20

Menu Tree (continued)

MUSIC + VIDEO

1. Music

1.1 Playlists

1.2 Artists

1.3 Albums

1.4 Songs

1.5 Genres

2. Download Music

2.1 Access Helio Portal

3. Video

3.1 Playlists

3.2 Videos

3.3 Video Album

4. Download Video

4.1 Access Helio Portal

CONTACT

- Emergency

- Information

- Member Care

-My Number

-Voicemail

1. New

2. Edit

3. Search

4. Contact Sync

5. Locate

6. Refresh Presence

7. Delete

8. Delete Multiple

9. Copy

0. Email as vCard
*. Settings

GAMES

1. Do

1.1 Access Heli

PLAN

wnload Games

o Portal

1. Voice Memo

2. Cal

3. To Do

4. Wake-U

5. Alarm

6. Calcul

7. World Time

8. Unit Converter

9. Notepad

0. Stopwatch
*. Tip Calculator

MESSAGE

endar

p Call

ator

1. Text/Pic

2. Helio

3. Mail for Micr

4. Yahoo!

5. AOL

6. Goo

7. Window

8. EarthLink

9. Add Email Acct.

0. Add Email Acct.

Inbox

Mail

osoft Exchange

gle

s Live

APPS

1

2. Helio

3. YouTube

4. MySpace

5. Opera Mini

6. Google Maps

7. Buddy B

8. Garmi

9. Tellme

. Download App

1.1 Access Helio Portal
File Viewer

Mobile

eacon

n Mobile

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

21

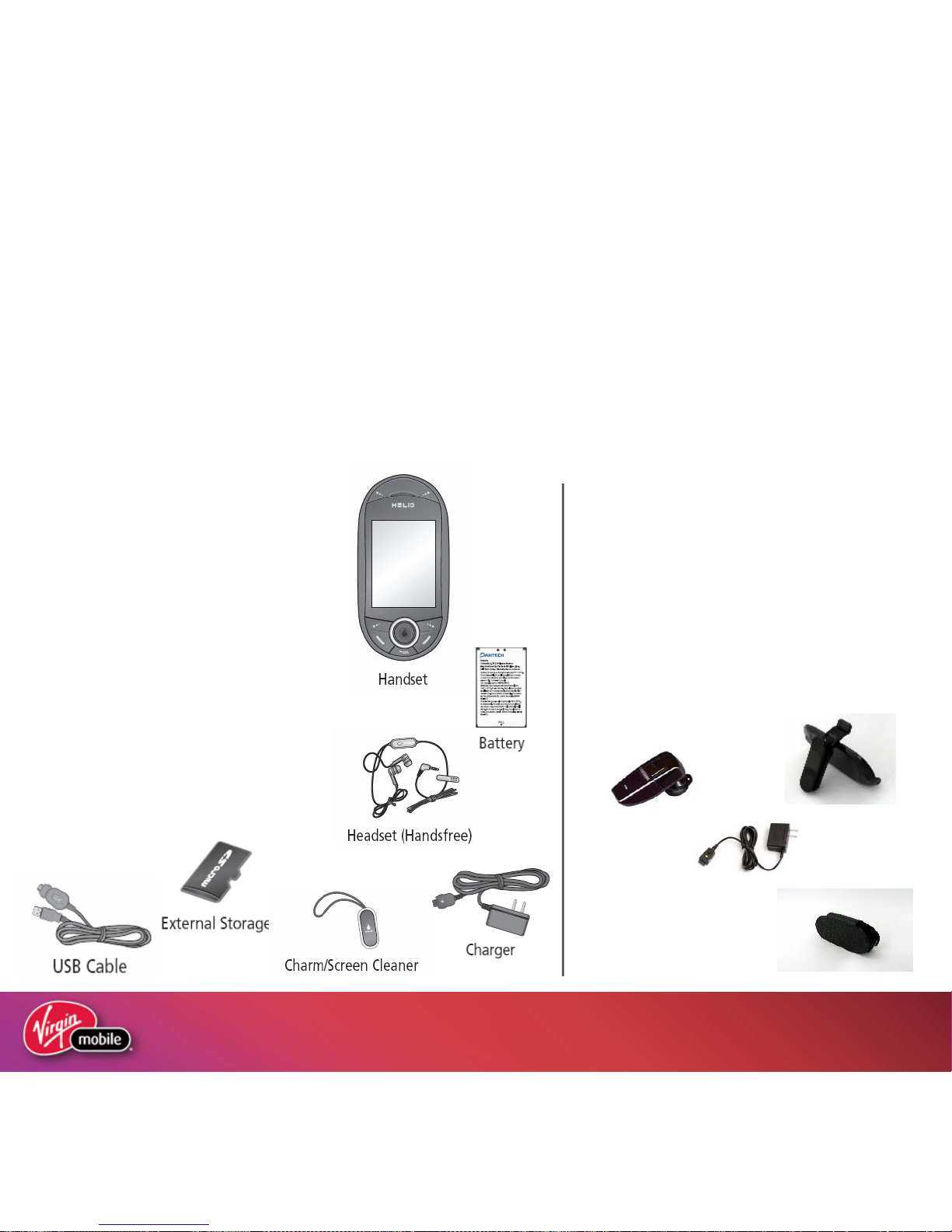

Packaging Contents:

– Handset
– 512 MB microSD
– Standard Lithium Poly Battery
– User Guide (CD)
– Travel Charger
– Charging Data Cable
– Stereo Hands-Free Headset
– Charm
– Quick Start Guide
– Helio Referral Card
– Health and Safety Guide

Compatible Ocean Accessories:

– All Micro SD card with a

storage capacity of 2 or <2GB.
– All Stereo Bluetooth headsets
– All Mono Bluetooth heads
– WEP Bluetooth headset
– Gola Carrying Case

Accessories

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

22

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

22

Applications Overview

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

23

Applications

Google Maps Mobile

The best GPS experience patented “Sequential GPS method” which allows fast and most accurate location fix

Buddy Beacon

Helio continues to expand its initial friend finder application, with Buddy Beacon 2.0

Browser

Helio’s browsing experience provides a PC-like web browsing experience with full HTML capabilities

Search

Helio has built the most comprehensive, simplest solution for our members to find what they’re looking for

Where

Where enables our members to find relevant local information

Ultimate Inbox

All your Text & Pic messages, Email, and Instant Messaging (IM) in one place

Mail for Microsoft Exchange

Our members have the ability to wirelessly synchronize their Microsoft Office Outlook Email, Calendar, and
Contacts from a Microsoft Exchange Server Free!

Helio File Viewer

Our improved file viewer allows members to take their important business files on the go

Helios Video Service

Thousands of music downloads as well as newly available movie clips

Illustrative Purposes Only

Illustrative Purposes Only

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

24

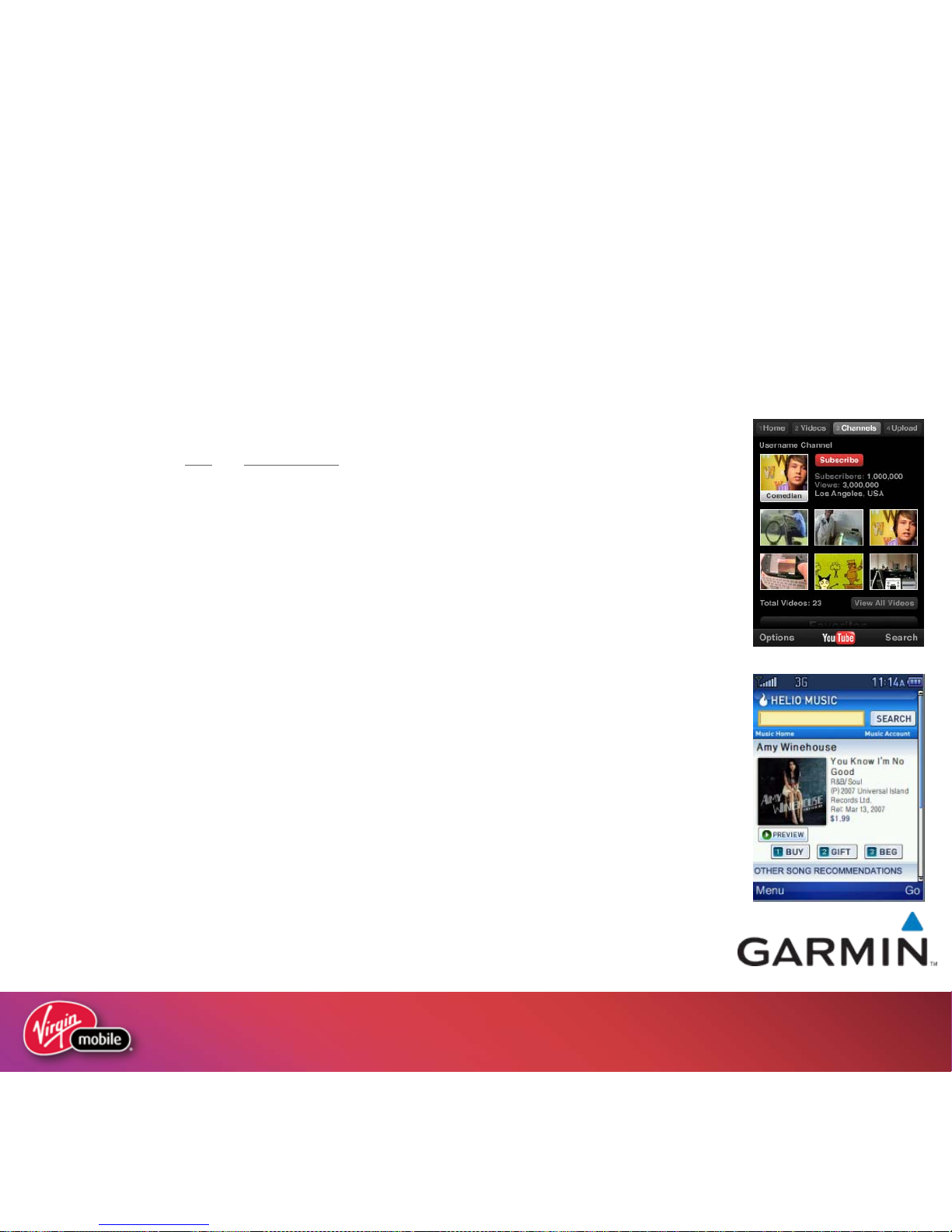

Applications (continued)

YouTube

Helio has delivered the best and most complete mobile YouTube experience

HelioUP/Album and SNAP

A publishing platform for user generated content captured on a Helio device

Social Networking

Keep track of all your friends’ activities across multiple popular social networking and media sharing sites
through a single interface

Music-on-Demand

Helio delivers the richest mobile music discovery and download experience in the market

Connected Media Player

The Helio Media Player offers flexible music/video playback and management

Helio Player Desktop Solution

Manager your favorite songs, videos and pics from your PC and transfer to your device

Helio Games

Helio continues to deliver on the richest mobile gaming experiences in the industry

Garmin Mobile

Helio provides this great premium Garmin Mobile subscription application for best-in-class navigation solution

Illustrative Purposes Only

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

25

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

25

Customer Experience Improvements

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

26

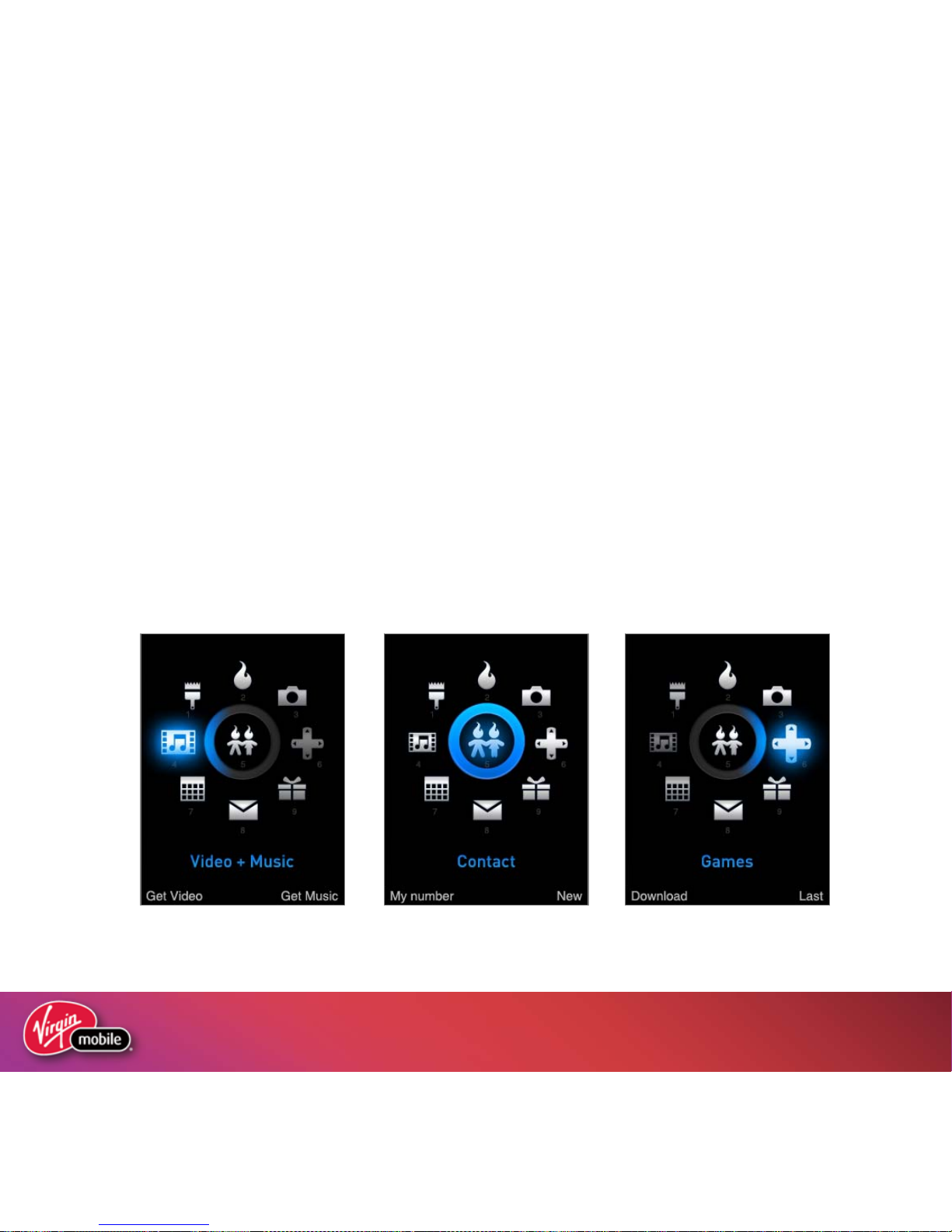

Main Menu Improvements

- Main menu redesigned with Flash in line with Helio graphical user interface style
guide incorporating more organic movement and lighting effects to create greater
user experience.

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

27

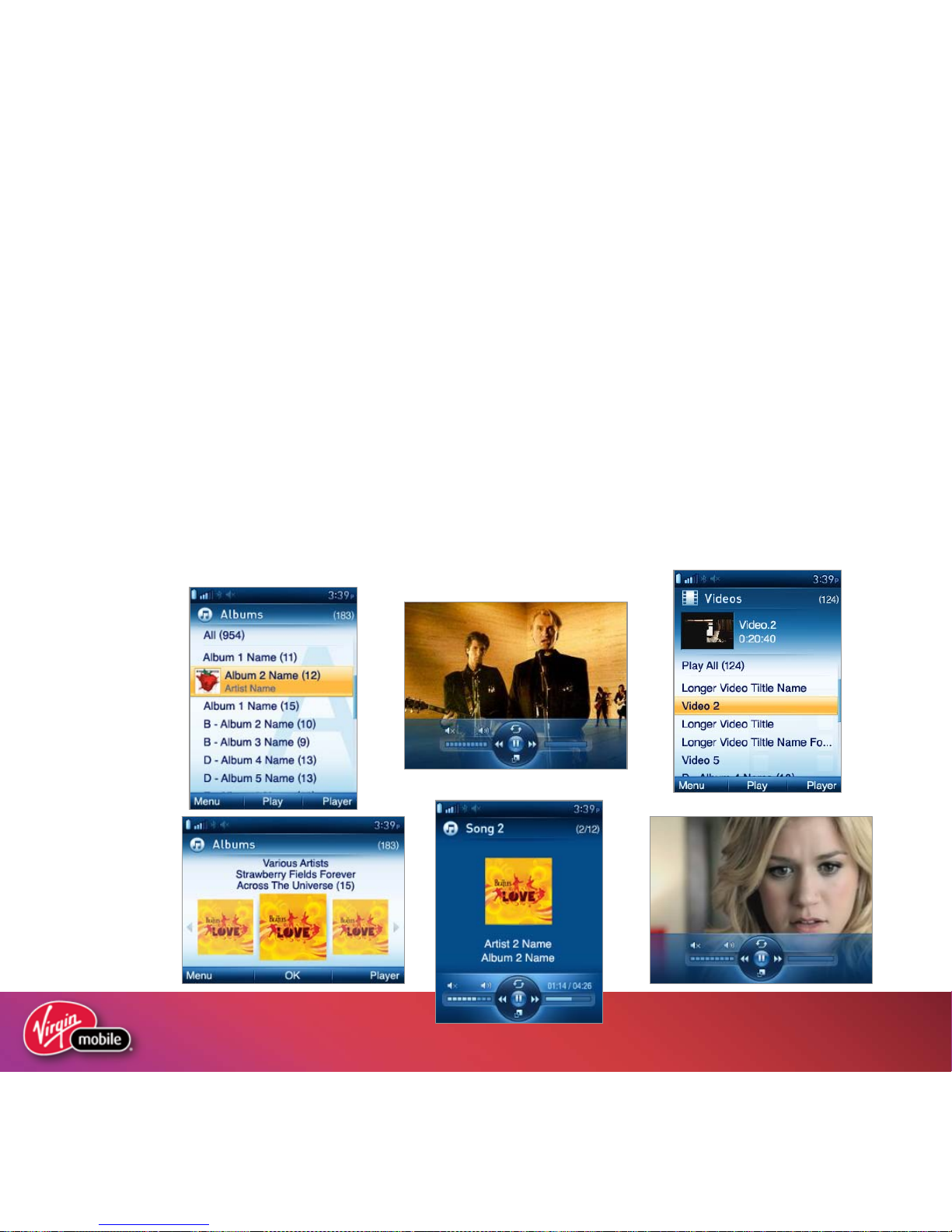

Style Improvements

- Enhanced graphical user interface across all of Ocean 2

- One-for-one asset swap to improve consistency and visual appeal across OEM
and application menu

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

28

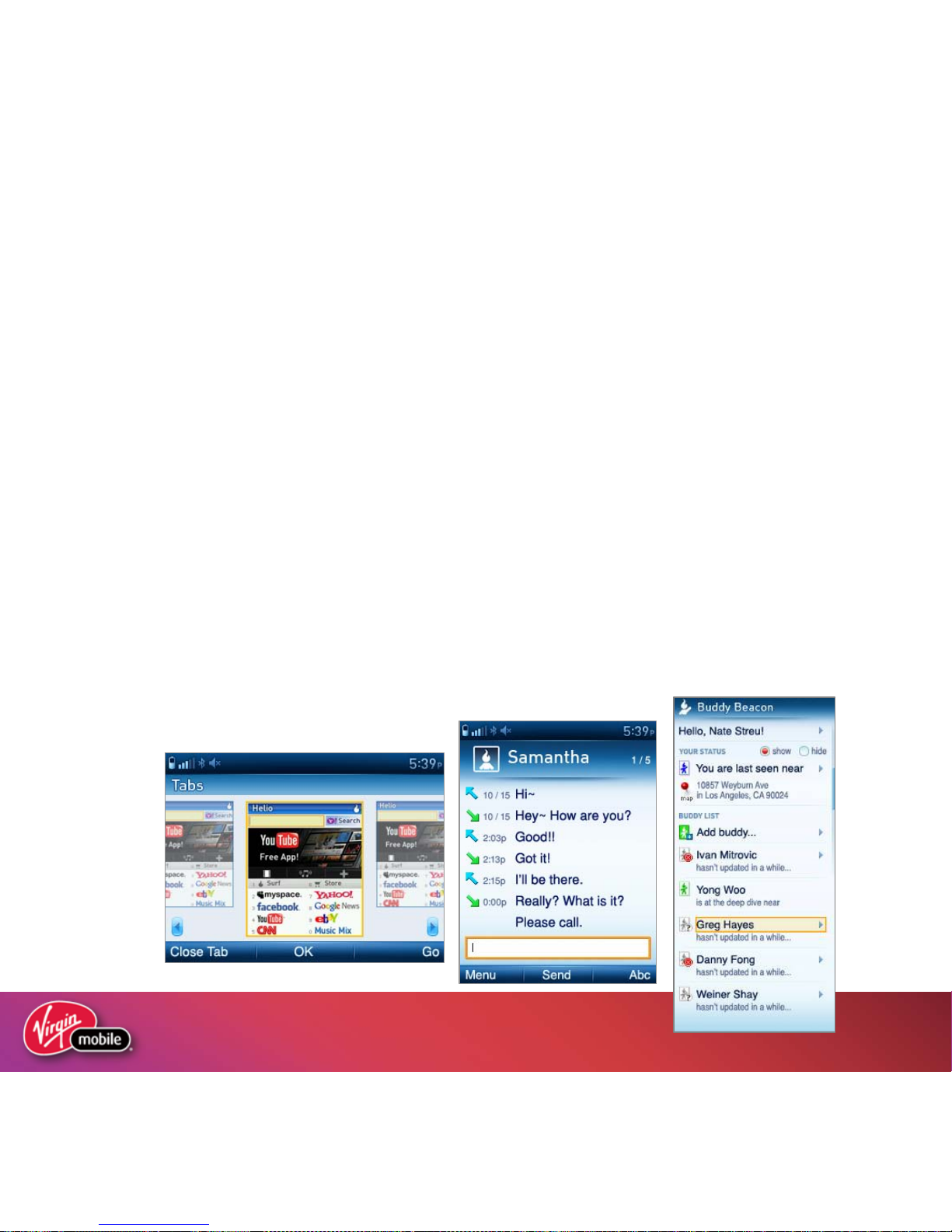

Browser, SMS/MMS Improvements

-Browser: Redesigned user interface for photo and video capture that integrates
ways to set wallpaper, connect to Helio up, geotag, send message and browse
images.

-SMS/MMS: Support for threaded messaging conversations in SMS and MMS for
more immediate communication.

- Buddy Beacon: Redesigned WAP application for Buddy Beacon reflecting Helio
GUI style & functionality.

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

29

Camera Improvements

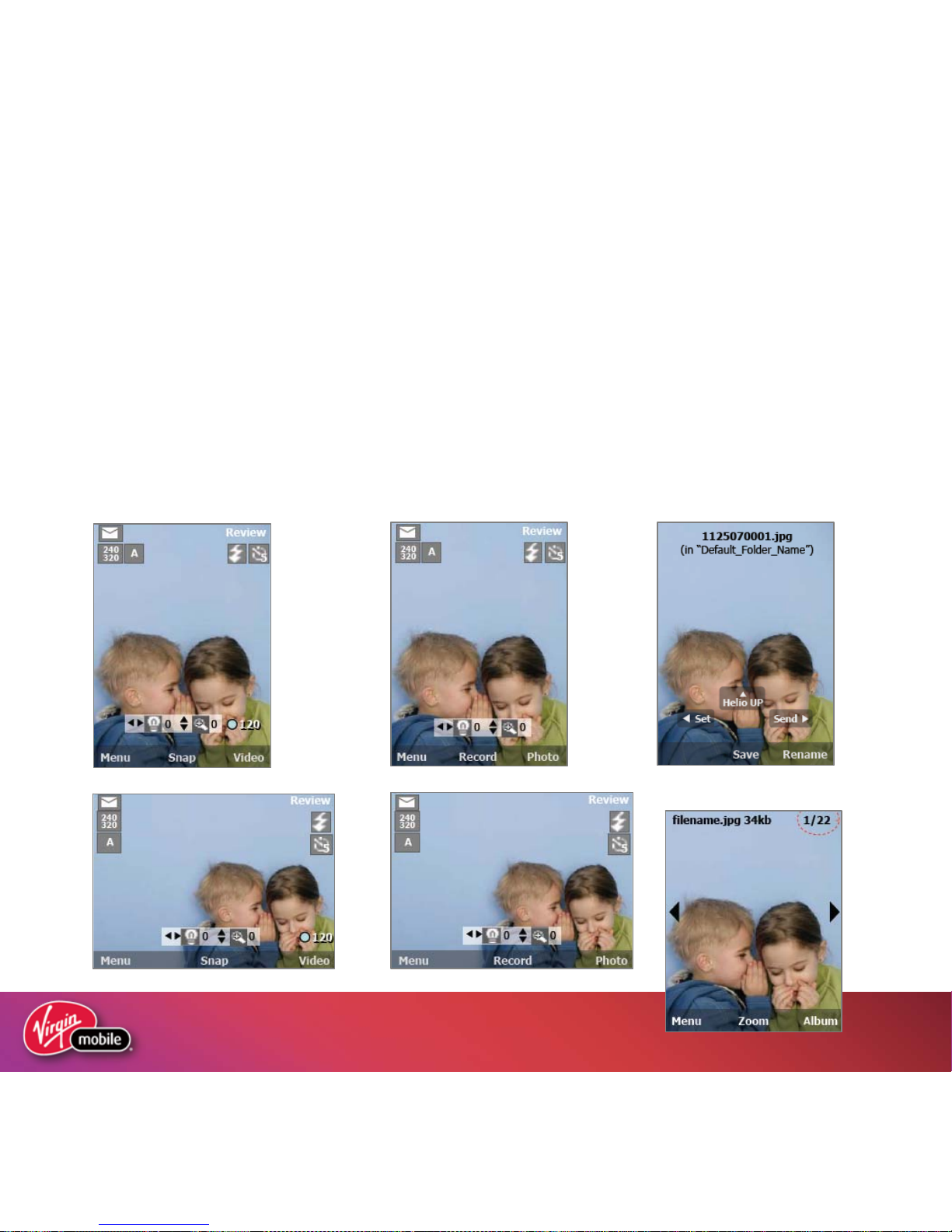

- Improved camera experience with seamless launch options from your screen

Snap Record

Post Capture Options

Confidential and Proprietary Information of Virgin Mobile USA, LLP

Confidential and Proprietary Information of Virgin Mobile USA, L.P.

30

File Viewer Improvements

- Supports paging, zooming and panning allows viewing of Microsoft Office
documents (Word, Excel, PowerPoint), PDF, TXT, images (BMP, GIF, JPG, PNG,
WMF, EMF) and HTML.
