Virgin MF90C User Manual

Page 1 of 36

MF90C

4G WI-FI HOTSPOT

USER MANUAL

Page 2 of 36

CHECK YOUR SYSTEM REQUIREMENTS

Your 4G Wi-Fi hotspot will connect to any device that supports Wi-Fi, 802.11 b/g/n
A web browser is required to log in to your Wi-Fi hotspot if you wish to make any
configuration changes.
USB driverless connection is also supported for Windows, MAC and LINUX
operating systems:

• Windows 8 (not including RT) / 7 / XP / Vista

• MAC OS X 10.5.11 and above

• Linux

Using the USB connection requires administrator rights to install and run the
software.
We suggest you switch off your anti-virus software before connecting the hotspot

- In some cases protection software can prevent automatic installation.

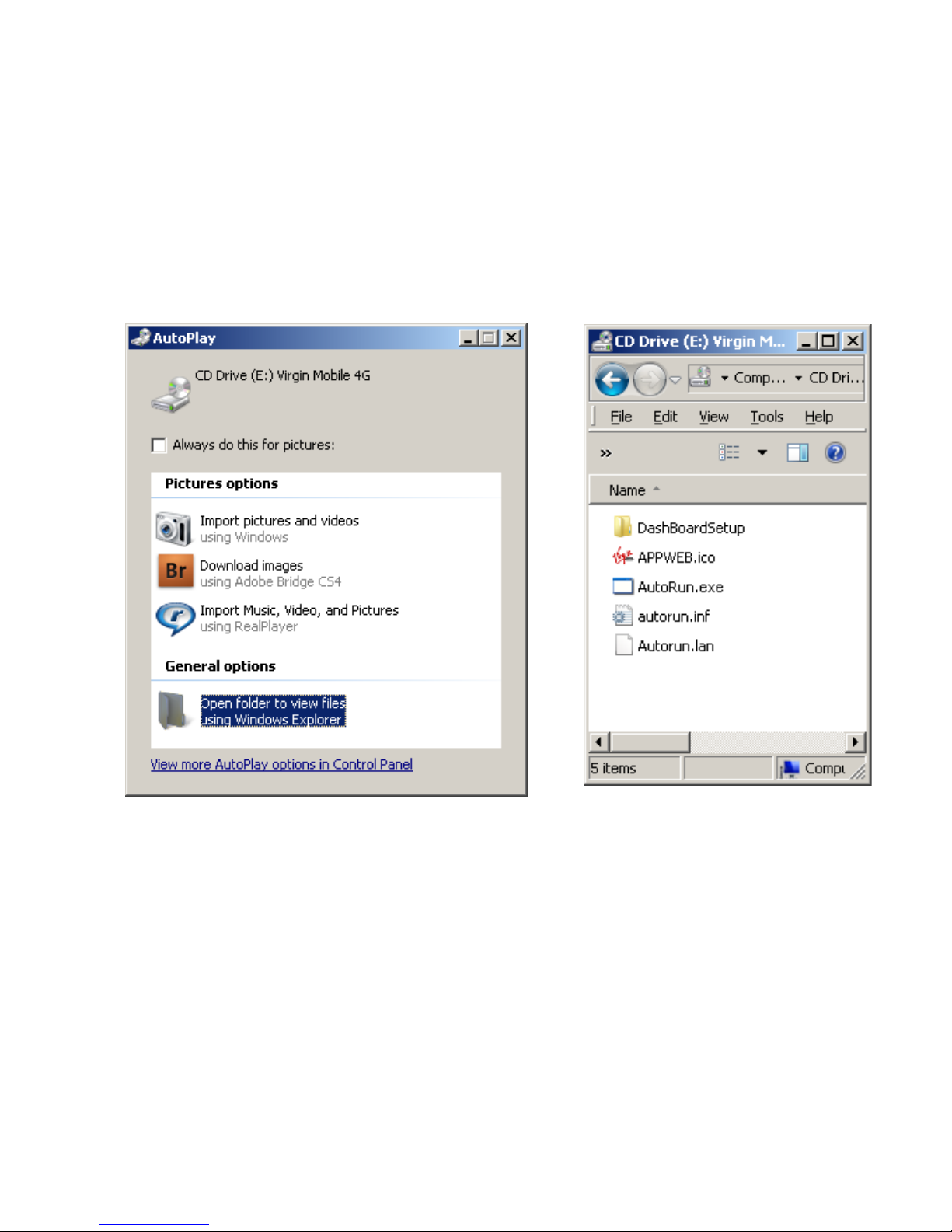

It is possible to start the installation process manually by clicking the Autorun icon
when it appears.

Page 3 of 36

GET TO KNOW YOUR 4G WI-FI HOTSPOT

INSERT YOUR USIM CARD

1. Slide the back cover up to access the USIM and memory card slots and the Reset

button.

2. Insert your USIM card carefully as shown:

Page 4 of 36

3. Insert the battery with the gold contacts lined up with the gold springs and slide
the cover back on.

4. You are now ready to power up your device and you’ll be on-line in no time.

IMP ORTANT

This device supports a standard mini SIM or 2FF size.
Do not insert a micro SIM (3FF) or use a micro to mini SIM adaptor.
Use of 3

rd

party adaptors or non approved SIM card can damage your device.
Physical damage to the SIM card slot is not covered by warranty and will make
your device unusable.

TIP

Remember to keep your plastic SIM card holder. It has a record of your SIM card
which you should keep handy.

INSERT A MEMORY CARD (OPTIONAL)

1. Your Wi-Fi hotspot supports up to 32GB microSD(HC)™ memory, you can add a
memory card to use for external storage and sharing files over your Wi-Fi network.

2. Insert the battery with the gold contacts lined up with the gold springs and slide
the cover back on.

3. Use your memory card as external storage and share files to all your connected

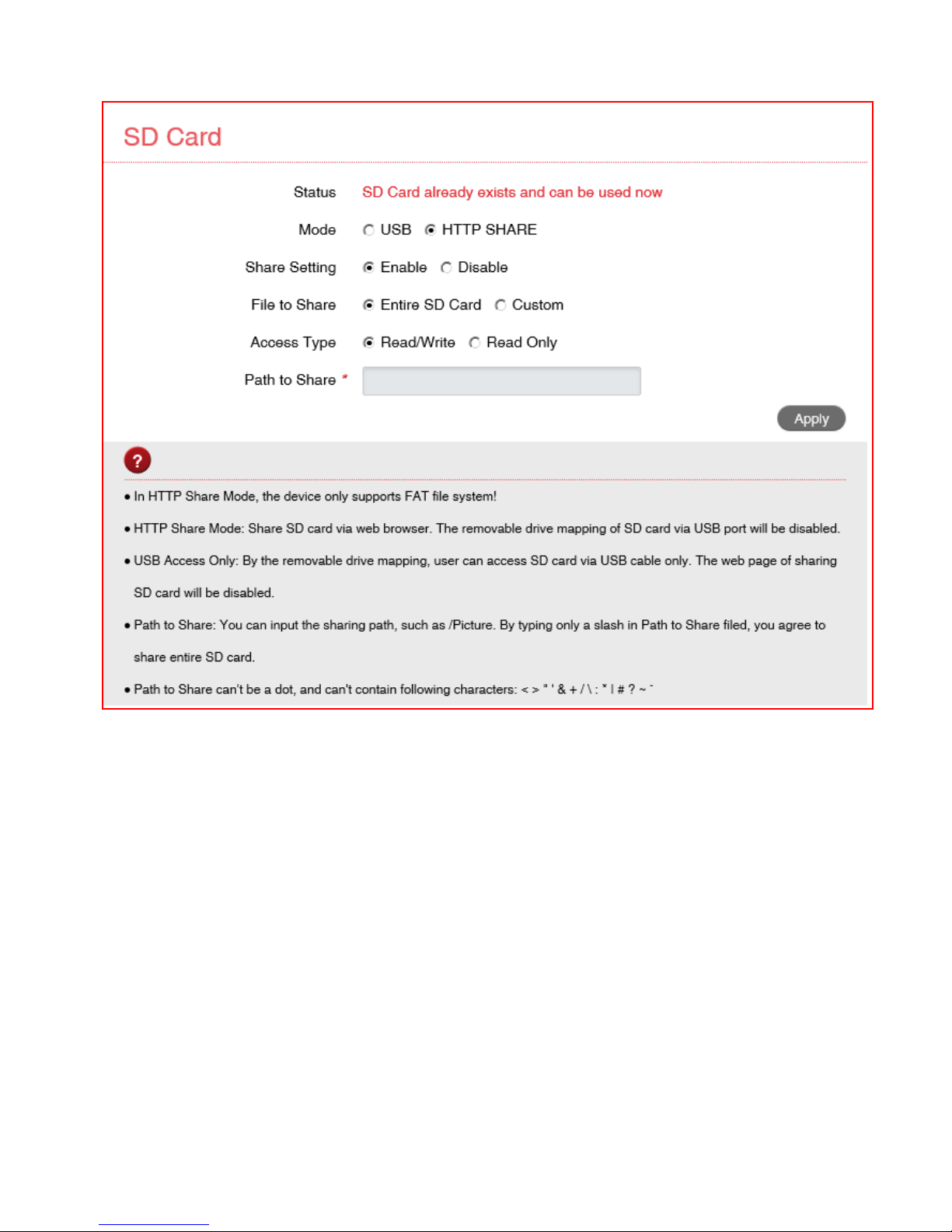

Wi-Fi devices. See SD CARD below for more information.

Page 5 of 36

Notes

• Adding a memory card is optional

• microSD™ up to 2GB are FAT 16 format.

• microSDHC™ up to 32GB are FAT 32 format.

POWER UP YOUR 4G WI-FI HOTSPOT

Press and hold the Power key for 3-4 seconds until the lights flash.
The LED’s flash in sequence to indicate the start up condition. During this
sequence the device functions are not available.
The Wi-Fi hotspot will be available after about 20 seconds.
Note: If you insert the charger with the device off, or the battery is flat, you can
only power up the device after about 20 seconds when the start up sequence is
complete.
Check the condition of your Wi-Fi hotspot as shown by the LED indicators.

LED INDICATORS

On, battery is low (<23%).
Flashing, battery is discharged, (< 12 %).
On, battery is OK (>23 %).
Flashing, battery is charging.

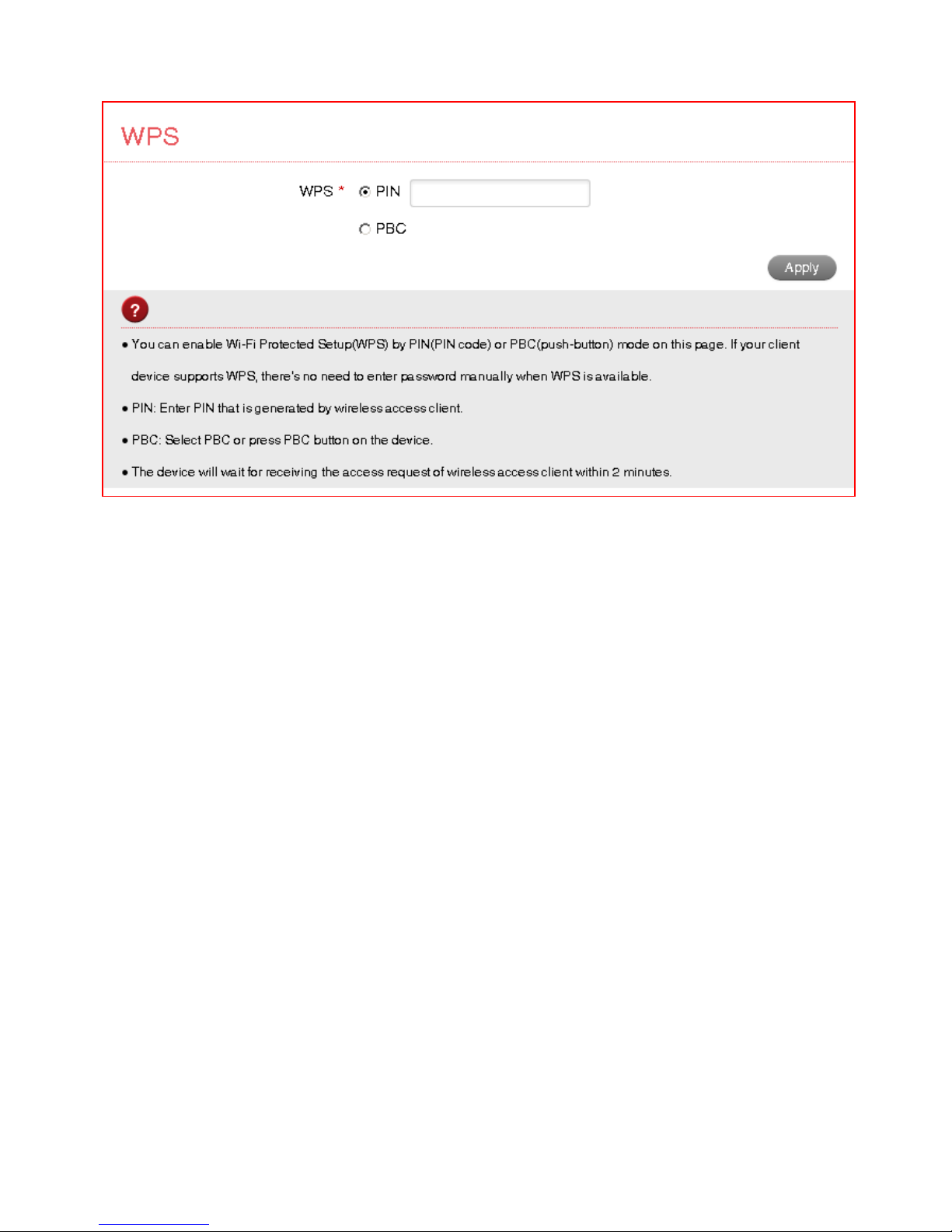

On, WPS is enabled, available for 2 minutes.

Flashing, Wi-Fi is On.

Off, Wi-Fi is off.

Not registered on the network.
No USIM, invalid USIM, PIN or PUK locked.

On, device is registered on 2G/3G,

Flashing, device is connected to 2G/3G.
Device is registered on 4G
Flashing, device is connected to 4G

During periods of inactivity it is normal for the LED’s to go out to preserve battery
life. Press the power key briefly to confirm the device status if required.

Page 6 of 36

CONNECT DEVICES BY WI-FI

Your 4G Wi-Fi hotspot can connect up to five devices via Wi-Fi providing internet
access for all your devices on the go.

• On the devices you wish to connect make sure Wi-Fi is switched on, then search

for Wi-Fi devices.

• The Wi-Fi hotspot will show up as Virgin Mobile 4G_xxxxxx, click on this device

to connect.

• Consult your SSID sticker and enter the default Wi-Fi key which is case sensitive.

Any letters entered must be in upper case (capitals).

Connection example for Windows 7 computer:

1. On your task bar, next to the clock, click on the Network Interface icon

2. Click on the Wireless device Virgin Mobile 4G_xxxxxx

3. Enter the password exactly as shown on your SSID sticker observing the correct

case for all letters

4. With Connect Automatically enabled your computer will remember the

password and connect to your Wi-Fi device when it is on and in range.

TIP

It is also possible to connect via USB connection. See later for details.

MONITOR YOUR WI-FI HOTSPOT ON YOUR ANDROID
DEVICE

You can download the ZTE Wi-Fi Monitor app from Google Play Store to monitor
your Wi-Fi status easily using an Android smart phone.

QUICK REFERENCES

Browser home page

http://192.168.0.1

Administrator login Admin

Default SSID Virgin Mobile 4G_xxxxxx

Supplied on your SSID Sticker on the device and a
spare sticker in the box.

Default Wi-Fi Key

10 characters which are case sensitive.

Supplied on your SSID Sticker.

Page 7 of 36

Restore defaults From the powered up state:

Open the back cover and use a toothpick, paperclip or
other suitable device to press and hold the “Reset”
button for 5 seconds.

All passwords and settings will be restored to
defaults and the hotspot will reboot.
Use the default credentials on your SSID sticker to
log back onto your device.

LOGIN TO THE USER INTERFACE

Open a browser and go to http://192.168.0.1 to access the hotspot home page.
The default login password is ‘admin’

Page 8 of 36

HOTSPOT HOMEPAGE

The home page shows you how many users are connected and shows your
network connection state and data usage summary.

• The device will automatically connect to the network so it shows the Disconnect

button status by default.

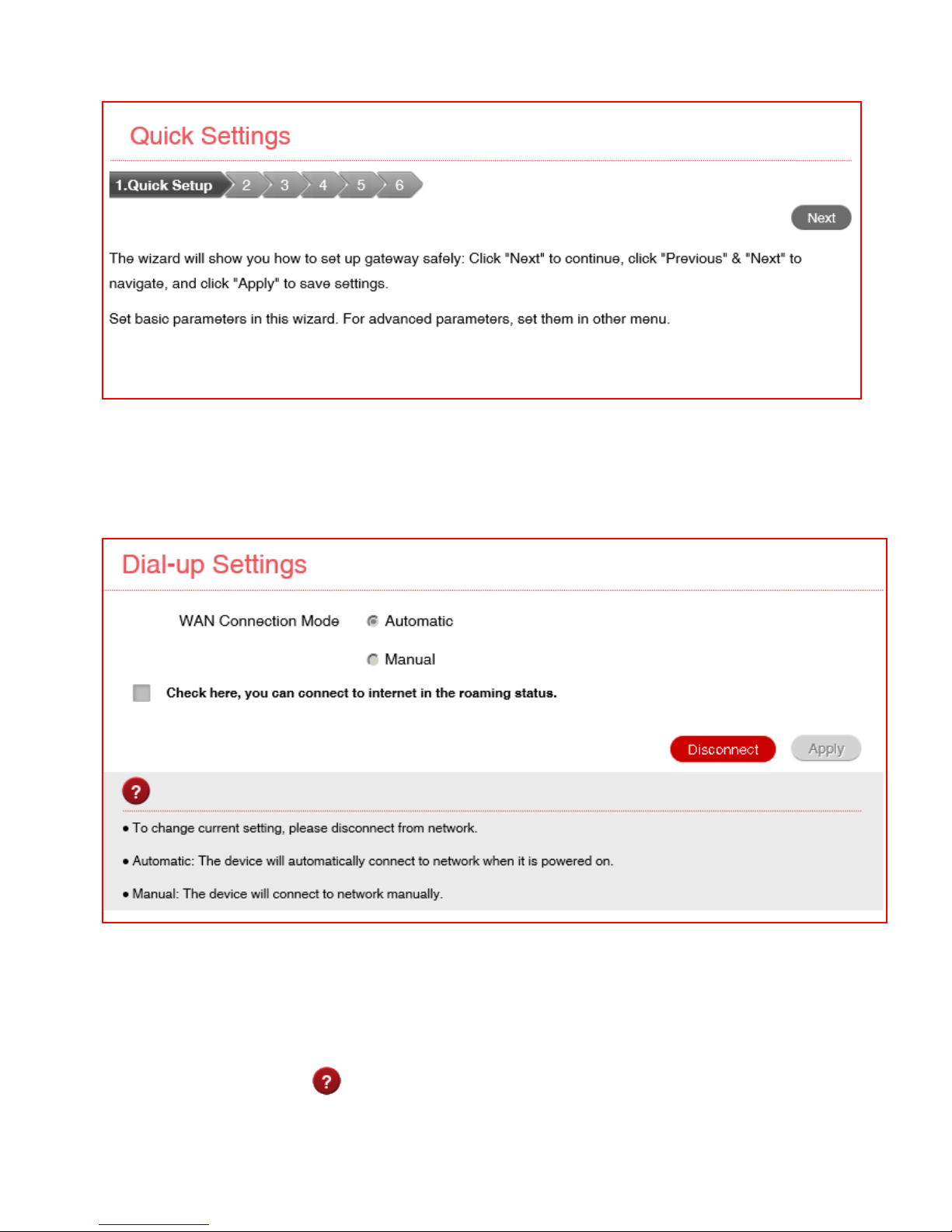

• To change this behaviour press Disconnect first, then go to Settings > Network

Settings > WAN Connection Mode, and select Manual.

• The number of devices connected to your Wi-Fi hotspot is displayed and you

can select to Block unwanted devices if required.

STATUS INDICATORS

Tip use your mouse to hover over the icons to see a brief description for each icon.

Page 9 of 36

INFORMATION > DEVICE INFORMATION

• View the device IMEI number, Signal strength and other details.

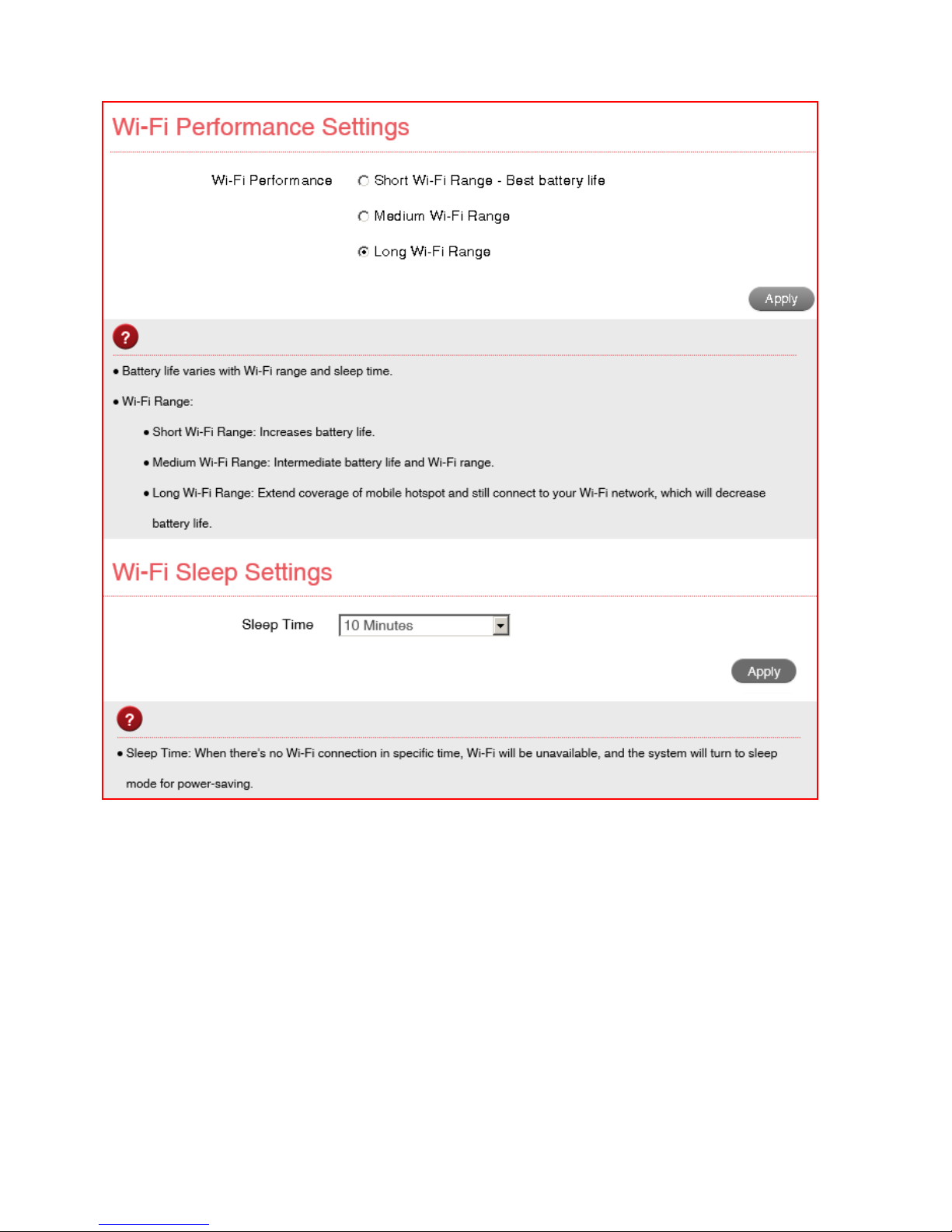

• Press Change to set your own SSID name and to set the Wi-Fi performance

(range) settings.

• The default setting is long range which give you better Wi-Fi performance over

greater distances.

• TIP: If only using Wi-Fi over short distances, set Wi-Fi performance to Short

Range to give better battery life

Page 10 of 36

INFORMATION > STATISTICS

View your data usage on the Information > Statistics tab.

• Data usage is approximate and your carrier may charge you different data block

sizes so their records and charges are likely to be different.

• Typical carrier data is charged in 1MB blocks.

• Contact your carrier for more details.

Page 11 of 36

DATA LIMIT SETTINGS

You can set a data limit reminder to let you know when you have reached a pre-set
data usage limit.

• Example, Enter your monthly available data and set a Remind me at 80% to let

you know when you are approaching your limit.

• Consult your carrier or contract details to determine your data allowance.
