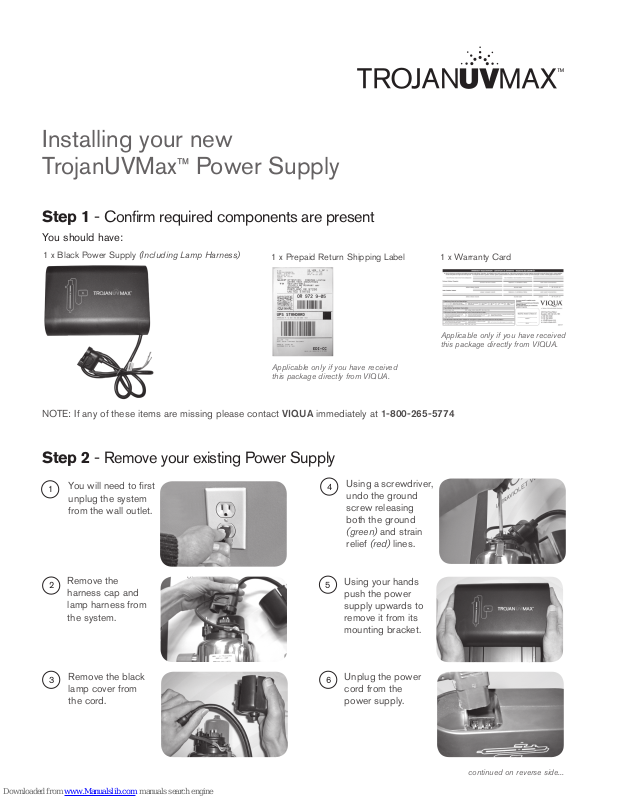

Page 1
Installing your new
TrojanUVMax
™
Power Supply

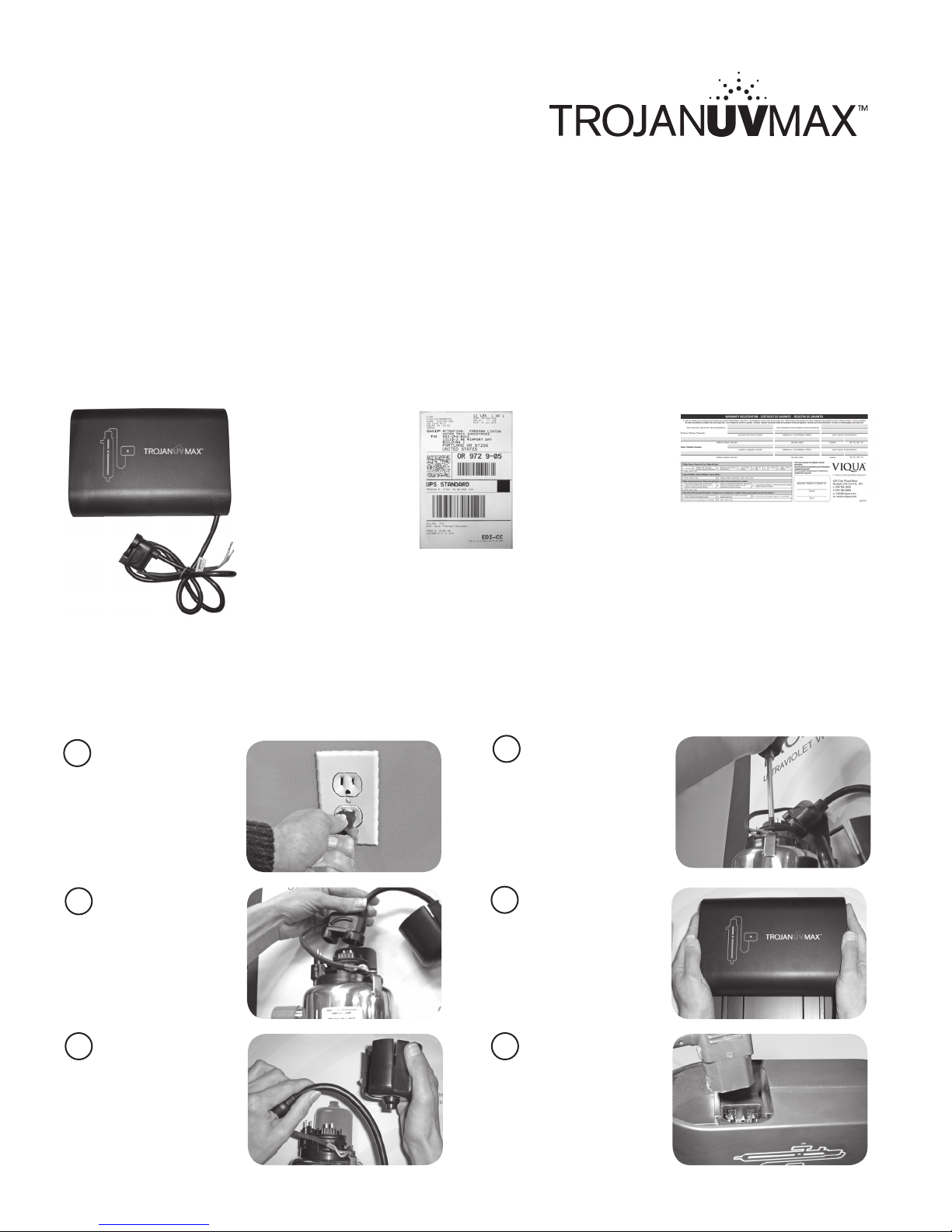

Step 1 - Confirm required components are present
You should have:
1 x Black Power Supply (Including Lamp Harness)
NOTE: If any of these items are missing please contact VIQUA immediately at 1-800-265-5774
1 x Prepaid Return Shipping Label 1 x Warranty Card
Applicable only if you have received
this package directly from VIQUA.
Applicable only if you have received
this package directly from VIQUA.
Step 2 - Remove your existing Power Supply
You will need to first
1
unplug the system
from the wall outlet.
Remove the
2
harness cap and
lamp harness from
the system.
Remove the black
3
lamp cover from
the cord.
Using a screwdriver,
4
undo the ground
screw releasing
both the ground
(green) and strain
relief (red) lines.
Using your hands
5
push the power
supply upwards to
remove it from its
mounting bracket.
Unplug the power
6
cord from the
power supply.
continued on reverse side...
Page 2

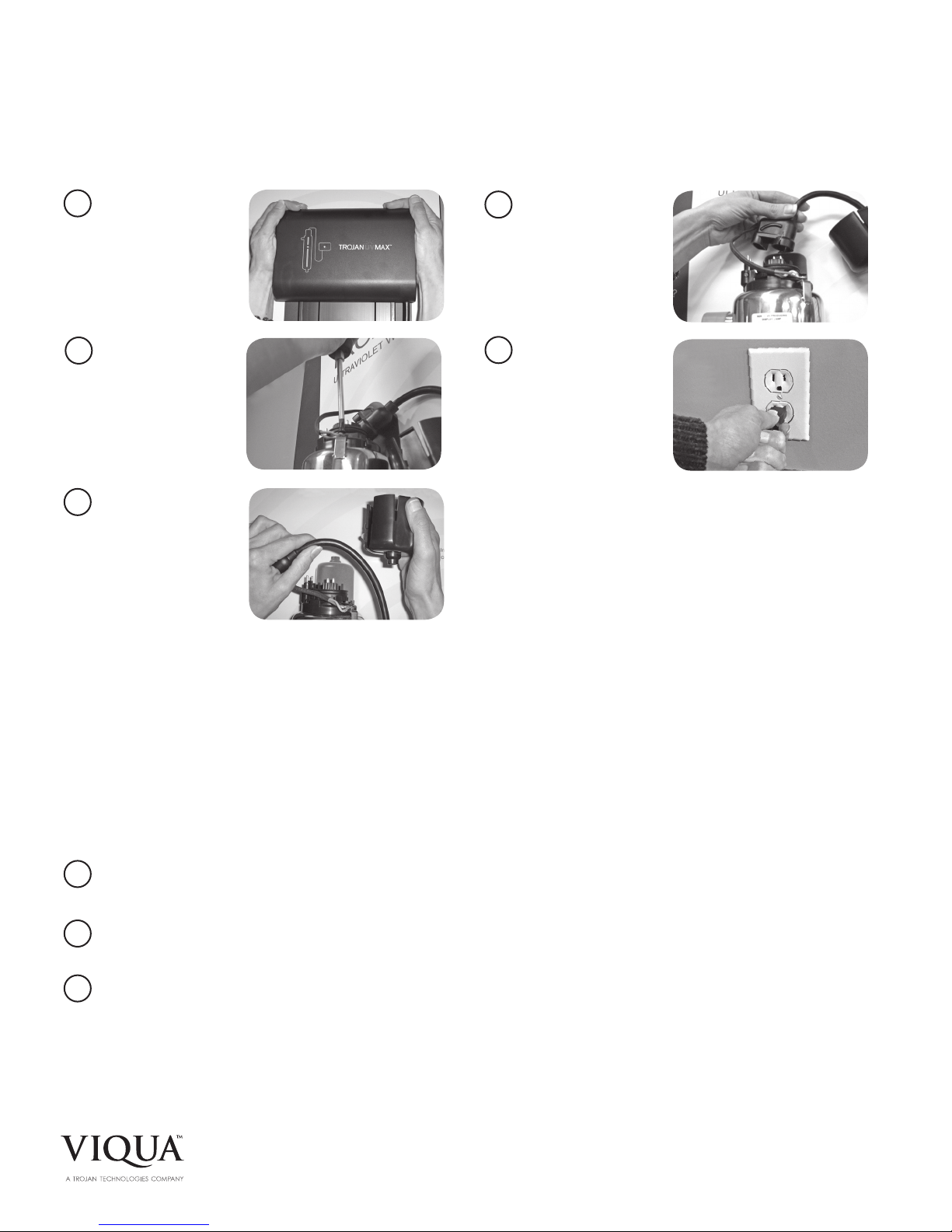

Step 3 - Install your new Power Supply
Taking the power
1
supply only, gently
slide back onto the
mounting bracket
attached to the wall.
Using a screwdriver,
2
reattach the ground
(green) and strain
relief (red) to the
UV chamber.
Snap the black
3
lamp cover back
over the cord.
Attach the lamp
4
harness to the lamp
being sure the 2
pronged jumpers
are aligned to their
contacts on the
harness.
Take the original power
5
cord and insert it first
to the AC input of the
power supply, then
plug into wall outlet.
Monitor the system to
ensure both indicating
light show solid green
(this may take up to
5 mins).
NOTE: If LEDs do not go solid green, consult the troubleshooting section of your manual, or if you have any further
questions regarding these instructions, please contact VIQUA at 1-800-265-5774.
Step 4 - Return Defective Item
Note: Applicable only if you have received this package directly from VIQUA.
Return defective item within 7 days to avoid being charged.
Place defective item into the box of your replacement power supply.
1
Note: the only item that should be returned to VIQUA is the black power supply.
Remove original shipping label from box and replace with new prepaid
2
shipping label included within this package.
Please call UPS at 1-800-742-5877 (Canada and US) and follow the
3
voice prompts to arrange for a pick up.
425 Clair Road West, Guelph, ON N1L 1R1 Canada
t. 519 763 1032 t.f. 1 800 265 7246 f. 519 763 5069 www.viqua.com
January 2010
P/N 520158-R
