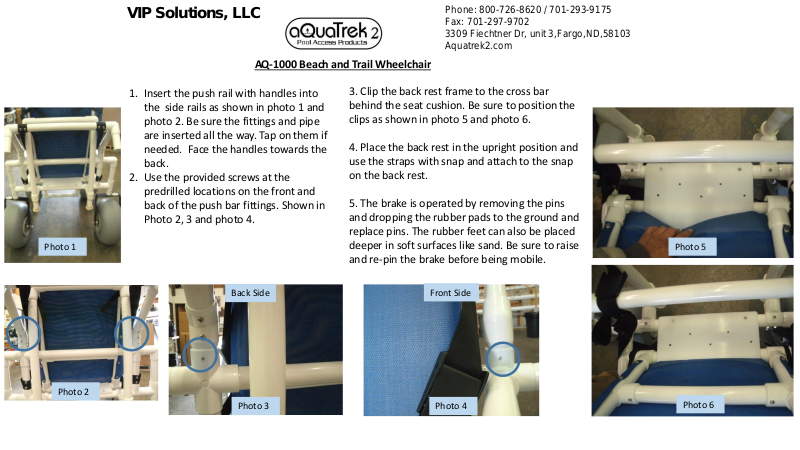

VIP Solutions AQ-1000 User manual

Phone: [phone]
Fax: [phone]
3309 Fiechtner Dr, unit 3,Fargo,ND,58103
Aquatrek2.com

VIP Solutions, LLC

AQ-1000 Beach and Trail Wheelchair

1. Insert the push rail with handles into
the side rails as shown in photo 1 and
photo 2. Be sure the fittings and pipe
are inserted all the way. Tap on them if
needed. Face the handles towards the
back.

2. Use the provided screws at the

predrilled locations on the front and
back of the push bar fittings. Shown in
Photo 2, 3 and photo 4.

Photo 1

Photo 4Photo 3

Photo 2

Front Side

Back Side

3. Clip the back rest frame to the cross bar

behind the seat cushion. Be sure to position the
clips as shown in photo 5 and photo 6.

4. Place the back rest in the upright position and
use the straps with snap and attach to the snap

on the back rest.

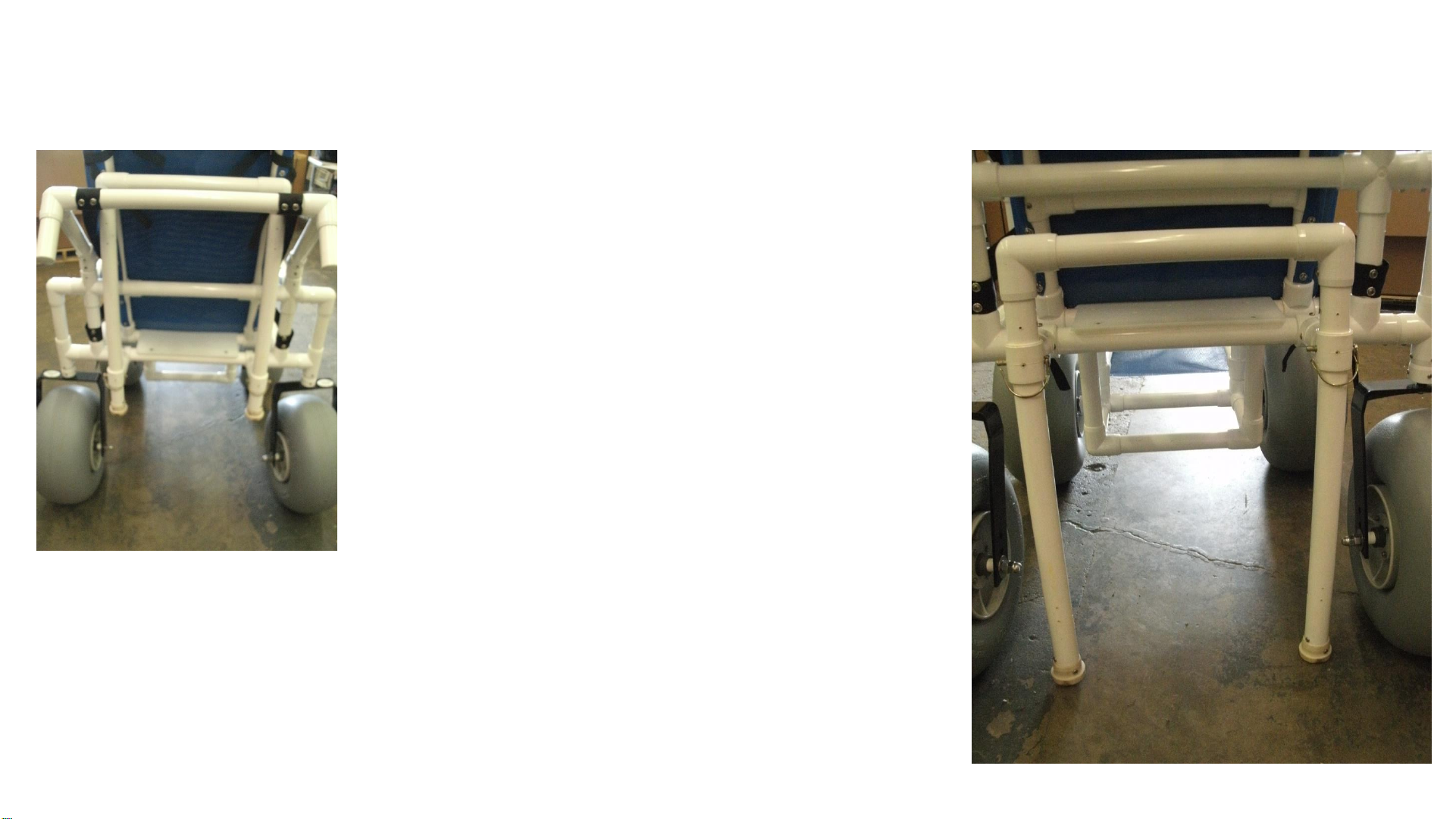

5. The brake is operated by removing the pins
and dropping the rubber pads to the ground and
replace pins. The rubber feet can also be placed
deeper in soft surfaces like sand. Be sure to raise
and re-pin the brake before being mobile.

Photo 5

Photo 6

AQ-1000
