Vipro MVR-606-2IP, MVR series Quick Manual
MVR-606-2IP 6ch Mobile DVR
Quick Guide
7KLVPDQXDOZDVFRPSOHWHDQGFRUUHFWDWWKHWLPHRISULQWLQJ7KHRQJRLQJGHYHORSPHQWRIWKHSURGXFWVPD\
PHDQWKDWWKHFRQWHQWRIWKHXVHUJXLGHFDQFKDQJHZLWKRXWQRWLFH
7KHPDQXDOZLOOEHNHSWXSGDWLQJSHULRGLFDOO\DQGVRIWZDUHUHIHUUHGDVZHOO
© 2015 ViPRO Corporation
ViPRO Corporation
Quick Guide
MVR-606-2IP l v1.1 l 2015.Q1
Mobile DVR MVR-606-2IP
NOTICE
2
NOTICE
The information in this manual was current when published. The contents of this manual are subject to change without
prior notice and will be updated accompanying with the release of new version.
The purpose of this manual is to kindly aid the user for the operation for our MDVR (especially for GUI setting). The user
should have a basic understanding of computer operation and basic knowledge of how to connect peripherals and make
some settings.
Guarantee & Warnings
1) Electrical Apparatus Safety
All installation and operation should comply with local electrical safety norms.
2) Transportation
In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and
water splashing.
3) Installation
Install the equipment in accordance with the requirements, handle carefully. Do not heavily press the equipment
before the MDVR installation is finished.
4) Requirements on Engineers & Technicians
All the work of checking and maintenance should be done by qualified engineers. We do not undertake any problems
caused by unauthorized modifications.
5) Requirements on Environment
The equipment should be installed and stored in a cool and dry place, away from direct sunlight, flammable or
explosive substances, etc. Keep gaps not less than 3cm around the device to facilitate ventilation for cooling.
6) Accessories
Make sure to use accessories from the manufacturer suggested in the attachment.
Insulate circuit ground and metal shell for all the peripherals.
Before installation, please open the package and ensure that all parts are included.
If there are any problems, please contact us as soon as possible.
ViPRO Corporation
Quick Guide
MVR-606-2IP l v1.1 l 2015.Q1
Mobile DVR MVR-606-2IP
PRODUCT OVERVIEW
3
1. PRODUCT CHARACTERISTICS
1.1. OVERVIEW
MVR-606-2IP is a functional Mobile Digital Video Recorder specially designed for vehicle video
surveillance and remote monitoring. It has a high-speed processor and embedded operating system,
combining with the most advanced H.264 video compression / decompression technology, 3G/4G network,
GPS positioning technology, as well as WIFI. It supports not only video recording in 720P, WD1, WHD1,
WCIF, D1, HD1 and CIF formats, but also vehicle travel information recording and wireless data upload. With
center software it also achieves alarm linkage central monitoring, remote management and playback analysis.
It is easy to use with simple design, multi-functions, superior anti-vibration, flexible installation and high
reliability.
1.2. SPECIFICATIONS
Item Technical Index
Product series
MVR-606-2IP
Function Overview
Preview, Recording, Playback, Network, Locating
System
OS
Linux 3.0.8
Control Mode
CP4, Easy Check, network, mouse
Video
Input
4 channels WD1+2 channels 720P
Output
1 channel
Total Resource
(4 x 25)FPS WD1 @ PAL / (4 x 30)FPS WD1 @ NTSC +
(2 x 30)FPS 720P
Video Signal Standard
Electrical level: 1Vpp Impedance : 75Ω NTSC/PAL Optional
Audio
Input
6 channels (Including IPC x 2)
Output
1channel
Audio Signal Standard
Electrical level: 2Vpp Input impedance: 4.7kΩ
Display
Display Split
1/4/9
OSD
GPS information, alarm, vehicle No., speed, date/time
Operation Interface
Semi-transparent GUI
Recording
Video/Audio Compression
Video: H..264
Audio: ADPCM, G.711A G.711U
Image Resolution
Analog:
PAL:WD1(928X576), WHD1(928X288), WCIF(464X288),
D1(704X576), HD1(704x288), CIF(352x288);
NTSC:WD1(928X480), WHD1(928X240), WCIF(464X240),
D1(704x480), HD1(704x240), CIF(352x240);
Digital:
720P(1280X720);
ViPRO Corporation
Quick Guide
MVR-606-2IP l v1.1 l 2015.Q1
Image Quality
1-8 levels adjustable (1 is the best)
Recording Mode
Boot up/Manual/Schedule/Alarm (sensor trigger, speed,
acceleration, video loss, temperature)
Pre-recording
0-60minutes
Post-recording
0-30 minutes
Mirror/Dual Recording
Support
Playback
Playback Channel
1 channel by local playback
Search Mode
Date/time, channel, event
Network
Ethernet
RJ45(10/100M) x1
IPC Ethernet
6-pin DJ M12(10/100M x 2, PON power supply)
WIFI
802.11b/g/n
3G/4G
EVDO/WCDMA/TDD-LTE/FDD-LTE
Locating
GPS
Location tracking, speed detection and time sync
Storage
Hard Disk
2.5" SATA hard disk x 1(Up to 2 TB)
Interface
USB
USB2.0 x 2
SD
SD x 1
SIM
SIM x 1
RS232
RS232 x 2
RS485
RS485 x 2
Sensor
8 inputs, 2 outputs
Serial
G-sensor (Internal)
Speed
1 channel pulse speed detection
Interface
Interface (CP4 Optional)
Power
Input
DC8-36V
Output
12V@1A, 5V@1A
Max Power Consumption
69.9W
Standby Power Consumption
≈0W
Others
Water Proof Rate
IP54
Physical
Characteristic
Dimension (L x W x H)
255.3mmx150mmx89.1mm / 10.05“ x 5.906“ x 3.508“
Weight
2.2Kg / 4.85lbs
Environment
Operating Temperature
-40
濎 - +70濎 / -40ʲ - +158ʲ (With heater) or
-10濎 - +70濎 / 14ʲ - +158ʲ
Operating Relative Humidity
8%-90%˄No Condense˅
ViPRO Corporation
Quick Guide
MVR-606-2IP l v1.1 l 2015.Q1
Mobile DVR MVR-606-2IP
SYSTEM DIAGRAM
5
1.3. SYSTEM DIAGRAM
1.4. EXTERNAL INTERFACE
DIMENSION (Unit: mm)
ViPRO Corporation
Quick Guide
MVR-606-2IP l v1.1 l 2015.Q1
Mobile DVR MVR-606-2IP
EXTERNAL INTERFACE
6
FRONT PANEL
REAR PANEL
Serial No.
Print
Description
1 Power
DC 8
-36 V Power Input
2 Sensor&Serial
The
Interfaces of Serial Port and Switch
3
A/V IN1~4
Audio
& Video Input 1-4
4 A/V OUT
Audio & Video Output
5 IPC
The Interface of PON Power Supply
6
GPS Antenna
Interface
7
3G/4G/WIFI
Antenna Interface
ViPRO Corporation
Quick Guide
MVR-606-2IP l v1.1 l 2015.Q1
Mobile DVR MVR-606-2IP
HDD INSTALLATION
7
1.5. HARD DISK INSTALLATION
ViPRO Corporation
Quick Guide
MVR-606-2IP l v1.1 l 2015.Q1
Mobile DVR MVR-606-2IP
ALARM CABLE DEFINITION
8
1.6. DEFINITION AND PICTURES OF EXTERNAL CABLES
ALARM CABLE DEFINITION
SERIAL PORT DEFINITION
ViPRO Corporation
Quick Guide
MVR-606-2IP l v1.1 l 2015.Q1
Mobile DVR MVR-606-2IP
FAQ
9
2. FREQUENTLY ASKED QUESTIONS
1) The system can’t start?
Usually this problem results from the incorrect power connection. Please follow below steps to check the power
connection:
1. Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to
the battery, and whether the fuse on the power wire is in good condition.
2. Check whether the ACC signal wire input to the power is with voltage higher than 7 V.
3. Check whether the device key is closed.
2) The MDVR restarts uninterruptedly?
Please follow below steps to check it:
1. Check whether the voltage of MDVR is insufficient. If the voltage is less than the start-up voltage of the device, the
device would always restart.
2. The problem in hard disk/SD card may cause the failure to start. Take off the storage part and check whether it is
broken down.
3) The device can’t record?
Usually this problem results from the storage disk or camera. Please follow below steps to check it:
1. Check whether the storage disk is installed, whether it is in good contact, and whether the disk can be read normally
in computer.
2. Check whether the storage disk is formatted. The storage disk should be formatted before normally storing record
files.
3. Check whether there is video signal input into the device from camera, and whether there is video/image on the
screen.
4) There is no voice in record file?
Please follow below steps to check it:
1. Check whether there is an external pickup, or whether the camera features with the function of audio collection.
2. Access to Video Channel Settings, check if Audio is set on.
3. There must be video input into the channel for recording and it must record normally.
5) The GPS works abnormally?
Please follow below steps to check it:
1. Check whether the GPS antenna is installed correctly. There is a silk print logo on the GPS antenna holder behind
the host device.
2. Check whether the antenna receiver is sheltered. It should not be covered by any stuff, which may cause it not to
receive signals.
3. Environmental influence such as tree shades, being inside tunnel, driving near tall building or elevated roads,
thunderstorms or other weather influence, etc. can also cause signal loss or receiving wrong signals.
6) The device can’t shutdown in ignition switch mode?
Please follow below steps to check it:
1. Check if the ACC line connection mode is correct; and check whether there is voltage on ACC yellow line when the
key is turned off.
2. If the device has been set with schedule recording, it can’t shutdown if it is still during recording time of the task table.
Installation Manual of ViPRO Mobile DVR - MVR series │ver. 1.1
- 1 -
ViPRO Mobile DVR – All MVR series
Installation Manual v1.1
7KLVPDQXDOZDVFRPSOHWHDQGFRUUHFWDWWKHWLPHRISULQWLQJ7KHRQJRLQJGHYHORSPHQWRIWKHSURGXFWV
PD\PHDQWKDWWKHFRQWHQWRIWKHXVHUJXLGHFDQFKDQJHZLWKRXWQRWLFH
7KHPDQXDOZLOOEHNHSWXSGDWLQJSHULRGLFDOO\DQGVRIWZDUHUHIHUUHGDVZHOO
© 2014 ViPRO Corporation
Installation Manual of ViPRO Mobile DVR - MVR series │ver. 1.1
- 2 -
Table of Content
NOTICE....................................................................................................................... ............................................. 3
Installation General Instruction ........................................................................................................................... ....... 4
Part 1 MDVR Device Installation.................................................................................................................................. 5
1 Pre-Installation Preparation .................................................................................................... ................................. 5
1.1 Technical Requirement............................................................................................................................. 5
1.2 Installer and Supervisor Qualification......................................................................................................... 5
1.3 Pre-installation Investigation and Installation Plan Making......................................................................... .. 5

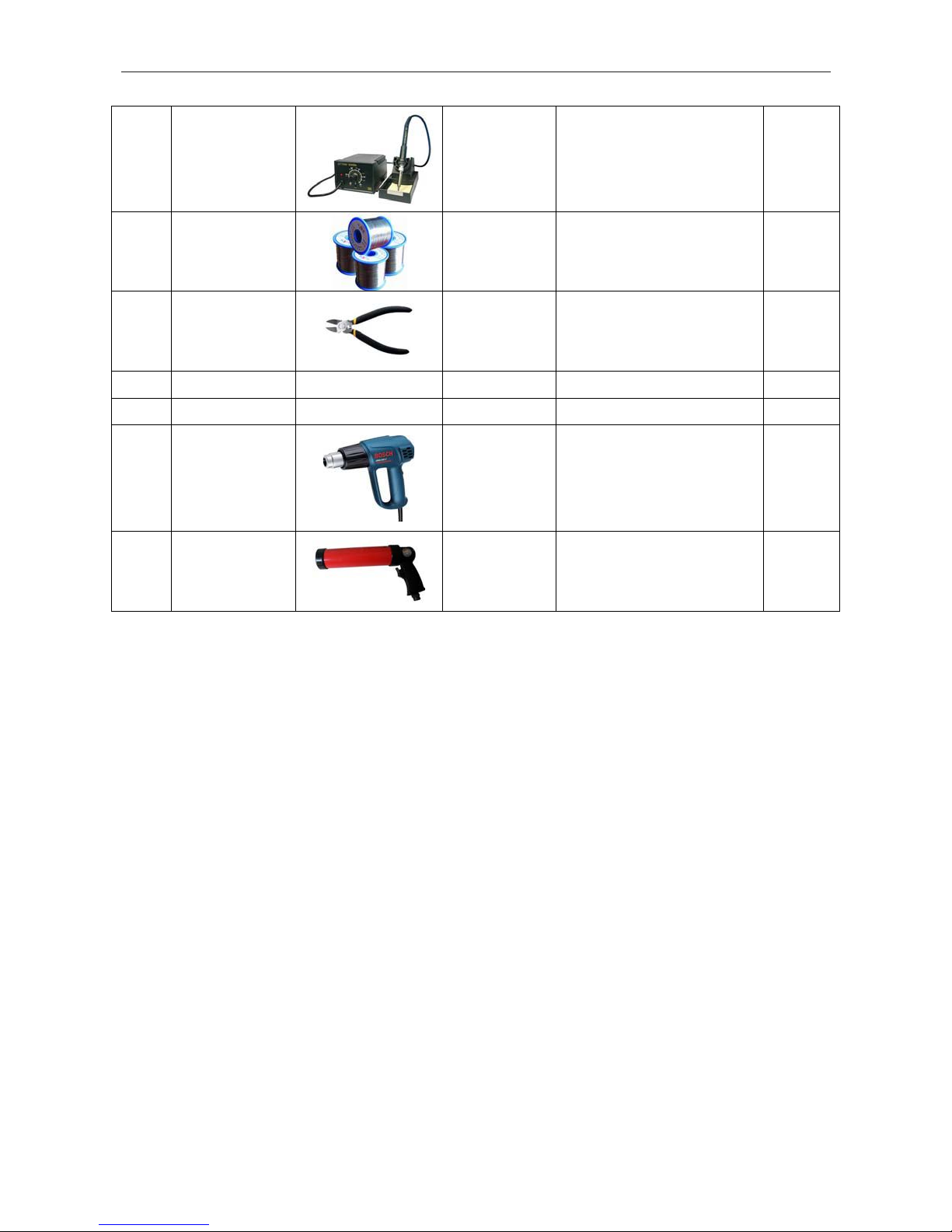

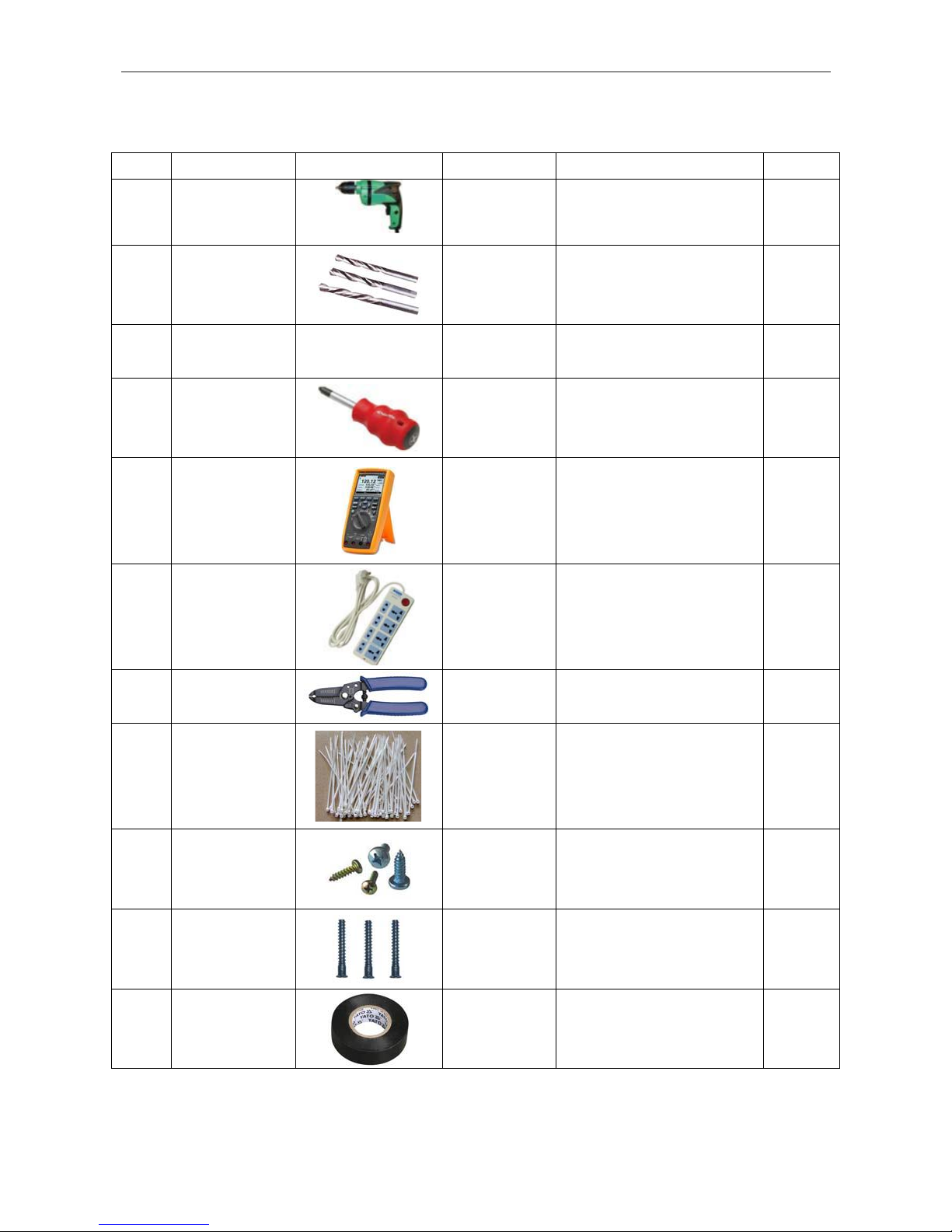

1.4 Reference Installation Tool....................................................................................................................... 6
2 MDVR Device Installations ............................................................................................................................. ........ 7
2.1 The Hard Disk Installation ........................................................................................................................ 8
2.2 Power Connection............................................................................................................. ....................... 8
2.2.1 Power Wire Requirement................................................................................................................. 8

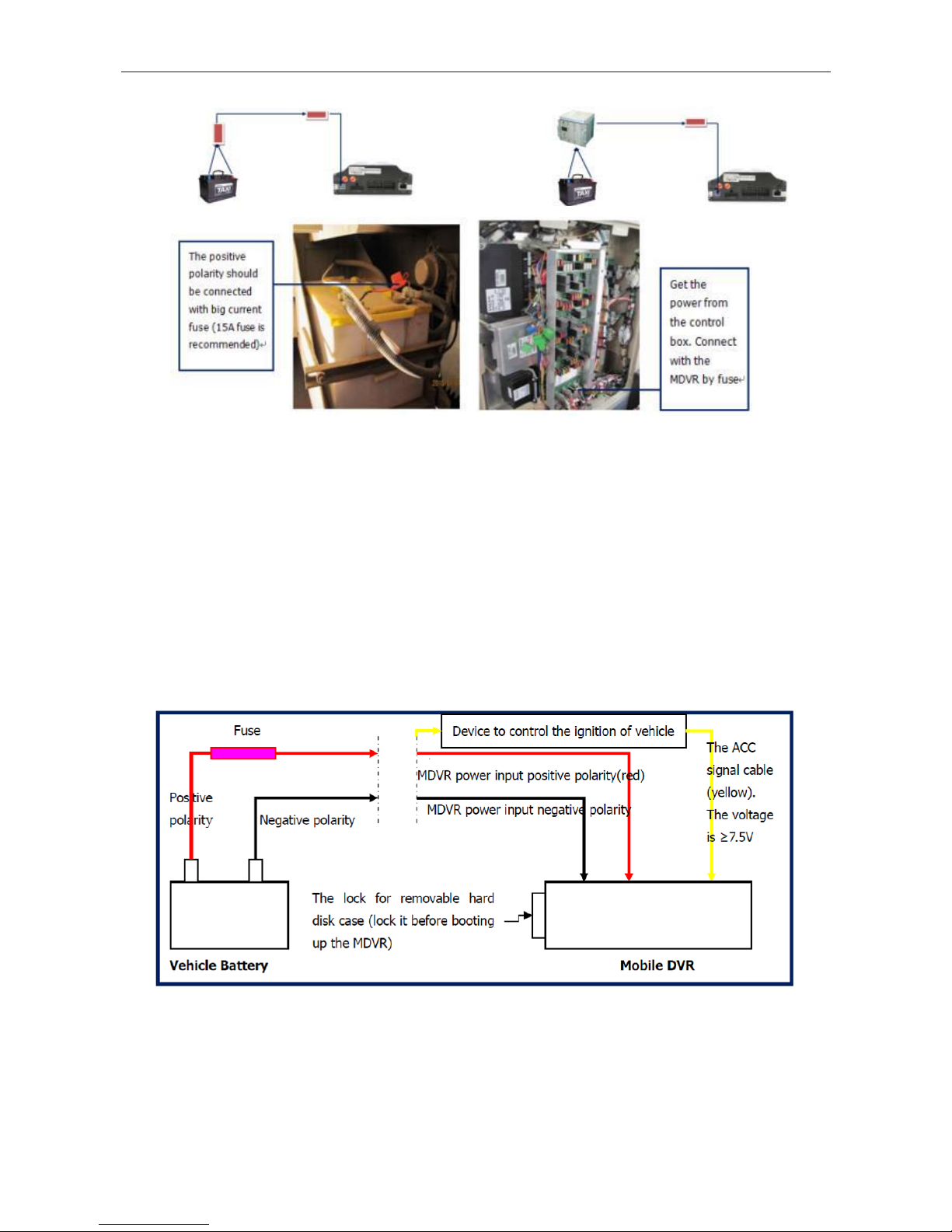

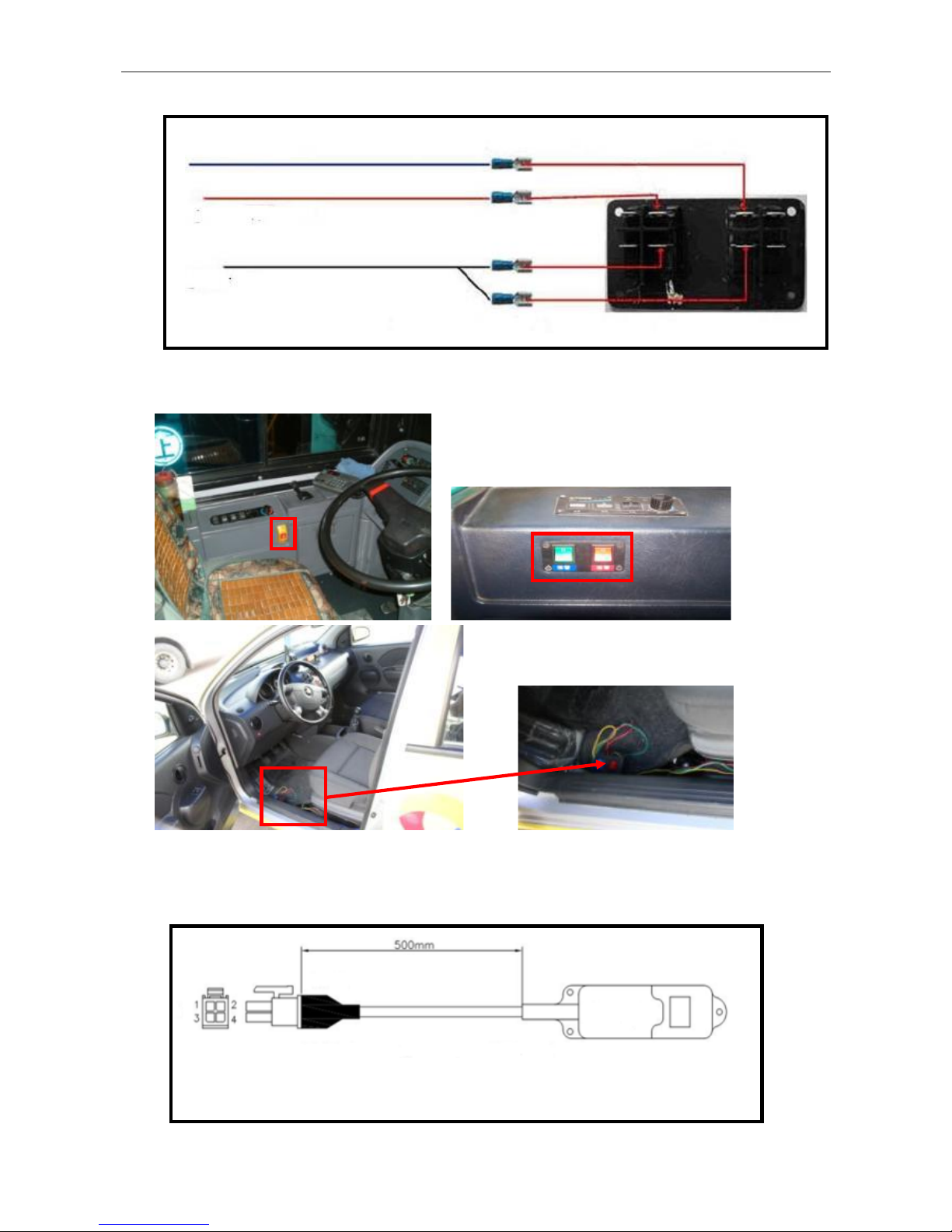

2.2.2 The Power Connection...................................................................................................... ............... 8

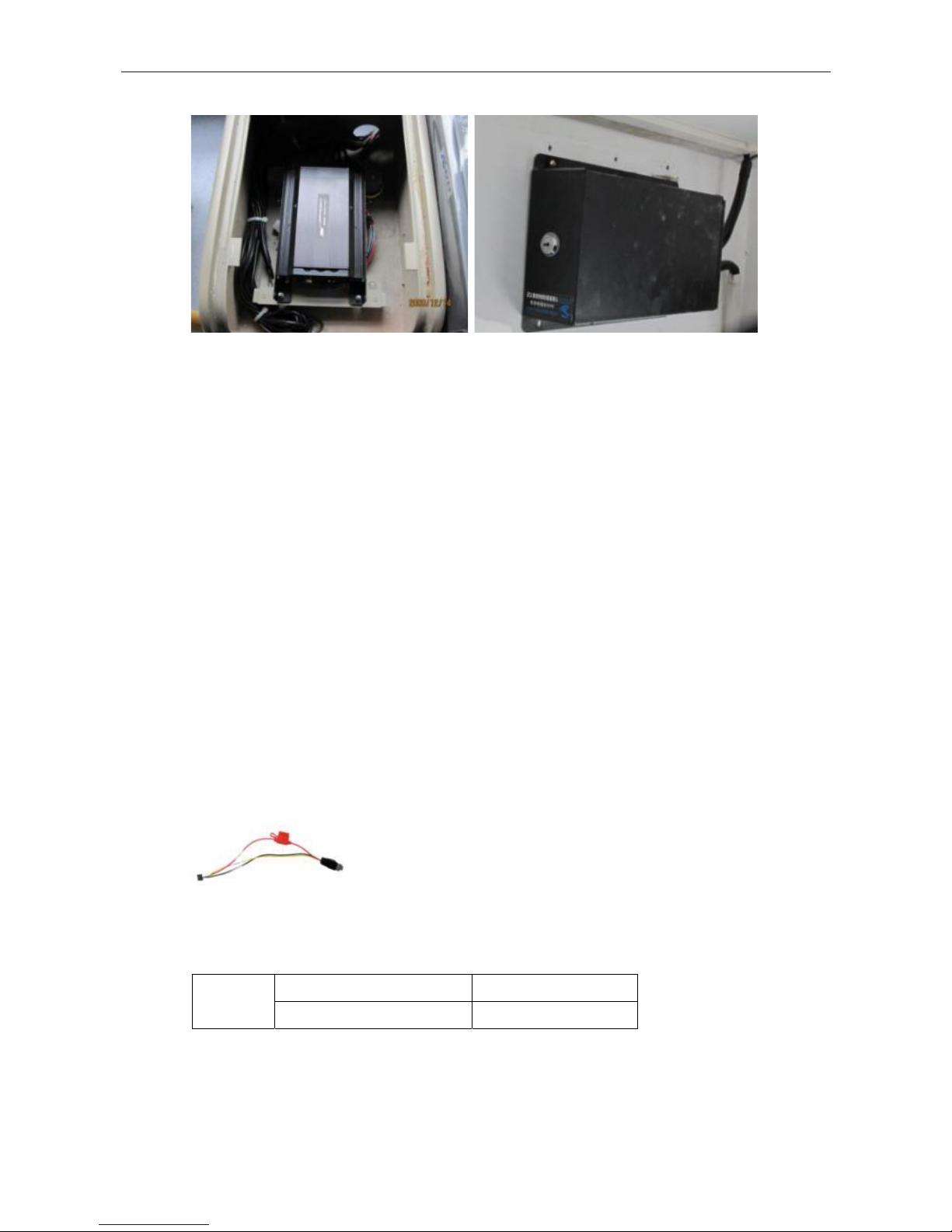

2.3 MDVR Device installation.......................................................................................................................... 9

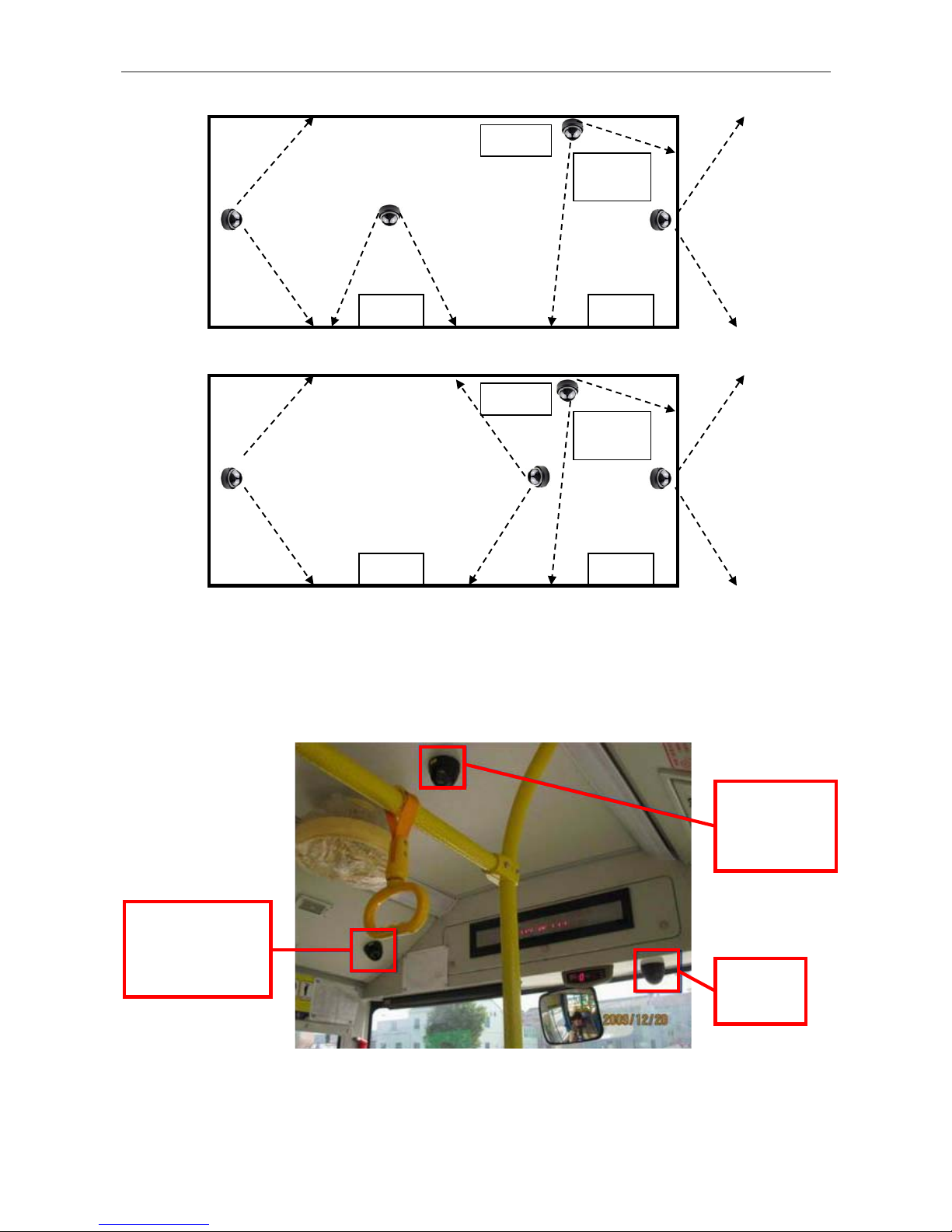

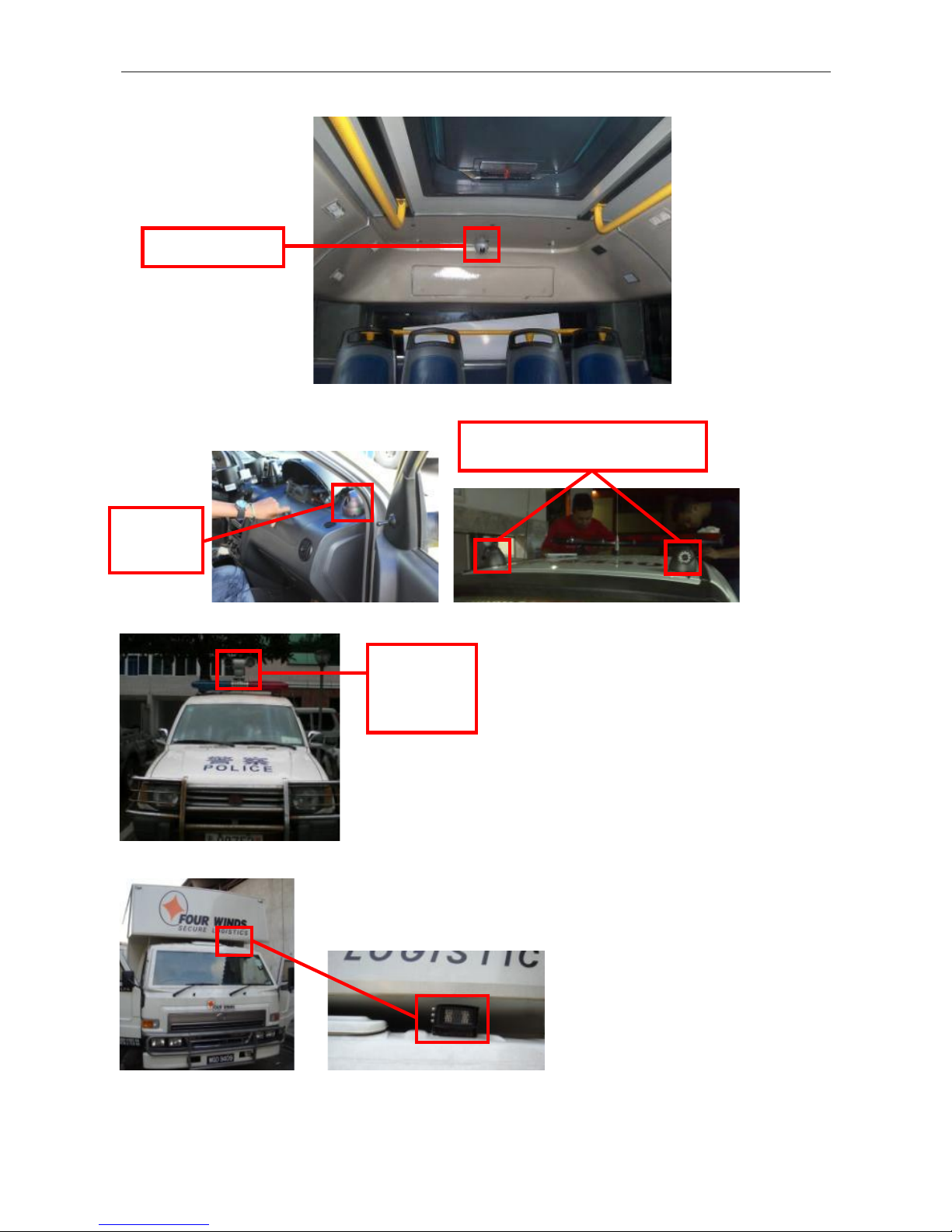

2.4 How to Choose and Install Cameras......................................................................................................... 11

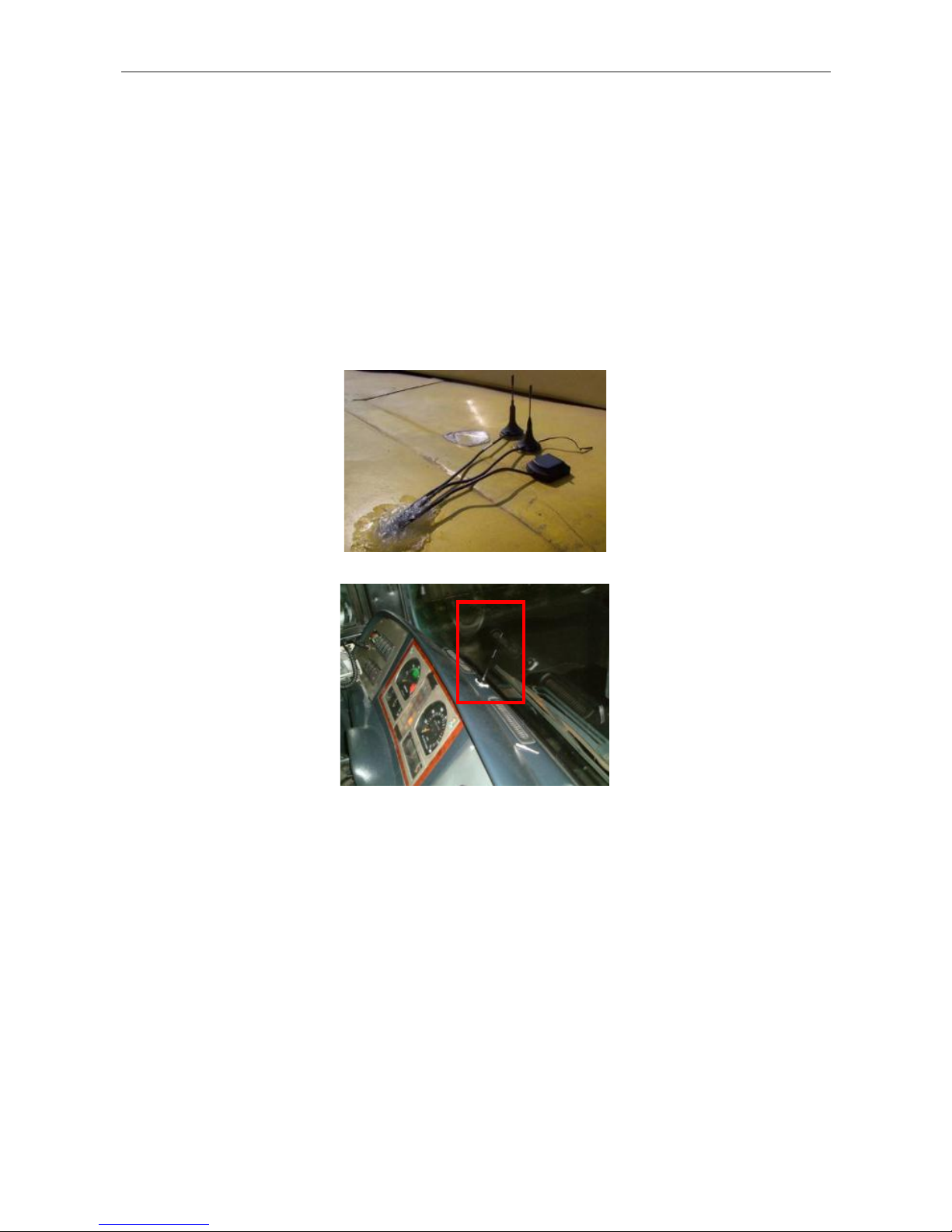

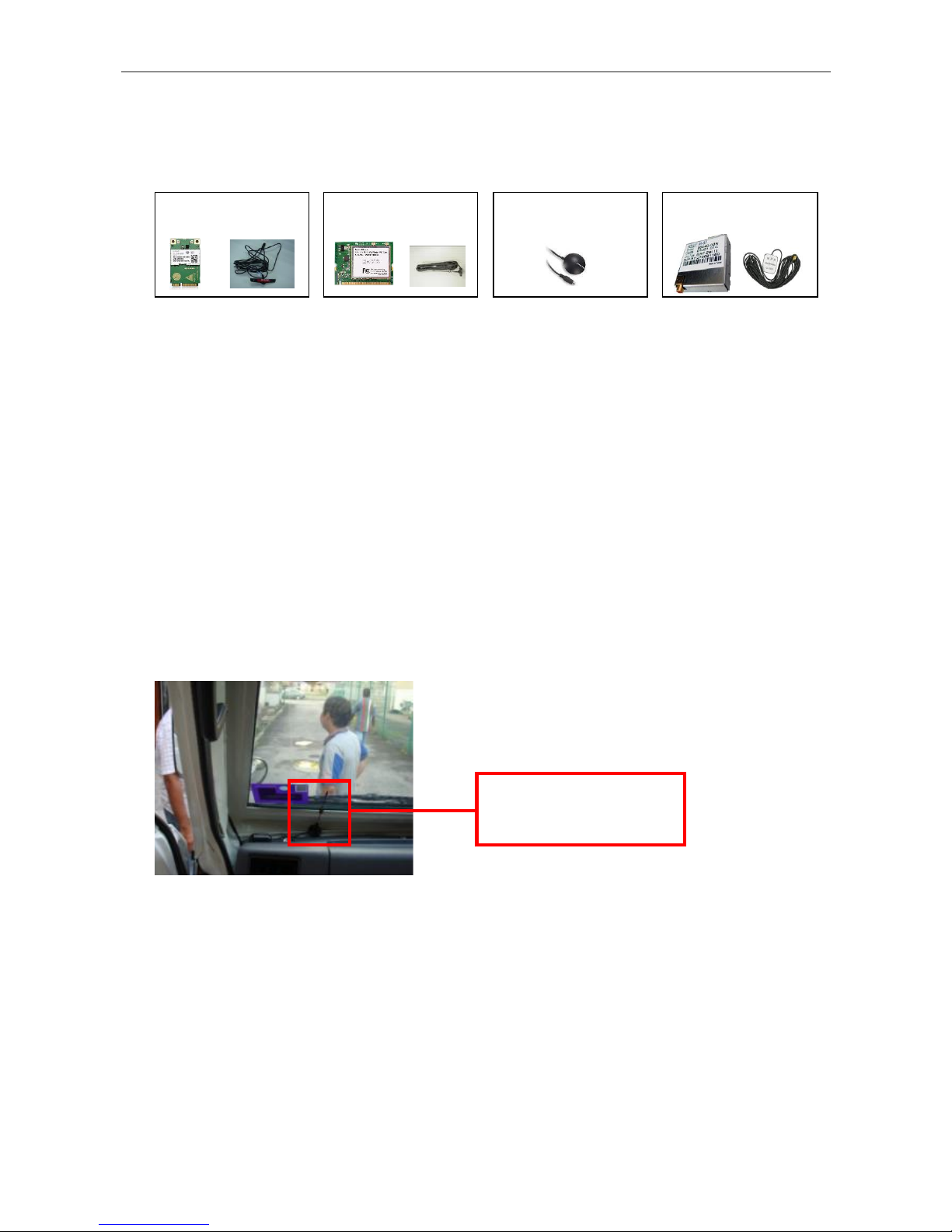

2.5 Antenna (GPS/WIFI/3G) Connection ....................................................................................................... 14
2.6 Monitor Installation................................................................................................................................ 15

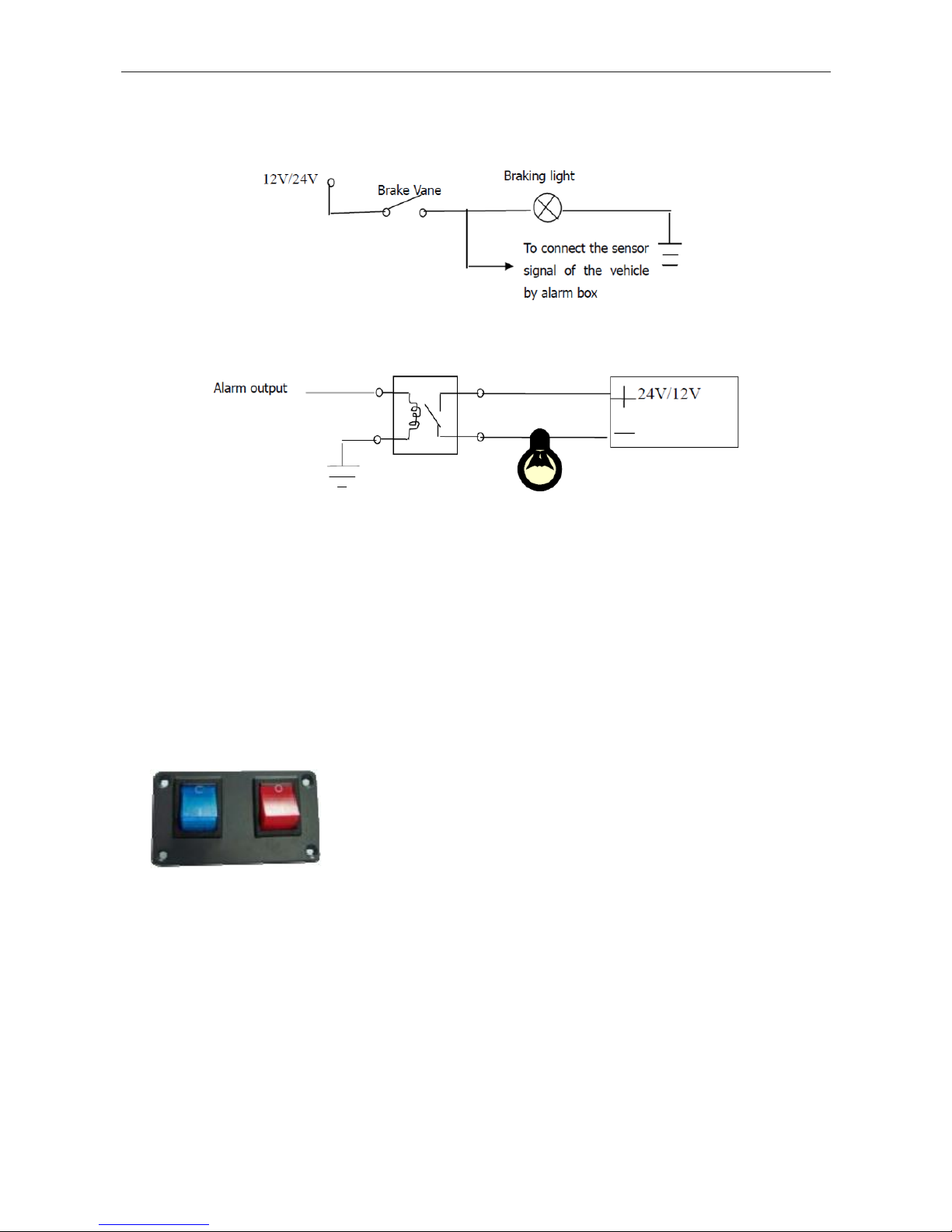

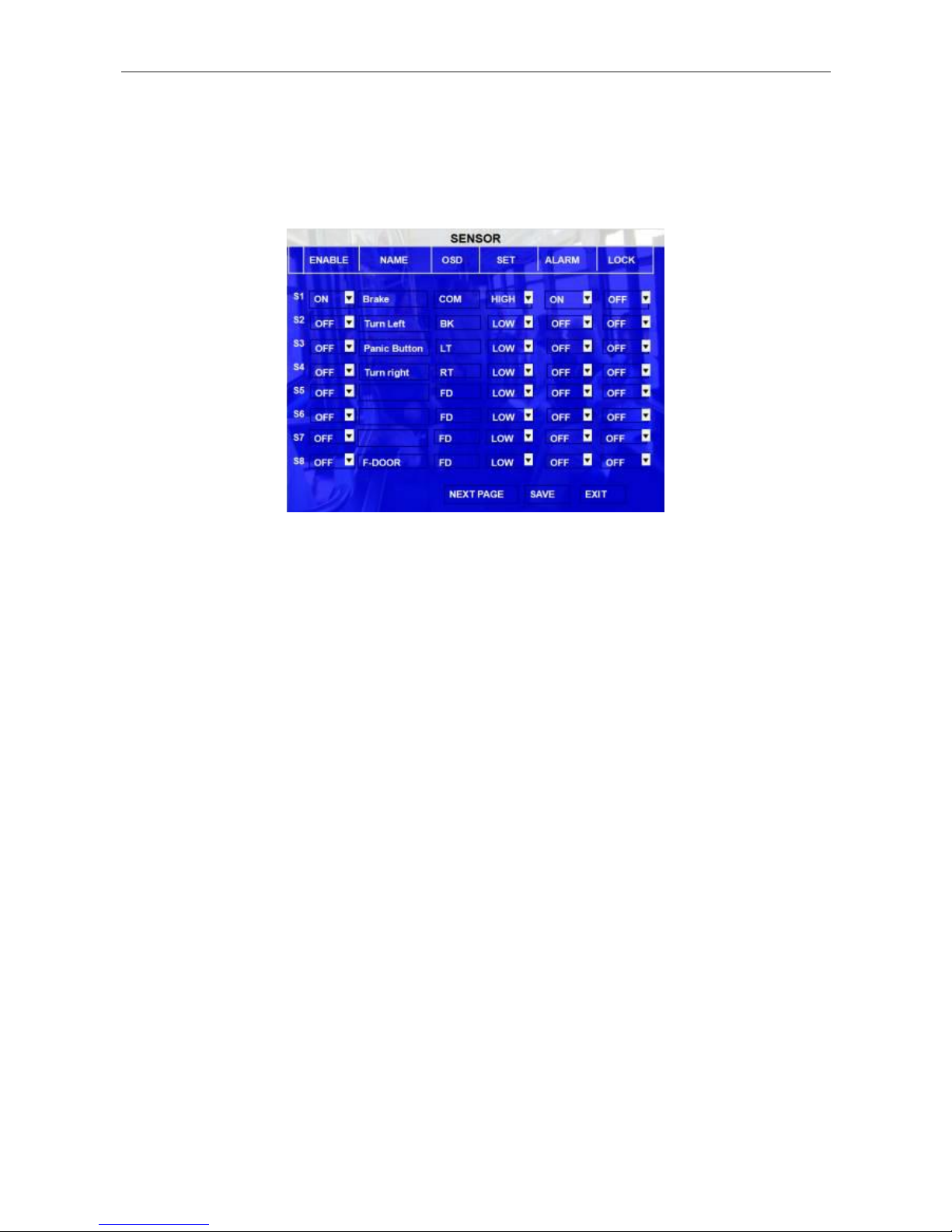

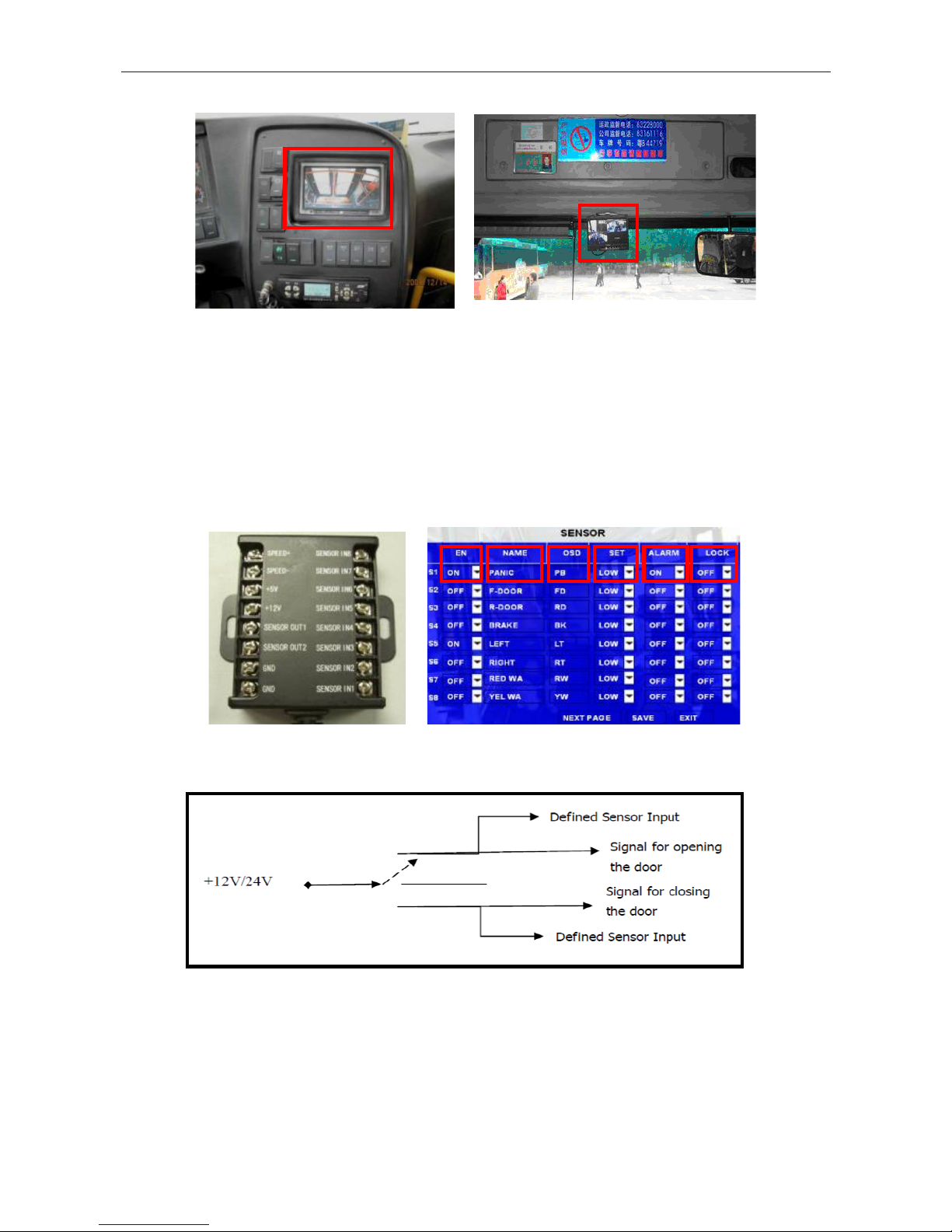

2.7 How to connect the I/O Sensors ............................................................................................................. 16

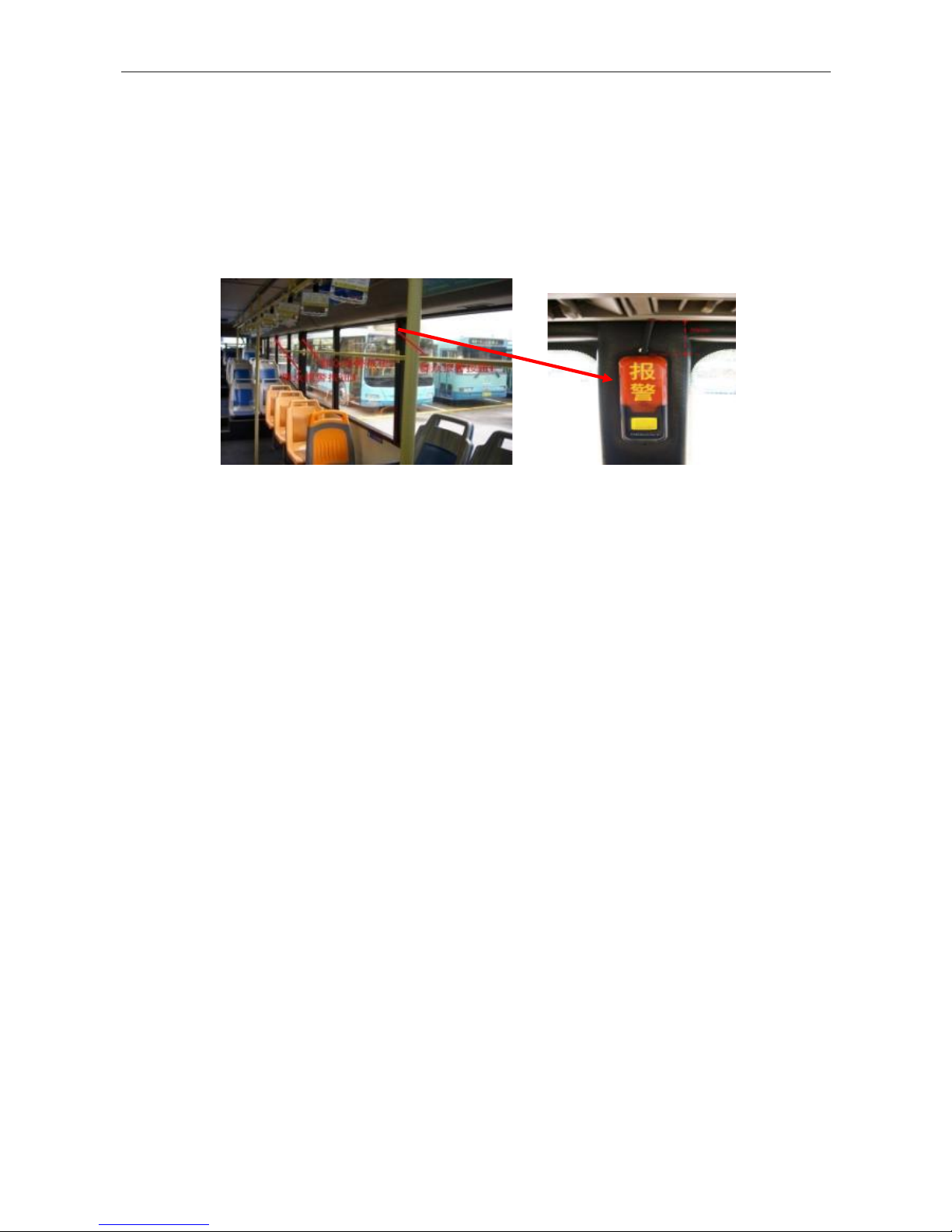

2.8 How to Connect Alarm System................................................................................................................. 17
2.9 How to Deal with the Connection for Cables and Wire .............................................................................. 19
Part 2 The Whole System Testing after Installation .................................................................................................... 19
1 MDVR Device Testing..................................................................................................... ....................................... 20
1.1 Inspection before Power Connection ....................................................................................................... 20
1.2 Trial Testing after the System Gets the Power .......................................................................................... 20
1.3 Accessories Testing................................................................................................................................ 21
1.4 MDVR Recording and Network Testing .................................................................................................... 21
1.4.1 MDVR Recording Testing ............................................................................................................... 21
1.4.2 I/O Sensor Testing........................................................................................................................ 22

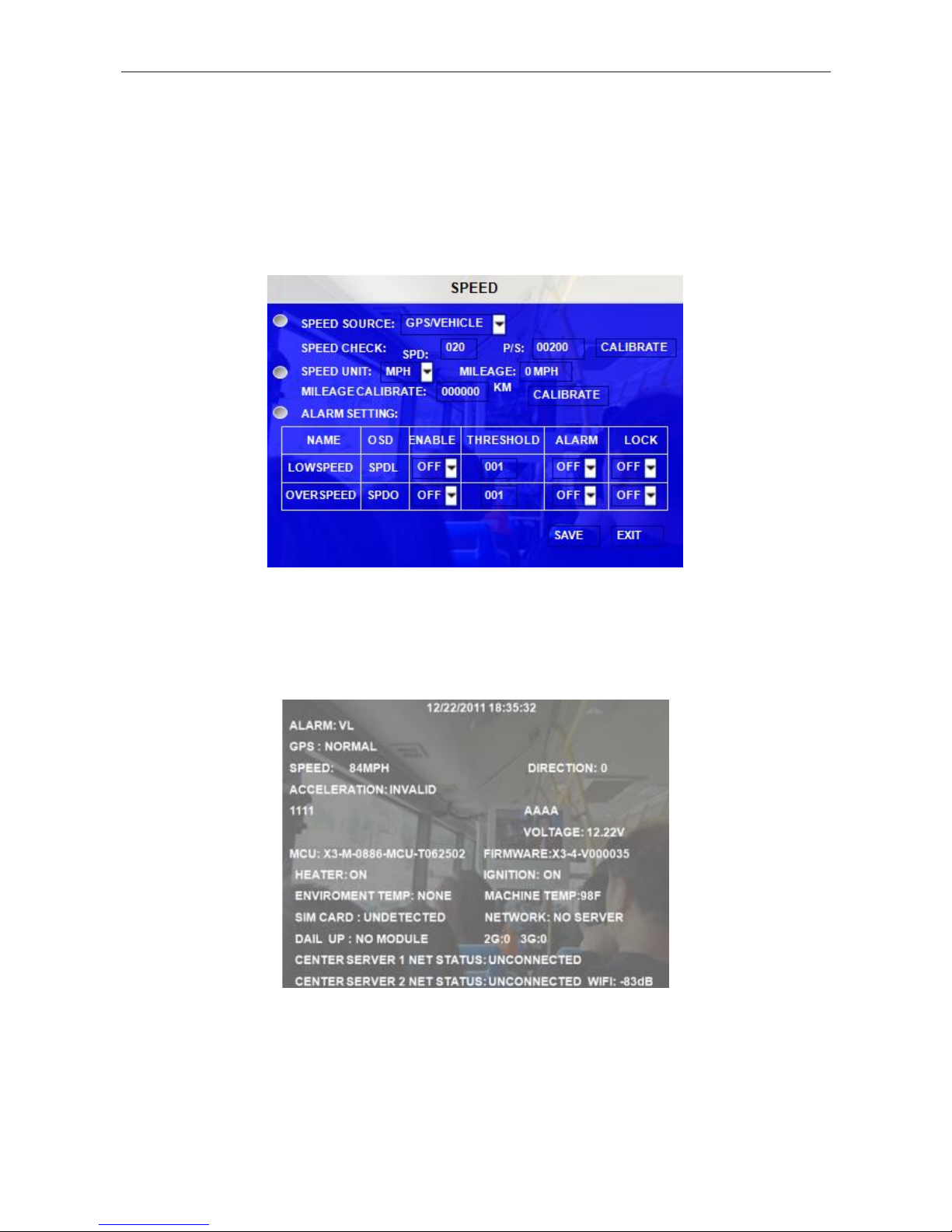

1.4.3 Vehicle Speed and Pulse Testing................................................................................................
.... 22
1.4.4 Wireless Network Testing........................................................................................ ....................... 23

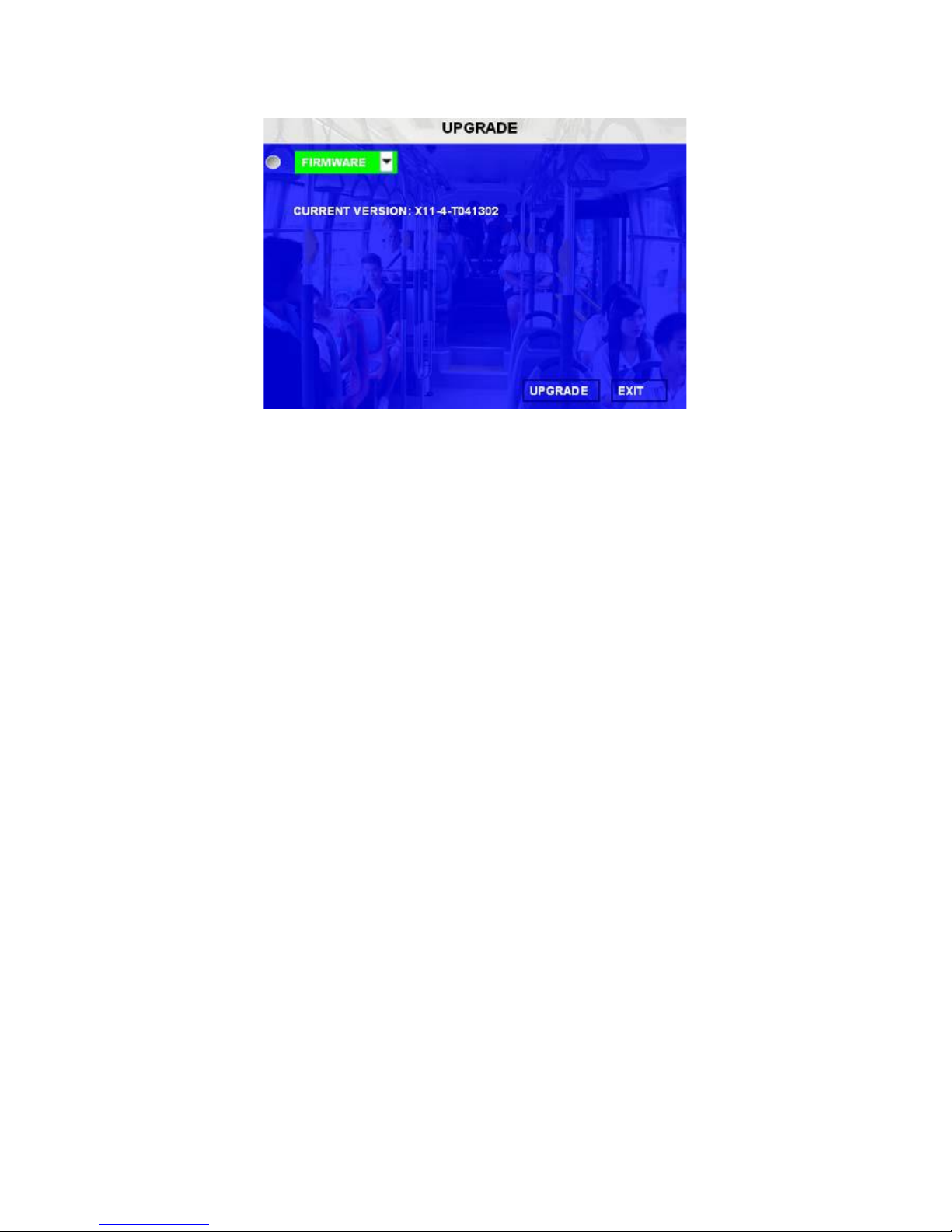

1.4.5 Software Upgrade .............................................................................................. ........................... 24
1.4.6 Setup Machine Registration Information.......................................................................................... 25
1.4.7 Storage Format (HDD or SD Card).................................................................................................. 25
Appendix ................................................................................................................................................................ 26

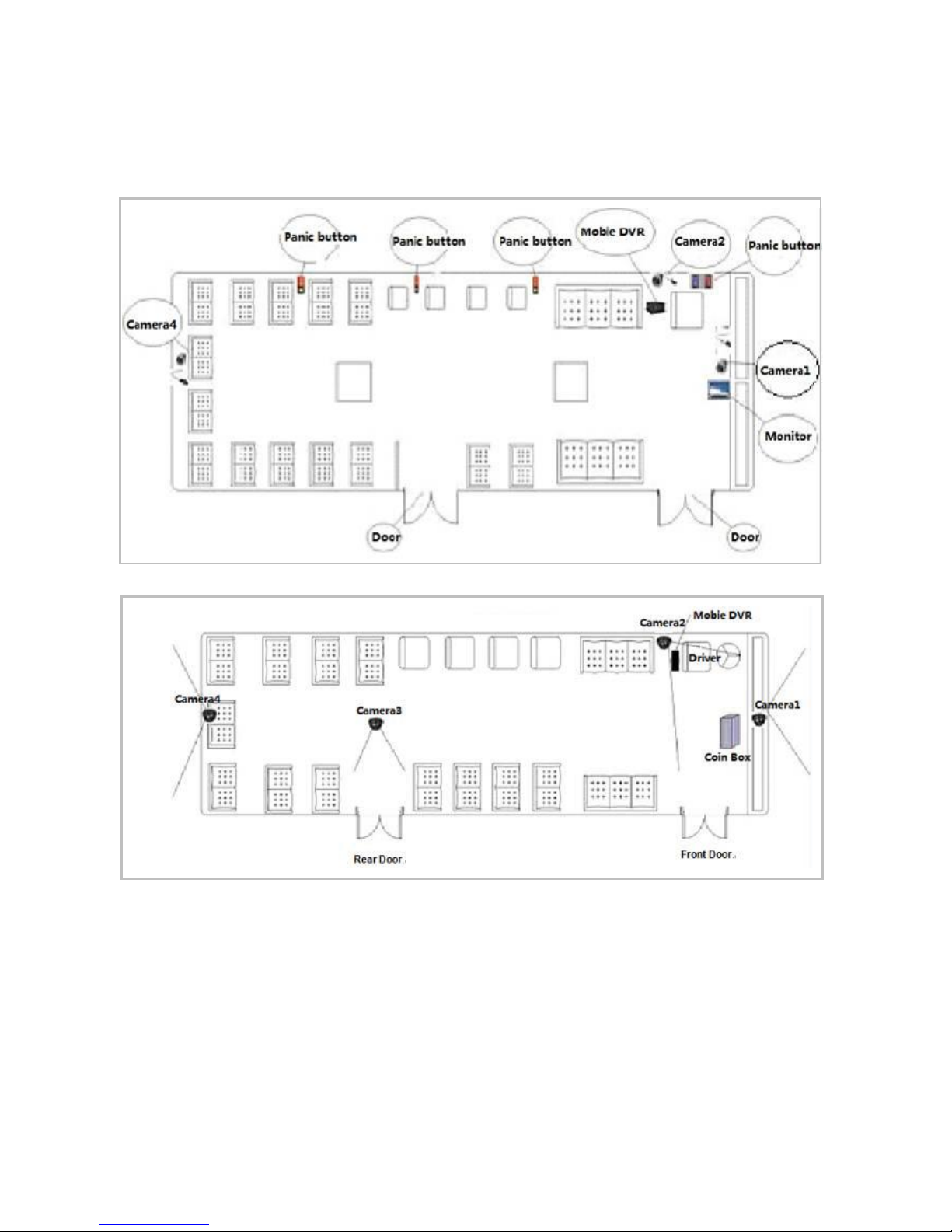

Bus Application.................................................................................................................................................... 26
The Table for Bandwidth and Frame Rate. ............................................................................................................ 27
