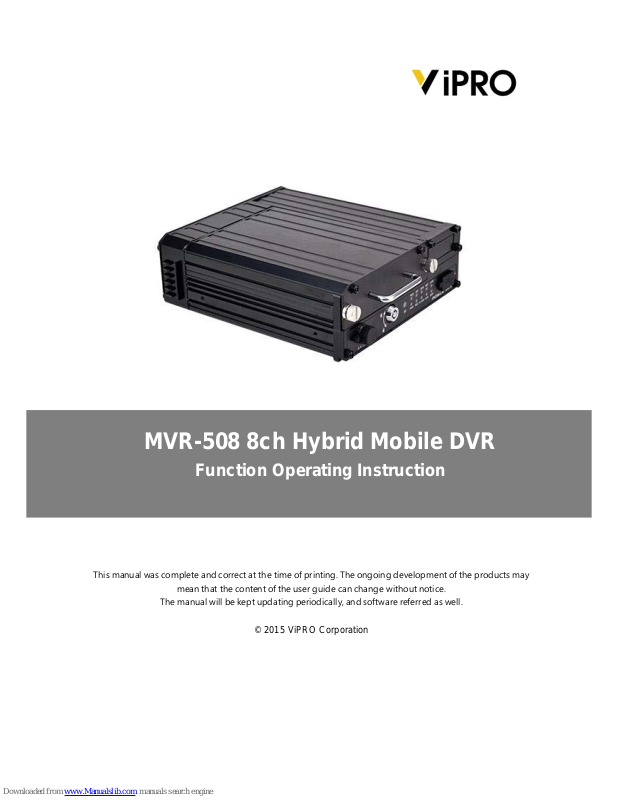

Vipro MVR-508 Operating Instructions Manual
Notice
MVR-508 8ch Hybrid Mobile DVR
Function Operating Instruction
7KLVPDQXDOZDVFRPSOHWHDQGFRUUHFWDWWKHWLPHRISULQWLQJ7KHRQJRLQJGHYHORSPHQWRIWKHSURGXFWVPD\
PHDQWKDWWKHFRQWHQWRIWKHXVHUJXLGHFDQFKDQJH
ZLWKRXWQRWLFH
7KHPDQXDOZLOOEHNHSWXSGDWLQJSHULRGLFDOO\DQGVRIWZDUHUHIHUUHGDVZHOO
© 2015 ViPRO Corporation
ViPRO Corporation
User’s Manual
MVR-508-GUI l v2.0 l 2014.12
1 Live-view/Local Login
Quick operation items when live-view:
1. System: Check the device status information .
2. Playback: Playback the video for all channels two minutes prior, easy for the police to check the video
when patrolling.
3. Fast switching single-window
4. Fast switching four-window
5. Fast switching nine-window
ViPRO Corporation
User’s Manual
MVR-508-GUI l v2.0 l 2014.12
1.1 Playback
1. You can drag the tim e line, and you ca n manually set the playing tim e, easy to find the t im e point nee ded.
2. There are three colors to distinguish the type of the video: Green: Normal video, Red: Alarm video,
Yellow: Locked video.
3. The multi-way synchronization frame forward function, one frame when clicking and it is easy for the
customer to find the details.
4. Support 16 and 1/16 fast forward.
5. Playback automatically play the video of two minutes prior,the minimum of playback delay is 1 minute.
ViPRO Corporation
User’s Manual
MVR-508-GUI l v2.0 l 2014.12
1.2 System
1.2.1 Version Information

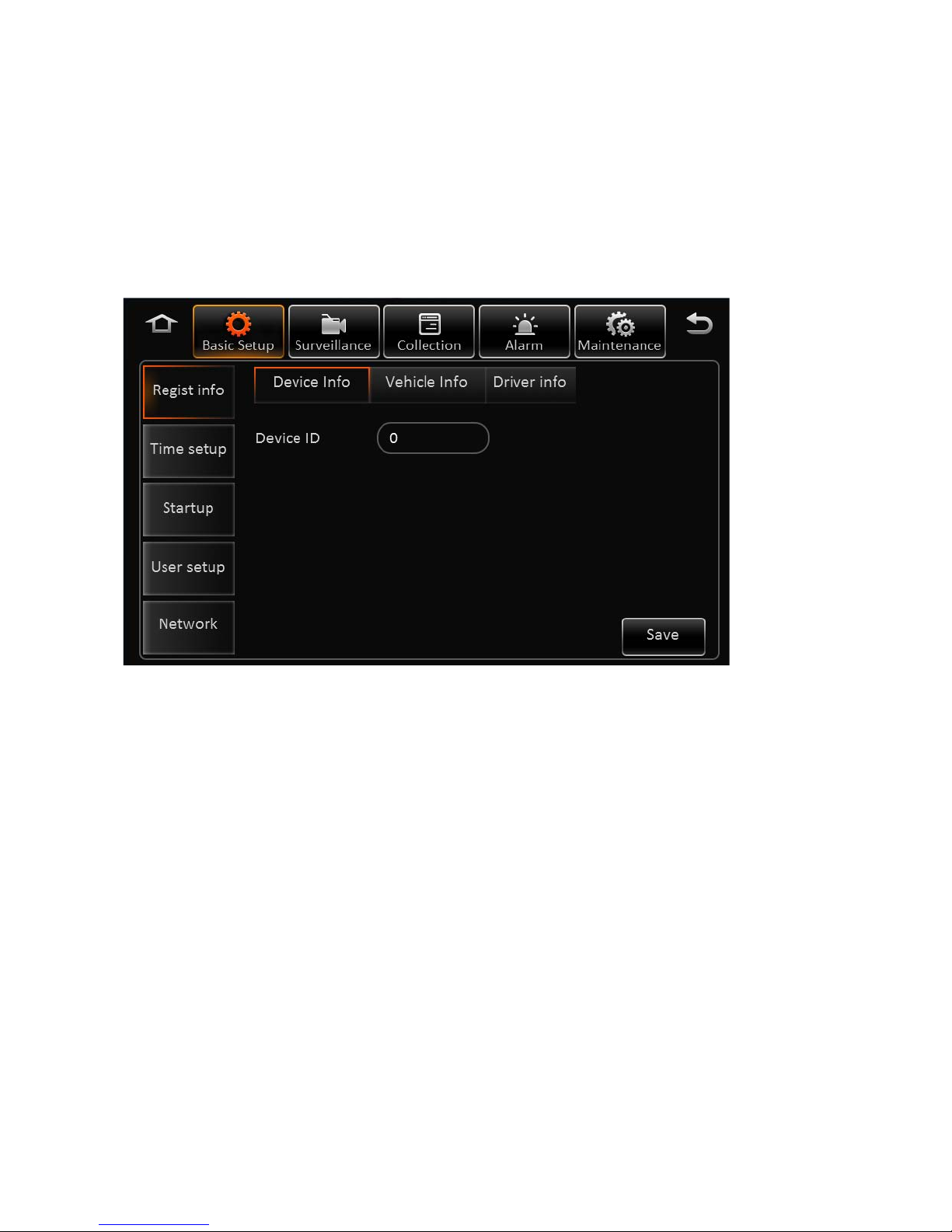

1.Check the Unit ID and the firmware version.
2.Unique identification for reporting the platform: Unit ID, this number will be gotten by the device
automatically.
ViPRO Corporation
User’s Manual
MVR-508-GUI l v2.0 l 2014.12
1.2.2 Modules
1.Check the module status of 3G/4G and WIFI, and also the working status of the GPS module.
2.MVR-508 communication modules for dual-mode, 3G and 4G can exist at the same time. Dual-mode
support different carriers, but the module can not be repeated.
3.3G and 4G signal strength can be distinguished.
1.2.3 Server status

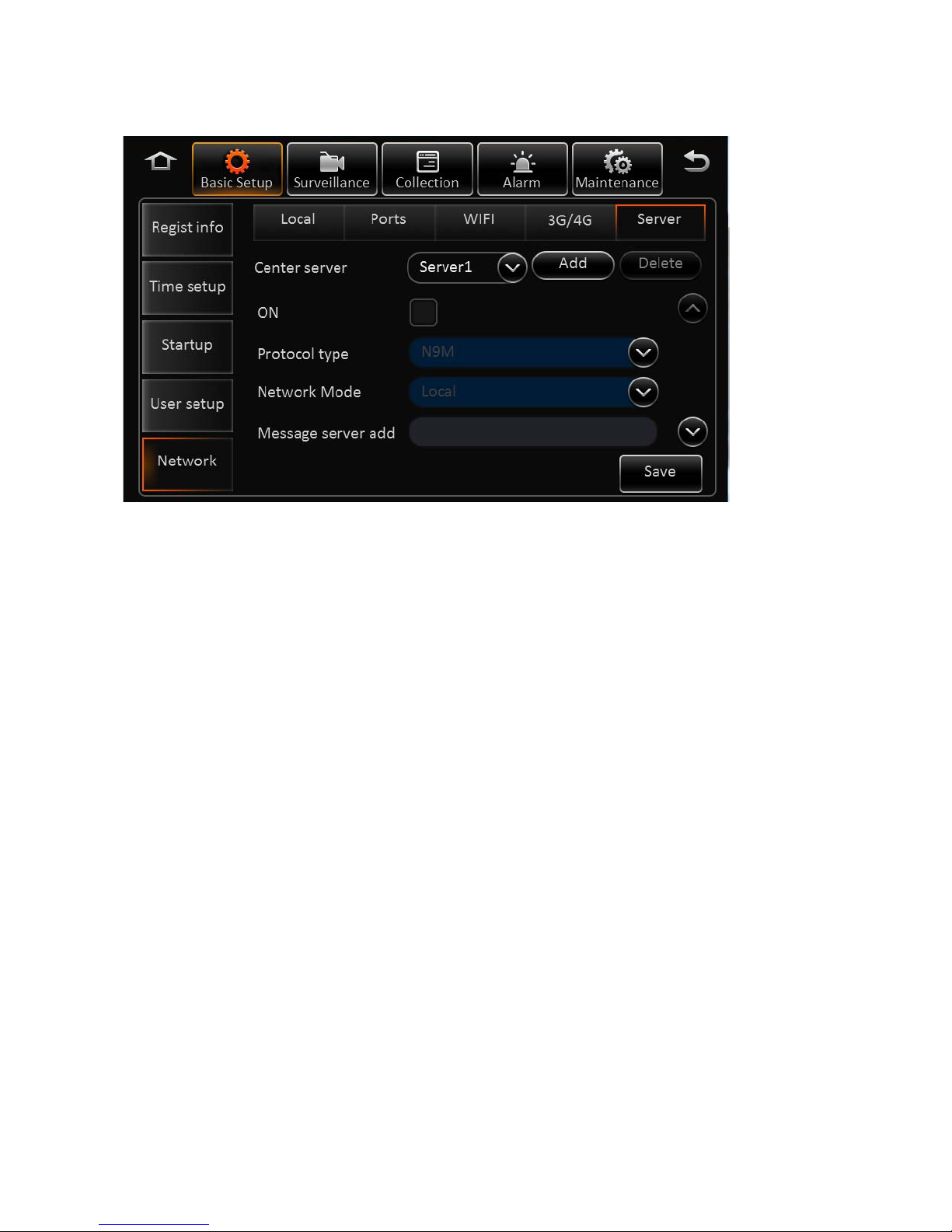

1.Check the connection status of the center server and the IP port status.
2.There are maximum 6 center servers can be added.
ViPRO Corporation
User’s Manual
MVR-508-GUI l v2.0 l 2014.12
1.2.4 Environ ment
1.Internal temperature sensors: there are temperature sensors both in the HDD and motherboard.
2.The voltage is the real value of voltage.
1.2.5 Storage
1.Memory types are divided into: hard drive, built-in SD card, external SD card, thumb driver.
2.Status are: B lank (not found ), Unformatted (storage m edia form at is incorrect),N ormal (in the correct format,
but no video), Recording.
ViPRO Corporation
User’s Manual
MVR-508-GUI l v2.0 l 2014.12
2 Function Interface
The main four modules˖
1. REC search and playback, support several types of searching for different requirements.

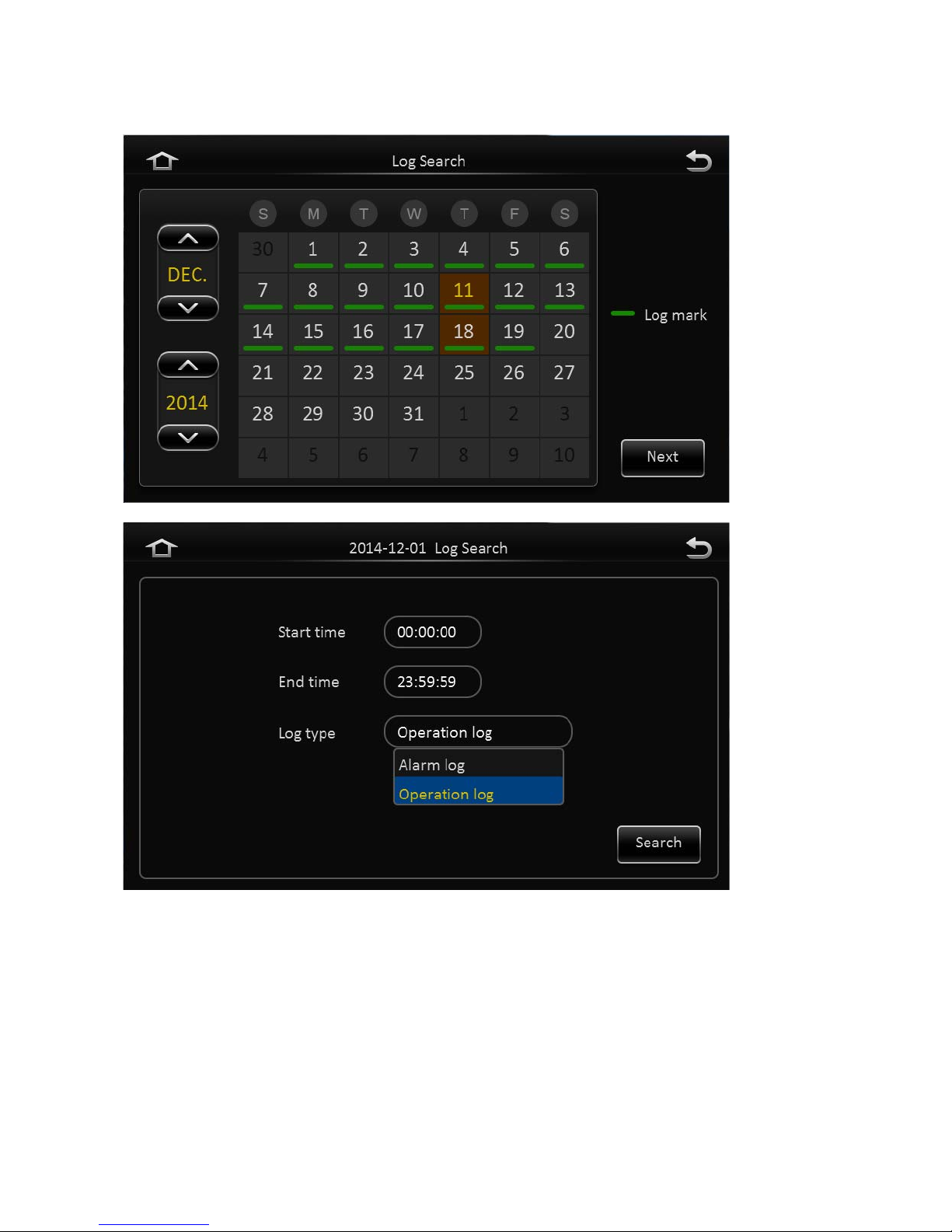

2. Log search, including the deta ile d ope rat ing in formation and the alarm video can be c hecked at the same
time.
3. System information checking, including all kinds of device information.
4. System setup, dimensional horizontal and vertical layout, which is easy to understand and operation.
ViPRO Corporation
User’s Manual
MVR-508-GUI l v2.0 l 2014.12
2.1 REC research
Features˖
1. Use different colors to distinguish different videos: Green: Normal video, Red: Alarm video, Yellow:
Locked video.
2. Offer four search conditions: Date, recording type (main video, sub video, mirror recording), stream type,
channel selection.

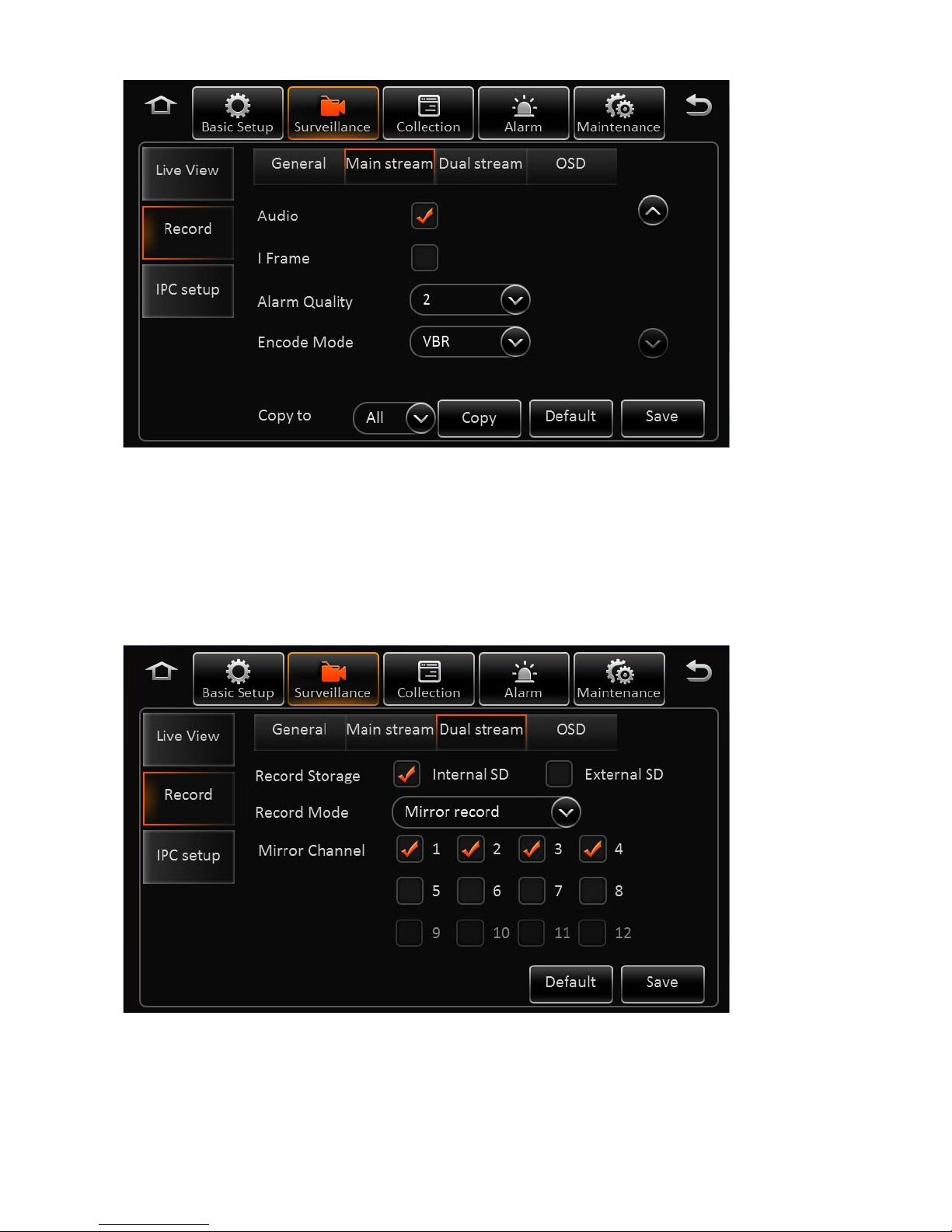

Explanation˖You can only choose sub-stream recording or mirror recording. The parameters of mirror
recording are the same as the main recording parameters, the parameters of the sub-stream recording
can
be set independently.
Application˖Easy for customers to select the channels in alarm condition or locked video.
ViPRO Corporation
User’s Manual
MVR-508-GUI l v2.0 l 2014.12
Features:
3.Fast sliding operation, two input types: Touch and drag or manually fill in the start time end time to
complete clips.
4.Diversified exporting ways, export two kinds of files: the original data file , AVI format.
5.To the day of the last normal video playback time, freezes, does not automatically exit
