Viper VPR1427 Installation & Assembly

Mounting Instructions

INSTRUCTIONS FOR

MOUNTING DARTBOARDS

AND CABINETS

December 2013

Replacement Parts

Order direct at www.gldproducts.com

or call our Customer Service department at

[phone]

8 am to 4:30 pm Central Standard Time

GLD Products Mounting Instructions

MOUNTING THE DARTBOARD CABINET

Space Needed

The dartboard cabinet must be securely mounted and must be at a right angle to the oor.
The player throws a dart from a distance of 96 inches (244 cm) for a soft tipped dart and

93.25 inches (237 cm) for a steel tipped dart from the face of the dartboard. Allow room for
players to stand. Depending on the players’ accuracy, allow room around the dartboard for
missed throws. Refer to the mounting dimensions illustration below. If your dartboard needs
electrical power, mount the cabinet near an electrical outlet.

Dartboard cabinets come in many sizes. Typically the cabinet is mounted to a wall and the
dartboard is then mounted inside the cabinet.

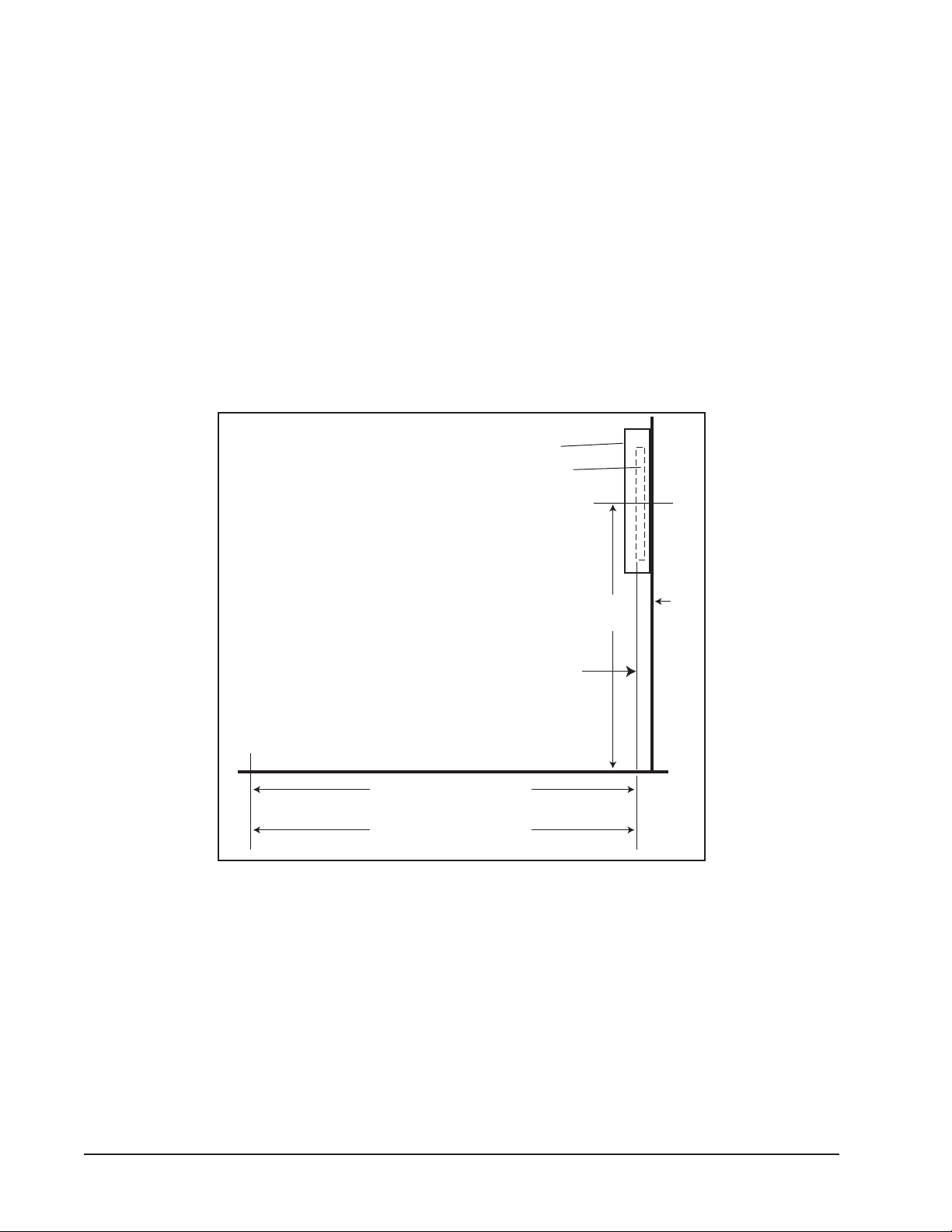

A typical installation is shown here.

Cabinet

Dartboard

Center of Dartboard

68 in.

(173 cm)

Plumb Line from

Face of Board to Floor

Throwing or

Toe LIne

Floor

93.25 in. (steel tipped darts)
(237 cm)

96 in. (soft tipped darts)

(244 cm)

Wall

Included with the cabinet is a mounting kit. The kit contains four screws and four expansion
anchors for a solid wall. To use the anchors drill a 5/16-inch diameter hole 1-1/2-inch deep.

This same anchor may be used in drywall. Drill a 9/32-inch hole and push the anchor in the
hole, until it is ush to the wall.

www.gldproducts.com

21-800-225-7593

GLD Products Mounting Instructions

To Mount a Cabinet for an Electronic Dartboard:

1. Lay the cabinet face up on a table or oor. Place your dartboard inside the cabinet and
center it to your satisfaction.

2. Measure to nd the side-to-side center of the dartboard. Also measure from the inside
bottom of the cabinet to the center of the bullseye. Record these measurements:

Side-to-side:____________ Vertical measurement to center of dartboard:__________

3. Remove the dartboard and use the measurements to locate what will be the center of
the bullseye. Place a mark on the cabinet at this location.

4. Before marking or drilling holes in the wall, locate any wall studs that can be used to
mount the cabinet. The cabinet should be screwed into wall studs to provide the most
secure mounting. Do not use wall anchors if securing to wall studs. If wall studs will not
be used, be certain to use the correct anchors for your wall.

5. Hold the cabinet in a level position on the wall. Pre-drilled holes in the four corners of
the cabinet should line up with the wall studs (16 inches apart). Use a tape measure to
place the center mark that you made in step 3, 68 inches (173 mm) above the oor. Use
the screw holes as a template to mark the wall for the screw holes. Remove the cabinet.
If wall studs are not accessible, use the marks to drill four holes for the wall anchors.
Use the appropriate anchors and secure them in the wall.

6. Hold the cabinet in place and secure to the wall with screws. The cabinet should be
level and the cabinet doors should open and close properly.

7. Mount your dartboard according to the instructions provided with the dartboard.

3 1-800-225-7593

www.gldproducts.com

GLD Products Mounting Instructions

To Mount a Cabinet for Bristle Dartboard:

The bristle dartboard comes with a mounting clip.

1. Locate the center of the cabinet. There should be holes predrilled to secure the
mounting clip.

2. Hold the clip in place over the screw holes.

3. Place a mark on the cabinet at the bottom of the slot of the mounting clip. This is the
center of the bullseye.

4. Before marking or drilling holes in the wall, locate any wall studs that can be used to
mount the cabinet. The cabinet should be screwed into wall studs to provide the most
secure mounting. Do not use wall anchors if securing to wall studs. If wall studs will not
be used, be certain to use the correct anchors for your wall.

5. Hold the cabinet in a level position on the wall. Pre-drilled holes in the four corners of
the cabinet should line up with the wall studs (16 inches apart). Use a tape measure to
place the center mark that you made in step 3, 68 inches (173 mm) above the oor. Use
the screw holes as a template to mark the wall for the screw holes. Remove the cabinet.
If wall studs are not accessible, use the marks to drill four holes for the wall anchors.
Use the appropriate anchors and secure them in the wall.

6. Hold the cabinet in place and secure to the wall with screws. The cabinet should be
level and the cabinet doors should open and close properly.

7. Mount your dartboard according to the instructions provided with the dartboard.

www.gldproducts.com

41-800-225-7593

GLD Products Mounting Instructions

MOUNTING THE DARTBOARD

Space Needed

The dartboard cabinet must be securely mounted and must be at a right angle to the oor.
The player throws a dart from a distance of 96 inches (244 cm) for a soft tipped dart and

93.25 inches (237 cm) for a steel tipped dart from the face of the dartboard. Allow room for
players to stand. Depending on the players’ accuracy, allow room around the dartboard for
missed throws. Refer to Mounting Dimensions illustration on page 2.

The dartboard can be mounted inside a cabinet or directly to a wall. Screw to a wall stud or
use anchors. The center of the bullseye should be 68 inches (173 cm) above the oor. Note
that wall thicknesses will vary. Use the correct anchors.

To Mount an Electronic Dartboard:

1. Place a mark on the wall or mounting surface that represents the center of the

bullseye, 68 inches (173 cm) above the oor. If you are mounting a cabinet in which the
dartboard will be mounted, the cabinet may have the center marked. Follow the cabinet
manufacturers instructions for mounting the cabinet to the wall. Then proceed with the
steps to mount the dartboard.

2. Step 2. Review the parts that came with your dartboard. Your parts should include:

• the dartboard,

• screws to secure the dartboard to the wall or cabinet.

3. Before marking or drilling holes in the wall, locate any wall studs that can be used for

mounting. The dartboard should be screwed into wall studs to provide the most secure
mounting. Do not use wall anchors if securing to wall studs. If wall studs will not be
used, be certain to use the correct anchors for your wall.

4. Hold the dartboard in a level position on the wall. Pre-drilled holes on one side of the

dartboard should line up with a wall stud. Use a tape measure to placethe bullseye over
the center mark that you made in step 1, 68 inches (173 mm) above the oor. Use the
screw holes as a template to mark the wall for the screw holes. If wall studs are not
accessible, use the marks to drill four holes for the wall anchors. Use the appropriate
anchors and secure them in the wall.

5. Hold the dartboard in place and secure to the wall with screws.

5 1-800-225-7593

www.gldproducts.com

GLD Products Mounting Instructions

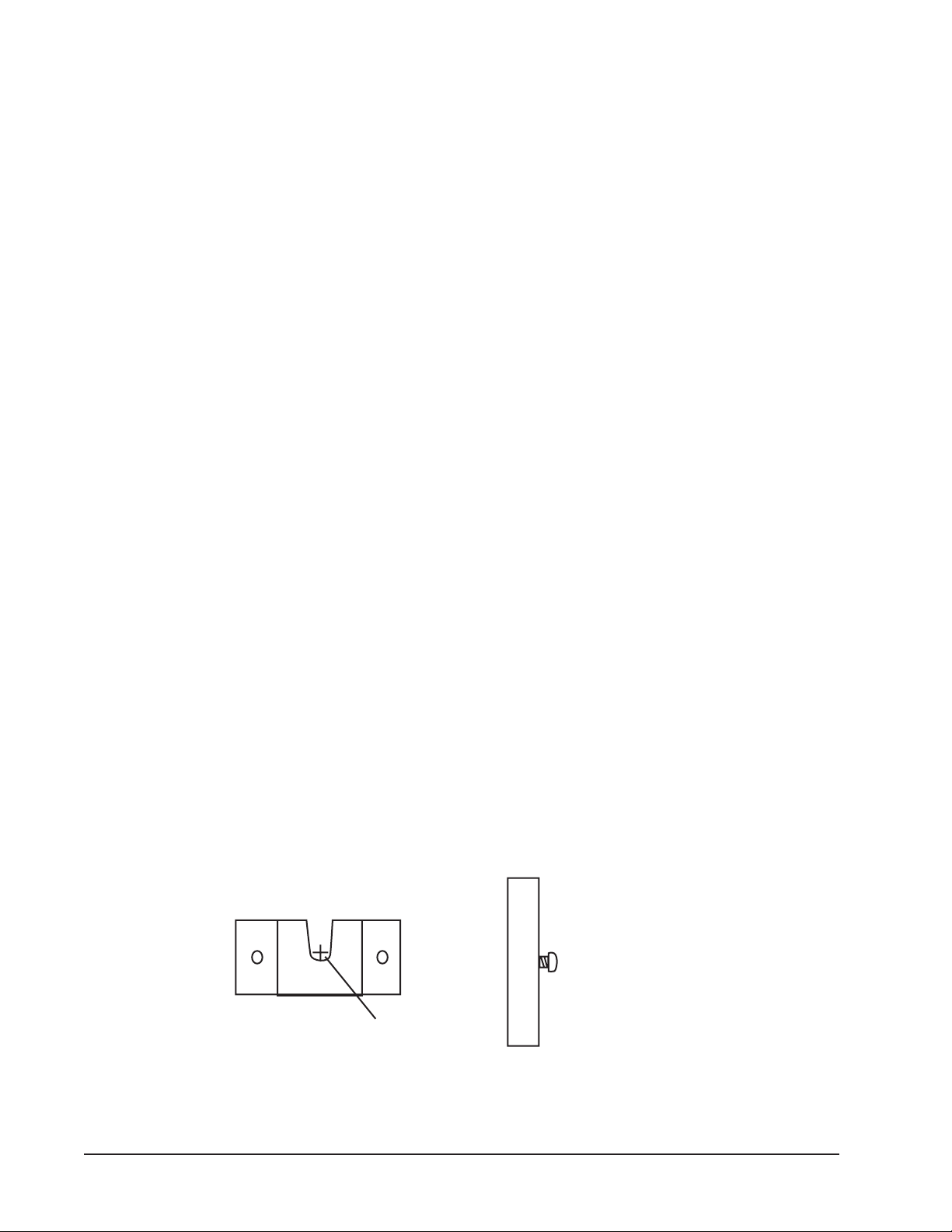

Mounting Bracket

ye

To Mount a Bristle Dartboard:

1. Place a mark on the wall or mounting surface that represents the center of the
bullseye, 68 inches (173 cm) above the oor. If you are mounting a cabinet in which the
dartboard will be mounted, the cabinet may have the center marked. Follow the cabinet
manufacturers instructions for mounting the cabinet to the wall. Then proceed with the
steps to mount the dartboard.

2. Step 2. Review the parts that came with your dartboard. Your parts should include:

• the dartboard,

• a mounting bracket and screws to secure the mounting bracket to the wall or
cabinet.

• spacers and screws or nails to secure the spacers to the dartboard.

• a single mounting screw that goes into the center of the dartboard to hang the
dartboard on the mounting bracket.

3. If your dartboard is mounting directly to a wall, mount the bracket to a stud for secure
installation. If it is not possible to mount to a stud, use the appropriate wall anchors to
secure the mounting bracket to the wall. The bottom of the slot on the mounting bracket
should line up with your mark for the bullseye (step 1). The slot on the mounting bracket
should open upward.

4. The spacers in your packet will keep your dartboard parallel to the wall. Position the
spacers evenly (the dartboard may have predrilled holes) around the outside edge of
the board. Keep the spacers near the edge and secure with nails or screws provided.

5. The back of the dartboard will have a mark or small hole in the center of the dartboard.
Turn the mounting screw into the mark. Tighten but leave a small gap between the
screw head and the board. The gap will allow the screw head to slip easily inside the
slot of the mounting bracket. You need to adjust the tightness of the screw to create a
snug t in Step 6.

6. Hang the dartboard in the mounting bracket by sliding the screw head into the slot on
the bracket. The dartboard will be loose on the wall. Remove the dartboard and screw
the center screw in 1/2-turn. Hang the dartboard. Check the looseness. Repeat these
steps as needed until the dartboard hangs with no looseness. The number 20 should be
at the top.

Side view

Dartboard
with
Mounting
Screw

www.gldproducts.com

Center of Bullse

61-800-225-7593

GLD Products Mounting Instructions

TO MOUNT A BACKBOARD

The backboard will have eight holes pre-drilled into it. The four interior holes are for the
dartboard bracket (you will only use two). The four exterior holes (mounting holes) are
for securing the backboard to your wall (see illustration). The backboard comes with the
dartboard bracket assembled to hang in the diamond position. If you choose to hang your
backboard in the square position, using a screwdriver, remove the dartboard bracket and
position it to the correct alignment.

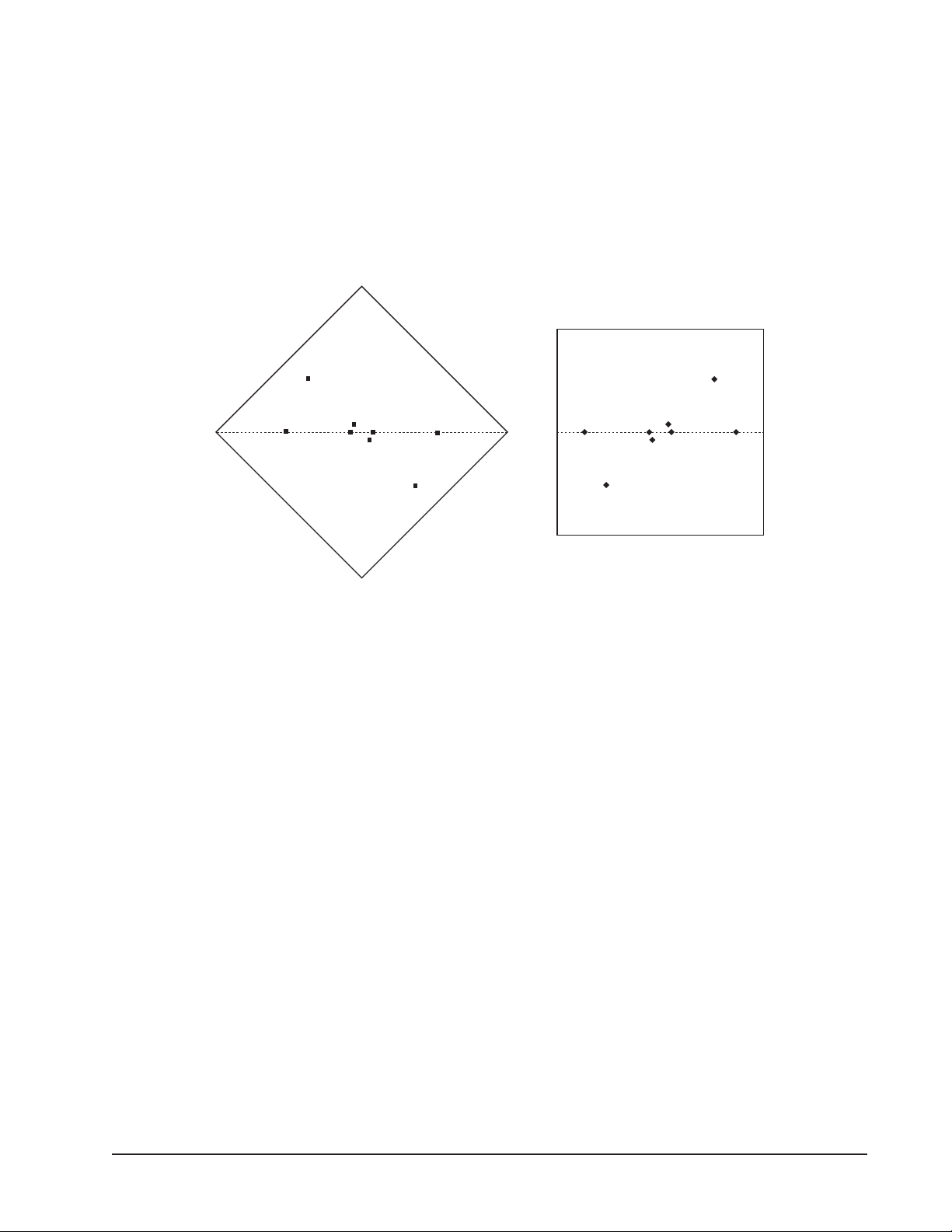

Alignment for the

Square Position

Alignment for the

Diamond Position

1. Choose a location with a oor area of 3' to 5' wide and 9' to 10' deep for a clear throwing

lane. Be aware of objects that could be damaged by errant thows.

2. For maximum support on drywall, place your backboard so that the mounting holes are

placed on center of wood studs. Studs can be located using a stud nder.

Note: Plastic anchors are included so that you can mount your backboard in the event that

wood studs cannot be used.

3. Locate the center of your backboard, it will be the bottom of the U-shaped groove on

the dartboard bracket. Place the center of your backboard 68" above your oor. Place
pressure on the backboard against the wall. Use a level and check the accuracy of your
edges and mounting holes. Once you are satised with the position of your backboard,
insert a pencil or pen through the mounting holes and mark the mounting surface.

4. Remove your backboard and place it to the side. If you are using the plastic anchors,

pre-drill a 1/4" hole 2" in depth, into the marks you made in the last step. Place the
anchors into the holes and gently tap them in level with the surface of the wall using a
hammer or rubber mallet. If you are fastening the backboard directly into wood studs,
pre-drill you hole with a 1/8" drill bit.

5. Hold the backboard against the wall, aligning the mounting holes on the backboard with

the holes pre-drilled into the wall. Drive the screws through the mounting holes. Before
tightening the screws, use a level to make any minor adjustments needed to align your
backboard.

7 1-800-225-7593
