Viper VN2015 User guide

17 inch model 20 inch model

CONGRATULATIONS on your purchase of a Viper product

and welcome to the V.I.P. family. We appreciate your

business and will do everything in our power to keep you happy

with your purchase for many years to come.

As part of the V.I.P. family, you are entitled to the best

protection by one of the most comprehensive warranties in

the industry.

Thank-you for purchasing Viper products!

Tom Vander Bie, CEO

TABLE OF CONTENTS

Safety Precautions 3

Machine Operation 4

Machine Maintenance & Storage 4

Parts List 5 - 9

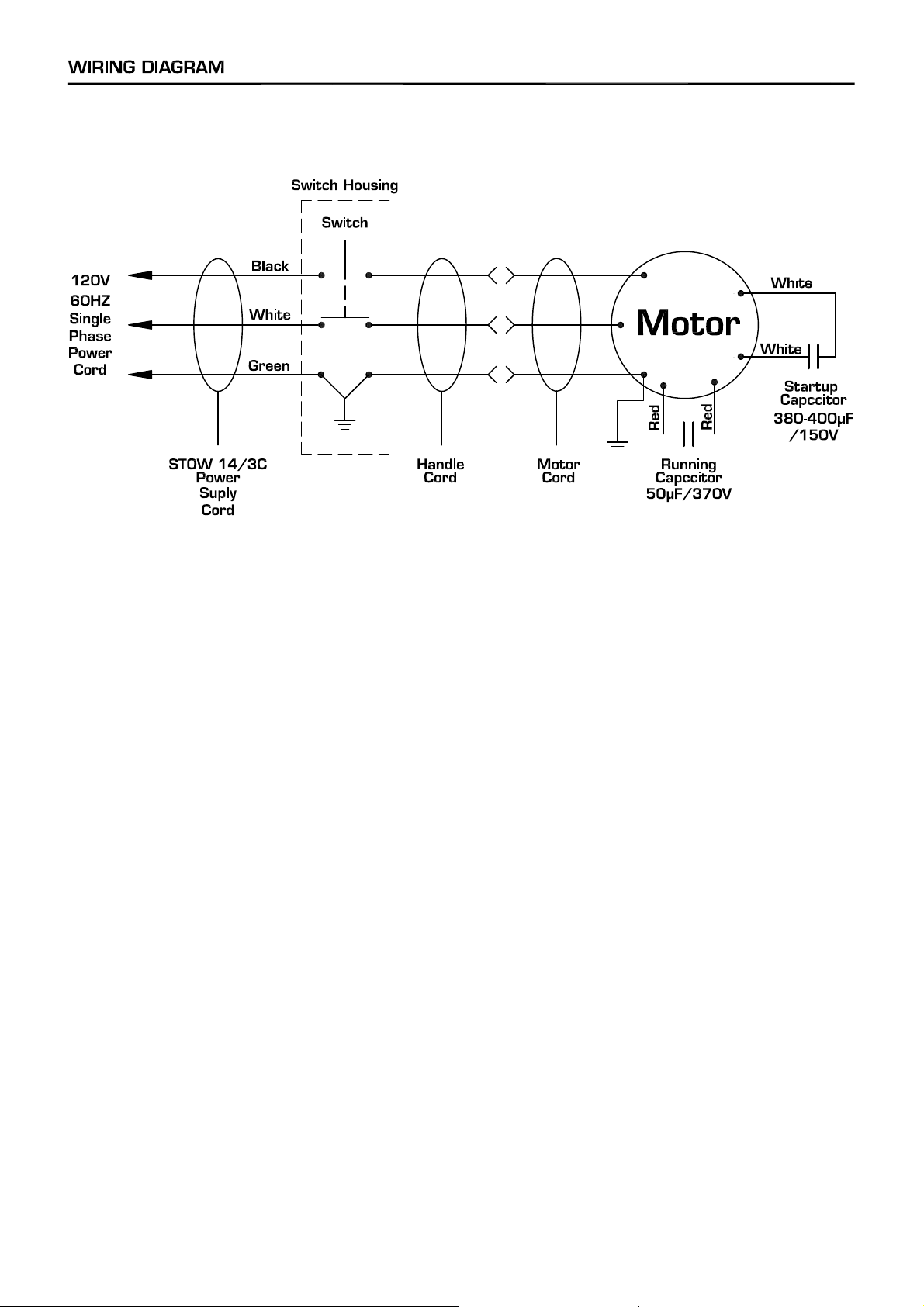

Wi

ring Diagra

10

SAFETY PRECAUTIONS

GROUNDING INSTRUCTIONS

General –This floor – finishing machine shall be grounded while in use to protect the operator from electric shock. The machine is provided with a three –conductor cord and a three contact grounding type attachment plug to fit the proper grounding type receptacle. The green [or green and yellow] conductor in the cord is the grounding wire. Never connect this wire to other than the grounding pin of the attachment plug.

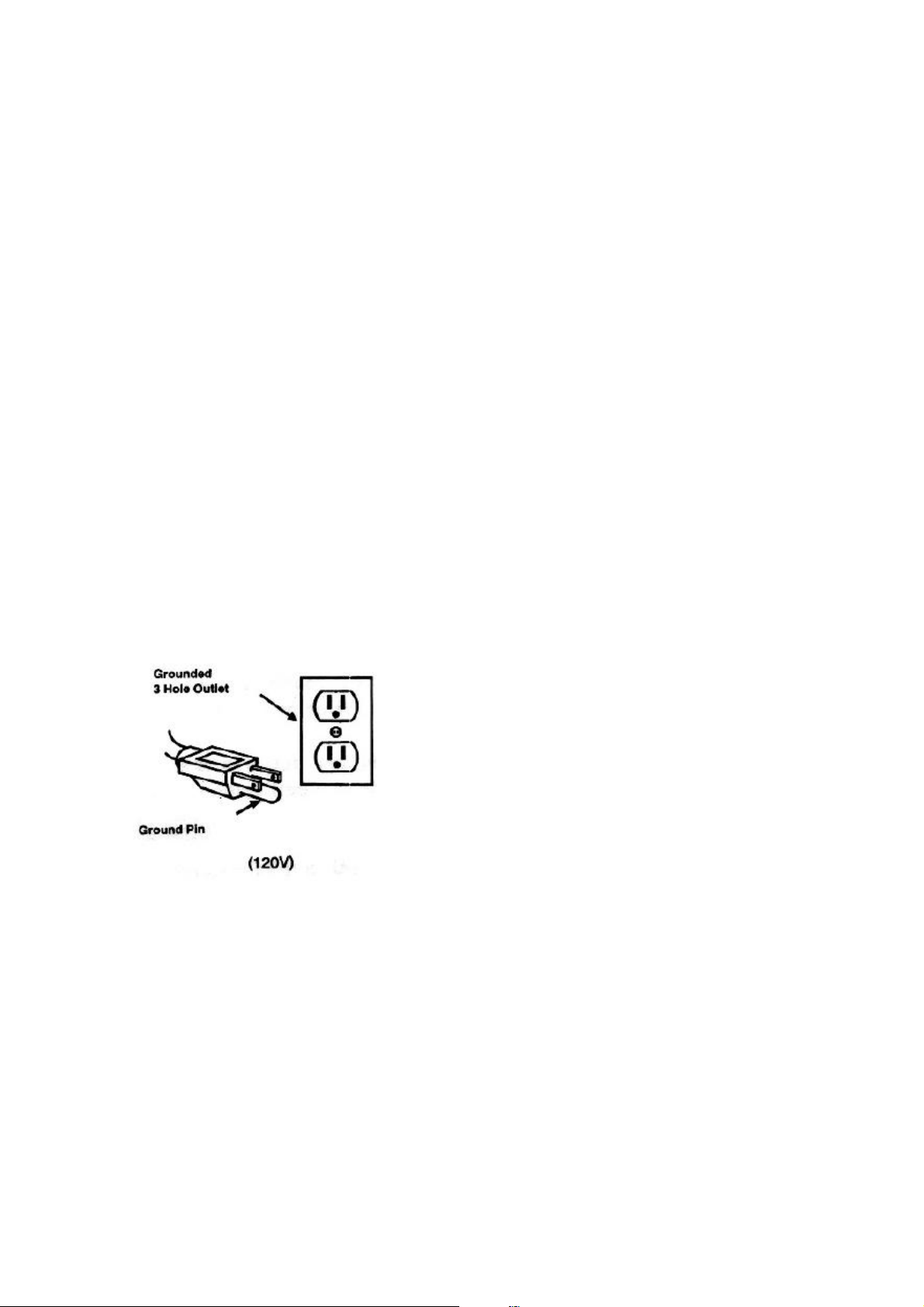

This machine is for use on a nominal 120-Volt circuit and has a grounding plug that resembles the plug illustrated in fig ure b elow. Make sure that the machine is connected to an outlet having the same configuration as the plug. No adapter should be used with this machine.

- Unless trained and authorized.

- Unless you have read and understand

operators manual.

- In flammable or explosive areas.

- With a damaged cord or plug.

- If not in proper operating condition.

- In outdoor areas.

- In standing water.

- With the use of extension cords.

2] Before operating machine:

- Make sure all safety devices are in place and operate properly.

3] When using machine:

- Do not run machine over cord.

- Do not pull machine by cord or plug.

- Do not pull cord around sharp edges of

corners.

- Do not unplug by pulling on the cord.

- Do not stretch cord.

- Do not handle plug with wet hands.

- Keep cord away from heated surfaces.

- Report machine damage of faulty

operation immediately.

This machine is intended for Commercial use. It is constructed for use in an indoor environment and is not intended for any other use. Use only recommended accessories.

All operators shall read, understand and exercise the following safety precautions:

1] Do not operate machine:

4] Before leaving or servicing machine:

- Turn off machine.

- Unplug cord from outlet.

5] When servicing machine:

- Unplug cord from outlet.

- Use manufacturer supplied or approved

replacements parts.

-

3

Operation of Floor Machines

4

* READ OPERATORS MANUAL

THOROUGHLY PRIOR TO OPERATING OR

SERVIC ING THIS MACHINE.

GENERAL USE

1. Remove any obs tructions or other obstacles in the area which is to be cleaned.

2. Placethehandleintheuprightposition and tilt machine back until handle rests on the floor

* Be sure the machine is not p lugged into

an outlet

3. Attach the pad driver o r brush to the machine by placing the clutch plate over thegearboxhubandturningthedriver /brush¼turn.

4. Place machine back into its upright position.

5. Plug power cord into a grounded outlet.

* Never use an extension cord in

conjunction with the standard power cord.

6. The handle height may be adjusted by lifting up the compression handle which is located on the right s ide of the handle tube about 1 foot above floor level. Release the c ompression handle and adjust handle to safe operating height, then push back down on the compression handle to lock the handle in operating position.

7. To start the machine, p ress the red safety button on the top of the upper switch housing, and then squeeze either of the operating triggers. (the safety button must be depressed prior to squeezing the operating triggers.)

8. When the machine is in operation, both handsshouldbeplacedontheswitch housing (upper h andle).

9. During operation, to make the machine go right, gently raise the handle. To make the machine go left, gently lower the handle.

10. To stop the machine at any time, simply release the operating trigger(s) and the machine will stop automatically.

MAINTENANCE

To keep the machine performing well for many years, please follow the following maintenance procedures.

* Always confirm that the machine is

unplugged prior to performing any

maintenance or repairs.

1. Unplugmachineassoonasyouare done using it.

2. Tilt machine back and remove pad driver or brush.

* Never store a low speed machine with

the pad driver or brush mounted to the

machine.

3. Clean the outside of the machine with a mild cleaner.

4. Check power cord for any damage. If damage is detected, replace power cord immediately.

5. Lubricate wheels with a water resistant lubricant once a month.

6. Check machine for loose or missing nuts and bolts, and replace as necessary.

7. If the machine is used in a dusty environment, you may remove the motor cover and blow the motor clean with compressed air. This will ensure proper ventilation, an d allow the motor to run cooler.

STORAGE

1. Unplug machine from power source and wrap cord on handle.

2. Tilt machine back and remove pad driver or brush.

3. Store machine in upright position and in adryarea.

5

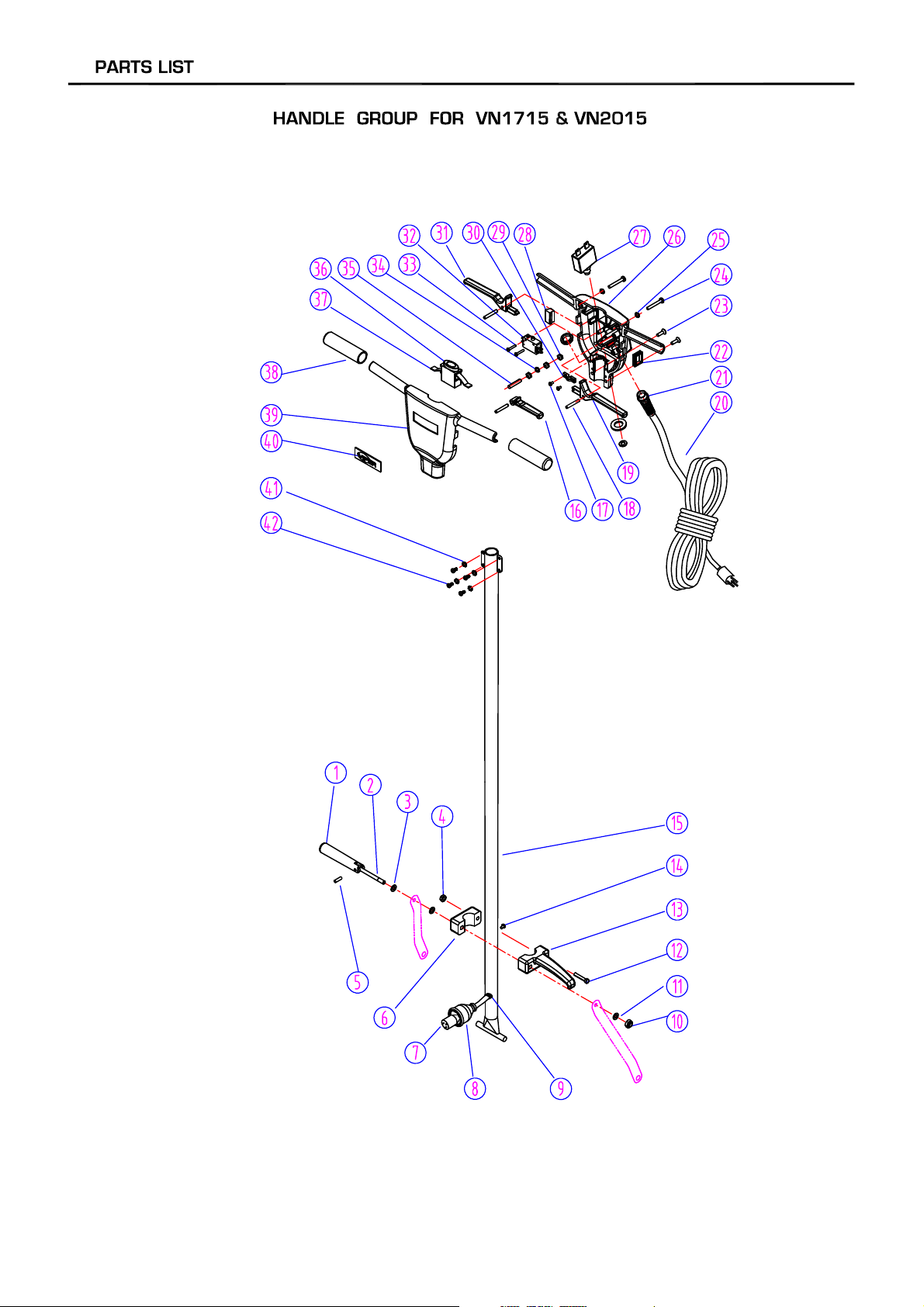

HANDLE GROUP FOR VN1715 & VN2015

DIA

NO

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

PART

DESCRIPTION

NUMBER

VF30016 HANDLE RELEASE

VF30015 BOLT, HANDLE RELEASE

VF30018 WASHER, PLAIN

VF13503 NUT, LOCK, M8 X 5.7

VF30017 SCREW

VF30014 COVER, HOOK

VF45125 CORD, HANDLE

AS41901 PLUG PROTECTOR, SMALL MALE

VF50120A GROMMET

VF13504 NUT, LOCK, M10

VF30027 WASHER, PLAIN

VF14114 SCREW, M8 X 55

VF30013 HOOK, CORD

VF13493 SCREW, M6 X 10

AS112205 TUBE

VF44018 LEVER,SOLUTION

VV13667 SCREW, M4 X 8

VF48306 PIN

VF44016 LEVER, LEFT, SWITCH

VF45119 CORD, POWER SUPPLY

AS22009 STRAIN RELIEF, CORD

VF30108 GASKET, HANDLE, SOLUTION

VF14223 SCREW, M6 X 25

VF14218 SCREW, M6 X 45

VF13528 WASHER, TOOTH, M6

VF30102 REAR COVER, SWITCH HOUSING

VF99010C BREAKER, CIRCUIT, 17A

VF30109 COVER

GT13013 NUT, M4

VF48309 CLAMP BLOCK

VF44017 LEVER, RIGHT, SWITCH

VF44203 SWITCH ASSEMBLY

VF14212 SCREW, M3 X 25

VF13527 WASHER, TOOTH, M4

F13526 SCRE

V

VF46705 SAFETY BUTTON

GV40218 SPRING, SAFETY BUTTON

VF48310 HANDLE GRIP

VF30101 FRONT COVER, SWITCH HOUSING

VF47035A "VIPER" LOGO

VF13604 WASHER, TOOTH, M5

VF14222 SCREW, M5 X 12

W, M4 X 30

NO

REQ'D

1

2

1

2

3

1

2

1

3

1

2

1

2

1

4

6

7

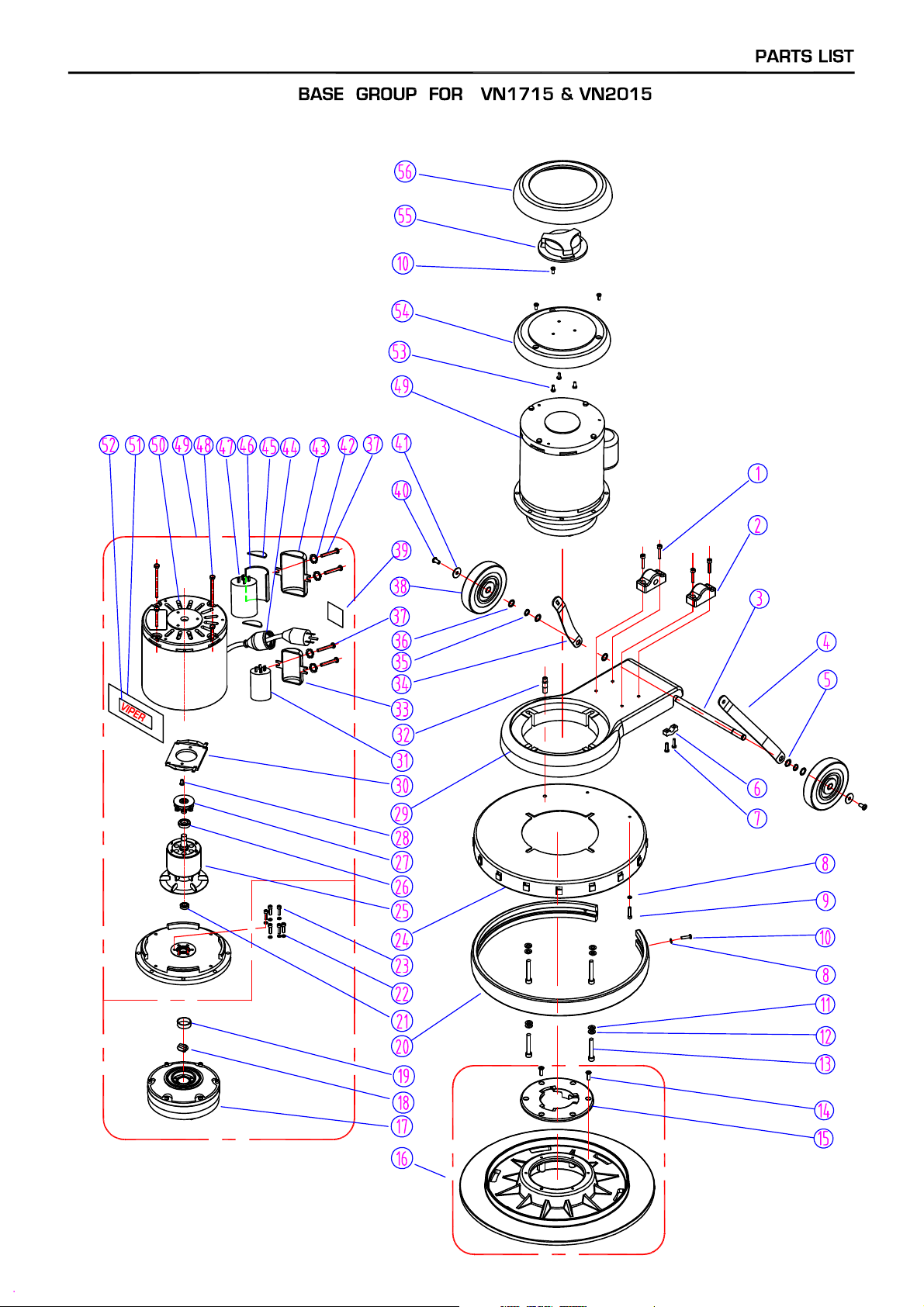

BASE GROUP FOR VN1715 & VN2015

8

DIA

NO

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

PART

NUMBER

GT13080

VF30011

VF30026

VF30020

VV20274

GV40235

VV13621

VF13474A

VF13613

VA13474

VF13524

VF13519

VF14114

MF-VF002-4A

MF-VF002-2 CLUTCH PLATE

MF-VF022

MF-VF021

VF999802B

VF99021

MT01102

VF30004

VF30005

VF999821A

VV13601

VV13636 SCREW, M5 X 30

VF30006

VF30006A SHROUD & BUMPER ASSY, 20-INCH

VF30007 VN1715 - FRAME 17-INCH

VF30007A SHROUD & BUMPER ASSY, 17-INCH

YLQ19200B

YCQ10501

YCQ12301

VF14549

VF30008 ALUMINIUM BASE, MOTOR

YCQ12302 STATIONARY SWITCH

VF999854 RUNNING CAPACITOR, 50μF / 370V

VF40152 HOSE BARB

YLQ14601 MOUNTING FRAME (SMALL), CAPACITOR

VF30019 BRACKET, HANDLE, RIGHT

VF13520 WASHER, LOCK

SCREW, M6 X 30

CLAMP BLOCK, HANDLE

AXLE

BRACKET, LEFT HANDLE

WASHER, PLAIN, M13

CLAMP BLOCK, AXLE

SCREW, SELF-TAPPING, ST, M5 X 20

WASHER, PLAIN, M5

SCREW, M5 X 20

SCREW, M5 X 16

WASHER, PLAIN,M8

WASHER, LOCK, M8

SCREW, M8 X 55

SCREW, SELF-TAPPING, 1/4"-1"

VN2015 - PAD HOLDER, 19-INCH

VN1715 - PAD HOLDER, 16-INCH

GEAR BOX

COUPLER

SLEEVE

VN2015 - BUMPER, 20-INCH

VN1715 - BUMPER, 17-INCH

BEARING,6002 LLU

WASHER, LOCK, M5

VN2015 - FRAME, 20-INCH

ROTOR WITH FAN ASSEMBLY

BEARING,6203 RZ

CENTRIFUGAL SWITCH

SCREW, M4 X 10

DESCRIPTION

NO

REQ'D

4

2

1

4

2

4

2

5

4

6

1

6

1

2

1

2

BASE GROUP FOR VN1715 & VN2015

DIA

NO

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

PART

NUMBER

VF50119 WASHER, PLAIN, M12

VF14214 SCREW, M5 X 8

VF48202 WHEEL, 5"

VF40994 LABEL, READ MANUAL

VF44012 SCREW, M6 X 12.7

VF13666 WASHER, M6

VF13604 WASHER, LOCK, EXTERNAL TOOTH

YCQ10615 MOUNTING FRAME (BIG), CAPACITOR

AS41902 PLUG PROTECTOR, LARGE FEMALE

YCQ10414 CLEAR COVER

YCQ10416 CAPACITOR WRAP

VF999805

YLQ17507

VF999787 MOTOR, 110V, 1.5HP

VF44003 LABEL, MOTOR

VF41079 LABEL, VIPER

VF14222 SCREW, M5 X 12

VF30001 TOP COVER, MOTOR

VF30002 CLUTCH PLATE

VF47023

START CAPACITOR (BIG), 380-400F / 150V

BOLT ASSEMBLY

SEE #17 & #50

BUMPER

DESCRIPTION

NO

REQ'D

2

4

2

1

2

4

1

4

2

1

4

1

3

1

9

10
