OWNER’S GUIDE
MODEL
5906V
Congratulations
Congratulations on the purchase of your state-of-the-art remote start
and security system. Reading this Owner’s Guide prior to using your
system will help maximize the use of your system and its many features. For any additional questions please contact your authorized
Directed dealer or contact Directed at 1-800-753-0600 (U.S. only).
Important information
Government Regulations and Safety information
Read the Government Regulations and Warning! Safety
First sections of this manual prior to operating this system.
Warning! Failure to heed this information can result in
death, personal injury or property damage and may also
result in the illegal use of the system beyond its intended
purpose.
Your Warranty
Your system comes with a warranty. The warranty terms are detailed at
the end of this guide. Make sure that you receive the proof of purchase
from your dealer, indicating the product was installed by an authorized Directed dealer.
Replacement remote controls
Please see your authorized dealer or visit us at www.directedstore.
com to order additional remote controls. Remote control part numbers
are found on the back of the device.
Contents
Getting Started .................................................................................................... 4
Charging the remote control: ................................................................. 4
Keys to using this manual ...................................................................... 5
Remote Control ...................................................................................................6
Control Center ....................................................................................................7
Status Screen Icons .............................................................................................. 8
Using your System ............................................................................................. 10
Commands and Confirmations ............................................................ 10
Navigation ....................................................................................... 10
Performing Commands ....................................................................... 10
Fault Condition Alerts ......................................................................... 11
Basic commands (function level 1) ......................................................................12
Arm ................................................................................................. 12
AUX/Trunk ........................................................................................ 12
Disarm ............................................................................................. 13
Remote Start ...................................................................................... 13
Advanced commands: Function Level 2 ............................................................... 14
Silent Arm ......................................................................................... 14
AUX 1 .............................................................................................. 14
Silent Disarm ..................................................................................... 15
Runtime Reset .................................................................................... 15
Advanced commands: Function Level 3 .............................................................. 16
Sensor Bypass ................................................................................... 16
AUX 2 .............................................................................................. 16
Remote Valet .................................................................................... 17
Advanced Start ................................................................................. 17
Advanced commands: Function Level 4 .............................................................. 18
Silent Mode 2 ................................................................................... 18
AUX 3 .............................................................................................. 18
Car finder ......................................................................................... 19
Defroster ........................................................................................... 19

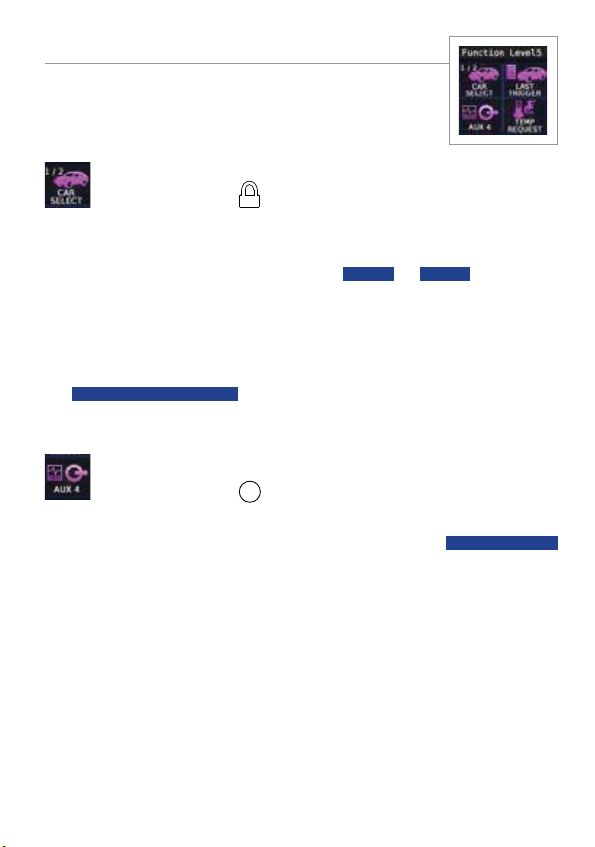

Advanced commands: Function Level 5 ............................................................... 20
Car Select ........................................................................................ 20
AUX 4 .............................................................................................. 20

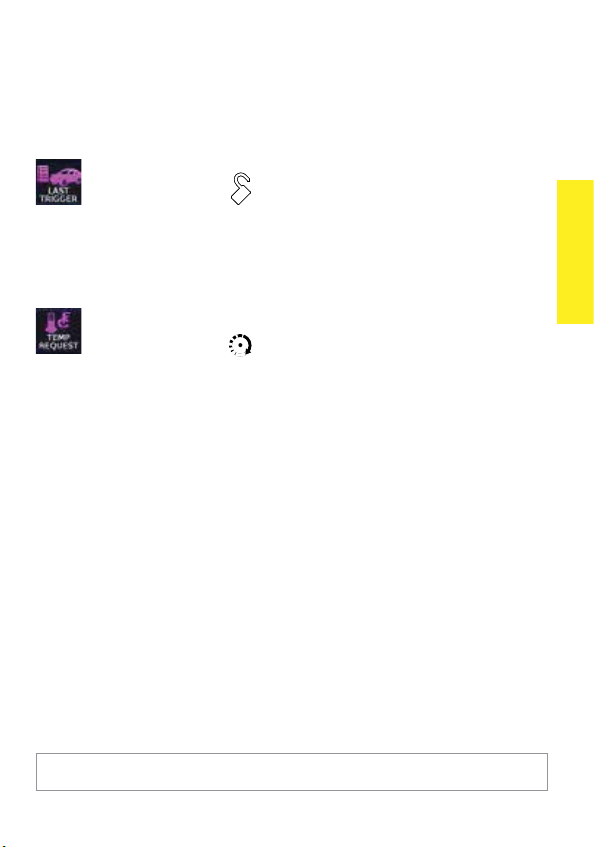

Last Trigger ....................................................................................... 21
Temp Request .................................................................................... 21
Configuring your System .................................................................................... 22

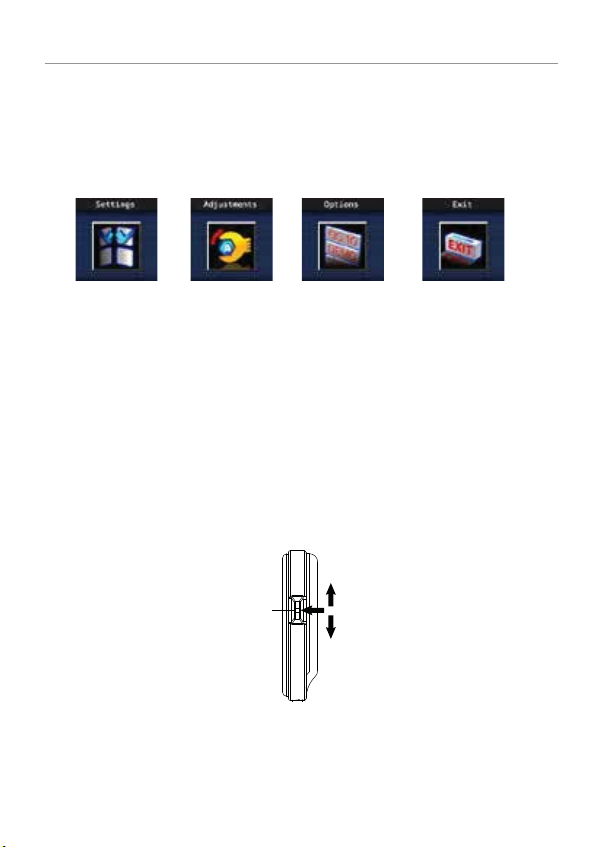

Navigating menus and configuring features ......................................... 22

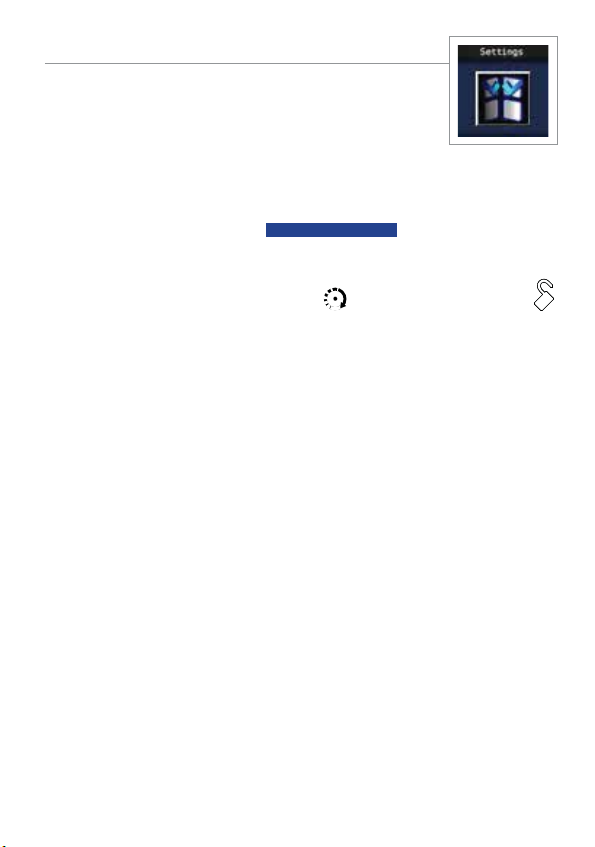

Settings Menu ................................................................................................... 24
Button Auto Lock ............................................................................... 24
Alert Types ....................................................................................... 24
Animations ....................................................................................... 24
Button Beeps ..................................................................................... 25
Paging ............................................................................................ 25
Temp Units ....................................................................................... 25
Adjustments Menu ............................................................................................. 26
Clock Settings .................................................................................. 26
Timer Start ........................................................................................ 26
Smart Start ........................................................................................ 27
Remote Pair ...................................................................................... 28
Sensor Adjust ................................................................................... 29
Options Menu ................................................................................................... 31
Power Off ........................................................................................ 31
Parking Meter .................................................................................. 31
Countdown Timer .............................................................................. 32
Name Tags ....................................................................................... 33
Demo Mode ...................................................................................... 33
Level 5 Screen ................................................................................... 34
Alarm Features .................................................................................................35
Normal Arm Protection ....................................................................... 35
Sensor Silent Arm protection ............................................................... 35
Full Silent Arm Protection .................................................................... 36
Sensor Warn-away Messages ............................................................. 36
Full trigger Messages ......................................................................... 36
Emergency Override .......................................................................... 36
Trigger Zone Fault Report.................................................................... 37
Alarm Trigger Report .......................................................................... 37
Last Trigger Report ............................................................................. 38
Nuisance Prevention (NPC) ................................................................. 38
Remote Start Features ........................................................................................ 39
Pit Stop Mode ................................................................................... 39
Key Takeover..................................................................................... 39
Remote Start Safe-lock ........................................................................ 40
Disabling Remote Start ....................................................................... 40
Advanced Start ................................................................................. 40
Temperature Reporting ........................................................................ 41
Remote Start Time-out Alert .................................................................. 42
Manual Transmission Start (MTS mode) ................................................ 42
Turbo Timer Mode .............................................................................. 43
Remote Start Not Available ................................................................. 44
Remote and System Operations .......................................................................... 45
Passive Arming .................................................................................. 45
Auto Re-arming .................................................................................. 45
Valet Mode ....................................................................................... 46
Power Save ....................................................................................... 46
Rapid Resume ................................................................................... 46
Automatic Remote Updates ................................................................. 46
Out of Range .................................................................................... 47
No Remote Output ............................................................................. 47
Feature not Available ......................................................................... 47
No Function Assigned ........................................................................ 48
1-way Companion Remote Control ..................................................................... 49
Accessing Commands ........................................................................ 50
Sensor Bypass operation .................................................................... 50
Button Auto Lock ................................................................................ 50
Car Select ......................................................................................... 50
Programming .................................................................................... 51
System Expansion Options ................................................................................. 52
Battery Information (Responder HD) .................................................................... 54
Low Battery ....................................................................................... 54
Battery Life ........................................................................................ 55
Battery Information (1-Way) ................................................................ 56
Battery Disposal ................................................................................ 56
Glossary of Terms .............................................................................................. 57
Specifications .................................................................................................... 58
Patent Information ............................................................................................. 59
Government Regulations .................................................................................... 60
Warning! Safety First ......................................................................................... 62
Installation ........................................................................................ 62
Remote Start Capable ........................................................................ 62
Manual Transmission Vehicles ............................................................. 62
Interference ....................................................................................... 64
Upgrades and Batteries ...................................................................... 64
Water/Heat Resistance ...................................................................... 64
Limited lifetime consumer warranty ..................................................................... 65
Getting Started
Your Responder HD remote is powered by an internal rechargeable
battery that can only be serviced by an authorized Directed dealer.
Due to transit and storage time prior to your purchase, the battery
charge may have depleted. To ensure proper operation, check the
battery level and if not fully charged, use the provided cable to connect to the USB port on a computer. See Battery Information and
Status Screen Icons sections for more information about the battery.
Charging the remote control:
1. Plug the USB end of the provided USB cable into the USB port
on a computer. Insert the mini-USB connector into the mini-USB
port located on the side of the remote control. The Status screen
Info Center then indicates the remote control is charging.
2. While the Status screen is off, the blue transmit LED will continue
blinking until fully charged (the remote control also remains
functional to command the system or access the Status screen to
check the battery level).
3. Once fully charged the remote control is ready for use. Disconnect the cable from the remote control end first.
If the battery is excessively depleted when charging, func-
Note
tionality may be delayed while it charges to the minimum
voltage required to operate the display, after which normal
charging resumes.
4
© 2013 Directed. All rights reserved.
Keys to using this manual
Specific actions (in bold type) and style conventions are used consistently throughout this manual, they are as follows:
• Toggle: implies rolling the menu wheel up or down and releas-
ing.
• Press: implies pushing directly inward on the menu wheel or com-
mand button and releasing.
• Hold: is used after Toggle or Press actions when the menu wheel
or command button needs to be held in position for an extended
period of time, typically several seconds.
ARMED
•
HD display, labeled specifically with the command it identifies.
•
the system or remote control.
Blue text denotes non-highlighted screen titles or on-screen text
•
(such as used in the configuration menus).
• Italicized words denote section/sub headings in this guide and
can be located through the table of contents.
• An asterisk (*) when used after a word or phrase denotes that
additional details can be found in related sections usually noted
at the bottom of the page or end of the section.
this style denotes a still or an animation shown on the
Set Clock
denotes highlighted on-screen text when configuring
At a Glance
© 2013 Directed. All rights reserved.
5
Remote Control
Feature Description
Internal Antenna* Located at top of remote control is used for transmitting
Display Full color display
Command buttons (4):
A U X
Menu wheel Located on remote control side is used to access
Reset Button** Located through hole on remote control rear, resets the
Mini USB Port Located on remote control side is used for charging the
* Avoid touching or grasping the area where the internal antenna is located as it may
reduce range.
** Should the remote stop responding to button presses, insert a pin or the end of a
paper clip, and press in on the reset button for one second.
and receiving information.
Used to perform arming, disarming, auxiliary channel and
remote start commands
Function Level screens, control Status Screen info center
content, and navigates the remote control and system
configuration menus
remote control’s microprocessor
internal battery.
6
© 2013 Directed. All rights reserved.
Control Center
At a Glance
Status LED
Control button
The Control Center, typically located on the upper part of the front
windshield sends and receives commands or messages to and from
your system. It consists of:
• The In-vehicle system antenna, for 2 way communication.
• The Status LED, as a visual indicator of the system’s status.
• The Control button, for placing the system into Valet Mode* and
to perform the Emergency Override** operation.
* See “Remote and System Operations” on page 45 for details.
** See “Alarm Features” on page 35
for details.
© 2013 Directed. All rights reserved.
7
Status Screen Icons
Clock
Page/Alerts
Siren Status
Sensor Status
Info Center
Name Tag
Battery Level
Timer Mode/Smart Start
Remote Start Status
System Status
The table below describes all the Status screen icons.
Feature Description
Clock Indicates the time in 12 or 24 hour format
Battery level
Full ¾ ½ ¼ Empty
Timer Mode
/ Smart Start
Remote Start
System Status
Timer Mode is enabled. Smart Start is enabled.
Remote start is active, the engine is running. Manual
Transmission Start mode is enabled, the engine can be started
The system is armed, the alarm is enabled.
The system is disarmed, the alarm is disabled.
The system is Locked in Valet, the alarm is disabled.
The system is Unlocked in Valet, the alarm is disabled.
Second system operation: If set to control a second system, the
above lock icons will contain a “2”.
8
© 2013 Directed. All rights reserved.
Feature Description
Name Tag Displays a personalized name tag 1-15 characters long
Info Center Displays the Remote Start runtime, Temperature Auto-report, Parking
Sensor Status
Siren Status
Page/Alerts
meter and Countdown timers. While Status screen is on, press the
menu wheel to change the displayed information.
Trigger Zones are enabled and functioning normally.
Trigger zone fault found when arming and is bypassed.
NPC On, a sensor has triggered excessively and is bypassed
Remote Sensor bypass On, the bypassed sensor will not
trigger the alarm.
Siren is enabled and will sound for all alarm outputs.
Siren is disabled for sensor triggers, remote is paged for all
triggers (Sensor Silent Arm).
Siren is disabled for all triggers, remote is paged for all trig-
gers (Full Silent Arm).
Pager On, Pager Off.
Battery Save On (Red dot), Battery Save Off (No dot).
Tone On (icon is not present when Tone is Off).
Vibrate On (icon is not present when Vibrate is Off).
At a Glance
Example
Varying combinations of these icons reflect the Paging and Alert
Types menu settings.
© 2013 Directed. All rights reserved.
Page Off, Vibrate On & Tone On.
9
Using your System
Commands and Confirmations
Commands, Basic or Advanced, are used to activate system features
and are performed by pressing one of the Command buttons. Basic
commands control the most often used security and remote start features while Advanced commands control more specialized features
and request reports.
Confirmations for Basic or Advanced commands are indicated
first by siren chirps and vehicle light flashes, and then as animations,
still screens and beeps or tones on the remote control. A description
of each feature confirmation is found in the following Basic command
and Advanced command sections.
Navigation
To navigate to the Status and Function level screens, toggle the menu
wheel up or down, the screens will cycle as shown in the facing diagram. These screens remain displayed for 3 seconds before reverting
to a blank screen. To display a screen for an extended 20 second
period; toggle and hold the menu wheel on the desired screen for this
duration, after which the display reverts to a blank screen.
Performing Commands
Perform Basic commands by pressing one of the command buttons
while the remote control display is blank or the Status screen is On.
Perform Advanced commands by pressing one of the command buttons while a Function Level screen is displayed.
Advanced command example: Silent Arm
1. Toggle the menu wheel to display the
10
Function Level 2 screen.
© 2013 Directed. All rights reserved.
2. Press the button while this screen is still on to perform the
Silent Arm command.
3. The Responder HD remote will play the
SILENT ARM
animation
followed by the Status screen.
Status Screen
Blank
Display
Toggle
Menu Wheel
Up or Down
Commands
Fault Condition Alerts
If, when performing a command, a condition exists that does not allow the activation of a feature, a fault screen and tone plays as an
alert. For more details on the condition and possible resolutions, use
the fault screen title and locate the respective section through the table
of contents.
© 2013 Directed. All rights reserved.
11
Basic commands (function level 1)
Arm
Press and release
The alarm arms, doors lock (if connected), and the siren chirps and
lights flash once. The
Valet mode* is On the doors lock and the
tion and tone play. Exit Valet mode to arm the alarm normally.
If a trigger zone fault is detected the siren chirps once again and the
Trigger Zone Fault report** plays.
To Arm and Panic
Press and hold
The alarm Arms (or Locks in Valet) and, after 2 seconds, sounds
the siren and flashes the lights. The
tones play to confirm. Press the
put.
ARMED
animation and beeps play to confirm. If
LOCKED (IN VALET)
PANIC
animation and siren
or button to stop the out-
anima-
AUX/Trunk
Press and hold
The Trunk opens (if connected) when this button is pressed for 2 seconds. The
* See “Remote and System Operations” on page 45 for details.
** See “Alarm Features” on page 35
12
AUX
TRUNK RELEASE
animation and tones play to confirm.
for details.
© 2013 Directed. All rights reserved.
Disarm
Press and release
The alarm disarms, doors unlock (if connected), and the siren chirps
and lights flash twice. The
firm. If Valet mode* is On the doors unlock and the
DISARM
animation and beeps play to con-
UNLOCK (IN VALET)
animation and tone play.
More than 2 siren chirps and remote beeps indicates a trigger has
occurred. The Disarm animation is then replaced by the Alarm Trigger
report.**
Remote Start
Press and release
Activates (or if On, deactivates) the remote starter. The engine and lights
turn On and the
or the engine and lights turn Off and the
animation and Off tones play to confirm. The Remote Start status icons
in the Status screen are updated accordingly. If Remote Start fails to
activate, a fault screen and tone plays to identify the reason.***
* See “Remote and System Operations” on page 45 for details.
** See “Alarm Features” on page 35 for details.
*** See “Remote Start Not Available” on page 44.
For Manual transmission vehicles see the “Manual Transmission Start (MTS
mode)” on page 42 for more details.
REMOTE START ACTIVATED
animation and On tones play,
REMOTE START DEACTIVATED
Commands
© 2013 Directed. All rights reserved.
13
Advanced commands: Function Level 2
From blank screen, toggle menu wheel down 2 times
Silent Arm
Press and release
The alarm arms, doors lock (if connected), and the lights flash once.
SILENT ARM
The
Zone Fault report** messages may be received.
animation plays to confirm. Valet mode* or Trigger
AUX 1
Press and release
Activates (or if On, deactivates) the Aux 1 output. The
animation and On tones or Off tones play to confirm.
* See “Remote and System Operations” on page 45 for details.
** See “Alarm Features” on page 35
14
AUX
AUX CHANNEL
for details.
© 2013 Directed. All rights reserved.
Silent Disarm
Press and release
The alarm disarms, doors unlock (if connected), and the lights flash
twice. The
SILENT DISARM
animation plays to confirm. The Alarm Trig-
ger report* may replace the Silent Disarm animation.
Runtime Reset
Press and release
If more time is needed while remote start is active, runtime reset
will reset the runtime counter to the pre-programmed setting. The
RUNTIME RESET
Start runtime is reset in the Status screen.
Note
animation and tones play to confirm. The Remote
Remote Start must be active to use this feature.
Commands
* See “Alarm Features” on page 35 for details.
© 2013 Directed. All rights reserved.
15
Advanced commands: Function Level 3
From blank screen, toggle menu wheel down 3 times
Sensor Bypass
Press and release to access menu
The Sensor Bypass menu screen has four options, pressing the appropriate button as shown below activates that bypass level. An appropriate screen and beeps play to confirm.
Warn away
Press and release : all sensor warn-away
output and messages to the remote are defeated.
Optional sensors
Press and release
AUX
: optional sensor
warn-away and full trigger output and messages to the remote
are defeated.
Shock sensor
Press and release : shock sensor warn-
away and full trigger output and messages to the remote are
defeated.
Bypass all
Press and release : shock and optional sensor
warn-away and full trigger output and messages to the remote
are defeated.
System needs to be armed to perform Sensor Bypass.
Note
Perform arm command any time to turn Sensor Bypass Off.
AUX 2
Press and release
Activates (or if On, deactivates) the Aux 2 output. The
animation and On tones or Off tones play to confirm.
16
AUX
AUX CHANNEL
© 2013 Directed. All rights reserved.
Remote Valet
Press and release
Enters (or if On, exits) Valet Mode. The
EXIT VALET MODE
animation and beeps play to confirm. See Valet
VALET MODE ENTER
Mode for more details
Advanced Start*
Press and release
Displays the Advanced Start menu screen with two options:
Timer Mode
Activates (or if On, deactivates) Timer Mode. The lights flash
quickly four times for On and slowly four times for Off. The
TIMER MODE ACTIVATED
and beeps play to confirm.
Smart Start
Activates (or if On, deactivates) Smart Start. The lights flash
quickly five times for On and slowly five times for Off. The
SMART START ACTIVATED
and beeps play to confirm.
Advanced Start will not start the engine unless the system
Note
has been Armed or Locked In Valet.
* See “Advanced Start” on page 40 for more details.
Press and release :
TIMER MODE DEACTIVATED
or
Press and release :
SMART START DEACTIVATED
or
animation
animation
or
Commands
© 2013 Directed. All rights reserved.
17
Advanced commands: Function Level 4
From blank screen, toggle menu wheel down 4 times
Silent Mode 2
Press and release
Displays Silent mode 2 menu screen with two options:
Sensor Silent*
Press and release
The alarm arms, doors lock, and the siren chirps and lights flash
3 times. The
SENSOR SILENT MODE
screen and beeps play to
confirm.
Full Silent*
Press and release :
The alarm arms, doors lock, and the siren chirps and lights flash
4 times. The
FULL SILENT MODE
screen and beeps play to con-
firm.
AUX 3
Press and release
Activates (or if On, deactivates) the Aux 3 output. The
animation and On tones or Off tones play to confirm.
* See “Alarm Features” on page 35 for details.
18
AUX
AUX CHANNEL
© 2013 Directed. All rights reserved.
Loading...
