Page 1

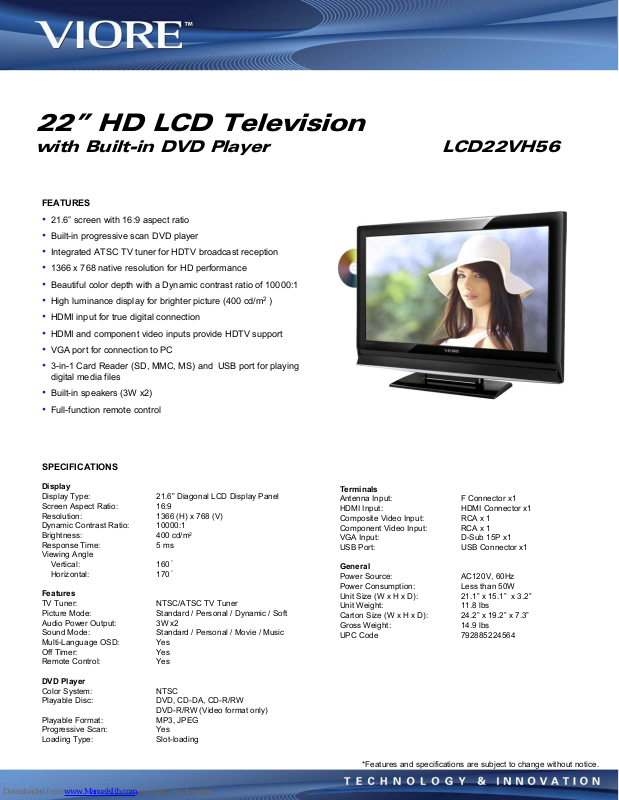

22” HD LCD Television
with Built-in DVD Player LCD22VH56
FEATURES
• 21.6” screen with 16:9 aspect ratio
• Built-in progressive scan DVD player
• Integrated ATSC TV tuner for HDTV broadcast reception
• 1366 x 768 native resolution for HD performance
• Beautiful color depth with a Dynamic contrast ratio of 10000:1
• High luminance display for brighter picture (400 cd/m
• HDMI input for true digital connection
• HDMI and component video inputs provide HDTV support
• VGA port for connection to PC
• 3-in-1 Card Reader (SD, MMC, MS) and USB port for playing
digital media files
• Built-in speakers (3W x2)
• Full-function remote control
2
)
SPECIFICATIONS
Display
Display Type: 21.6” Diagonal LCD Display Panel
Screen Aspect Ratio: 16:9
Resolution: 1366 (H) x 768 (V)
Dynamic Contrast Ratio: 10000:1
Brightness: 400 cd/m
Response Time: 5 ms
Viewing Angle
Vertical: 160˚
Horizontal: 170˚
Features
TV Tuner: NTSC/ATSC TV Tuner
Picture Mode: Standard / Personal / Dynamic / Soft
Audio Power Output: 3W x2
Sound Mode: Standard / Personal / Movie / Music
Multi-Language OSD: Yes
Off Timer: Yes
Remote Control: Yes
DVD Player
Color System: NTSC
Playable Disc: DVD, CD-DA, CD-R/RW
DVD-R/RW (Video format only)
Playable Format: MP3, JPEG
Progressive Scan: Yes
Loading Type: Slot-loading
2
Terminals
Antenna Input: F Connector x1
HDMI Input: HDMI Connector x1
Composite Video Input: RCA x 1
Component Video Input: RCA x 1
VGA Input: D-Sub 15P x1
USB Port: USB Connector x1
General
Power Source: AC120V, 60Hz
Power Consumption: Less than 50W
Unit Size (W x H x D): 21.1” x 15.1” x 3.2”
Unit Weight: 11.8 lbs
Carton Size (W x H x D): 24.2” x 19.2” x 7.3”
Gross Weight: 14.9 lbs
UPC Code 792885224564
*Features and specifications are subject to change without notice.
