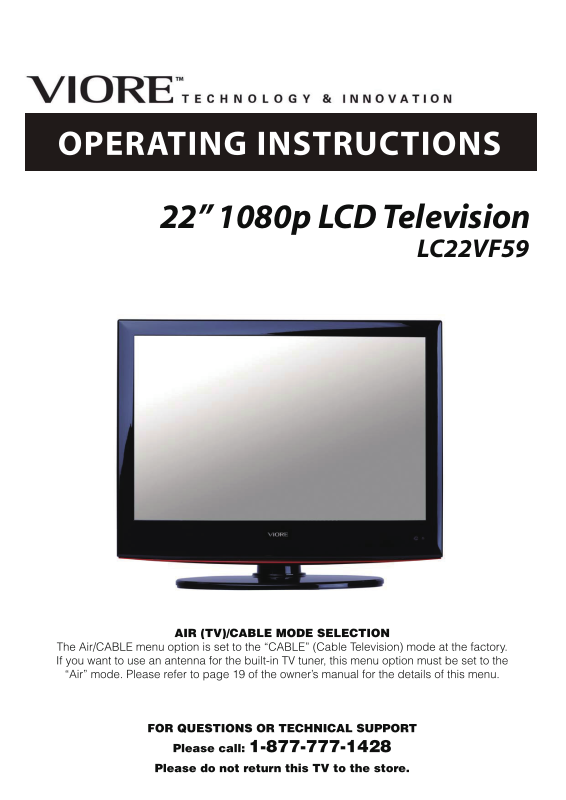

VIORE LC22VF59 User Manual

22” 1080p LCD Television

LC22VF59

Contents

Caution Safety Information

Unit and Accessories Product Feature

Introduction

1. Front View

2. Rear View

3. Remote Control

Connection

Basic Operation

OSD Menu

1. Picture menu

2. Audio menu

3. Time menu

4. Setup menu

5. Lock menu

6. Channel menu

2 3

4 4

5-8

5 6 7-8

9-11

12-13

14-20

14 15 16 17 18 19-20

Simple Troubleshooting

Technical Specications

Caution

The lightening ash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufcient magnitude to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE) Your product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their endof-life should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/ recycling centre. In the USA there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live

in!

This unit complies with America Safety directives.

This unit complies with FCC directives.

Safety Information

To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below.

Electrical safety

• The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor

• To prevent overload, don't share the same mains supply socket with too many other items of equipment.

-Do not place any connecting wires where they may be stepped on or tripped over.

-Do not place heavy items on the leads, which may damage them.

-Hold the Mains plug, not the wires, when removing from a socket.

-During a thunderstorm or while leaving the TV for long periods, disconnect the aerial (if outdoor) and mains adaptor from the supply.

-Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet or moist areas such as Bathrooms, steamy kitchens or near swimming pools.

• Pull the plug out immediately, and seek professional help if:

-the mains plug or cable is damaged

-liquid is spilt onto the set, or if it is accidentally exposed to water or moisture

-anything accidentally penetrates the ventilation slots

-the set does not work normally.

-Do NOT remove the safety covers. There are no user serviceable parts inside. You may invalidate the warranty. Qualied personnel only are permitted to service this apparatus.

-To avoid battery leakage, remove exhausted batteries from the remote control handset, or when not using for along period.

-Do NOT break open or throw exhausted batteries on a re.

Physical safety

• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least 5cm (2") clearance all around the unit.

• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good care of the remote control, do not drop it or allow it to come into contact with liquids.

• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based uids. For stubborn stains, you may use a damp soft cloth with diluted detergent.

Unit and Accessories and Product Feature

Unit and Accessories

TV set

User's manual

Remote control

Batteries: 2xAA

Product Feature

- Inputs: RF, VIDEO, VGA, YPbPr, HDMI

- Audio Input: AV Audio R/L, PC Audio

- Support TV mode: NTSC-M, ATSC

- Search TV: Auto/Manual

- Auto-shutting down

- Program exchange and edit

Mains Cable

Introduction

1. Front View

MENU CH- CH+ VOL- VOL+ TV/AV POWER

Introduction

Led Indicator Remote Control window

(Keep clear)

1. (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off.

Indicator on(Red) Standby mode Indicator on(Green) Power on mode

The effective receiving range for the signal is 5-8 metres from the front of the remote

control window, and 30

to the left or right side and 200 above or below the remote control

window.

INPUT SOURCE

2. The functions of the buttons:

TV/AV: Press to display the input source menu. MENU: Press to display the OSD menu,

press again to exit the menu.

CH+/-: Press to scan through channels. VOL+/-: Press to adjust the volume.

Component

HDMI

VGA

POWER: Turn on/standby the TV set.

Press TV/AV button on the TV set or remote control to display the input source menu, and use CH+/- button on the TV set or ∧/∨ button on remote control to select the input source, press OK button on the remote control to

enter.

Note: Before you select the input source, make sure the connections are prepared.

2. Rear View

Introduction

SWITCH

1 AC POWER IN

HDMI VGA PC Y Pb Pr VIDEO L R RF

audio in Audio in

2 3 4 5 6 7

1. AC POWER IN: Connect to an earth 100-240V,50-60Hz AC outlet with the Power Cable.

2. HDMI: Connect it to the HDMI of DVD or other equipment.

3. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.

4. PC AUDIO: Connect it to the audio output terminal of PC.

5. YPbPr: Connect them to the YPbPr video output terminal of DVD.(used in YPbPr source)

6. VIDEO: Connect it to video output terminal of DVD. L/R in: Connect them to the audio output terminal of DVD(shared with YPbPr)

7. RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.

8. SWITCH: Switch on or off the power suply.

- To turn on the LCD TV

Power on

Press on the back of the LCD TV to rst.

- Be sure to turn off the power and unplug both units from the wall outlet before making any connections.

Power off

Wall Mounting

The TV is provided with mounting holes for a VESA approved wall mounting bracket(NOT SUPPLIED). Remove the Two Posi screws holding the base to the base bracket and lift the base away (do not remove the base mounting bracket). Mount the VESA bracket using 4 x M4 x10 Iso metric threaded screws (not supplied). Do not use screws longer than 10 mm, damage will occur to the internal parts. Fit the wall bracket securely following the manufacturers instructions.

Introduction

3. Remote Control

The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle.

+ +

TV/AV

POWER(red button): Turn the TV on/standby. TV/AV: Press to display the input source menu.

CC: Press to display the closed caption. MTS: Press to select the audio channels. FAV: Press to add or remove favorite channel. EPG: Press to enter the EPG menu directly.

MUTE: Press to mute the sound, press again or press VOL+ to

unmute.

DISPLAY: Display the information of current mode. Thumbstick(

< > ∧∨

): Allows you to navigate the on-screen

menus and adjust the system settings to your preference.

OK: CONFIRM button. MENU: Press to display the OSD menu. EXIT: Press to exit the OSD menu. VOL+/-: Press to adjust the volume. CH+/-: Press to scan through channels. RETURN: Return to the previous channel viewed. TIMER: Shutdown timer.

Number Buttons: Choose channel directly.

Select channel 5, Press button "5"; Select channel 62, Press button "6", then press button "2" in 2 seconds; Select channel 151, Press button "1", and press button "5" in 2 seconds, and press button "1" in 2 seconds; Select channel 5-1, Press button "5", and press button "- / - -" in 2 seconds, and press button "1" in 2 seconds;

PICTURE: Press repeatedly to cycle through the available video picture modes.

SOUND: Press to cycle through the different sound settings. ASPECT: Press to change the screen display mode.
