Violet design PEARL-STD BROCHURE

db O
-8 20 30 50 70 70 200 300 500 700 1K 2K 3K 5K 7K 10K 20K
+8

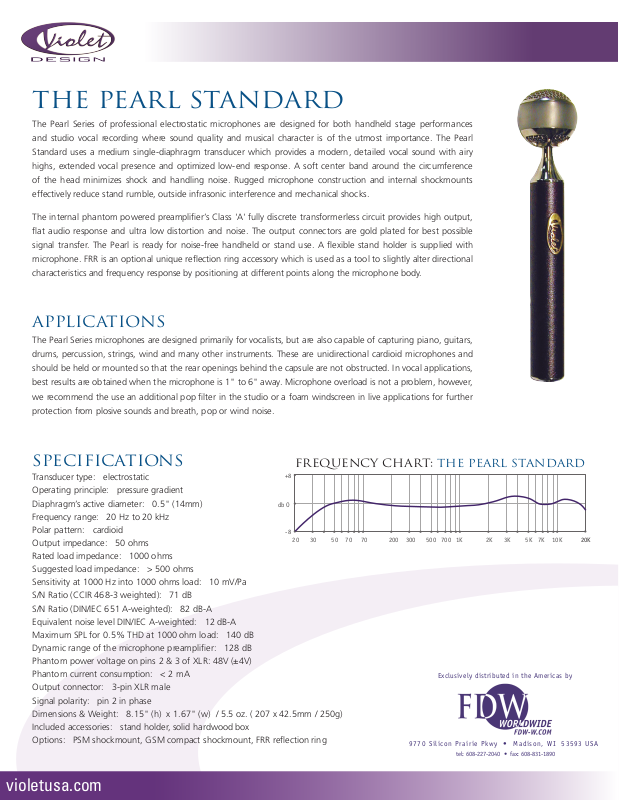

THE PEARL STANDARD
The Pearl Series of professional electrostatic microphones are designed for both handheld stage performances
and studio vocal recording where sound quality and musical character is of the utmost importance. The Pearl
highs, extended vocal presence and optimized low-end response. A soft center band around the circumference
of the head minimizes shock and handling noise. Rugged microphone construction and internal shockmounts
effectively reduce stand rumble, outside infrasonic interference and mechanical shocks.
The internal phantom powered preamplifier’s Class 'A' fully discrete transformerless circuit provides high output,
flat audio response and ultra low distortion and noise. The output connectors are gold plated for best possible
microphone. FRR is an optional unique reflection ring accessory which is used as a tool to slightly alter directional
characteristics and frequency response by positioning at different points along the microphone body.
APPLICATIONS
The Pearl Series microphones are designed primarily for vocalists, but are also capable of capturing piano, guitars,
drums, percussion, strings, wind and many other instruments. These are unidirectional cardioid microphones and
should be held or mounted so that the rear openings behind the capsule are not obstructed. In vocal applications,
best results are obtained when the microphone is 1" to 6" away. Microphone overload is not a problem, however,
we recommend the use an additional pop filter in the studio or a foam windscreen in live applications for further
protection from plosive sounds and breath, pop or wind noise.
SPECIFICATIONS
Transducer type: electrostatic Operating principle: pressure gradient Diaphragm’s active diameter: 0.5" (14mm) Frequency range: 20 Hz to 20 kHz Polar pattern: cardioid Output impedance: 50 ohms Rated load impedance: 1000 ohms Suggested load impedance: > 500 ohms Sensitivity at 1000 Hz into 1000 ohms load: 10 mV/Pa S/N Ratio (CCIR 468-3 weighted): 71 dB S/N Ratio (DIN/IEC 651 A-weighted): 82 dB-A Equivalent noise level DIN/IEC A-weighted: 12 dB-A Maximum SPL for 0.5% THD at 1000 ohm load: 140 dB Dynamic range of the microphone preamplifier: 128 dB Phantom power voltage on pins 2 & 3 of XLR: 48V (±4V) Phantom current consumption: < 2 mA Output connector: 3-pin XLR male Signal polarity: pin 2 in phase Dimensions & Weight: 8.15" (h) x 1.67" (w) / 5.5 oz. ( 207 x 42.5mm / 250g) Included accessories: stand holder, solid hardwood box Options: PSM shockmount, GSM compact shockmount, FRR reflection ring
FREQUENCY CHART:
9770 Silicon Prairie Pkwy • Madison, WI 53593 USA
THE PEARL STANDARD
Exclusively distributed in the Americas by
tel: 608-227-2040 • fax: 608-831-1890
violetusa.com
