Violectric HPA V280 User Manual

1

HEADPHONE AMPLIFIER

HPA V280

USER´s MANUAL

2

Content

Theme Page

About Violectric 3
Safety Instructions 5
The Earth / Grounding Concept 7
Connection / Connectors 9
General 10
Operation 11
About balanced headphone amps 17
Things to know 24
Disposal 29
Dismantling 30
Jumper Settings 31
Technical Data 32
Conformity Statement 33
Warranty 34

CAUTION !!

THE HIGH OUTPUT LEVELS ACHIEVABLE

WITH THIS UNIT MAY

DAMAGE YOUR HEARING OR THE HEADPHONES

IF OPERATED CARELESSLY !!

3

Cordial thanks for your decision in favour of a

product !

is a trademark and product line of Lake People

electronic GmbH. Lake People electronic GmbH develops,
manufactures and distributes products in the professional range, for
broadcast, television, airports, exhibition halls, festival venues, theatres,
large-scale installations, private studios and more. In the private sector
as well, Lake People products become increasingly popular due to their
outstanding quality.

The trademark and product line is specially intended to
supply the Hi-Fi and High-End market with its specific requirements.

Who develops equipment ?

devices are exclusively developed in Germany by the
engineers of Lake People electronic GmbH. In doing so, the team of
developers can draw on twenty years of experience and countless
products for the pro-audio domain.
Among others, the first German-made 20-bit A/D and D/A converters
were developed by Lake People in the early nineties of the past century.

Who manufactures equipment ?

devices are exclusively manufactured in Germany by
Lake People electronic GmbH or contractors in the company's vicinity.

Lake People - and by association - put high emphasis
on domestic manufacturing. As well, all component suppliers are chosen

in order achieve the main part of added value inland.

4

How do devices get to the customer ?

devices can be obtained from respective specialist
suppliers. If there is none such accessible regionally, the customer is
supported by transregional distribution partners (google may help...)
and, of course, by Lake People electronic GmbH themselves.

… and if it doesn't work like it should ?

devices are covered by a 24-month warranty. In case of
any malfunction during this period, they can be shipped to the
manufacturer directly. Of course, the client will benefit from

's and Lake People's full technical support even when
warranty has expired. Any technical questions or need for advice is
welcome.

is a subsidiary of

LAKE PEOPLE electronic GmbH

Turmstrasse 7a

D-78467 Konstanz

Fon [phone]

Fax [phone]

Mail: [e-mail]

www.violectric.de www.violectric.com

www.lake-people.de www.lake-people.com

5

General Safety Instructions

WARNING

For your protection, please read the following:

Water, Liquids, Moisture:

This appliance should not be used near water or other sources of liquids.
Care should be taken so that objects do not fall and liquids are not spilled into
the enclosure through openings.

Power Sources:

The appliance should be connected to a power supply only of the type described
in the operating instructions or as marked on the appliance.

Grounding:

Care should be taken that this appliance is operated with proper grounding only.

Power Cord:

Power supply cords should be routed so that they are not likely to be walked on
or pinched by items placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point where they exit from the
appliance.
This unit is equipped with a 3-pole mains cable with German 3-pin mains plug.
In some countries this unit must be operated with a mains adaptor, supplied by
the owner.
Please refer to the table below to connect a mains plug:

OVERVIEW: POWER CORD FUNCTION AND COLORS

CONDUCTOR

COLOR

Alternativ

L

LIVE

BROWN

BLACK

N

NEUTRAL

BLUE

WHITE

E

PROTECTIVE EARTH

GREEN+YELLOW

GREEN

U.K. Mains Plug Warning:

A moulded mains plug that has been cut off from the cord is unsafe. Discard the mains

plug at a suitable disposal facility.

NEVER UNDER ANY CIRCUMSTANCES SHOULD YOU INSERT A DAMAGED OR

CUT MAINS PLUG INTO A 13 AMP POWER SOCKET. Do not use the mains plug

without the fuse cover in place. Replacement fuse covers can be obtained from your local

retailer. Replacement fuses are 13 amps and MUST be ASTA approved to BS 1362.

6

Mains Fuse:

The mains fuse of this appliance is soldered in place and accessible from the
inside only!!
A blown fuse may indicate an internal problem and should be replaced during
qualified servicing or repair work !!

Switchable Power Supply:

Connect this unit to the power source indicated on the equipment rear panel
only to ensure safe operation !!
This unit is provided with an internally settable mains supply for 115 / 230 V AC.

Service / Repair:

To reduce the risk of fire or electric shock, the user should not attempt to service the
appliance beyond the measures described in the operating manual. All other
servicing or repair should be referred to qualified personnel !!

Electromagnetic Compatibility
This unit conforms to the Product Specifications noted as Declaration of
Conformity at the end of this manual. Operation is subject to the following

conditions:

- this device may not cause harmful interferences

- this device must accept any interference received,
including interference that may cause undesired operation

- this device must not be operated within significant electromagnetic field

VOR DEM ÖFFNEN NETZSTECKER
ZIEHEN!! PULL MAINS BEFORE
OPENING!! AVANT D´OUVRIER
RETIREZ LA FICHE MALE!!

7

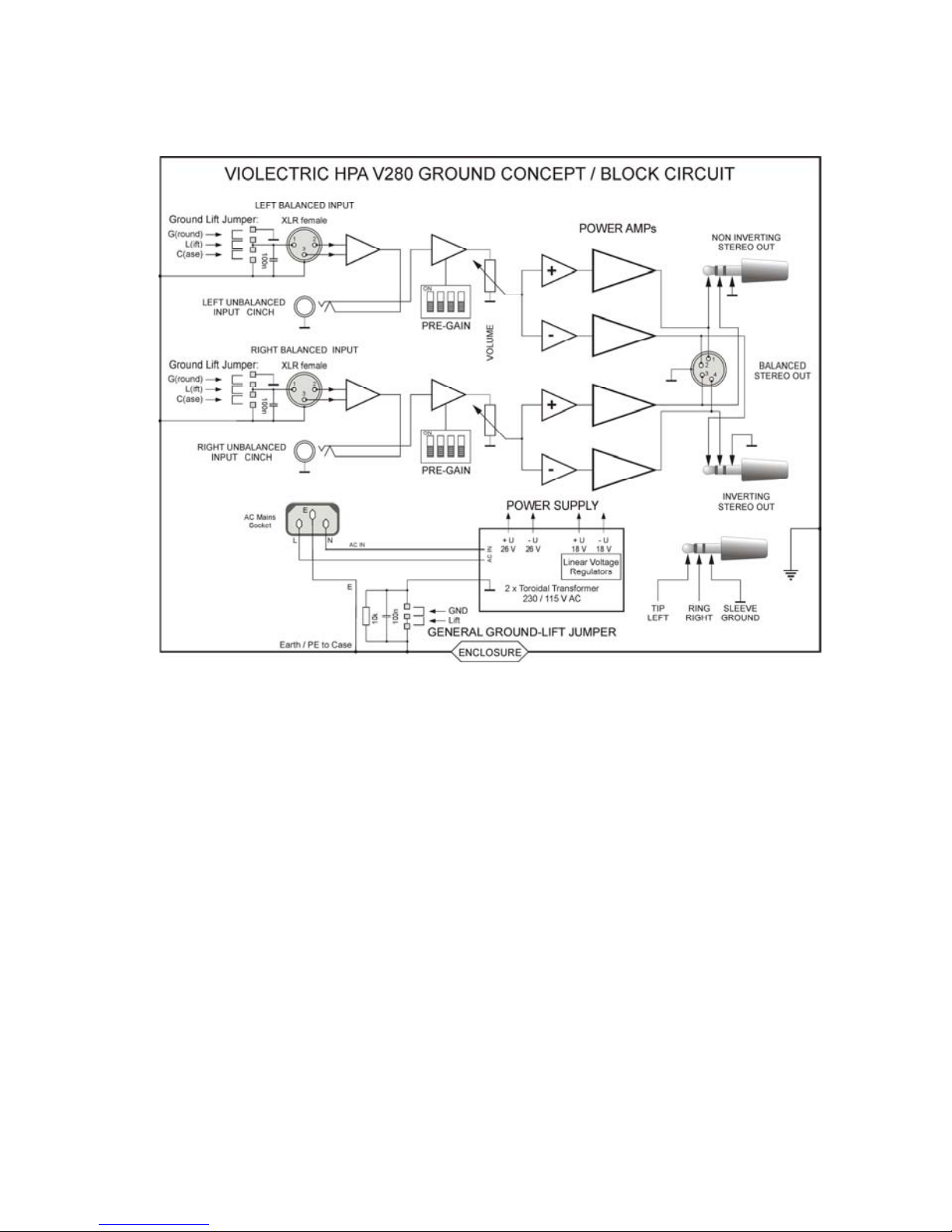

The Earth / Grounding Concept

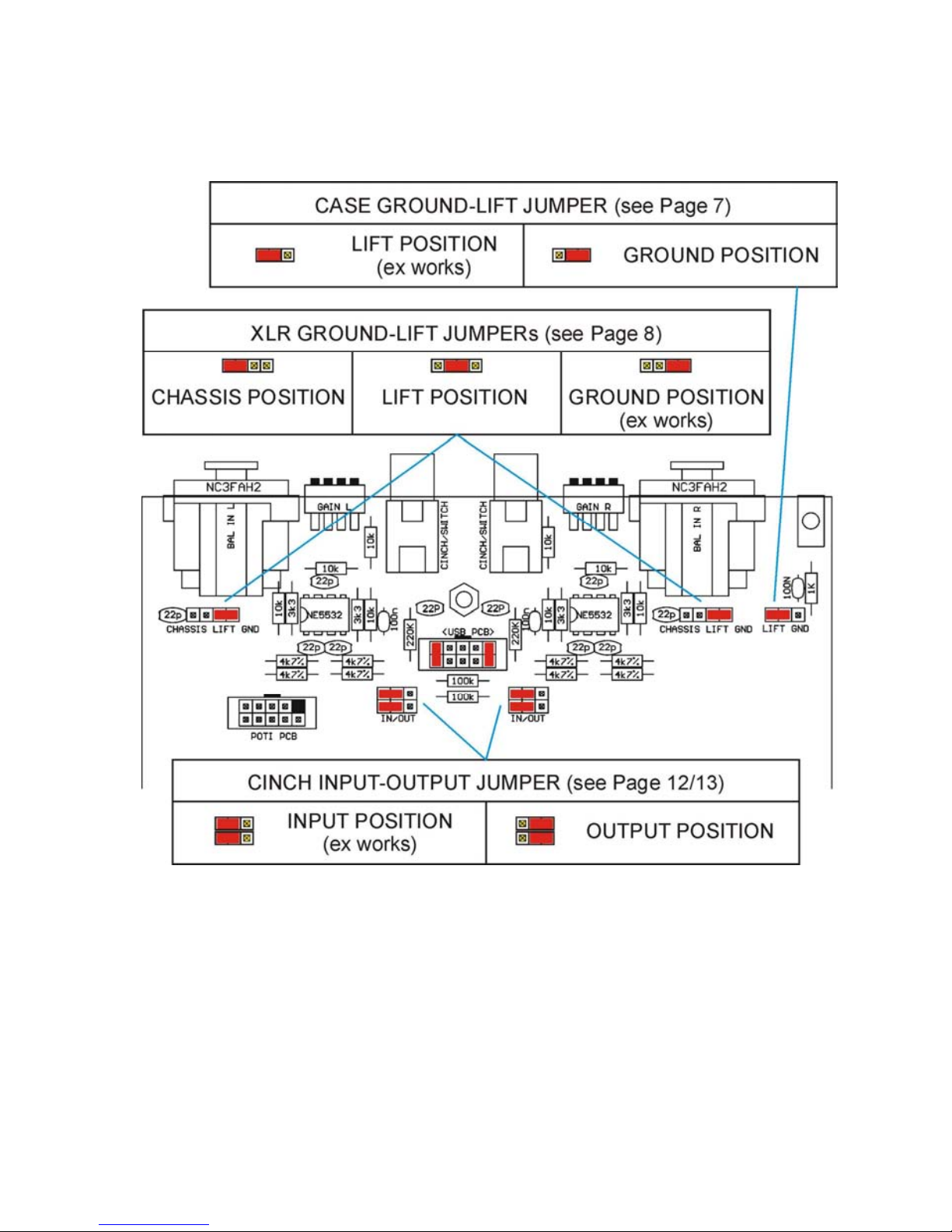

General GROUND-LIFT Jumper (accessible from the inside.
Mind the SECURITY INSTRUCTIONS !! ):

Ex-works this jumper is set to the LIFT position.
The internal ground potential is “lifted” by means of this jumper.
As a result, the interconnection for DC voltages and lower frequencies
(< 150 Hz) will be cut. Higher frequencies will be bled off to earth
potential through the RC filter. The LIFT position is helpful in case of
hum or jitter caused by different ground/earth potentials.
Of coarse full electrical protection is garanteed as the case is always
connected to ground/earth potential !

See page 25 "Technical Appendix" for details.

8

Unfortunately there is no general recommendation how to solve hum
and jitter problems - or even minimize them. The best way to succeed is
to check different options !! In case of balanced cables, it should always
been verified if the shield of the cable is connected to the shell of the
XLR connector. The shell is ALWAYS connected to earth potential when
the mains connector is inserted !!

Concerning ANALOG inputs and outputs, the relationship between
ground and earth may be modified. Electrical safety is always ensured,
since the earth conductor is permanently connected to the enclosure !!

XLR GROUD-LIFT Jumper (accessible from the inside.
Mind the SECURITY INSTRUCTIONS !! ):

G(ROUND): Ex-works all jumpers are set to "G" (ground) position.

Pin 1 is connected to the internal ground reference.
High frequency interference is deflected to the case via a
100 nF capacitor.

L(IFT): The interconnection between Pin 1 and ground is open.

High frequency interference is deflected to the case via a
100 nF capacitor. This jumper position is specifically
useful if the unit is equipped with transformers !!

C(ASE): Pin 1 is connected to the case, the 100 nF capacitor is

bridged. This jumper position may be varied together with
the General GROUND-LIFT jumper.

Please note that with jumpers not in the ex-works position

EMC emission might occur,

for which the user is responsible only !

9

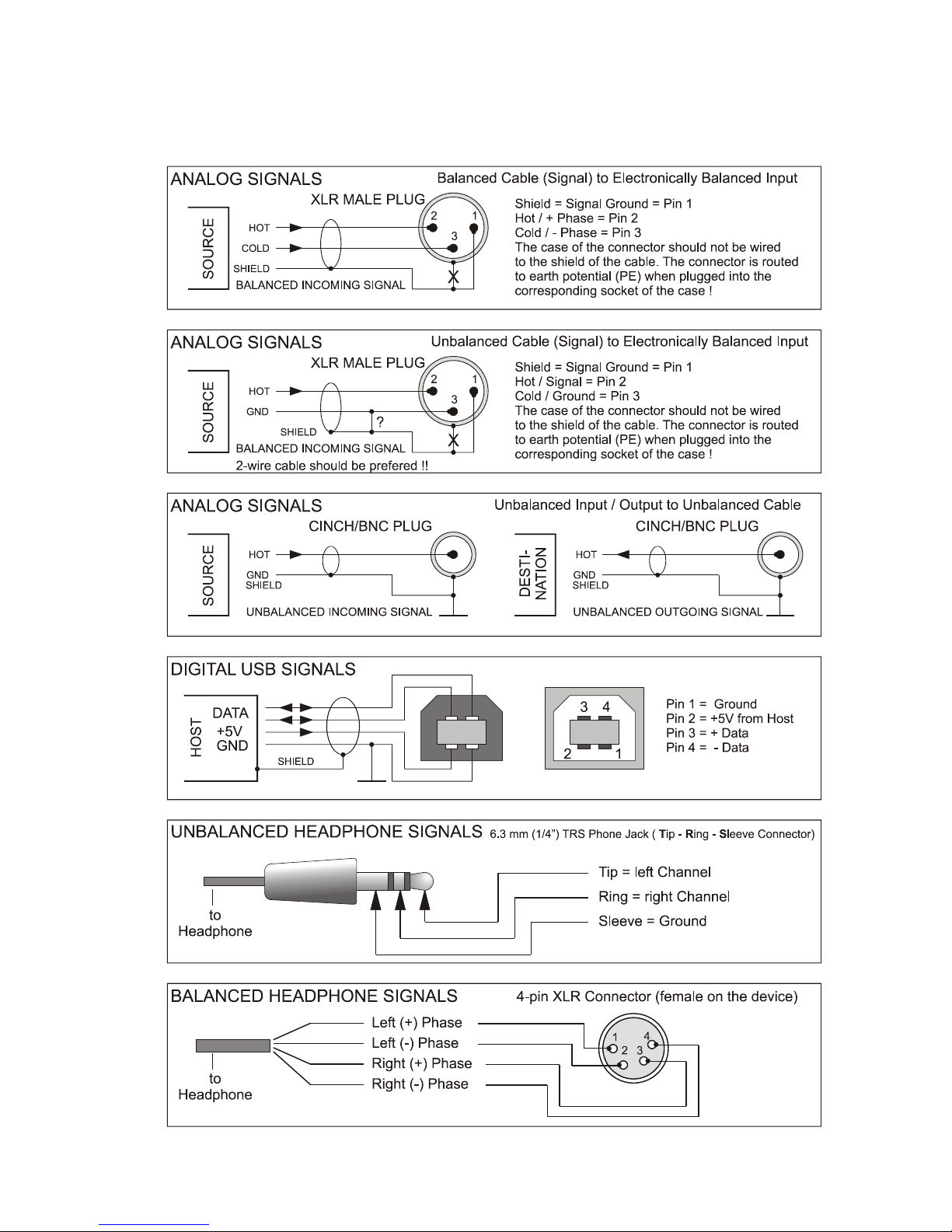

Connection / Connectors for Analog and Digital Signals

10

GENERAL INFORMATION

The HPA V280 is a stereophonic headphone amplifier designed to drive
low-, medium- and high-Z loads (16...600 ohms) as usually represented
by high-quality headphones.
V280 contains four amplifiers (2 x stereo) to enable proper driving of
balanced headphones.
Due to its specific, variable and low-noise and distortion circuit design
especially optimised for dynamic headphones, the HPA V280 fulfils
even highest demands.
Features:

- Balanced inputs with gold-plated Neutrik XLR connectors

- Unbalanced inputs with gold-plated ALPS RCA connectors

- switchable unbalanced outputs with RCA connectors

- Digital input as an option, coaxial, optical, USB, up to 192 kHz

- PRE-GAIN = switchable input gain in five steps

- Independent-channel design

- DC-coupled (switchable)

- ALPS RK27 High-Grade volume control

- High-Quality op-amps in the signal path

- High-quality MKP capacitors in the signal path

- 0.1 and 1% metal film resistors throughout the unit

- 4 with famous V200 technology

- 1 balanced headphone output, Neutrik 4-pin, gold plated

- 2 silver-plated Neutrik headphone outputs

- Relay-based headphone output cut-off

- Dual Toroidal transformer

- Large filtering capacitors in the power supply

- Switchable ground lift

- Rugged aluminium case with Nextel coating

- Solid, laser-engraved aluminium front panel

The HPA V280 is equipped with internal filters to prevent damage to the
connected headphones due to high-frequency overload beyond the
audible range.

11

THE CASE

The HPA V280's case as well as the front or rear panels are made of
solid aluminium. This choice of material ensures high mechanical
stability and resistance.

EARTH AND GROUND

The HPA V280's case is grounded. Internal reference ground is bridged
to protective earth by means of a jumper. If required, the jumper can be
set to 'LIFT' position (see also: page 7 "Earth/Ground concept" and

page 25 "Technical Appendix").

POWER SUPPLY

Mains power is provided via a three-pin IEC/CEE socket and mating
"cold-appliance" mains cord with a dedicated wall plug. The device is
set to 230 or 115 V AC mains internally, whereas the actual voltage may
vary between 190 … 240 V for 230 V and 85 … 120 volts for 115 V for
flawless operation. Altering the mains voltage can easily done by a
simple internally accessible switch. Two large toroidal transformers are
providing the internal operating voltages.

MAINS FUSE

The 0.25A time-lag fuse is soldered in place on the circuit board. In
case, it must be replaced with a fuse of the same type only.

CAUTION !!

MIND THE SAFETY INSTRUCTIONS:

A blown fuse indicates an internal fault and

should be replaced during qualified repair or

servicing only !!

12

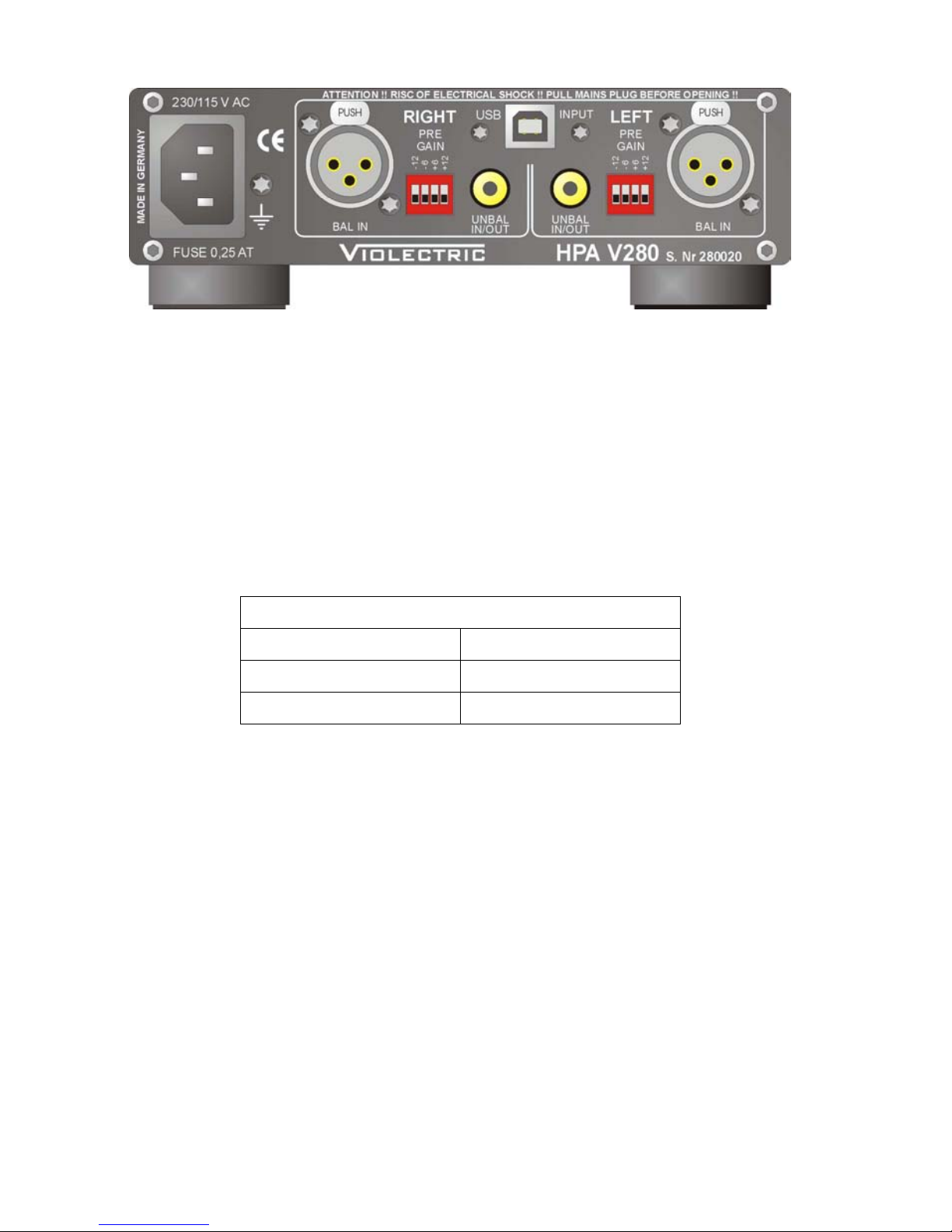

BALANCED SIGNAL INPUTS

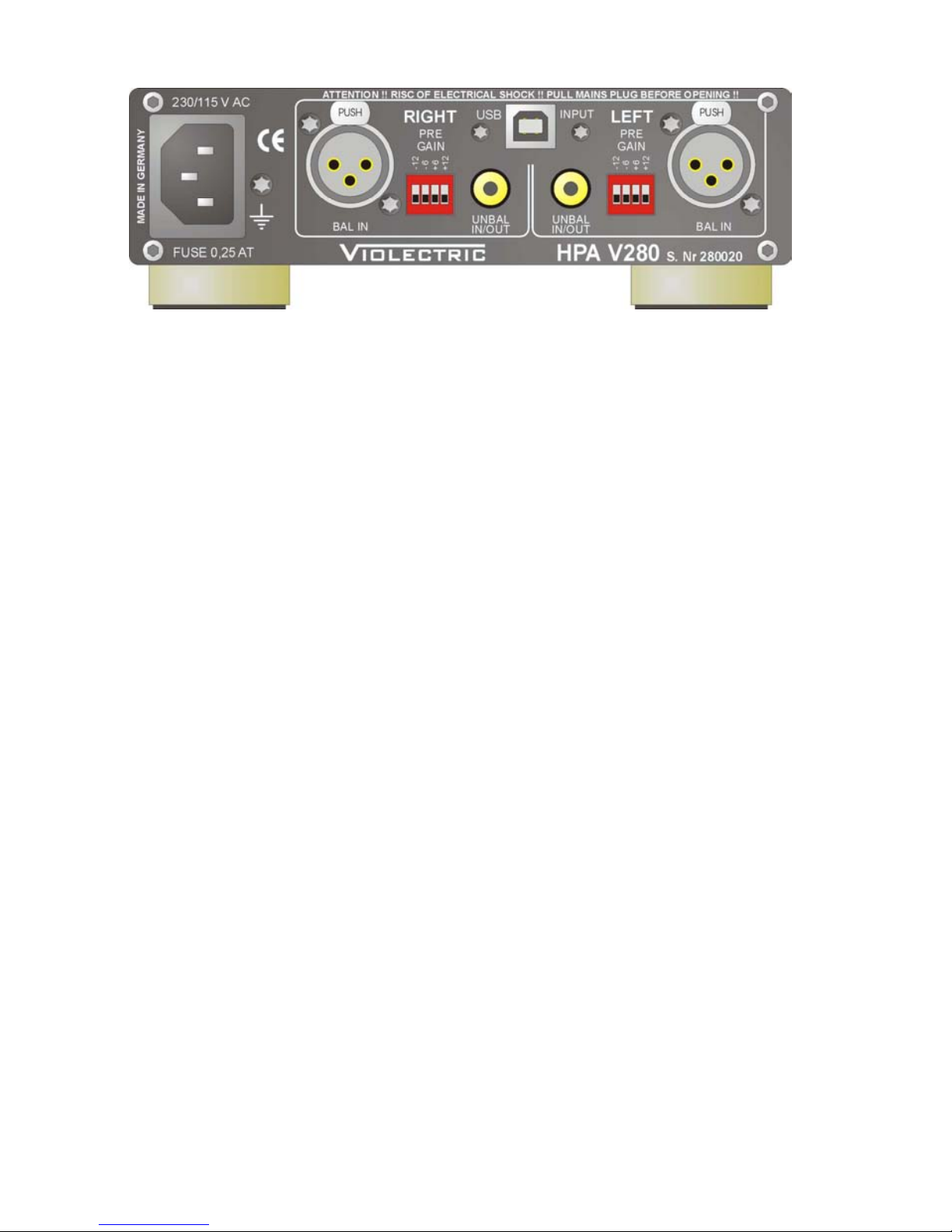

The balanced signal inputs are situated on the rear panel of the unit and
are labelled as "BAL IN LEFT" and "BAL IN RIGHT". They are fitted with
XLR sockets.

Please note:

Unbalanced signals can be injected as well by means of an adaptor.
Also see page 9.

Balanced XLR pinout:
PIN 1 GND
PIN 2 (+) PHASE
PIN 3 (-) PHASE

UNBALANCED INPUTS

For the use with unbalanced signals, RCA sockets are provided. They
are labelled as "IN/OUT LEFT" and "IN/OUT RIGHT", and can be
configured as either inputs or outputs.

(about their configuration, see page 25)

RCA sockets as inputs:

The RCA sockets are factory-preset as inputs and are equipped with
integrated switch contacts !
When a RCA plug is inserted, it cuts possible signals applied to the
balanced input automatically. I.e. the RCA input has priority.
Input impedance for all inputs is 10 kohms.

13

Maximum input level should not exceed +21 dBu.
This value is reduced to +15/+9 dBu if PRE-GAIN is set to +6/+12 dB !!

RCA socket as outputs:

The RCA sockets can also be operated as outputs. This offers the
possibility of using a refreshed balanced or USB input signal for further
purposes.
Output levels equal the levels applied to the inputs, i.e. the signal is
amplified by 0dB (unity gain) at an output impedance of < 1 ohms.
See also page 25 "Technical Appendix"

THE OPTIONAL DIGITAL INPUT

Currently the HPA V280 can be fitted with one out of seven D/A converter
types, with three different inputs and a max. sample rate of 96 or 192 kHz:

The COAX input accepts digital PCM audio data in S/P-DIF format, at
sample rates from 28 to 108 kHz (or 210 kHz resp.).
The OPTO input, fitted with a TOS-LINK interface, accepts digital audio
data at sample rates from 28 to 108 kHz (or 210 kHz resp.).
The USB type “B“ input can be connected to a host computer (PC or
laptop). The USB module will automatically be detected as an audio
device.
The USB 96 input is compatible with USB 1.1 and 2.0 standards. It
accepts digital audio formats up to 24 bit at sample rates of 44.1, 48 and
96 kHz, while 88.2 kHz is not supported.
The 96 kHz digital modules comprise a D/A converter with a dynamic
range of 110 dB and –100dB THD+N, thus ranging in the upper-mid
performance class.
There are TWO different USB 192 modules, compatible with the USB

2.0 standard. Both require a proprietary driver, which can be
downloaded from www.violectric.de
Digital audio formats up to 24 bit at sample rates of 44.1, 48, 88.2, 96,

176.4 and 192 kHz are supported, as well as the so-called
“asynchronous mode”.

14

By now we recommend the “Tenor” chip-set for Windows applicatons
and the “X-Mos” chip-set for Mac users.
The 192 kHz modules are equipped with a top-notch converter offering
a 115 dB dynamic range and –103 dB THD+N, along with significantly
improved analog output circuitry.

Please note:

- The digital input has priority over all other inputs and will mute these
when a valif digital signal is detected

- When a USB cable is inserted, it may be required to restart running
media applications on the host.

- Volume control of the host application should be set to 100%.

Too loud ? Too soft ? The PRE-GAIN method

The V280 is specially designed to drive headphones. Headphones
however can present load impedances from 8 to 2000 ohms and
efficiency ratios from 85 to 115dB per milliwatt. Thus it can be quite
tricky to fulfil all demands, since...
… owners of high-effectivity headphones will rarely set the volume
control higher than 9 o'clock in order to exclude hearing damage, while

... the maximum setting may still be too soft for low-efficiency
headphones, but
… all users expect highest quality at lowest noise and distortion.
Thus, the circuitry must adapt itself as the headphone won't !

WE CALL THE SOLUTION TO THIS PROBLEM PRE-GAIN

15

The alignment between amplifier and headphone is provided by the
preamp stage, which can boost or attenuate the input signal in four
steps of 6dB each. For this purpose, two switching devices are located
on the rear panel for left and right channel individually.

CAUTION !!

The settings should be altered under the following conditions only:

- The unit must be switched OFF

- the "VOLUME" control must be set to minimum

- left and right channel should ALWAYS be set the same

- never increase the setting by more than ONE step per

channel at a time.
If you find your HPA V280's volume could be somewhat softer (in order
to improve volume control range e.g.), push the switch labelled "-6dB"
(half gain) or "-12dB" (quarter gain) in upward direction.
If you find your HPA V280 should provide more gain, do so with the
switch labelled "+6 dB" (double gain) or "+12 dB" (quadruple gain).

Ex-factory, all switches are set to their lowest position - i.e. 0 dB or unity
gain - which should be sufficient for most applications.

OPERATION

Most control elements and indicators are located on the front panel.

POWER SWITCH

The unit is put into operation by means of the power switch. Power-on
status is indicated by the blue LED below.

VOLUME CONTROL

The "VOLUME" control sets the desired output volumes for left and right
channel simultaneously.

THE AMPLIFIERS

The input signals are fed to a special stereo amplifier which is equipped

16

with two power stages per channel to generate balanced signals. The
amp circuitry is derived from the famous Violectric V200 !

The individual-channel design provides optimum crosstalk rejection.
The amplifier's frequency range stretches from DC to over 200kHz
(-3dB cutoff frequency) in order to obtain absolutely linear character­istics within the audible range. Overall gain is set to +8 dB in order to
provide sufficient reserves also for high-impedance headphones.

THE BALANCED HEADPHONE OUTPUT

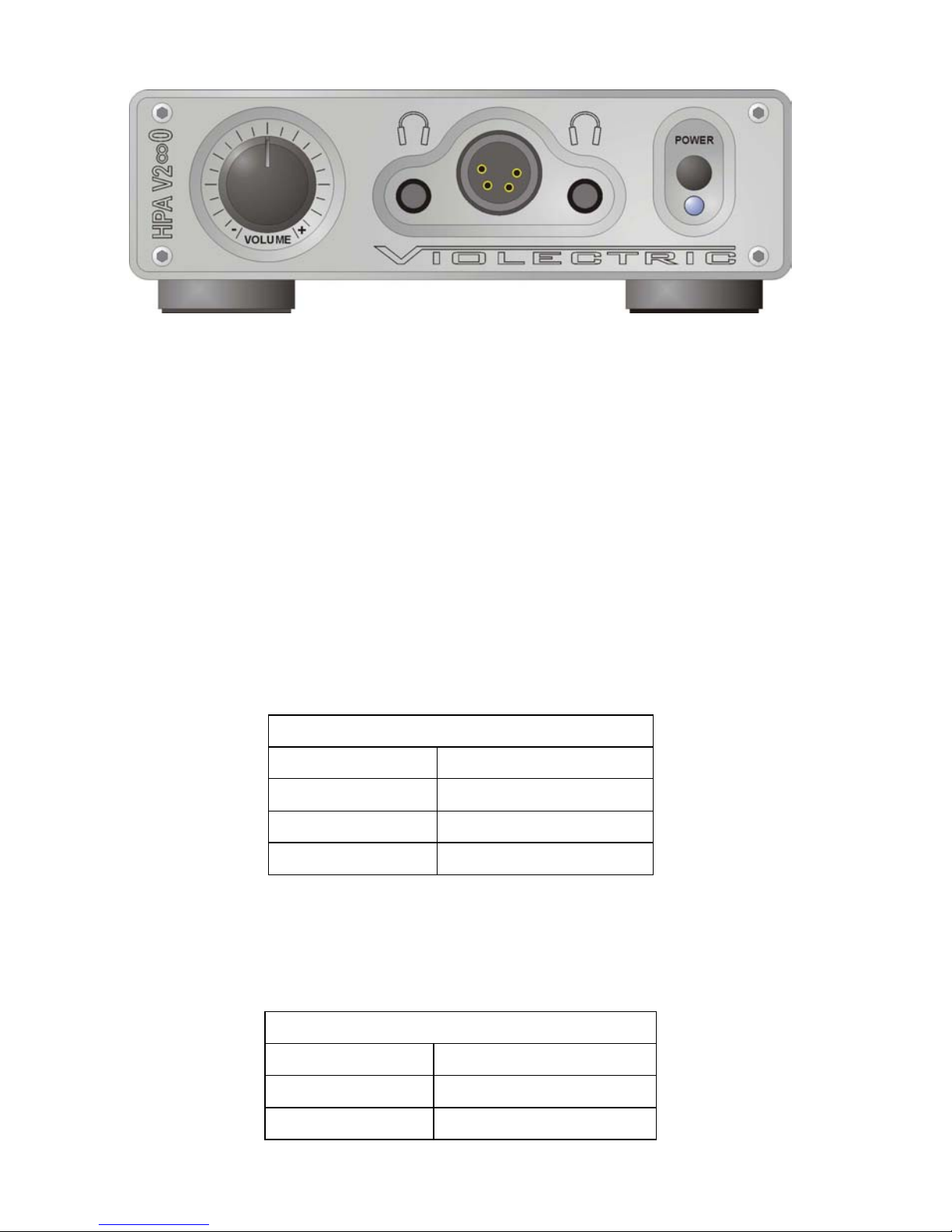

The HPA V280 offers a balanced headphone output.
This is equipped with a gold plated female 4-pin XLR connector.

Balanced Headphone socket pinout:
Pin 1 (+) Left channel
Pin 2 (-) Left channel
Pin 3 (+) Right channel
Pin 4 (-) Right channel

THE UNBALANCED HEADPHONE OUTPUTS

The HPA V280 offers two stereophonic headphone outputs, each
equipped with a 1/4" (6.3mm) jack socket.

Unbalanced Headphone socket pinout:
TIP Left channel
RING Right channel
SLEEVE GND

17

Please note:
The RIGHT phone jack is connected to the in-phase stereo signal,
whereas the left phone jack is connected to the 1800 phase shifted
signal. On power-up and power-down, the outputs are cut from the
amplifier circuitry by relay.

HINTS FOR THE BALANCED OPERATION
OF HEADPHONES

As there is no common standard about how to make the connectors of
balanced headphones and headphone amplifiers, we decided to equip
our unit(s) with 4-pin XLR connectors. In contrary to most XLR
standards the female socket is situated on the amp.
If you are not familiar in altering your headphones with matching
connectors we offer this work as a service. Please ask !!

ATTENTION:

Your headphone is double as loud as normal in balanced mode !!!

About Balanced Headphone Amplifiers

Different kinds of balanced applications and their advantages

The balanced signal line …
… is used to maximize the noise and hum immunity of the signal line.

Who ever made a military service perhaps knows about the “field telephone”
which is a very simple thing without any electronics inside and without a power
supply. It is hooked to another field telephone with a simple twisted cable. This
cable can be as long as some kilometers and communication is still possible.
This is caused by the advantages of the twisted cable, the balanced line.
An easy and reliable approach to a balanced line is the use of transformers on
both ends.
This can be done even without the need of power.
Unfortunately those are expensive and suffer from unlinearities.

18

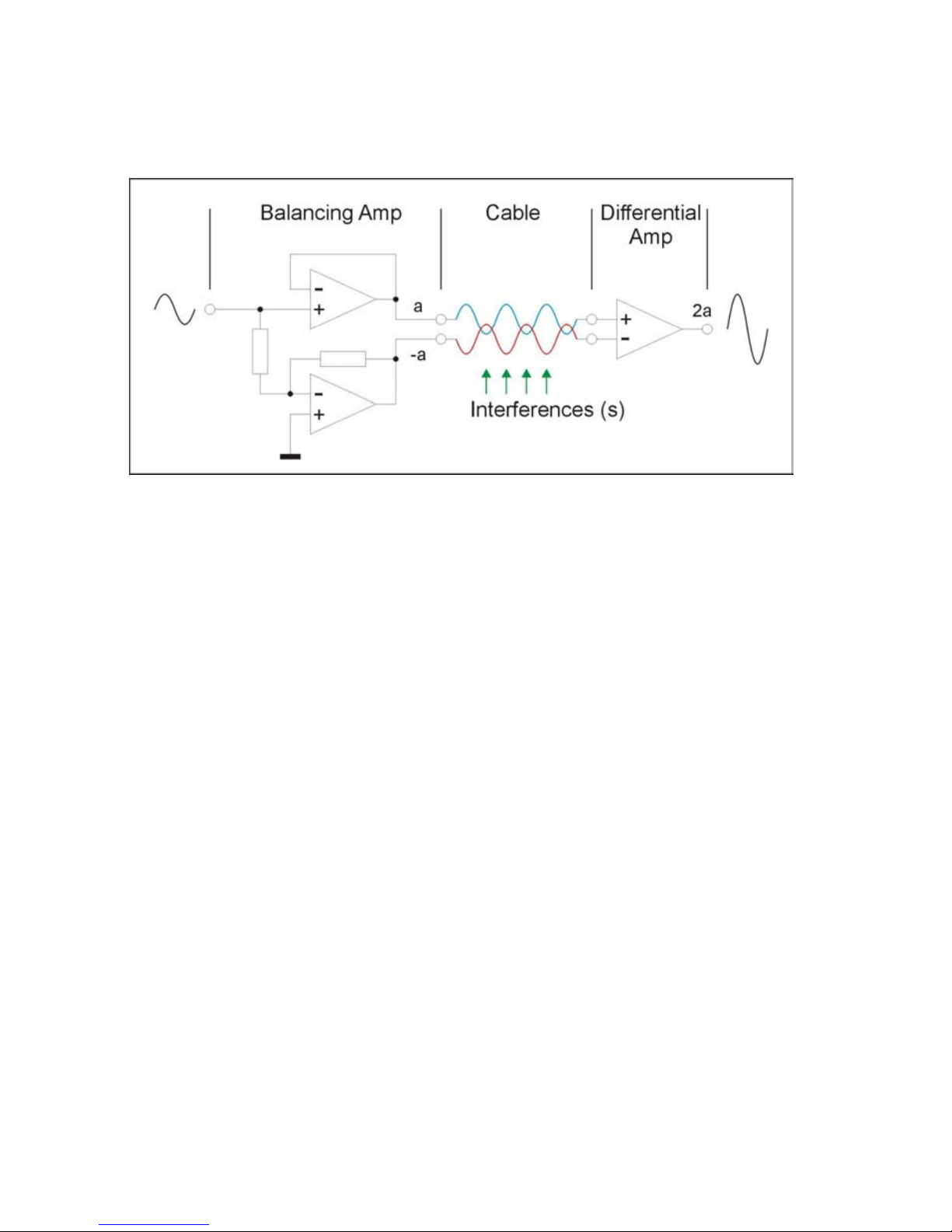

Electronically balanced signals can be made with two op-amps. Here, out of a
present unbalanced signal (a) an inverted or 1800 phase shifted signal (-a) is
formed with another op-amp.

Both signals are fed to a cable consisting of a twisted pair which must not
necessarily be shielded.
On the way to the receiving device interferences may show up and disturb the
signal.
Inside the receiving device the signals are input to a differential amp. As the
name explains, this amp forms a difference out of both signals like this: a – (-a)
= 2a. The same procedure is applied to the interferences: s-s = 0.
As an ideal result there is double the original signal amplitude and no
interferences on the output of the differential amp. In the real world this is not
achieved by 100%.You have to consider voltage- and impedance-ratios what
can be determined as CMRR or Common Mode Rejection Ratio. The higher the
technical efforts, the better the results.
Besides the fact that balanced signals offer enhanced interference immunity
compared to unbalanced signals, the next advantage is that the screen from the
cable only serves for the protection of the signal and for the potential
equalization between devices. It only has a static function.
Looking at unbalanced cables, here the cable shield also serves to leading back
signals.
The ground of unbalanced connected devices is not static but is modulated by
the reflux of the signals.
Whereas a balanced line serves mainly to have an interference-free signal distri­bution and a static ground, there are other things in the forefront concerning …

19

“Balanced” amps.

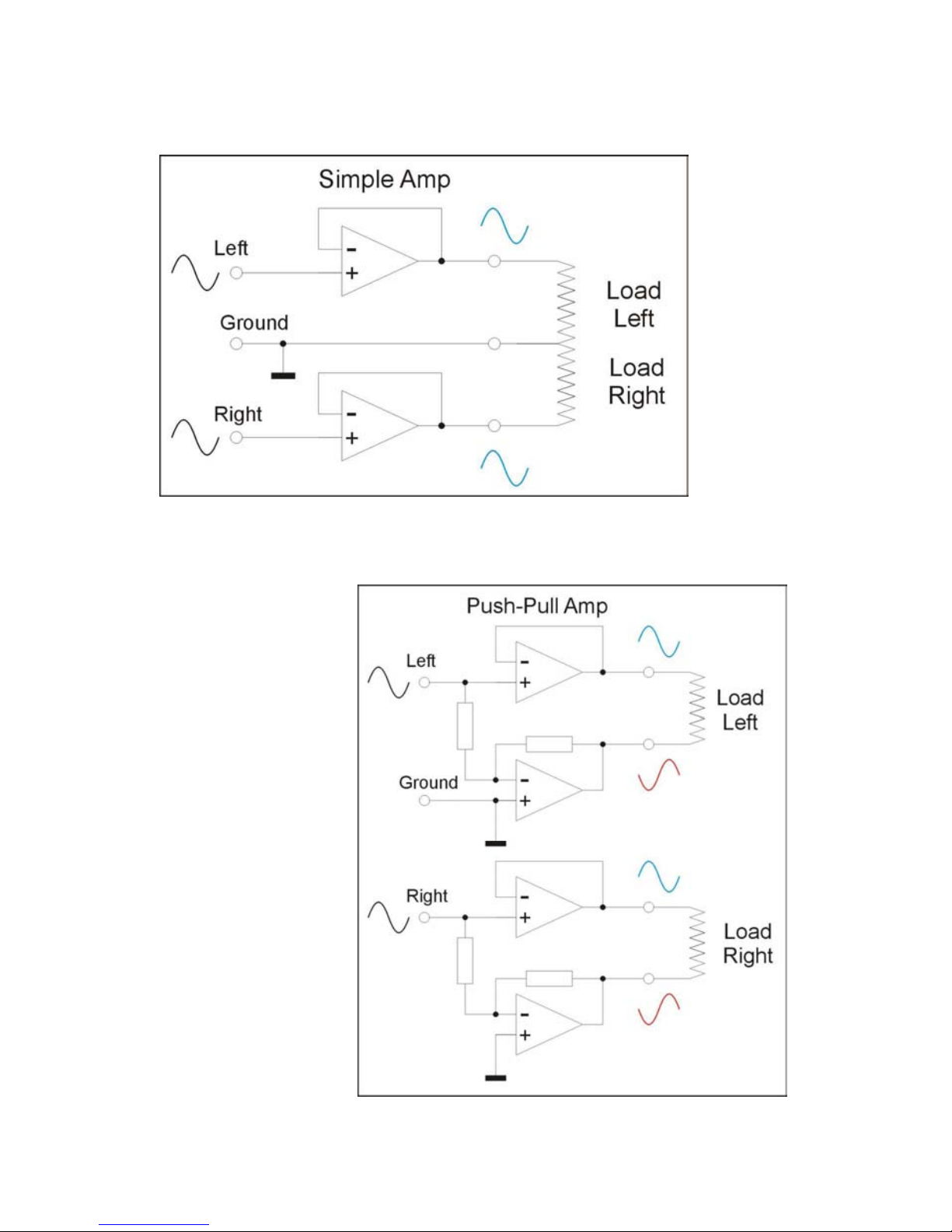

Let´s take a look at a simple amp:

The left and right input signals are amplified and are fed to the left and right
load.

“Balanced” amps
are not new at all
but known for a long
time e. g. in car
radios where this
technique is taken
to achieve quad
power out of a
limited supply
voltage (12 V).
“Balanced” amps
are also called
Push-Pull Amps or
BTL amps (Bridge­Terminated-Load).
Take a look:

20

The input signals are fed to the loads via two amplifiers per load. The trick is,
that one of these amplifiers is working “normal”, the other inverted respectively
1800 phase shifted.
While one amp is “pushing”, the other amp is “pulling”. In doing so the output
amplitude is doubled and the power is fourfold compared to a “normal” amp with
the same supply voltage.

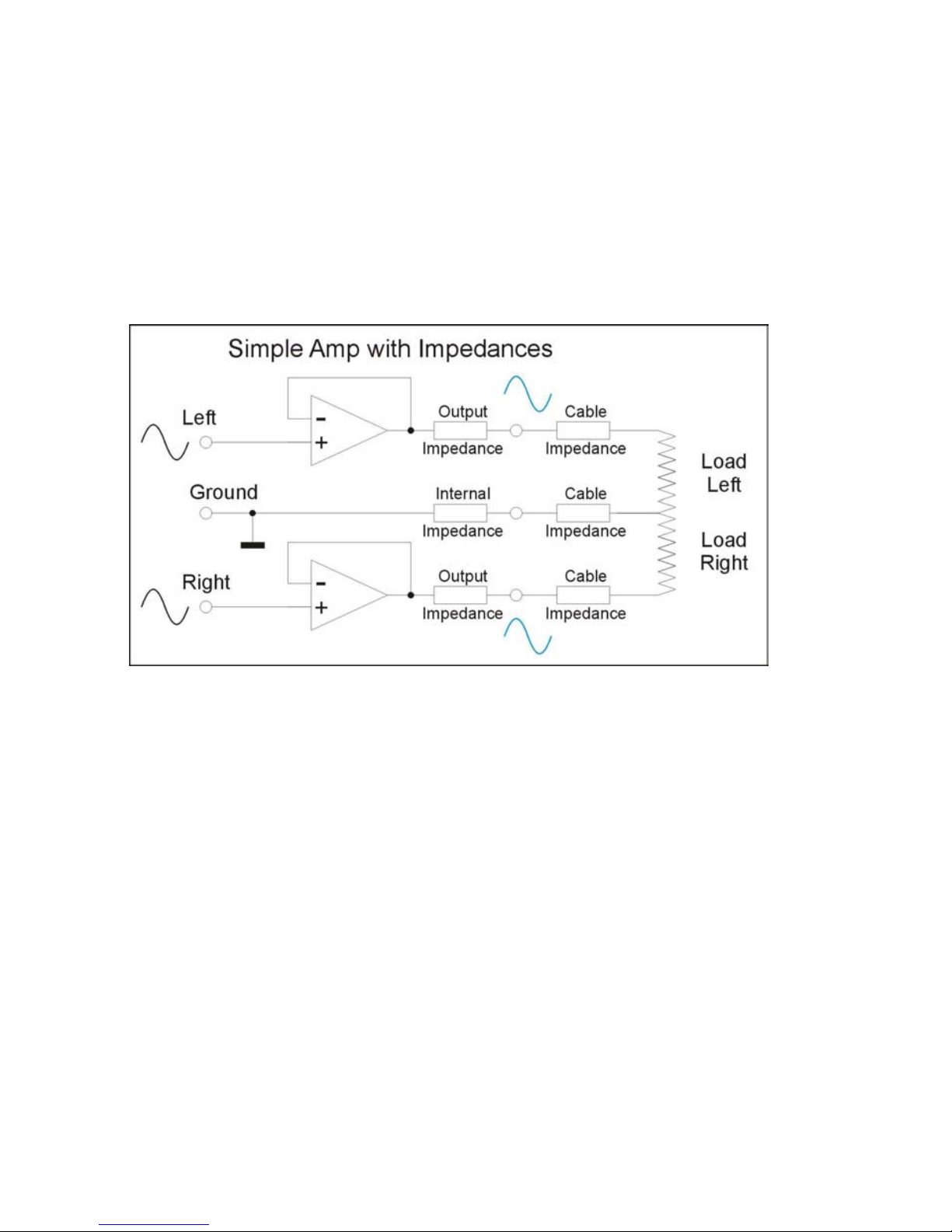

Unfortunately the real life is not as easy as the above simple schematics.
Here is the “normal” amp with problem zones:

Besides the load, which has to be driven there are several other impedances
which should be taken into account. All these are able to impair the proper
driving of the load.
Impedances are a complex mix of resistive, capacitive and inductive parameters
which may lead to an instable operation of an amp when the capacity of a cable
is too high.
To keep things simple, for the following examinations only the resistive parts
shall be taken into account.
Every above resistive load will cause a voltage drop which is responsible for a
none-linear behavior inside the system.
Some problems are apparent at first glance:

· The higher the resistive load, the lower the parasitic impedance
influences

· The lower the resistive load, the higher the parasitic impedance
influences

21

· The lower the output impedance of an amp, the lower its influence on
the transmission quality

· Using “normal” headphones with phone jacks will lead to relatively big
faults caused by the common ground cable and the less than perfect
connectivity from phone jack to phone socket because of much too big
contact surfaces.

· The ground potential is not static but suffers from voltage drops caused
by the internal impedances and the influence of the common ground
cable from the “normal” headphone.
The ground potential is polluted by a summed left + right signal, a
mono signal (!!), which can be measured and heard as crosstalk and
intermodulation.

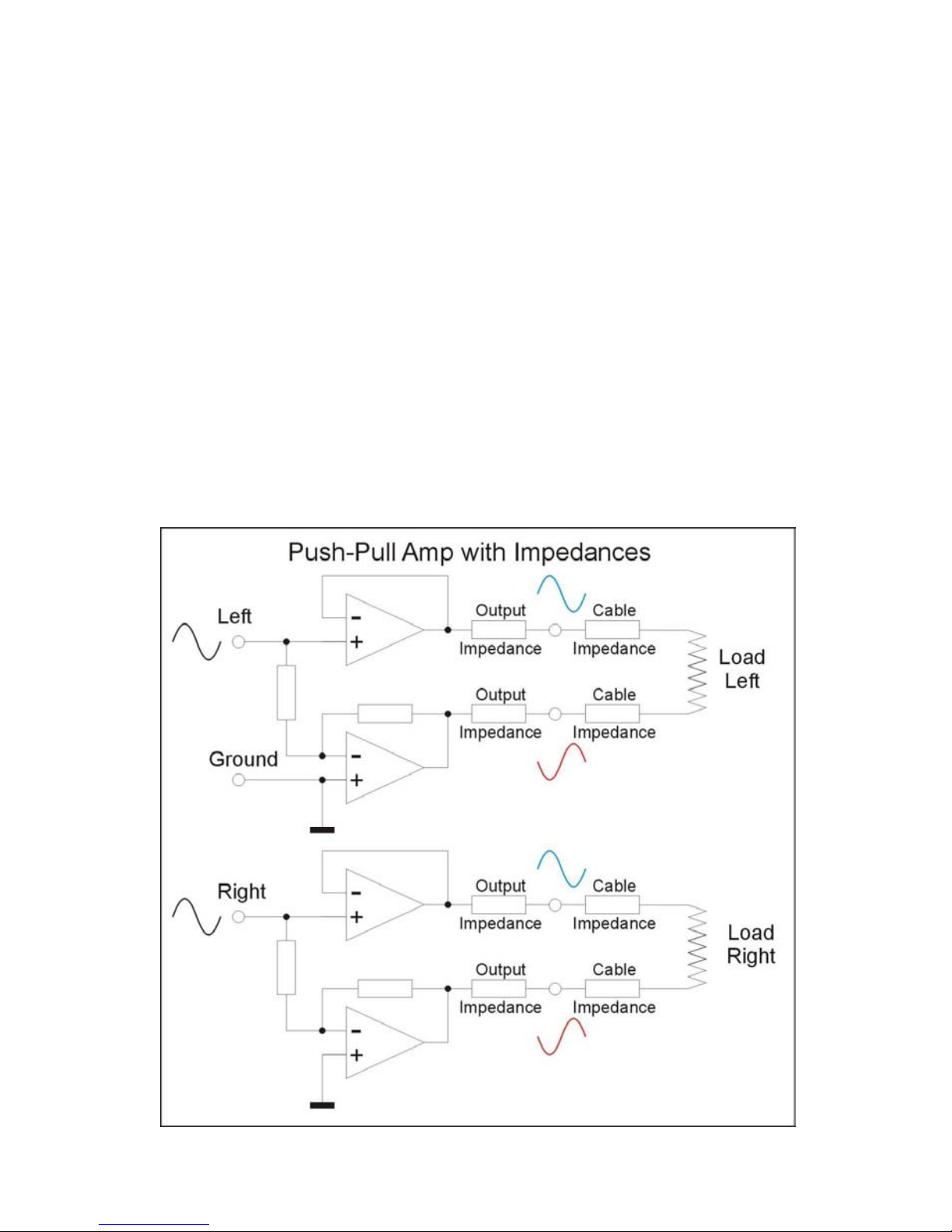

A balanced amp will show up like this:

22

Instead of six problem zones we fortunately got not twice the issue but only
eight.
The signal quality rises because there is no common ground as well as there is
no load applied to the ground potential.
But it is not everything gold with a push-pull amplifier.
Beneath higher costs of a specific product because of doubling the components
there are the following points taken into account:

· Double output impedance because two impedances per channel

· Higher static noise because of double gain

· Risk of more distortion because of two amps per channel

Using a push-pull amp as a headphone amplifier is most times not because
doubling the output amplitude. Especial when there are only low impedance
headphones to drive.
There is more than one amp in the Lake People / Violectric program range with
more than enough amplitude – even for high impedance loads.

So, what is the sense of a balanced headphone amplifier ?

As mentioned earlier a “simple” amp has the ground potential as its reference
point. To be more precise, it is not any point of the ground plane but the ground
pin(s) from the transformer. The output amplitude swings preferably
symmetrical around this reference point otherwise we would talk about DC
offset.

The theoretical maximum effective output voltage swing is calculated simplified
as follows:
Amount of the operating voltages resp. Amount of the operating voltages
2 x (root 2) 2,83
Inside a “normal” amp a voltage is sent to the load (the voice coil of the
headphone).
This voltage is coming back via a common cable for both channels to the
ground contact of the headphone socket and from there to the foot-pin of the
transformer, the true reference point.
Because the wires from the headphone to the amp as well as the contact(s)
and the ground planes inside the amp don’t have a resistance equaling zero but

23

have measurable resistances, they represent a load where a voltage is
dropped.
So the ground plane is not static but will be modulated with the scraps from the
left + right channel which is a summed mono signal. This can be heard and
measured as crosstalk and intermodulation. The amount is influenced by the
circuitry itself (output impedances), the layout of the amp, the quality of the
headphone cable, the ratio between the sum of the parasitic impedances to the
impedance of the voice coils … and more.

The better amp is the balanced amp or push-pull amp which consists basically
of two amps per channel, one carrying the normal signal, one the inverted
signal.
The load, the voice coil, is now pushed and pulled between the operating
voltages and has nothing to do with the ground potential. So the ground plane
is not polluted by any parasitic influences and the crosstalk is not harmed. Also
the cables of the headphone are clearly assigned:
Two cables to each voice coil with generally resistive loads and only few
complex parts.
The special feature of the combination of a balanced amp with a balanced
headphone is the superb channel separation. I want to state that also the
channel separation of “normal” headphones and amps is much better than most
program material. So there are not many complaints about – maybe because
most users don’t know about the better way…
Sometimes even the high channel separation of normal amps is perceived as
not normal and reduced artificially by “cross-feed” circuitries.
But the optimized channel separation and low intermodulation are often
responsible for the “whow” feeling which many first-time listeners have with

balanced headphones.
To say it in a striking manner:
Hearing with loudspeaker is like sitting in the audience, hearing with
headphones is like taking the place of the conductor. Hearing balanced means
being part of the orchestra.

Another technical gain is that you must not use the crappy phone jacks and
sockets no more which partly have dramatic influences on the distortion.
But also the use of 2 x 3-pin XLR connectors seems to be nor very rational.
We from Lake People / Violectric voted for a 4-pin female connector as the
output socket.

24

With a pin-out which is kind of common since the days of good old AKG K1000.
Not according to the general XLR standard but also common is that the female
connector is attached to the devices while the male connector is attached to the
headphone cable.
A question left is which headphones may be modified easily for balanced
operation:
Generally spoken nearly all headphones with cables attached to both ear
pieces.

For most headphones with the cable attached to the left earpiece there are more
efforts necessary.
Here a list of those headphones where modifications may be applied or not:
AKG: K701 possible
AKG: K702, K712, K812 not possible !!
Audeze: possible for all headphones, partly equipped with balanced connectors
ex works
Beyerdynamic: T1, T5, T5P possible
Beyerdynamic: DT 880 not possible !!
HiFi Man: possible for all headphones, partly equipped with balanced
connectors ex works
Sennheiser: HD 600, HD 650, HD 700, HD 800 possible
Ultrasone: Edition 8, Edition 10 possible

Things to know …

Why makes it sense to make such huge efforts ?

A headphone amplifier is a device designed to condition audio signals with
regard to the very specific requirements of headphones. This doesn't sound too
spectacular at the first glance and can be achieved relatively easily. As with
many things however, the devil is in the details and much more effort is required
to design one amplifier for all current headphone models.
Headphones per se are quite diverse, and there are two essential parameters:
impedance and sensitivity.
In general, headphones with higher impedance can be regarded as less
sensitive than headphones with low impedance (which is not generally true, but

25

in the majority of cases). The sensitivity of headphones is usually stated in dB
(sound pressure level) per Milliwatt.
Extremes in this sense are the AKG K1000 with 74dB/mW on the one hand, and
the Sennheiser HD25 with 108 dB/mW on the other hand: The K1000 requires
2500 times the power to achieve the same sound pressure as the HD25.
There is also the fact that headphones with high impedance usually require
much higher voltage to achieve high loudness. Thus the amplifier must be
designed with high internal supply voltages.

Which advantages do balanced signals offer ?

In contrast to unbalanced signals, balanced signals are carried by two wires
(plus ground/shield). In the transmitting device, a balanced signal is created by
generating an inverted original signal (180ˆphase shifted). The "hot" wire carries
the original signal (a), the "cold" wire the inverted signal (-a). In the receiving
device, the balanced signal is processed by a differential amplifier, which
detects the difference between both:
(a) – (-a) = 2a.
On its way between devices, the useful signal can be affected by interference =
(s). Interferences however are in phase on both wires and fed to the differential
amplifier as well. Again, the amplifier detects the difference between the
interference contents: (s) – (s) = 0. Thus - in an ideal situation - all interference
on the signal path is eliminated.

Why are discrete signal paths important ?

Twin op-amps are the most common design for operational amplifiers,
i.e. two amplifier circuits are integrated in one device. If left- and right-channel
signals are processed simultaneously by such a device, interaction between
both cannot be excluded. This interaction is admittedly diminutive, but should be
avoided whenever a different design offers the possibility.

Why are op-amps ideal for low-level signal processing ?

Discrete amplifiers (designed with transistors) are very popular in high-end
audio design also for preamplifier stages. This is often marketed as an
optimization measure, but the partially exorbitant extra expenses are of course
to be paid by the customer. But an op-amp consists of transistors as well...
Moreover, its structure has the advantage of thermal coupling between its
internal components. Also ageing issues play a much less important role. Due to

26

the large number of op-amps types offered, it is possible to pick an optimum
type for any specific application.

Why does PRE-GAIN make sense ?

Two extreme examples (with the HPA V280 at 8dB gain, volume control set to
full cw):

1st example:

The (pre-)amplifier provides 4V output voltage, whereas the headphone requires
only 2V for 100dB sound pressure level.

With the control fully turned up, the V280 would deliver 10V output at 8dB gain.
Therefore the volume control would have to be operated very carefully in order
to avoid hearing damage. Moreover, any interference at the input should be
avoided since it would be "unforgivingly" amplified as well. With PRE-GAIN, the
input level can be reduced by 12dB (a fourth), with 1V instead of 4V as the
result. This 1V is again amplified by 2.5, then equalling 2.5V. Now the volume
control can be turned over almost the entire range.

2nd example::

The (pre-)amplifier provides 1V, whereas the headphone requires 20V to
release 100dB of sound pressure.

With the volume control fully clockwise, the V280 would provide 2.5V at 8dB
gain only - much to low for the headphone. By means of PRE-GAIN, input level
can be boosted by 12dB (four times), resulting in effective 4V. These are again
multiplied by 2.5, now equalling 10V. This is still not enough, but far closer to the
optimum value: The headphone achieves 114dB sound pressure level.

Why does frequency bandwidth limiting make sense ?

In signal processing, sound is represented by AC voltages. Sound is audible ­for young people - from about 20 to 20000 Hz. The elder the listener, the less he
will hear high frequencies in particular.
In order to transmit these frequencies at optimum quality, the frequency
response of an amplifier should be as wide and as "flat" as possible. At the low
end of the scale, this limit is represented by DC, as there is no frequency lower
than zero. In upward direction, the limit can be set to practically any frequency,
but the higher, the more susceptible the device becomes concerning electro­magnetic interference. This is not audible in the first place, but may interfere
with the useful signal and then become evident. Therefore, unrestricted

27

frequency response attests thoughtlessness rather than remarkable engineering
skill.

Why is a good volume pot essential ?

A volume potentiometer is a mechanical control element, which can be obtained
on the market at any low price. Meanwhile it is often replaced by electronic
circuitry, exhibiting essential disadvantages concerning dynamic range, noise
and distortion.
Conductive-plastic resistive tracks, high-quality multi-tap wipers and separated
chambers for the individual sections are highly desirable for sophisticated
applications, and high quality is inevitable to ensure trouble-free operation for
years. Since the market for really good pots is a small one, manufacturers like
Noble or Panasonic don't offer these any more. A current sample of top of the
line pots is the RK27 by ALPS, which is also used in your HPA V280.

Why is a low output impedance essential ?

When actuated, electro-dynamic systems respond with a counterforce. When
the voice coil of a headphone has been displaced by the signal, an (error-)
current will be induced when it swings back to its initial position. This current
must be suppressed as far as possible, which is effected best if the amplifier's
output impedance is the lowest possible. The damping factor describes nothing
but the ratio between output impedance of an amplifier and a given load.
Since there is no known technical specification, we define the load (voice coil
impedance) as 50 ohms. With V280 having an output impedance of <0.2 ohms
this results in a damping factor 250.

Why are high supply voltages essential ?

A headphone doesn't really require high power, but from the equation
P = U2 / R we can see that the square of the supply voltage determines the
power into a given load resistance. The higher the headphone's impedance, the
more voltage will be needed. But this deals with the achievable loudness to a
limited extent only: Technically spoken, music lives on fast transients which put
high demands on signal processing. And thus a fast transient can easily push an
average amplifier with +/-15 volts supply to its limits (90 % of all headphone
amps in the market are operated with these or even lower supply voltages). Due
to the high supply voltage of V280 you will benefit from more than doubled
output voltage swing capability.

28

Why does a relay make sense when switching power ?

Amplifiers generate unwanted output signals when applying or removing power,
which can damage the connected headphones. The relay breaks the connection
between amplifier and headphone and thus protects the latter until electrical
conditions have stabilized.

Some words about the different digital input options.

Currently the HPA V280 can be fitted with one out of seven D/A converter types,
with three different inputs and a max. sample rate of 96 or 192 kHz:
The COAX input accepts digital PCM audio data in S/P-DIF format, at sample
rates from 28 to 108 kHz (or 210 kHz resp.).
The OPTO input, fitted with a TOS-LINK interface, accepts digital audio data at
sample rates from 28 to 108 kHz (or 210 kHz resp.).
The USB type “B“ input can be connected to a host computer (PC or laptop).
The USB module will automatically be detected as an audio device.
The USB 96 input is compatible with USB 1.1 and 2.0 standards. It accepts
digital audio formats up to 24 bit at sample rates of 44.1, 48 and 96 kHz, while

88.2 kHz is not supported.
The 96 kHz digital modules comprise a D/A converter with a dynamic range of
110 dB and –100dB THD+N, thus ranging in the upper-mid performance class.
There are TWO different USB 192 modules, compatible with the USB 2.0
standard. Both require a proprietary driver, which can be downloaded from

www.violectric.de.

Digital audio formats up to 24 bit at sample rates of 44.1, 48, 88.2, 96, 176.4
and 192 kHz are supported, as well as the so-called “asynchronous mode”.
By now we recommend the “Tenor” chip-set for Windows applications and the
“X-Mos” chip-set for Mac users.
The 192 kHz modules are equipped with a top-notch converter offering a 115 dB
dynamic range and –103 dB THD+N, along with significantly improved analog
output circuitry.

Please note:

- The digital input has priority over all other inputs and will mute these when a
valid digital signal is detected

- When a USB cable is inserted, it may be required to restart running media
applications on the host.

- Volume control of the host application should be set to 95-100%.

29

Which USB devices can be connected to the HPA V280 ?

Connections can be established to table-top or laptop PCs. MP3 players or
similar gear cannot be connected.

Why does 95-100% host volume setting make sense ?

Volume control within the host is always accomplished digitally, i.e. bits are
removed from the data stream. This may affect the signal quality because the
resolution will become lower and the distortions may rise.
In practise those effects will appear at such low levels which will not allow a
valuation of the signal quality

DISPOSAL

Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other
European countries with separate collection systems)
This symbol on the product or on its packaging
indicates that this product shall not be treated as
household waste. Instead it shall be handed over to

the applicable collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product.
The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please
contact your local Civic Office, your household waste disposal service or
the shop where you purchased the product.

30

DISMANTLING / JUMPER SETTINGs

Hint:

Here we are talking about internal adjustments inside your HPA V280.
You are in need of two screw drivers TORX style size T8 and T10.

You should by all means

PULL THE MAINS PLUG !!!

Only thereafter the settings can be altered without any hazard.

DISMANTLING

To avoid damages please follow the instruction below:

1. screw off both upper screws on the front panel

2. screw off both upper screws on the back panel.

3. unscrew both lower screws on the front panel by 3-5 turns to tilt the
front panel a bit

4. now lift the upper lid

5. make your personal jumper settings

5. assemble the unit in reverse order

31

JUMPER SETTING HPA V280

32

TECHNICAL DATA HPA V280

All Measurements RMS unwtd., 20 Hz - 20 kHz, Pre-Gain set to 0 dB

Inputs: 2 x XLR female, balanced,
2 x RCA, unbalanced
1 x digital (Option)
Max.input voltage: + 21 dBu,
Input impedance: 10 kohms
Nominal input sensitivity: +6 dBu
Amplifier gain: +2 dB unbal. / +8 dB bal.
PRE-GAIN: -12 / -6 / 0 / +6 / +12 dB
Frequency range: 5 Hz ... 70 kHz (- 0,5 dB)
3 Hz … 200 kHz (-3 dB)
Output impedance: < 0,085 Ohm unbal. / < 0,165 Ohm bal.
Damping factor (Load 50 Ohm): 600 unbal. / 300 bal.
Dynamic range: > 128 dB (A-wtd)
Noise: < -94 dBu (A-wtd)
THD+N (1kHz/2x10V/100R = 1W) < -102 dB / < 0,0008 %
THD+N (1kHz/2x4V/32R = 0,5W) < -99 dB / < 0.001 %
Crosstalk: -115 dB (1 kHz) / -105 dB (15 kHz)
Headphone outputs: 1 x 4-pin XLR
2 x ¼“ (6.3 mm) Phone Jack

Max. output level:

RL

(x 2 )

Ua

(dBu)

Ua

(V)

Pa

(mW)
(1kHz / < 0.1% THD+N) 600 32,6 32,9 1800
300 31,2 28,2 2650
Balanced operation 100 29,4 23,0 5300
Both channels driven 50 24 12,4 3100
32 21,4 9,1 2600
16 16,0 4,9 1500

Power supply: 230 V AC / 115 VAC max. 30 VA
Case, Front, Back: Aluminum
Dimensions: 170 x 49 x 310 mm (B x H x D)

33

EC

CONFORMITY STATEMENT

:

We herewith declare that the following unit
Name: VIOLECTRIC HPA V280
Serial No. : -all ­is in conformity with the following EC directives:

2006/95/EG Low voltage directive
20014/30/EC EMC directive
EN 60065:2002+A12:2011 Security directives for audio-,
JIS C6065:2013 video- und similar electronic devices
2001/95/EC General Product Safety Directive

For verification of conformity with regard to electromagnetic compatibility the
following harmonized standards are applied:

EN 50081-1:1992 Generic emission standard
EN 50082-1:1992 Generic immunity standard

Product family standard for audio, video, audio-visual entertainment apparatus:

EN 55013:2001 EN 61000-3-2:2000
EN 55020:2002 EN 61000-3-3:1995

2011/65/EU, RoHS directive
2012/19/EU, WEEE directive / Member No.: DE 26076388

This declaration is given under responsibility of:

Konstanz 01.03.2016 Fried Reim CEO

LAKE PEOPLE

electronic GmbH

Turmstrasse 7a
D-78467 Konstanz

Fon [phone]
Fax [phone]

34

WARRENTY

Since 1986 we are constructing and manufacturing sophisticated
electronics for ambitious customers.
Since the early beginnings we are trying hard by accompanying
measures, the use of 1st choice components and multiple quality
checks during production to avoid faults at large.
We are quiet effective in that and this is – amongst others - why we
enjoy such a good reputation.
Despite all accurateness faults may occure which may derogate the
proper operation of your product.

In this case your unit is protected by a 5-year Warranty !

Needless to say that we will care for your product even after the
expiration of the warranty. If it is necessary please dispatch your item to:

Lake People electronic GmbH Fon [phone]
Turmstrasse 7a Fax [phone]
D-78467 Konstanz E-Mail [e-mail]

Your warranty claim begins with the date of purchase, which should be denoted on your
proof of purchase.
Do not forget to include the receipt of sales or a copy of the receipt.
Please also include a short description of the fault(s).
For the reshipment we need you correct address !!
Care for a safe packaging. Best is to use the original packaging.
Please keep in mind that we cannot accept collect freight.
We will grant a quick repair and quick return of the unit.
In case of a warranty repair we will reship free of charge.

Please denote here the serial number and the date of purchase:

Serial Number Date of Purchase
